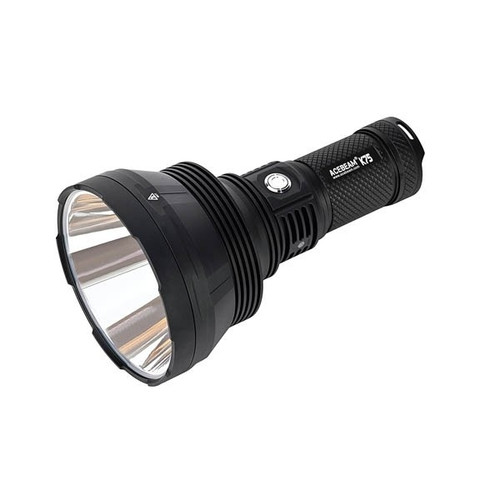

843.3g, 1650 Lumens, 364,816cd: The AceBeam K75 Red is high performance professional grade handheld Red light LED searchlight. It uses innovative Luminus SBT-90 RED. It has a maximum output of 1650 lumens of Red light and has a peak beam distance of 1.2 km. It is powered by four rechargeable 18650 batteries. The lockout mode, battery level indicator, rear tripod threaded receptacle, etc are few outstanding features. The Red light has a perfect throw for various outdoor activities including spotting animals with less disturbance and hunting. It is also available in white output version. Red light output handheld 1.2 km throw searchlight!

Features:

• It utilises one LUMINUS SBT-90 RED.
• It has maximum output up to 1650 lumens with 1208 metres of beam distance.
• ECO and POWER mode switch toggles between everyday and search-and-rescue settings.
• Highly efficient constant current circuit design (Non-PWM).
• Intelligent temperature controller is used to adjust brightness and prevent overheating.
• Rear tripod receptacle brings extra functionality.
• Battery level indicator lights for easy power monitoring.
• Lockout mode prevents accidental activation.
• Toughened ultra-clear mineral glass lens with an anti-reflective coating.
• Integrated Precision Digital Optics Technology provides extreme reflector performance.
• Sturdy aerospace-grade aluminium body with military grade type III hard-anodised finish.
• Package Includes:
• 1 x AceBeam K75
• 1 x Handle
• 1 x Lanyard
• 2 x O-Rings
• 1 x User Manual
• 1 x Warranty Card

Specifications:

• LED: LUMINUS SBT-90 RED
• Runs On: 4 x AceBeam 3300mAh IMR 18650 (Batteries and Charger not Included) See related products for batteries and charger.
• Peak Beam Distance: 1208 metres
• Peak Beam Intensity: 364,816cd
• Brightness Outputs:
• POWER Mode:
  Ultra-Low: 2 lumens - 9 days
  Low: 57 lumens - 38 hours
  Mid 1: 120 lumens - 20 hours
  Mid 2: 380 lumens - 6 hours 30 minutes
  High: 800 lumens- 2 hours 45 minutes
  Turbo: 1650 lumens -1 hour 30 minutes
  Strobe: 1000 lumens - 4 hours
• ECO Mode:
  Ultra-Low: 2 lumens - 9 days
  Low: 38 lumens - 38 hours 45 minutes
  Mid 1: 76 lumens - 26 hours
  Mid 2: 189 lumens - 13 hours
  High: 543 lumens - 4 hours 30 minutes
  Turbo: 1000 lumens - 2 hour
  Strobe: 1000 lumens - 4 hours
• IPX Rating: IPX68 waterproof (2 metres submersible)
• Impact Resistance: 1 metre

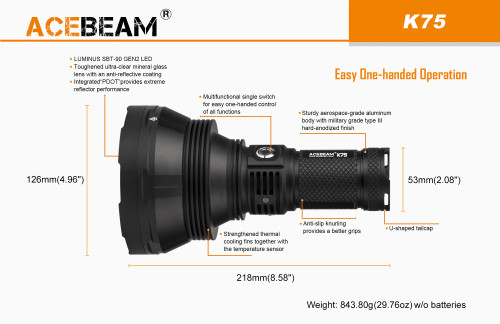

• Dimensions:
  • Length - 218 mm
  • Head Diameter - 126 mm
  • Body Diameter - 53 mm
• Weight: 843.8 g (Excluding Battery)

Note: In order to achieve POWER&ECO modes, the K75 must be installed with 4 x 18650 high drain batteries that can produce at least 10 Amps of current. ECO mode will only work when using the batteries current ＜10 Amps.
