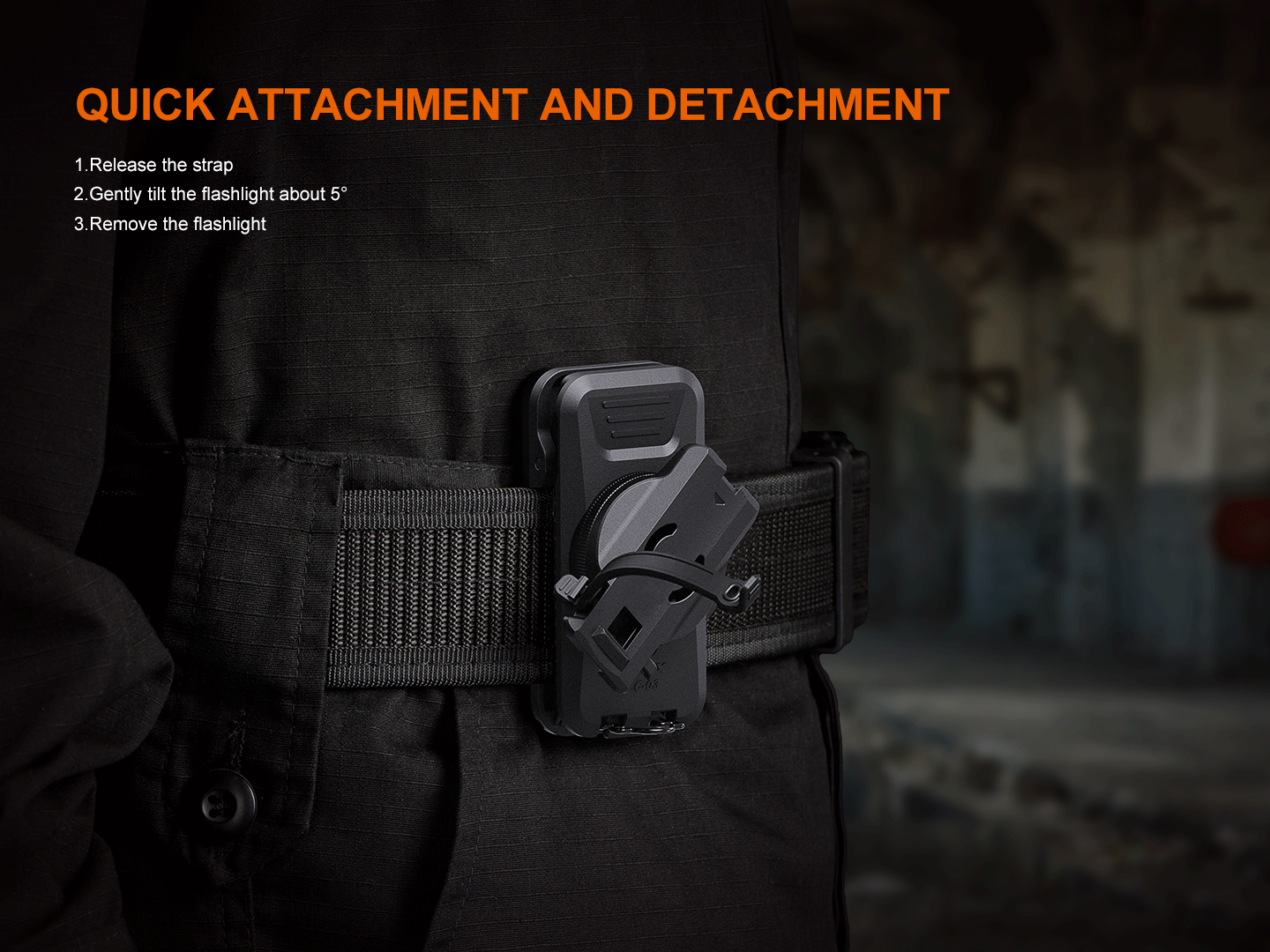

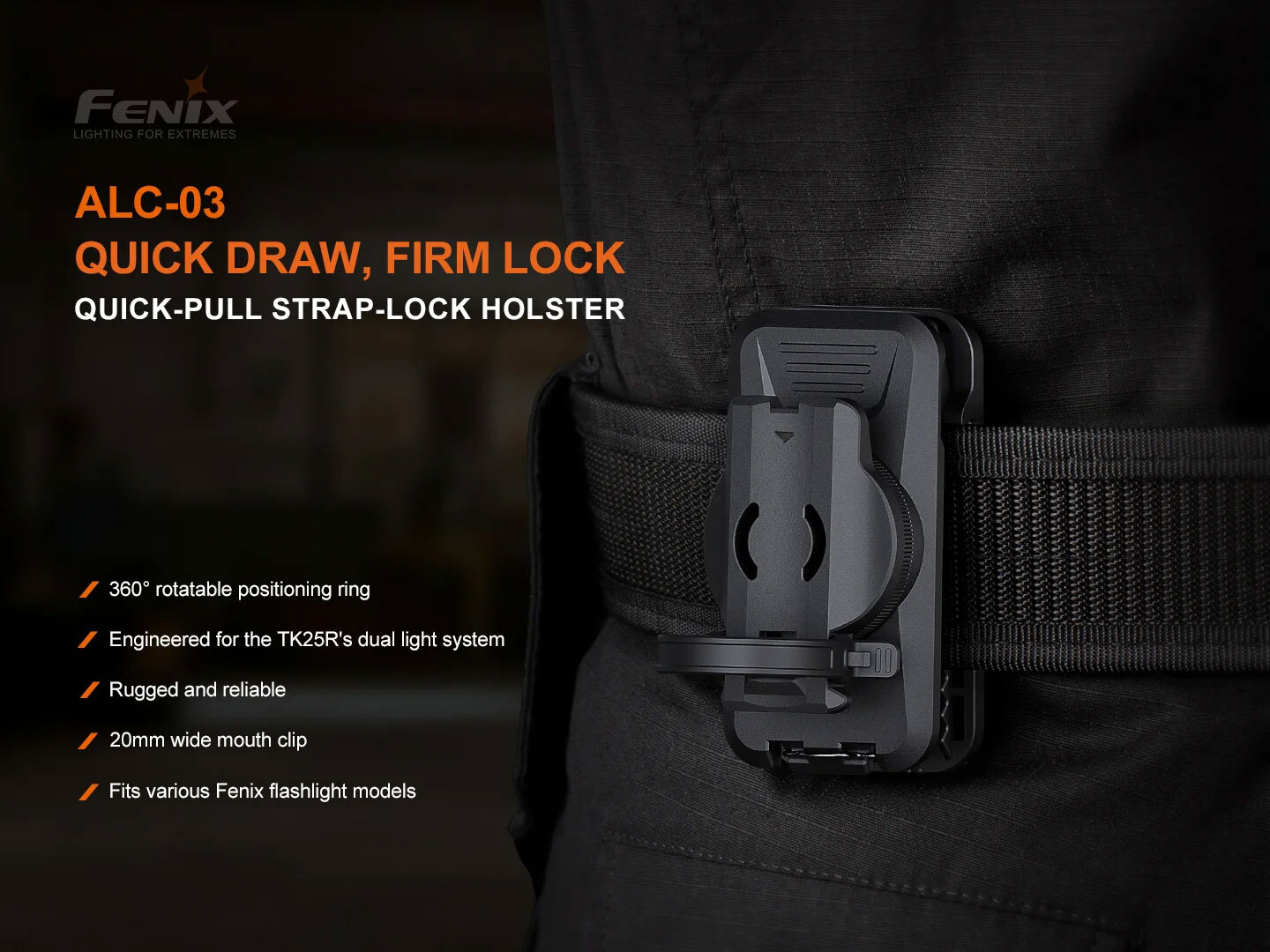

The Fenix ALC-03 is a specialized "Quick-Draw" rigid holster designed to turn your tactical torch into a hands-free lighting tool. Unlike traditional nylon pouches that simply store your light, the ALC-03 uses a unique clip-lock system that secures the flashlight via its own pocket clip, allowing you to draw and re-holster with speed and precision.
Engineered originally for the Fenix TK25R to utilise its side-facing tactical beacon, the ALC-03 features a 360-degree rotary mechanism with 15-degree locking increments. This allows you to angle your light forward while it sits on your belt, vest, or pack strap - perfect for hands-free patrolling, reading documents, or lighting your path while.
Why the ALC-03 is Essential Gear
- 360° Hands-Free Rotation: The holster rotates fully and locks into 15 positions. You can direct your light beam exactly where you need it (forward, down, or up) without holding the torch.

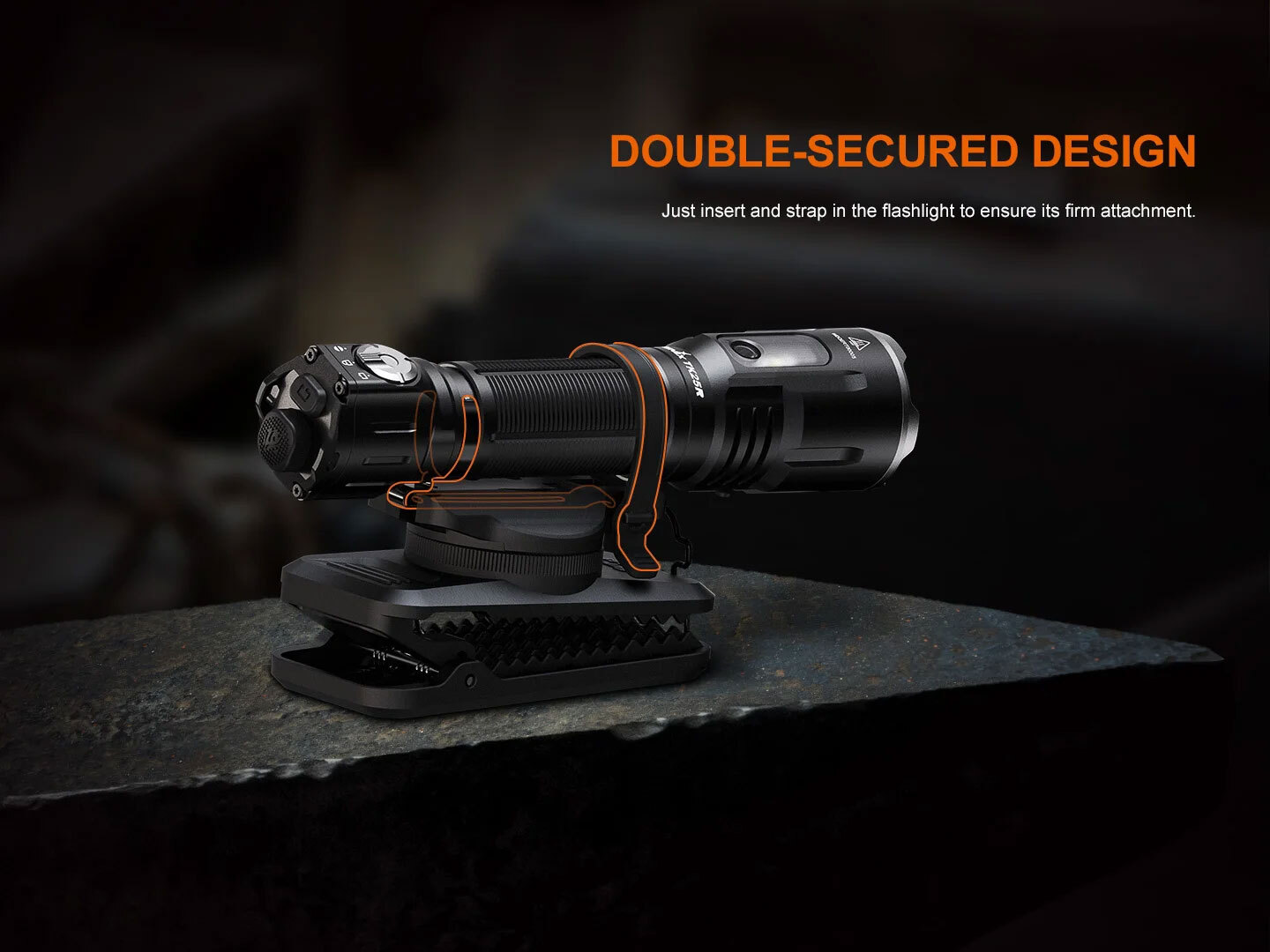

- Quick-Pull "Strap-Lock" Security: Your flashlight is secured by its own metal pocket clip, which slots firmly into the holster. For high-intensity movement (running, jumping), an elastic rubber strap loops over the head to provide double-security against loss.
- Open Design for Instant Access: The skeletonized design leaves the tail switch and side buttons fully exposed. You can activate your light before you draw it, or use it while it's still on your hip.

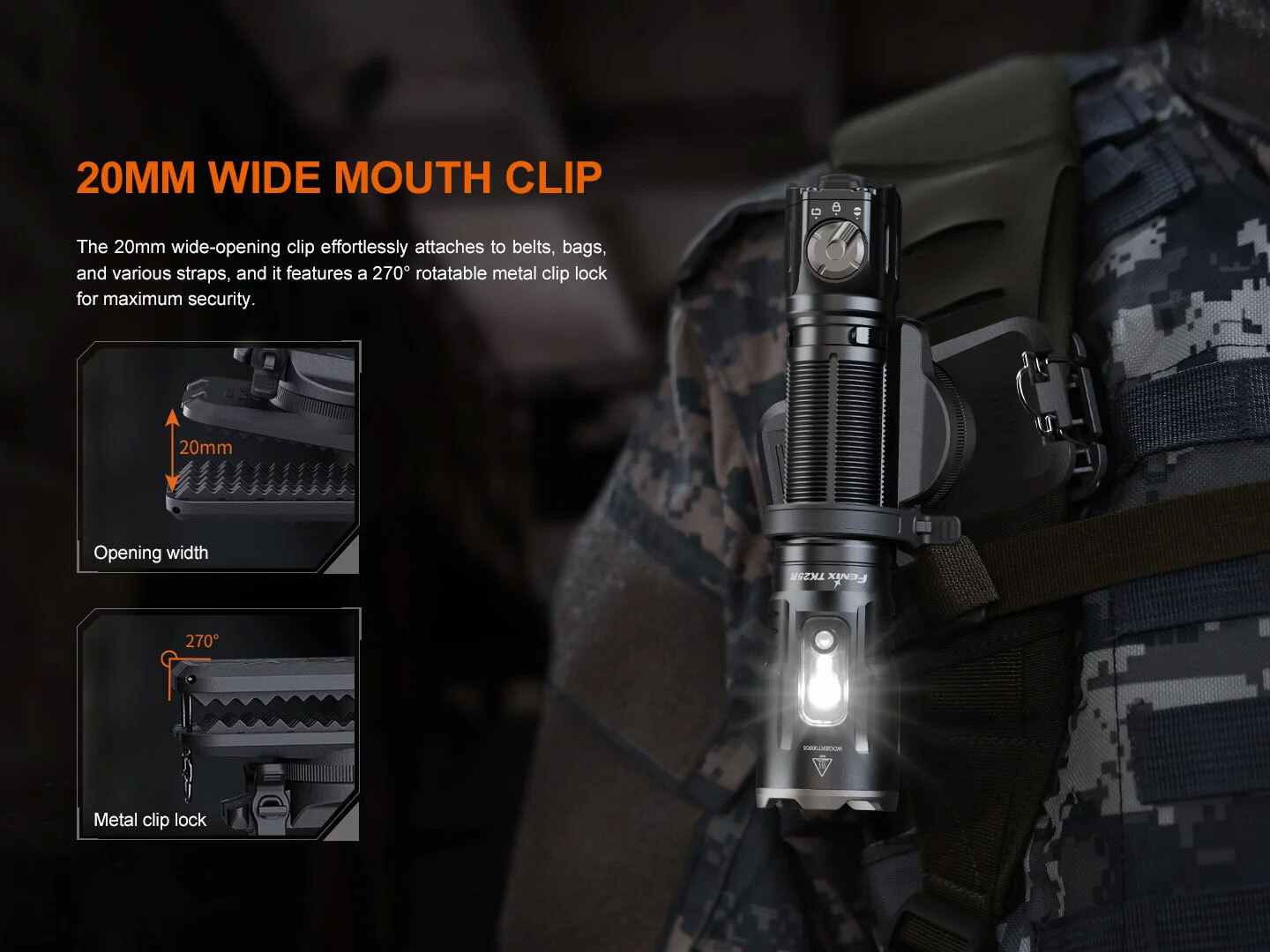

- Versatile Mounting Clip: The robust rear spring-clip features a wide 20mm opening, designed to bite securely onto tactical vests (MOLLE), backpack straps, pockets, and belts.*
- Rugged Composite Build: Constructed from fiberglass-reinforced nylon, the ALC-03 is lightweight yet impact-resistant, built to withstand the rigours of daily duty use.
Technical Specifications
| Feature |
Details |
| Rotation |
360° (15° click-stops) |
| Material |
Fiberglass-Reinforced Nylon |
| Mounting System |
Spring Clip with 20mm Max Opening |
| Retention |
Pocket Clip Slot + Elastic Head Strap |
| Dimensions |
96mm x 48mm x 43mm |
| Weight |
86g |
*Note: The rear clip is designed for webbing, straps, and standard belts. It may not fully close around extra-wide (2.25") rigid duty belts, but can attach securely to molle loops often found on duty gear.

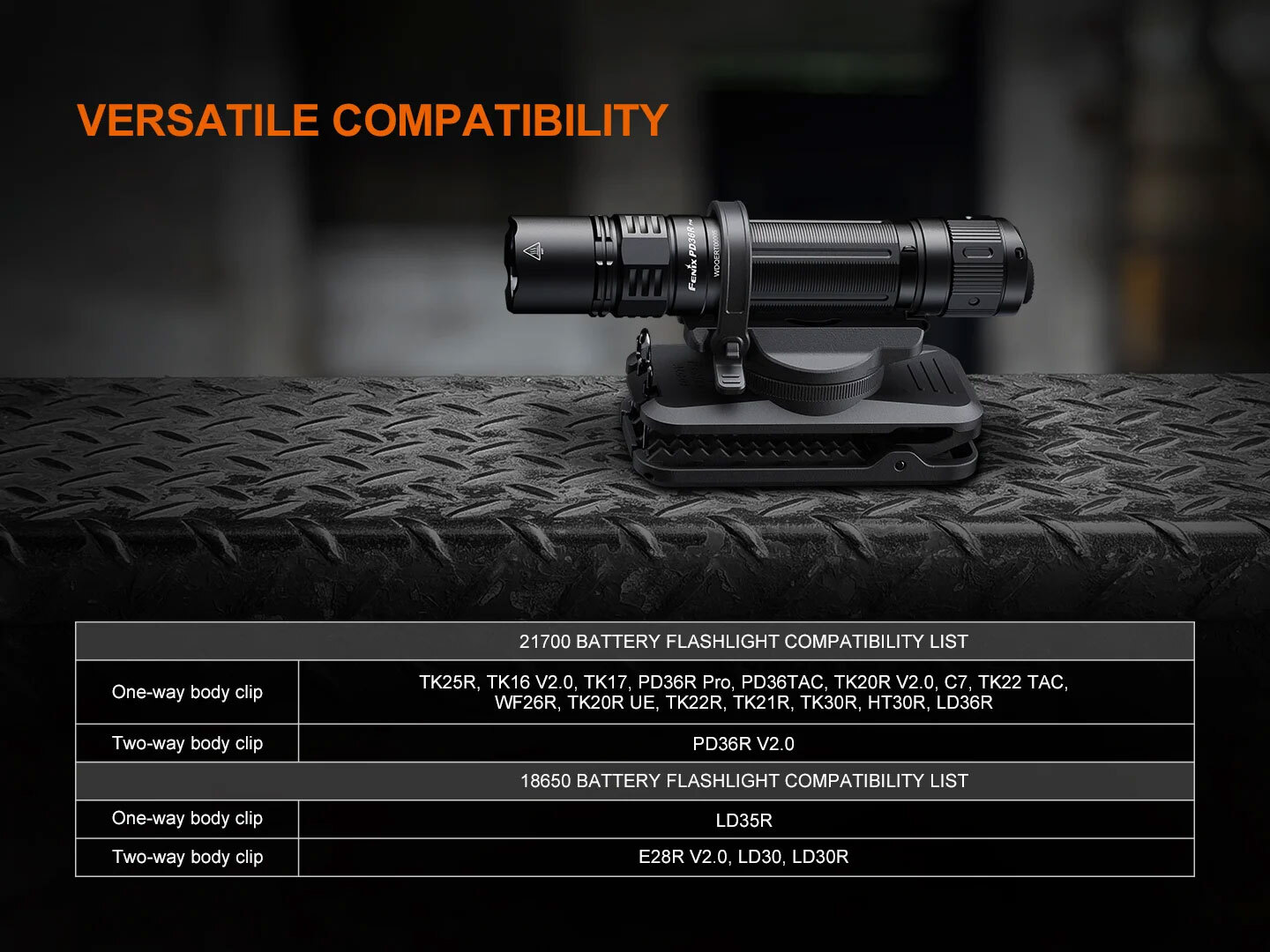

Flashlight Compatibility
The ALC-03 is compatible with flashlights that have a body diameter of roughly 25.4mm (1 inch) and a head diameter up to 40mm, provided they have a pocket clip installed.
Primary Fit: Fenix TK25R, TK16 V2.0, TK28R
Also Compatible With:
- PD36R Pro, PD36R V2.0, PD36 TAC
- TK20R V2.0, TK20R UE
- C7, E28R V2.0
- LD30, LD30R

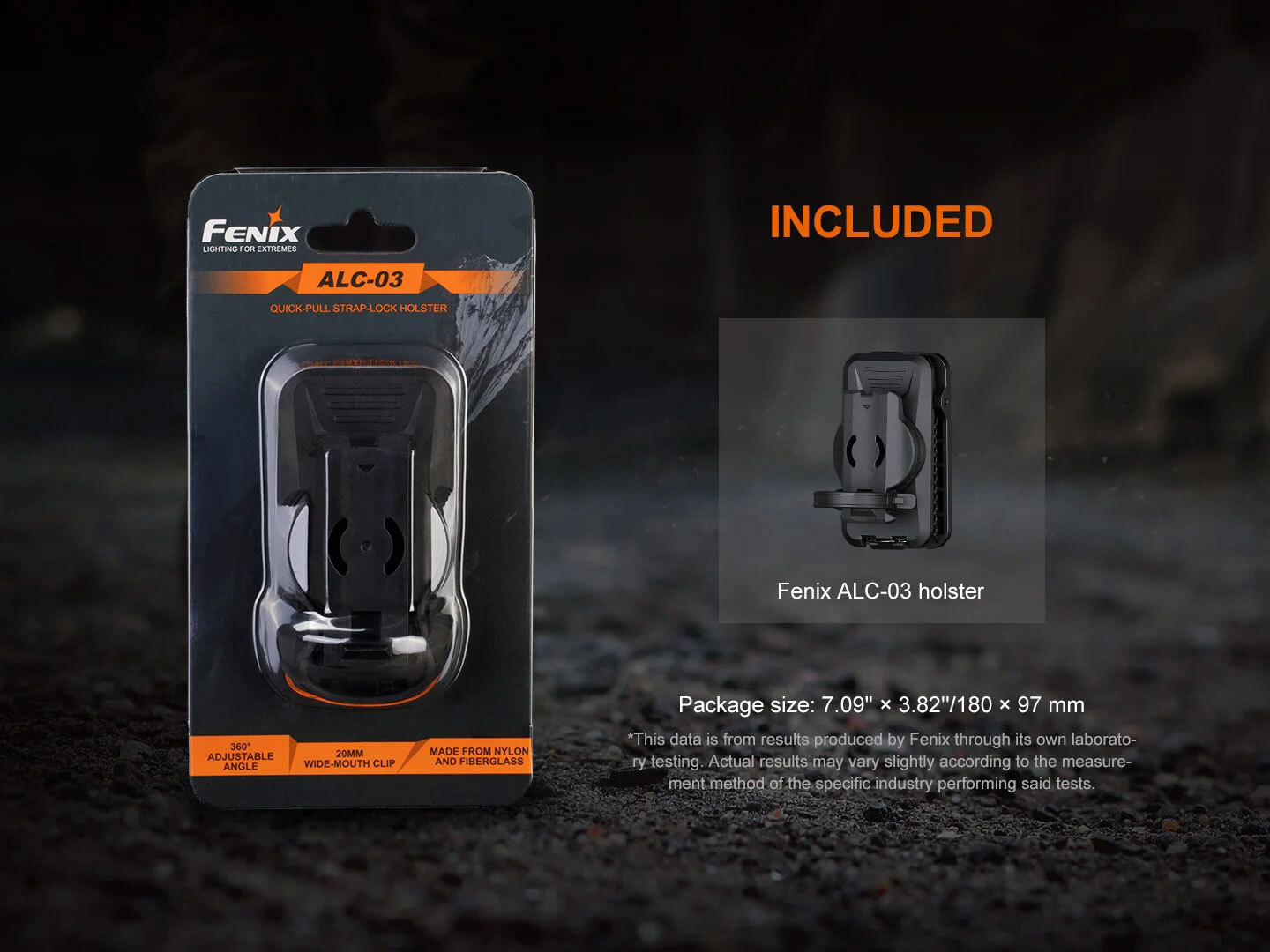

What's In The Box?
- 1 x Fenix ALC-03 Rotary Holster
- 1 x Spare Elastic Retention Strap
