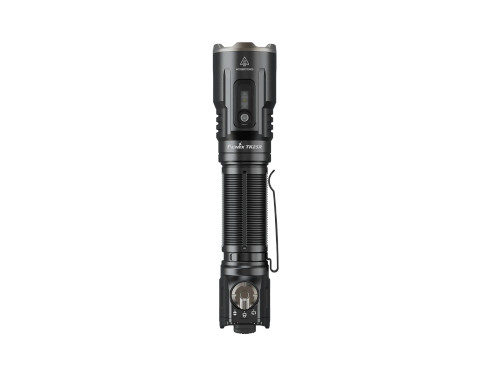

The Fenix TK25R is a complete reimagining of the duty flashlight, combining a powerhouse searchlight with a specialized tactical signaling cluster in a single, rugged chassis. Designed for law enforcement, security operations, and professional tracking, the TK25R delivers a massive 3600 lumens of white light from its primary emitter, while a dedicated side-mounted array offers immediate access to auxiliary white, red, UV, and signaling modes.

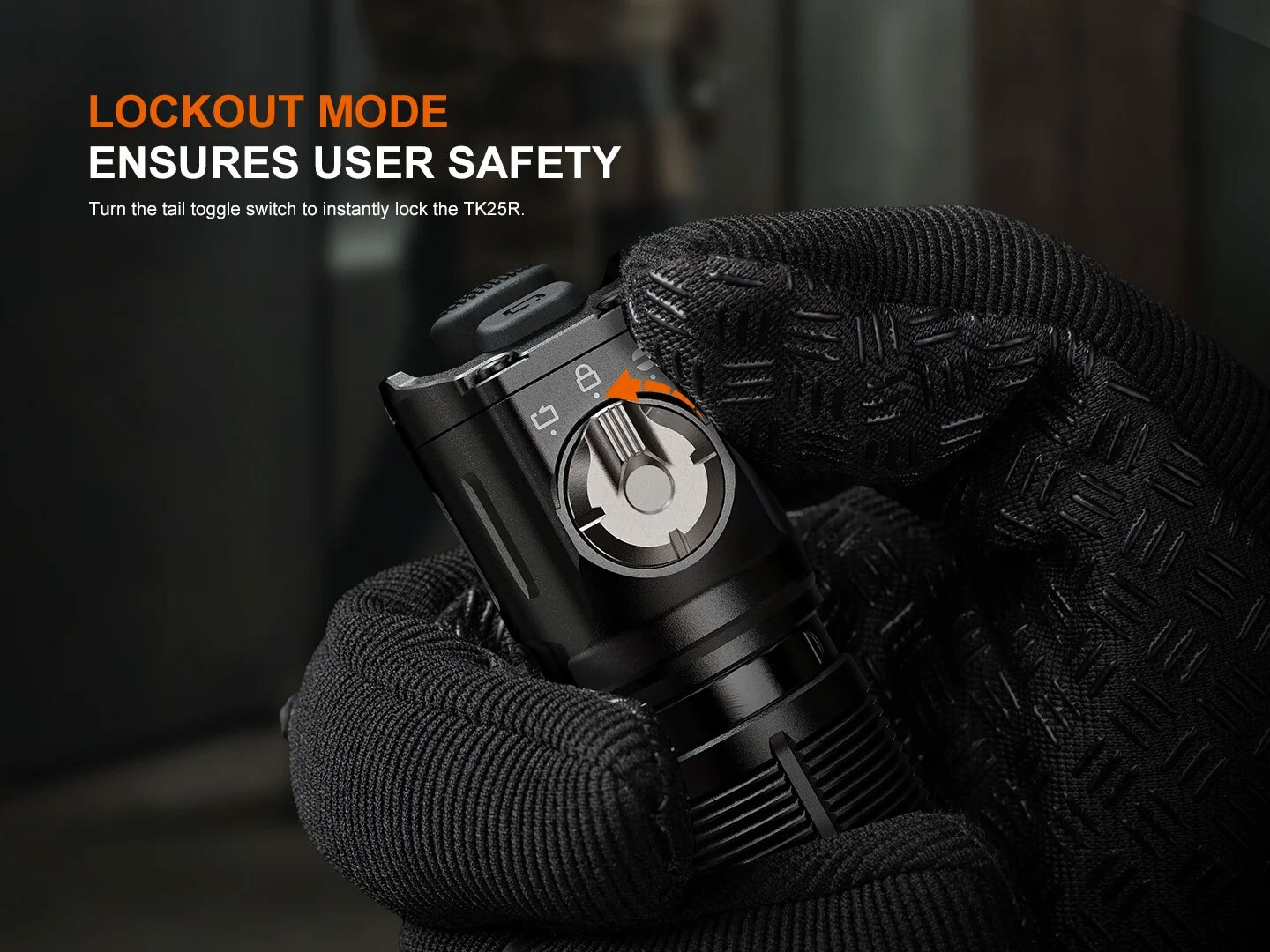

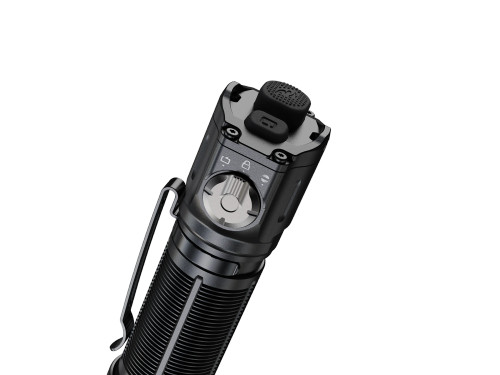

Engineered for the demands of the Australian field, the TK25R features Fenix's patented "Tri-State" tail toggle. This mechanical switch allows you to physically lock the light into Duty Mode (Forward throw), Tactical Support Mode (Side lights), or Lockout. This means you can holster your light knowing exactly what beam will activate under stress - no complex UI fumbling required.
Why the TK25R Stands Alone
3600 Lumen Duty Beam: The main LED blasts a focused beam up to 350 metres, perfect for open-field searching and identifying targets at distance.

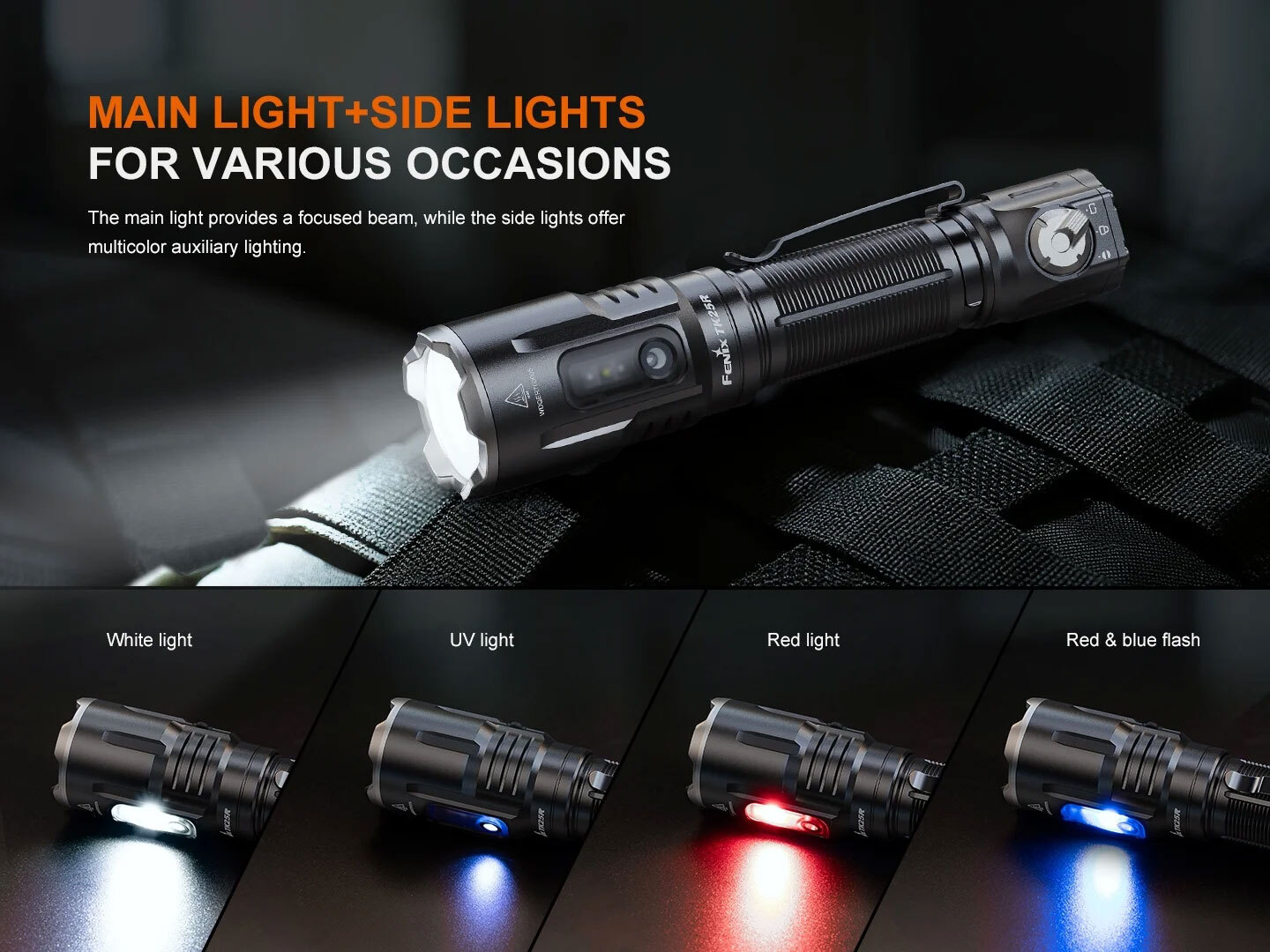

Tactical Support Array (Side Lights): A separate multi-LED cluster on the side of the head provides diffused white light for document reading, 365nm UV for forensic inspection, and Red/Blue strobes for emergency signalling.

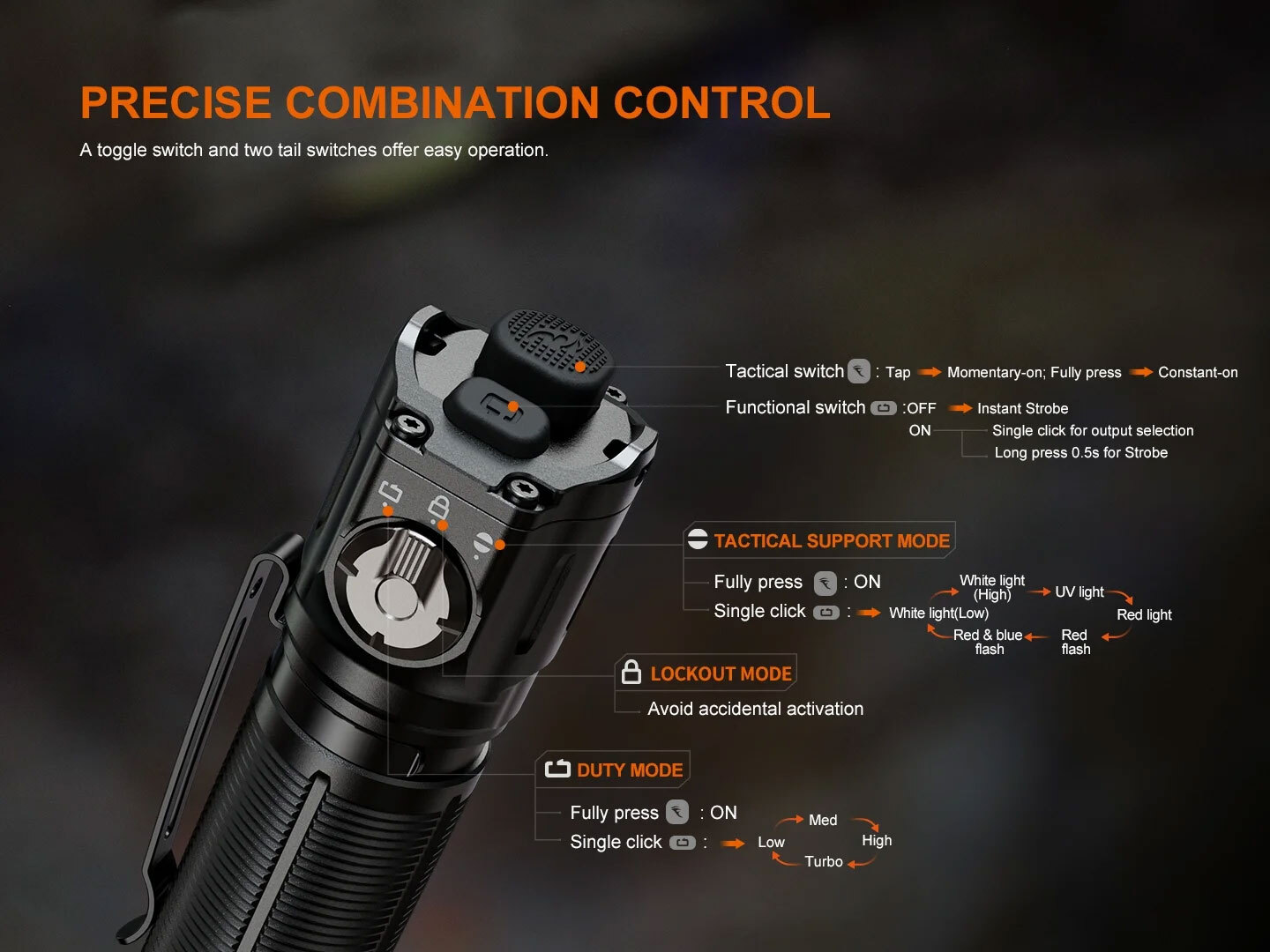

Mechanical Mode Isolation: The physical tail toggle separates the main beam from the auxiliary lights. If the toggle is set to "Duty," the side lights cannot be accidentally activated, ensuring 100% operational discipline.

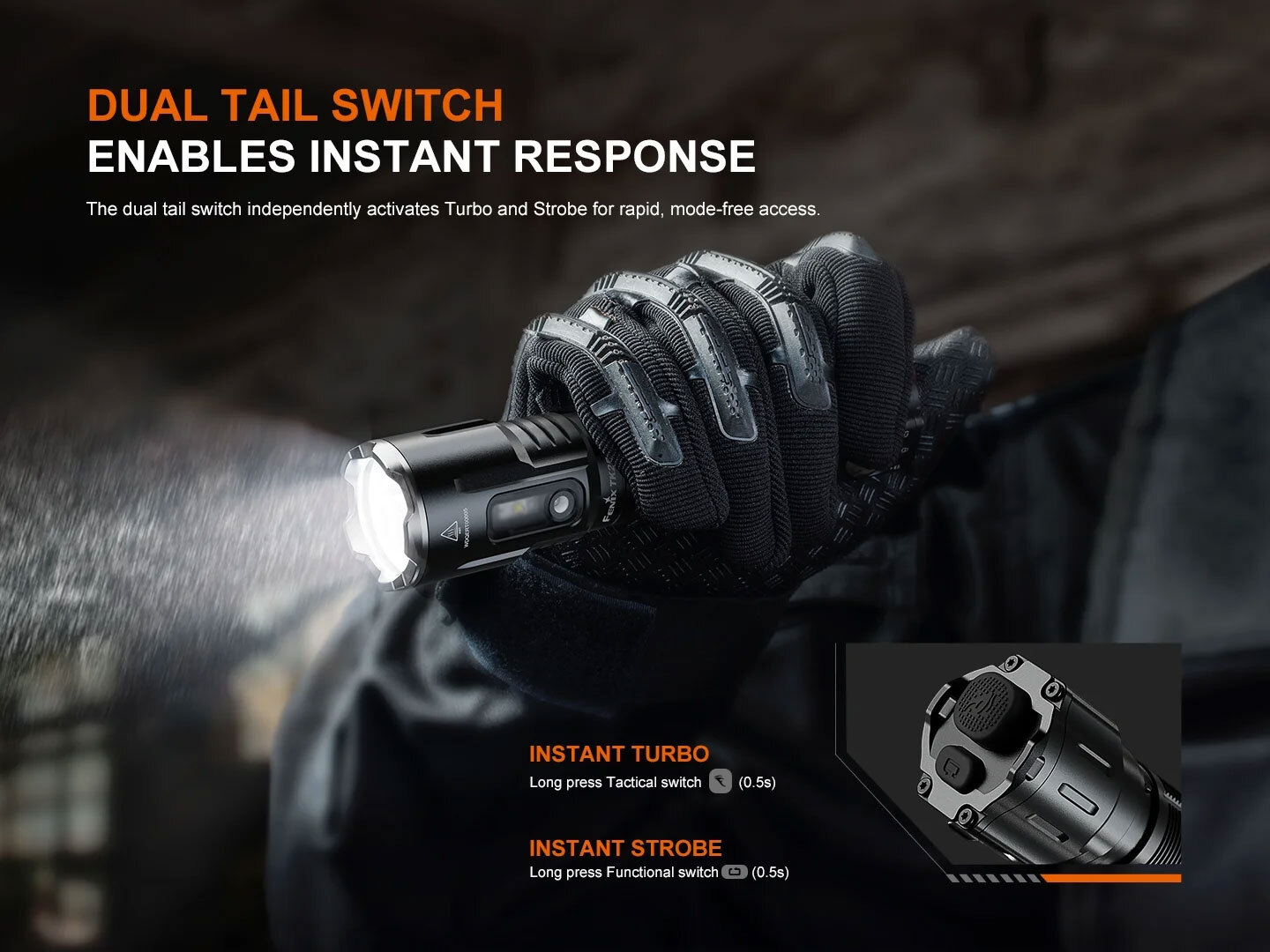

Dual-Switch Tail Cap: A large tactical switch handles momentary and constant activation, while a functional switch gives instant access to Strobe (in Duty Mode) or cycles through auxiliary colours (in Tactical Support Mode).

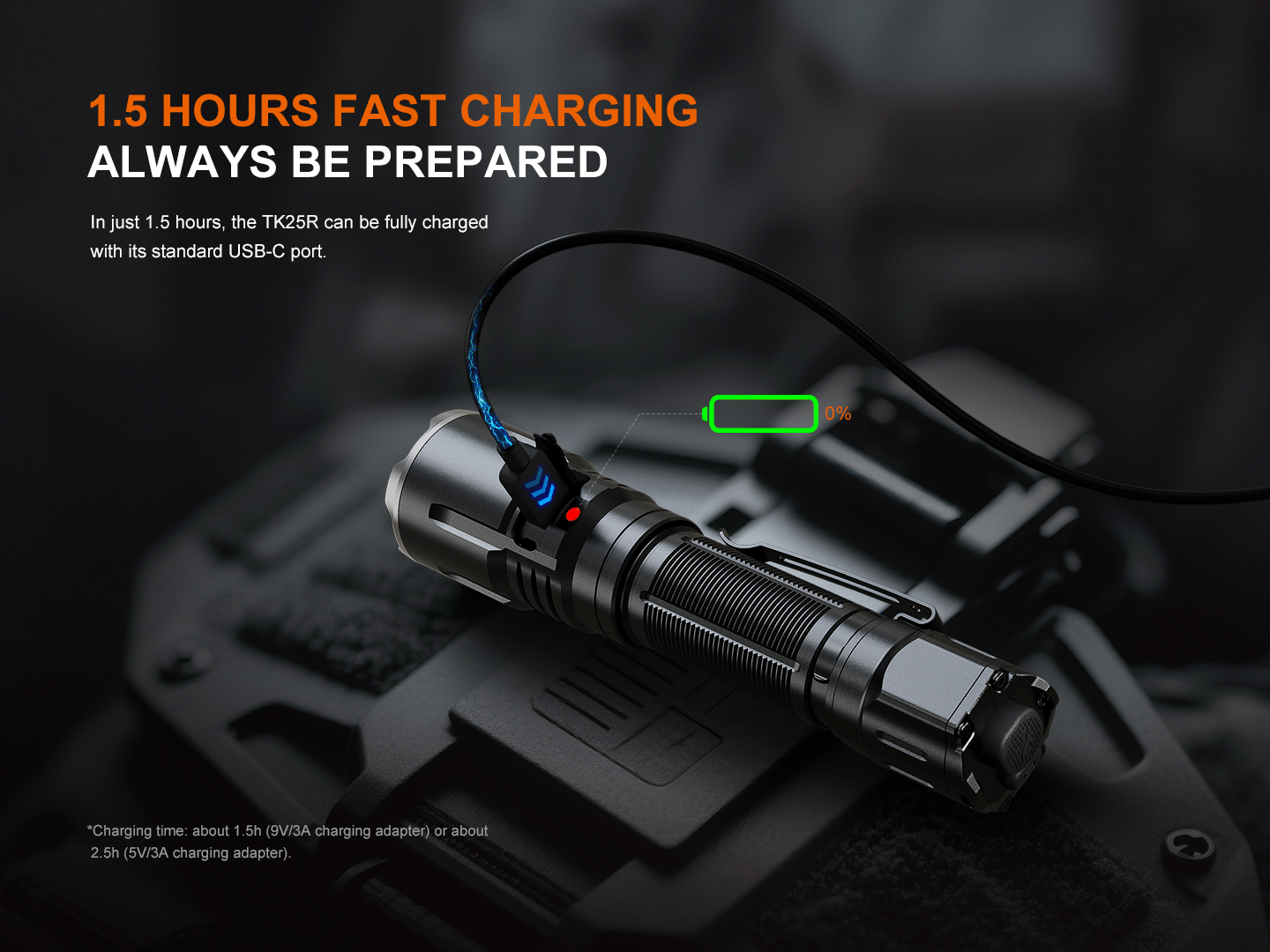

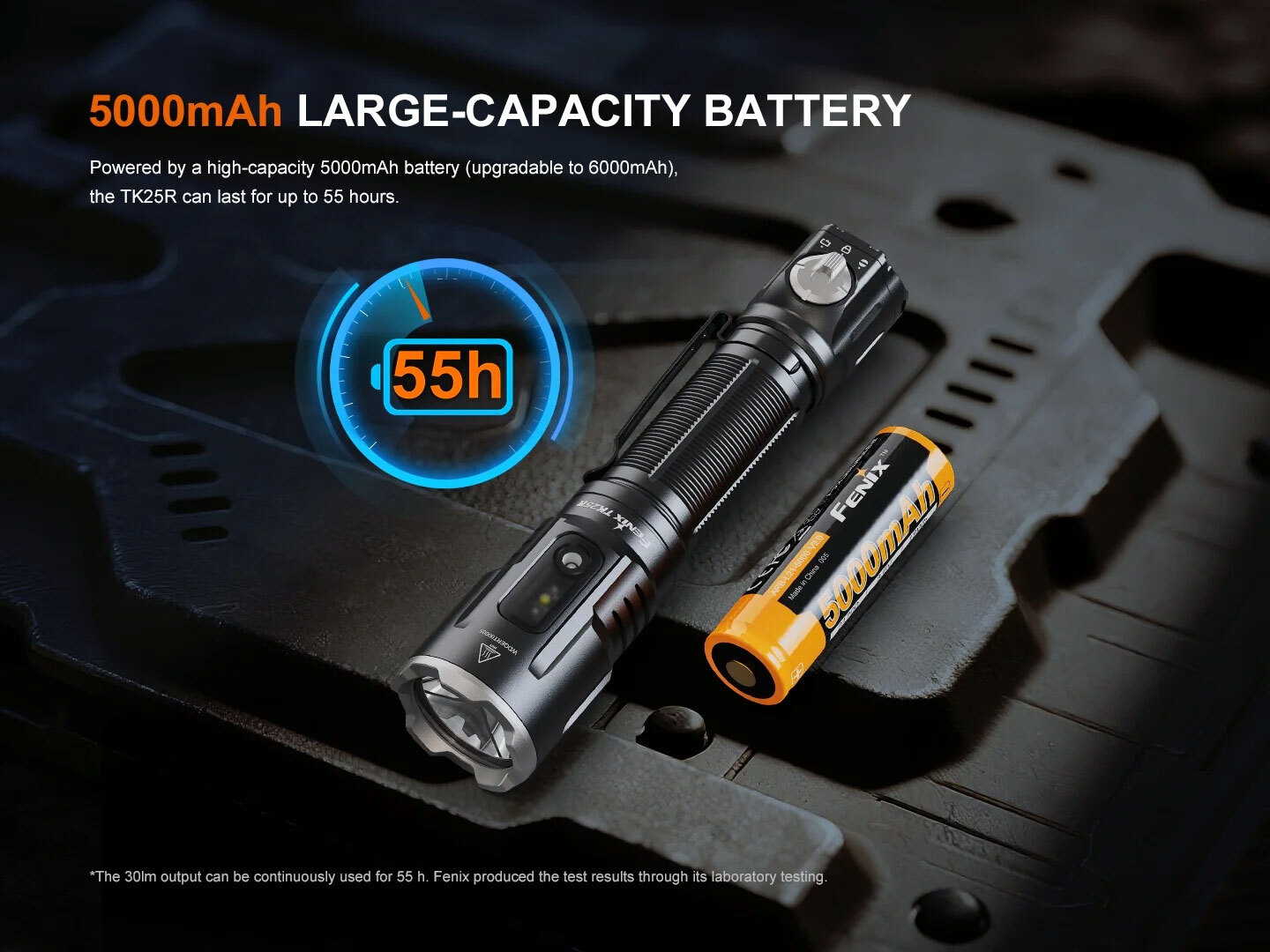

Rapid USB-C Charging: The internal waterproof USB-C port charges the included 5000mAh 21700 battery in just 1.5 hours, getting you back in the field faster.
Key Information
Feature
Details
Material
A6061-T6 Aluminium
Primary Light Source
1 x Cool White CREE XHP50.3 LED
Auxiliary Side Lights
Floodlight: 1 x Cool White LED
UV: 1 x 365 nm Ultraviolet LED
Red: 1 x Red LED
Blue: 1 x Blue LED (For Red & Blue Flash only)
Power Source
1 x 21700 3.6 V Lithium-ion Battery
Recharging Method
USB Type-C
Package Includes
1 x Fenix TK25R
1 x Fenix ARB-L21-5000 V2.0 Rechargeable Lithium-ion Battery
1 x USB Charging Cable (USB-A to USB-C)
1 x Holster
1 x Lanyard
1 x Spare O-ring
1 x User Manual
1 x Warranty Card
Warranty (Torch)
5 years
Warranty (Battery)
1 year
Warranty (Accessories)
1 year

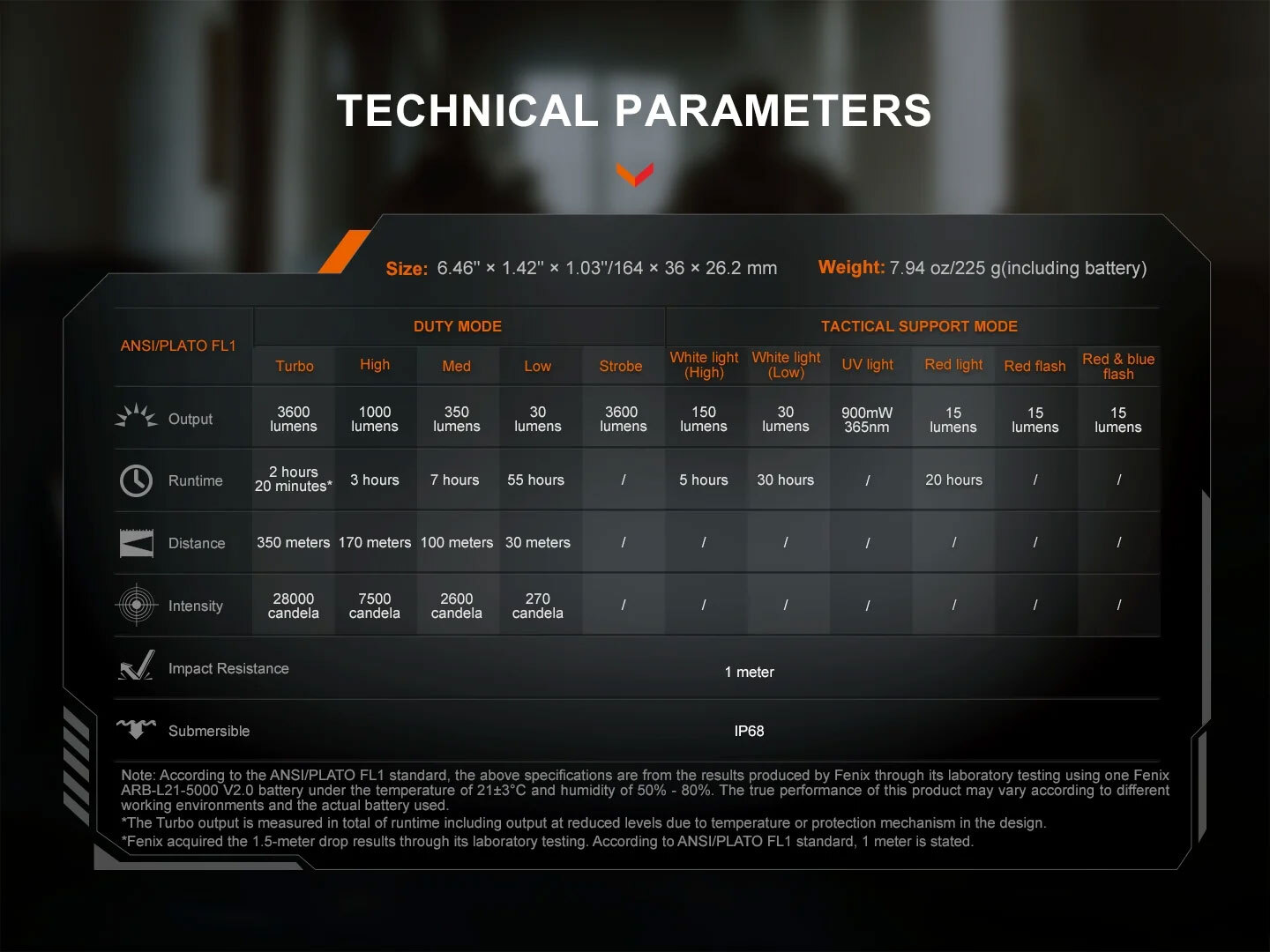

ANSI FL Specifications
Feature
Measurement
Maximum Light Output
3600 lumens
Maximum Runtime
55 hours
Maximum Beam Distance
350 metres
Peak Beam Intensity
28000 candela

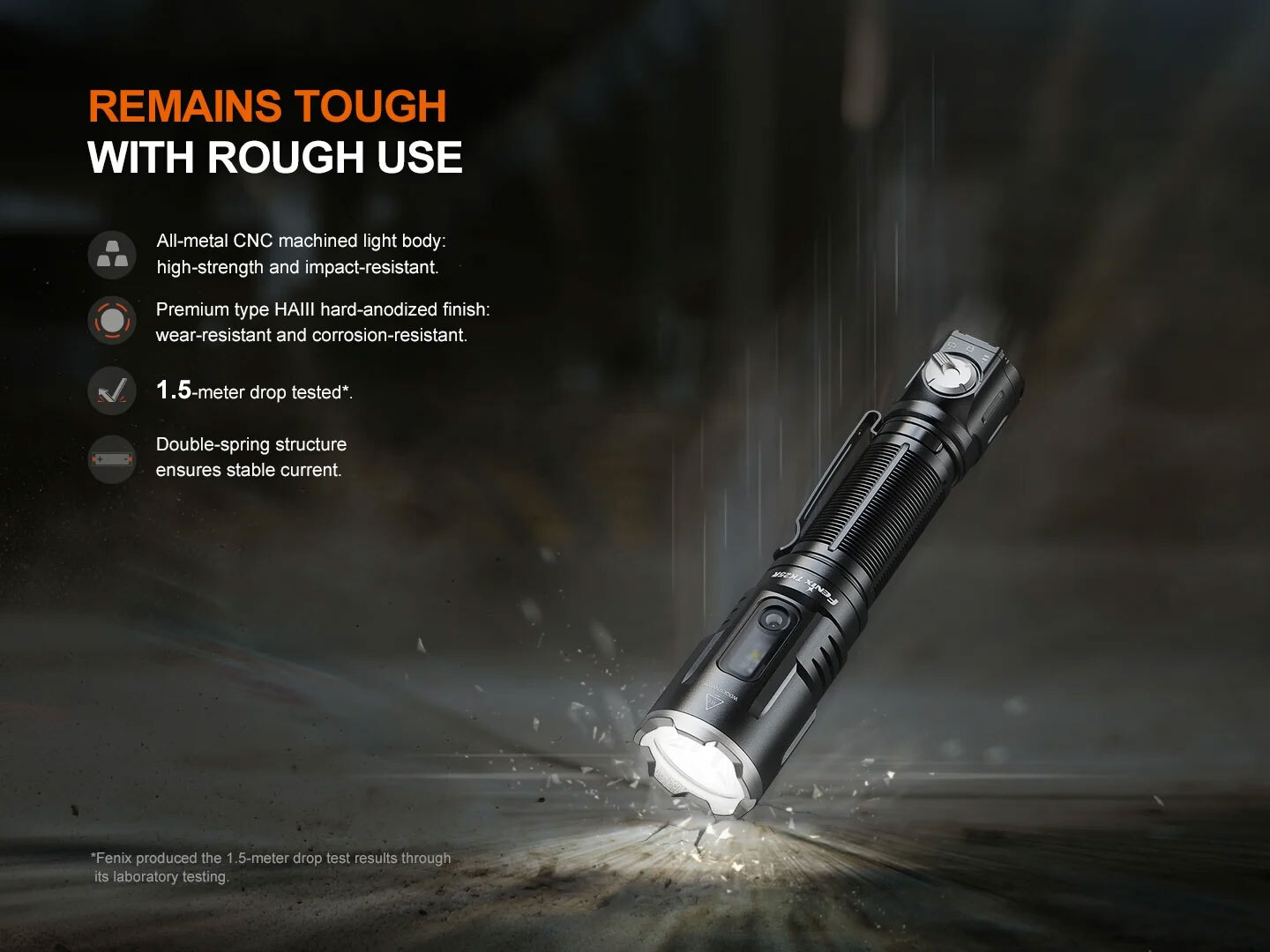

Impact Resistance
1 metre

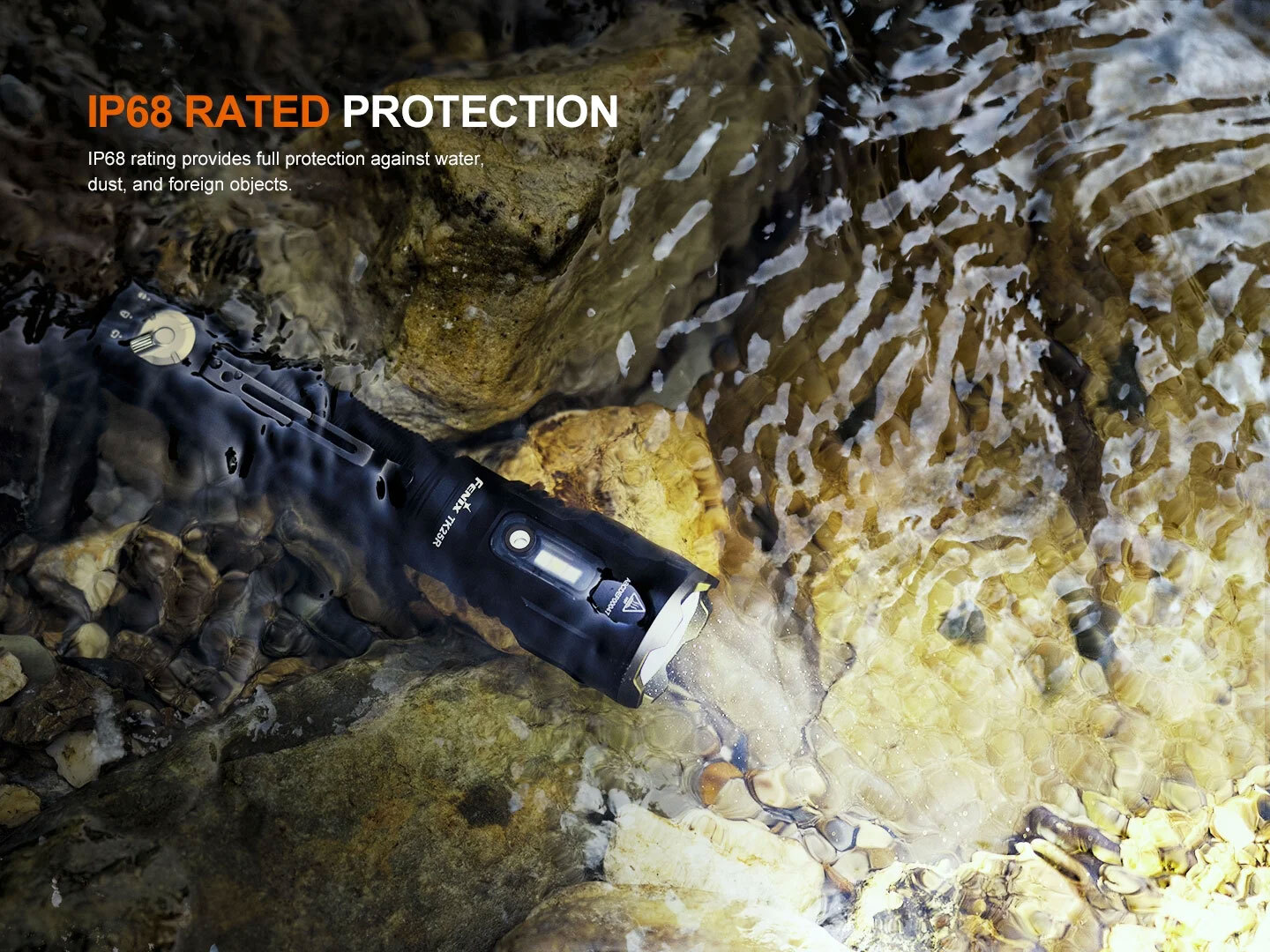

Ingress Protection Rating
IP68
Dimensions
Feature
Measurement
Length
164 mm
Head Diameter
36 mm
Body Diameter
26.2 mm
Weight
225 g
Brightness Outputs and Runtimes (Primary Light)
Turbo
High
Medium
Low
Strobe
Output
3600 lm ~ 1000 lm*
1000 lm
350 lm
30 lm
3600 lm
Runtime
1 min* ~ 135 min*
3 h
7 h
55 h
No data
Maximum Beam Distance
350 m
170 m
100 m
30 m
No data
Peak Beam Intensity
28000 cd
7500 cd
2600 cd
270 cd
No data
*The data marked with an asterisk are approximated from runtime graphs.
Brightness Outputs and Runtimes (Auxiliary Side Lights)
Floodlight
Red
Red Flash
Red/Blue Flash
UV
High
Low
Output
150 lm
30 lm
15 lm
15 lm
15 lm
900 mW
Runtime
5 h
30 h
20 h
No data
No data
No data
Candela and beam distance data are not available for the side lights
Note: According to the ANSI/PLATO FL1 standard, the above data (not marked with an asterisk) are from the results produced by Fenix through its laboratory testing using one Fenix ARb-L21-5000 V2.0 Li-ion battery under the temperature of 21±3°C and humidity of 50% - 80%. The true performance of this product may vary according to different working environments and the actual battery used.
72.5g : The Fenix ARB-L21-5000 is high capacity 21700 Li-ion rechargeable button top battery. It has a capacity of 5000mAh with a nominal voltage of 3.6V. It is designed for high drain devices...

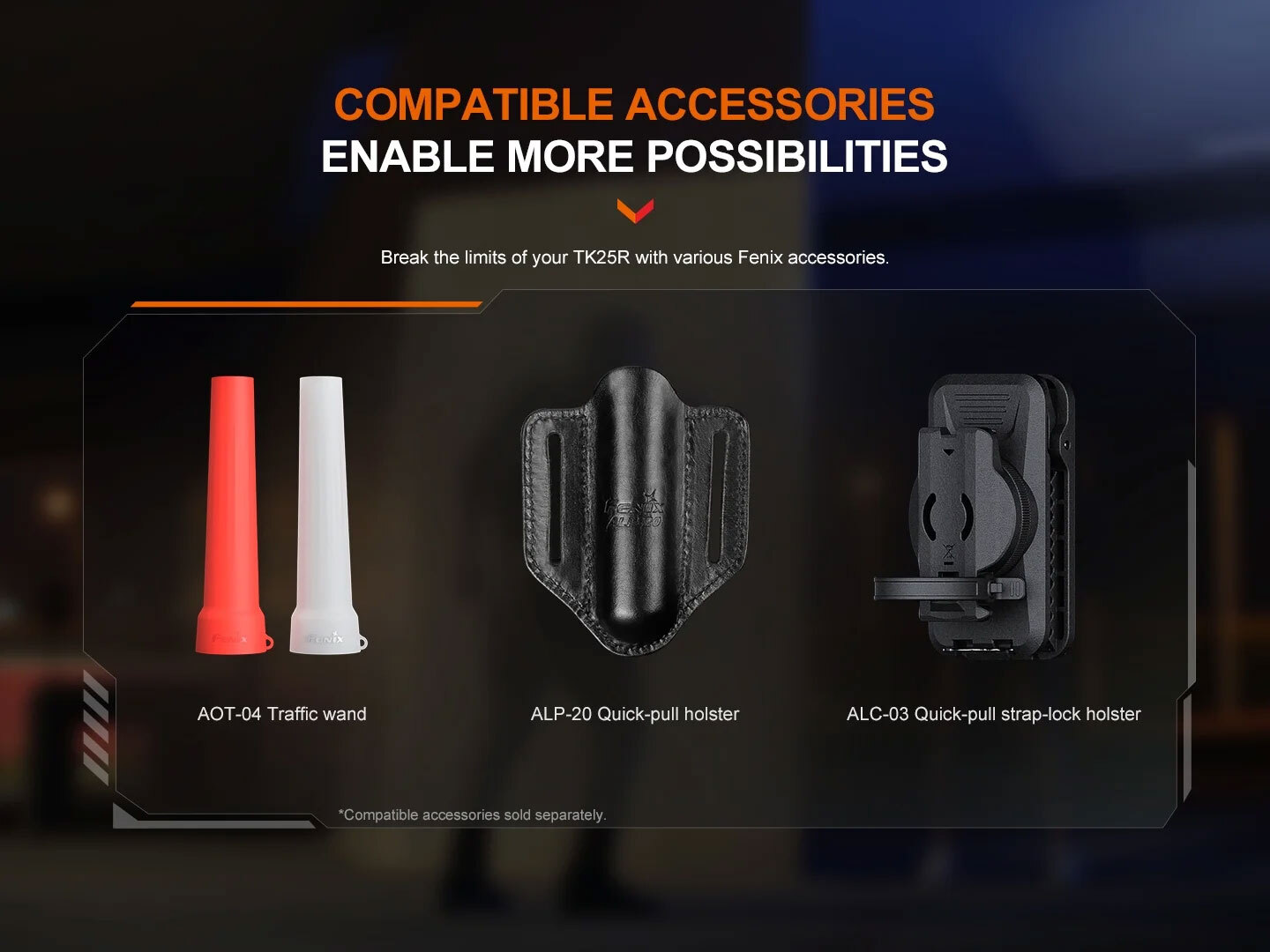

Fenix ALP-20 Leather torch holster is constructed from premium leather, this holster is wet-molded to ensure your flashlight remains in place and the open-top design allows for quick access. Equipped...
The Fenix AOT-04 Soft Silicone Flexible Traffic Wand is the perfect accessory to transform your Fenix flashlight into a versatile traffic control or emergency signaling tool. Designed to fit...
Fenix ARB-L21-6000 is a high-capacity 21700 Li-ion rechargeable battery engineered to deliver exceptional power and extended runtimes for your devices. With a massive 6000mAh capacity and a 10A...

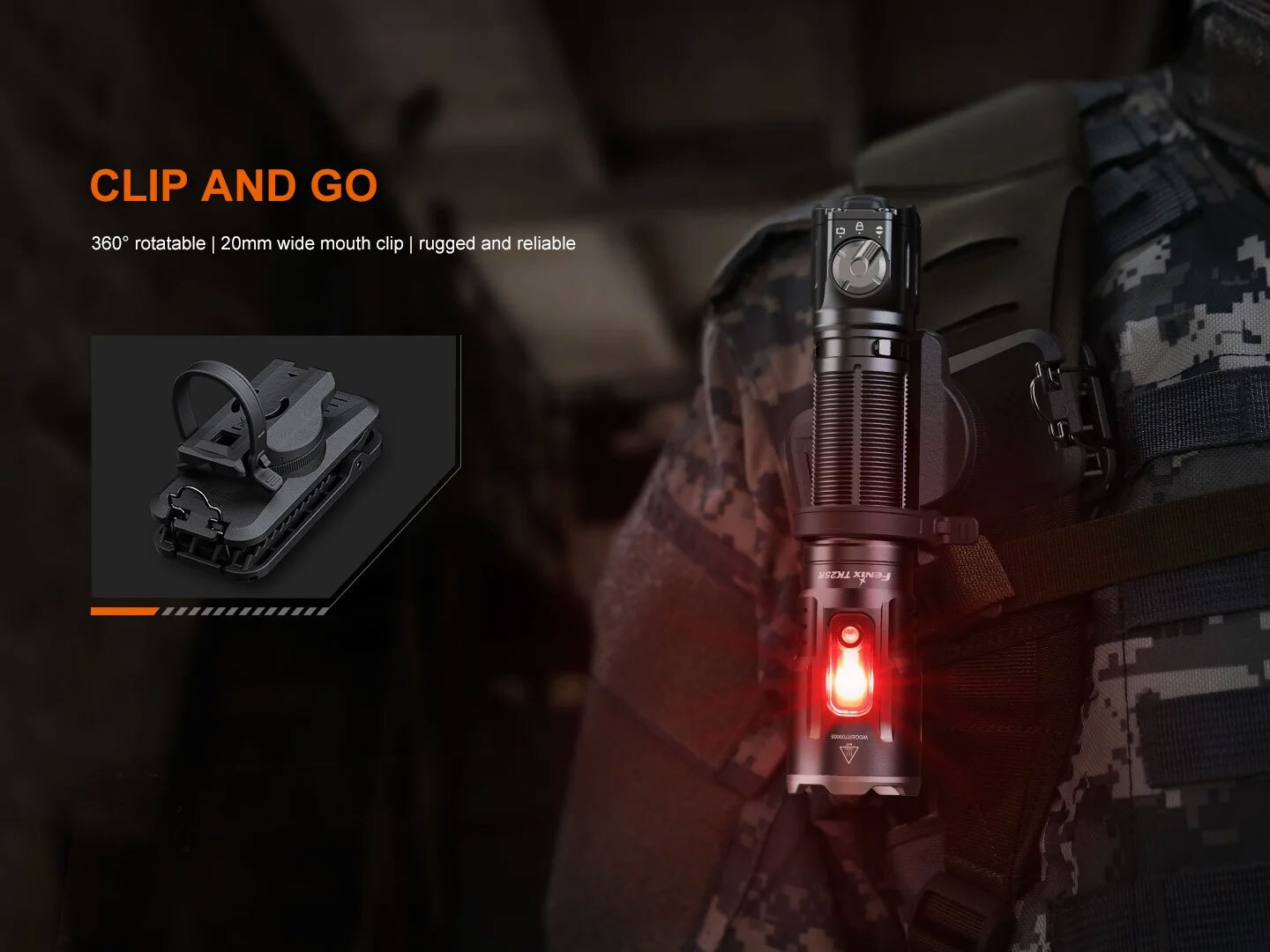

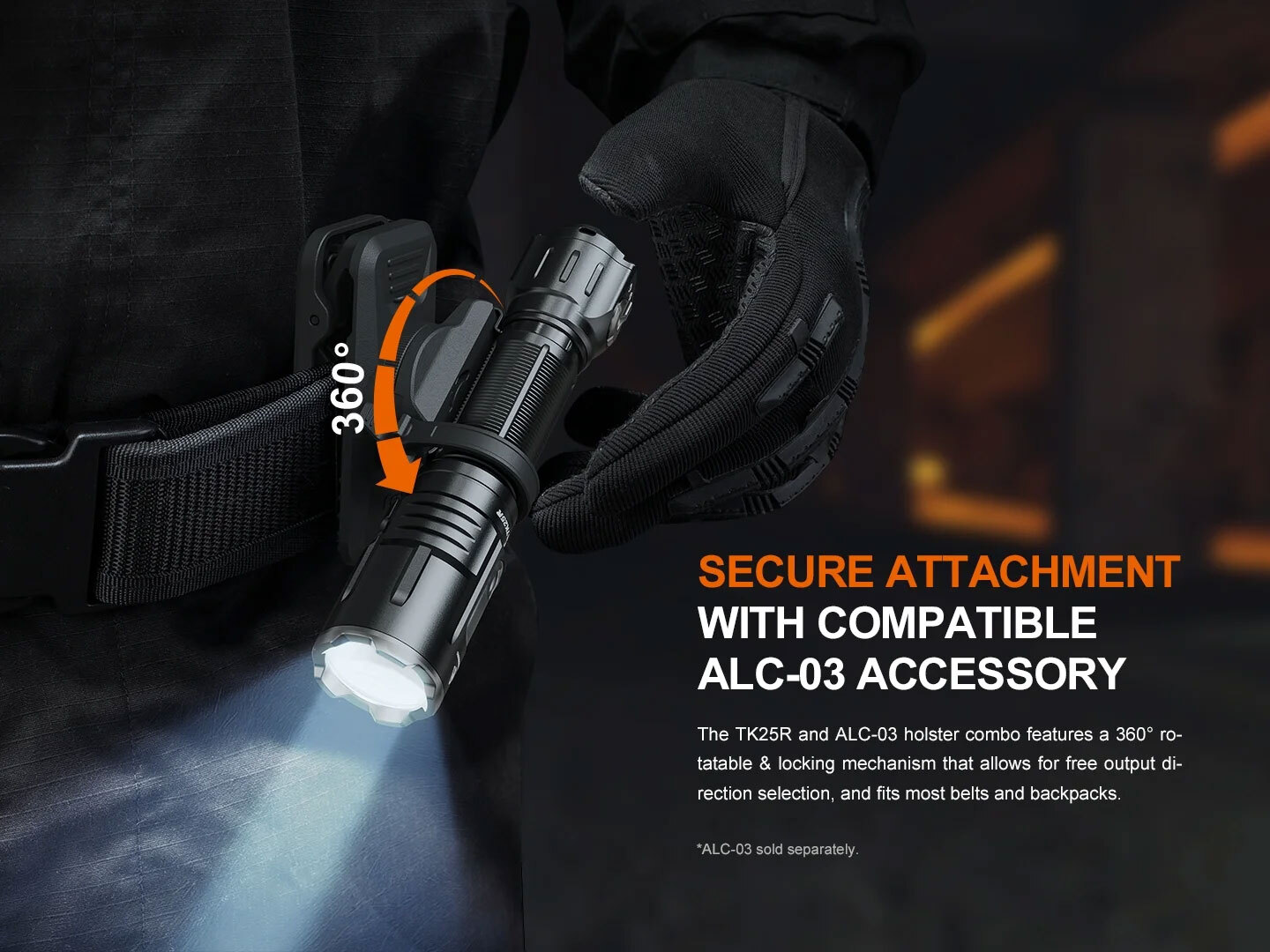

The Fenix ALC-03 is a specialized "Quick-Draw" rigid holster designed to turn your tactical torch into a hands-free lighting tool. Unlike traditional nylon pouches that simply store your light, the...
