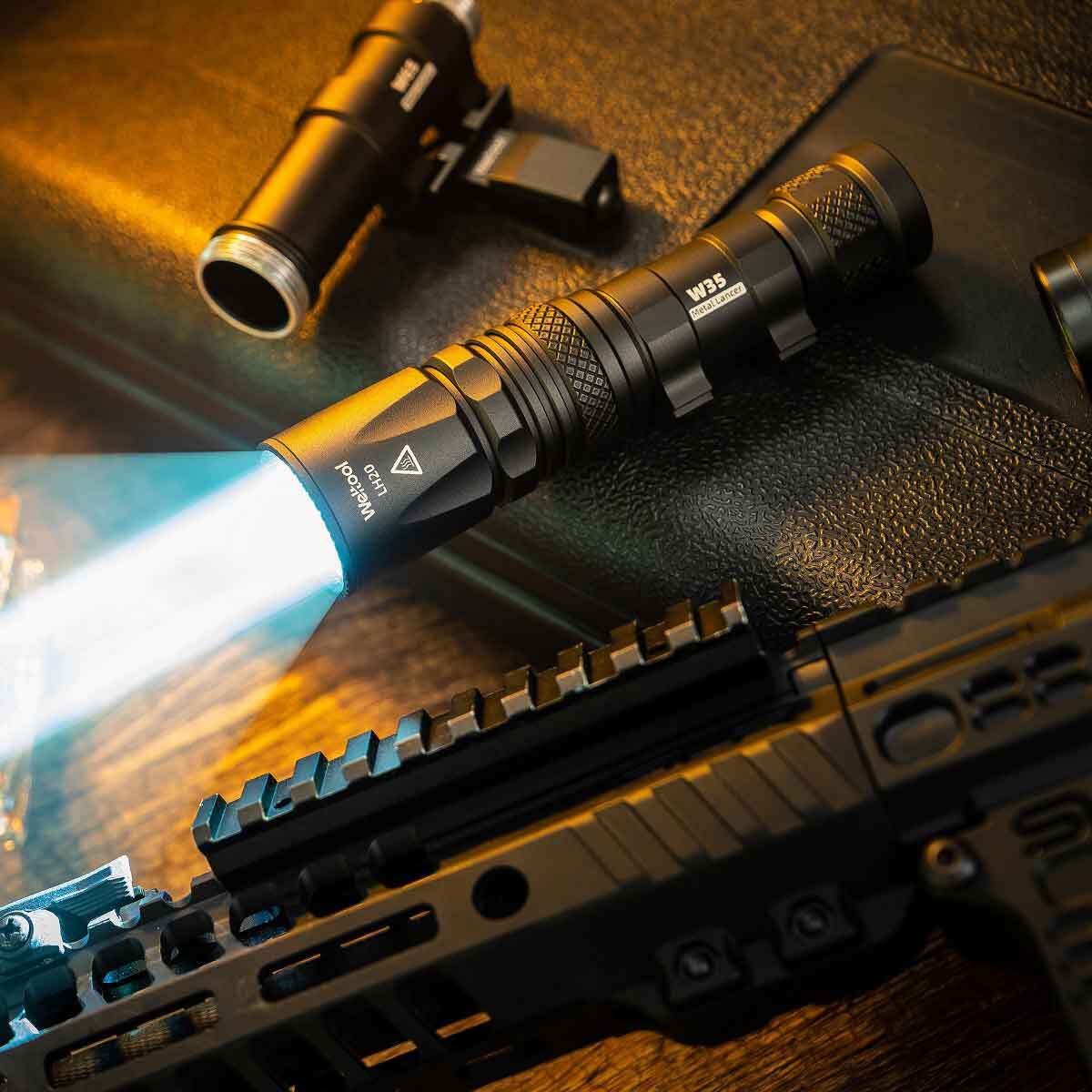

The Weltool W35S is a compact long-range LEP light engineered for precision illumination. A customized white LEP module paired with an aluminium reflector produces 364,500 candela and a 1,207-metre beam while adding a low-lux spill beam for dark adaptation and situational awareness. The light head is fully potted for rugged reliability, and the rear tail switch provides instant full-power output. Certified to IEC 62471 Exempt and IEC 60825 Class 1, the W35S is built for tactical, law-enforcement, and precision shooting applications.
Features
- 700 lumen LEP light with practical spill for peripheral awareness.
- 364,500 cd peak intensity and 1,207 m beam distance.
- Fully potted light head for enhanced shock and vibration resistance.
- Tail switch with momentary and constant-on operation.
- CNC-machined aluminium alloy body with black hard-anodised finish.
- Aluminium reflector and coated tempered glass lens.
- Customized white LEP (6000–6500K); IEC 62471 Exempt, IEC 60825 Class 1.
- Battery protections: over-discharge, reverse polarity, low-voltage reminder.
- No flicker, no noise output.
- IP67 dust/water resistant; passed 1-metre drop test.
- Each unit has an independent serial number.
Package Includes
- 1 × Weltool W35S
- 1 × Weltool high-drain 18350 Li-ion battery
- 1 × Spare O-ring
- User manual
Specifications
- Light Source: Customised white LEP (6000–6500K)
- Output: 700 lumens
- Beam Intensity: 364,500 candela
- Beam Distance: 1,207 metres
- Runtime: 29 minutes (tested outdoors, ventilated; Weltool 1200mAh 18350 Li-ion)
- Battery Type: 1 × high-drain 18350 Li-ion
- Construction: CNC aluminium alloy, hard-anodised
- Optics: Aluminium reflector; coated tempered glass lens
- Switch: Tail switch (momentary / constant-on)
- Protection: Over-discharge, reverse polarity, low-voltage reminder
- Waterproof: IP67 (usable in heavy rain)
- Impact Resistance: 1 m
- Dimensions (±0.5mm):
- Head: 32.5 mm
- Body: width 29 mm
- Length: 132 mm
- Weight: 132 ±1 g (without battery)
Operating Instructions
- Install the battery with correct polarity. If the light does not operate, check for reverse insertion.
- Lightly press the tail switch for momentary activation; release to turn off.
- Fully press until a click for constant-on. Click again to turn off.
- Low-voltage warning: the light will flash recharge the battery promptly.
- When fully depleted, the light will auto-shutoff to protect the battery.
