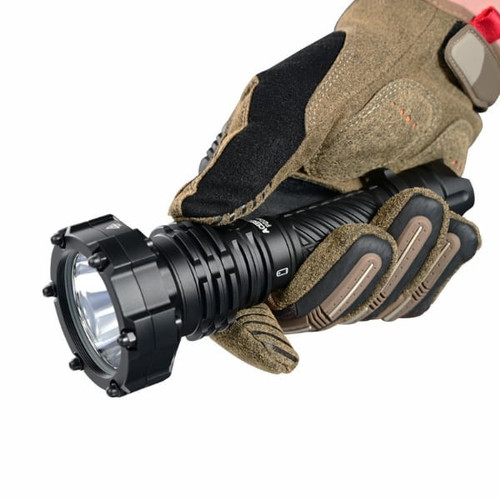

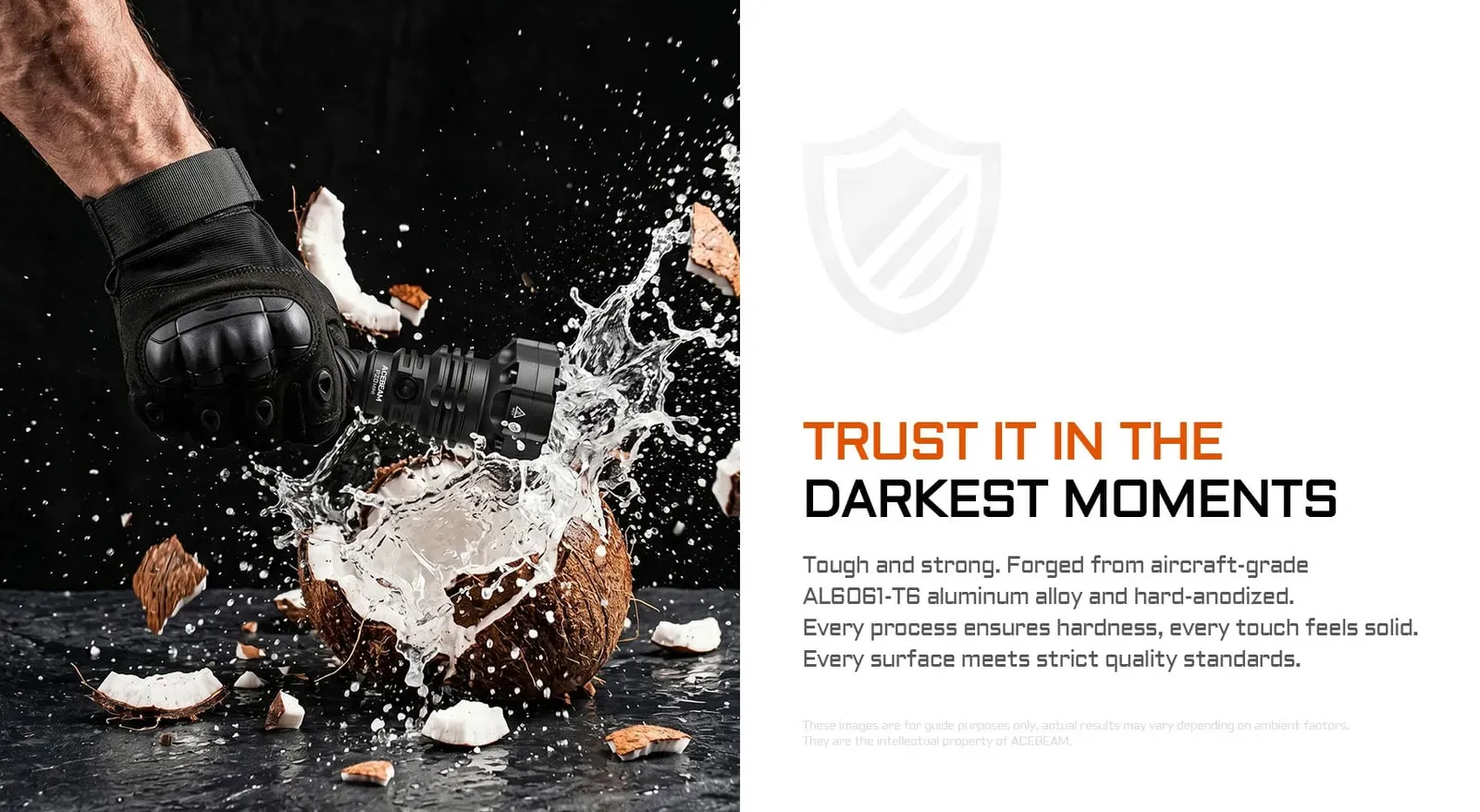

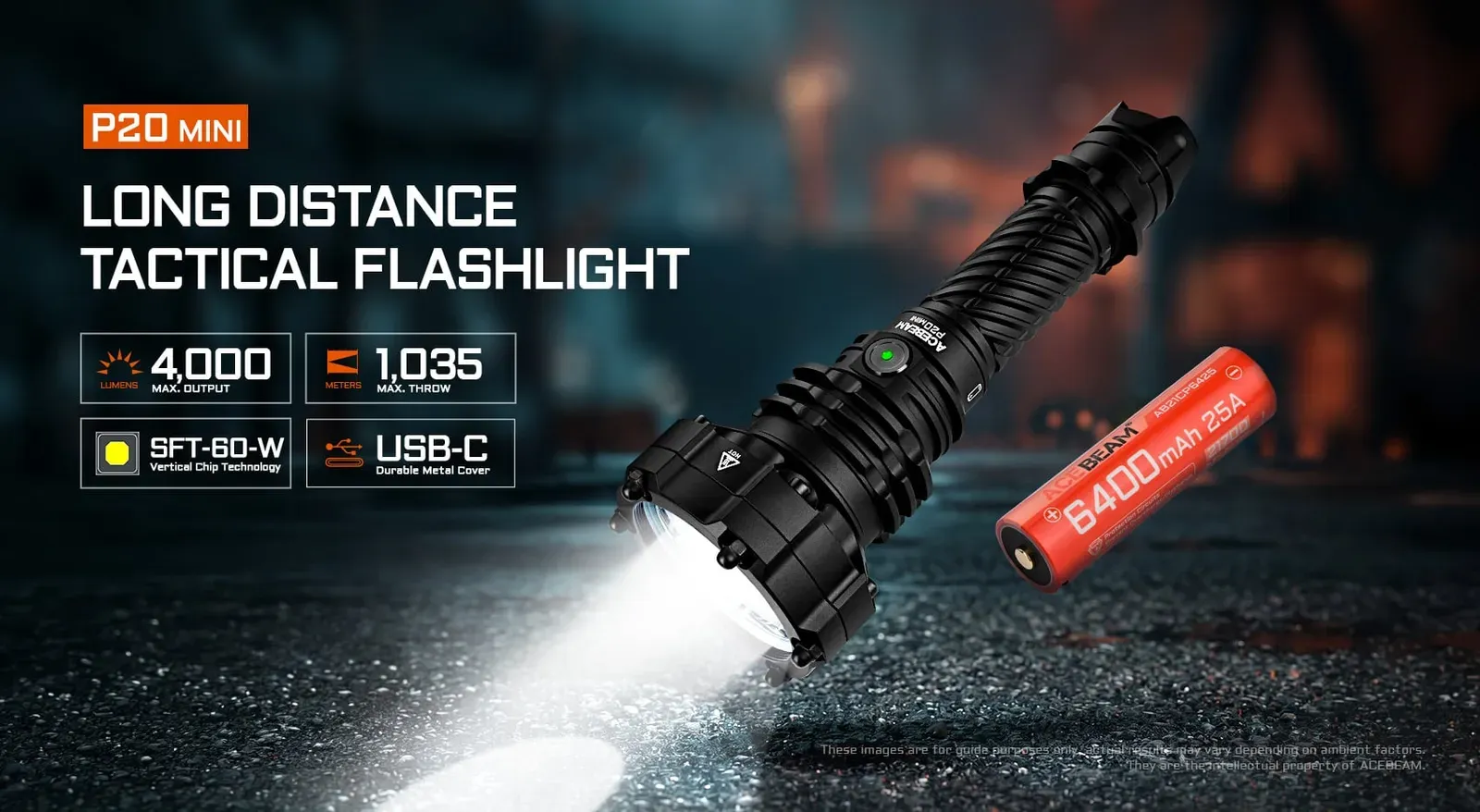

The Acebeam P20 Mini is a long distance tactical torch, delivering 4000 lumens with a maximum beam distance of 1035 metres, and features a dual-switch system for instinctive control. Powered by a single Luminus SFT-60-W 6500K Cool White LED with next-generation vertical chip technology, it provides a clean, uniform hotspot and brilliant colour consistency. It runs on an included Acebeam 6400mAh rechargeable 21700 lithium-ion battery, offering extended runtime up to 150 hours (ultra low mode). Recharging is flexible with two USB Type-C options: a port on the torch body with a durable metal cover, or a built-in port directly on the battery, and the swappable battery design minimises downtime. Constructed from AL6061-T6 high-quality aluminium alloy with a HA III hard-anodised finish, the torch has an impact resistance of 1.5 m and an IP68 ingress protection rating, making it fully submersible up to 2 metres for 30 minutes. Its non-PWM dimming ensures stable, flicker-free light. The dual-switch system includes a side switch for mode selection and a tactical tail switch for instant turbo access.
Features

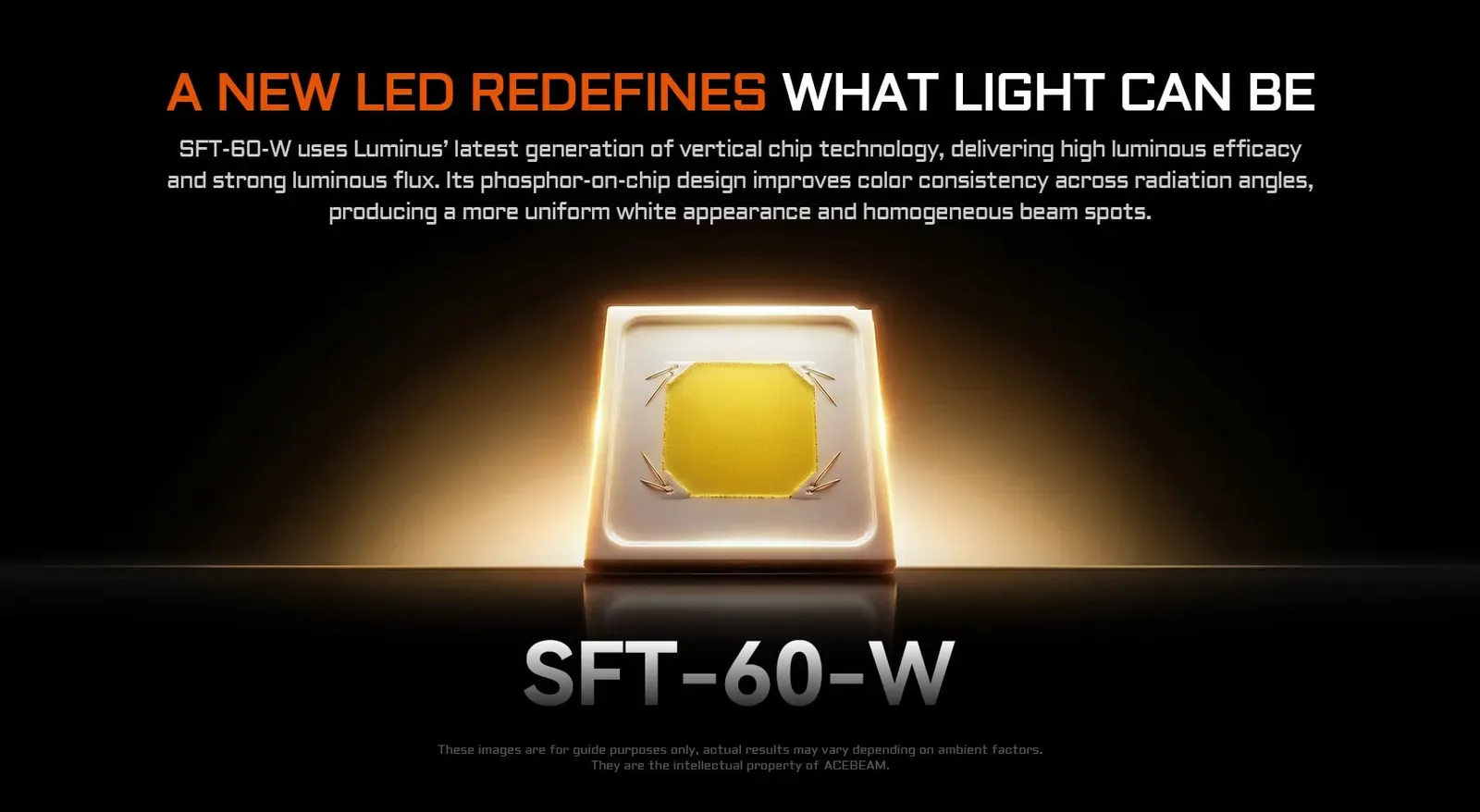

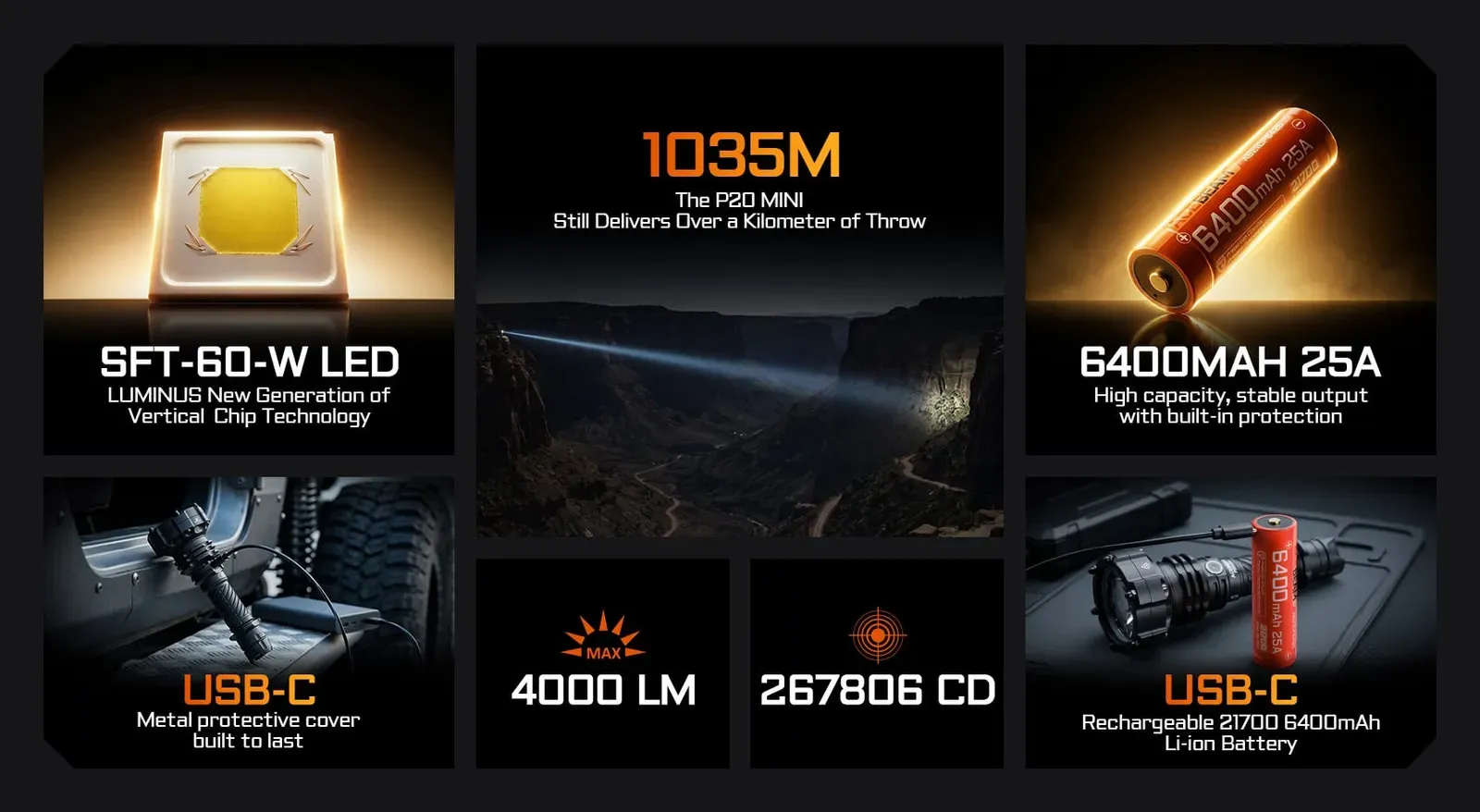

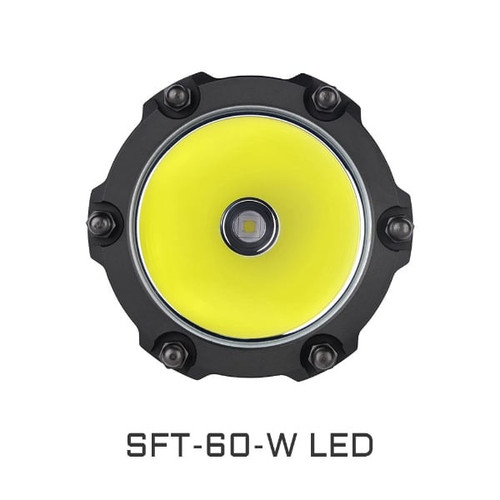

- High Performance LED: Powered by a single SFT-60-W LED with Luminus next-generation vertical chip technology, delivering a clean, uniform hotspot and excellent colour consistency.

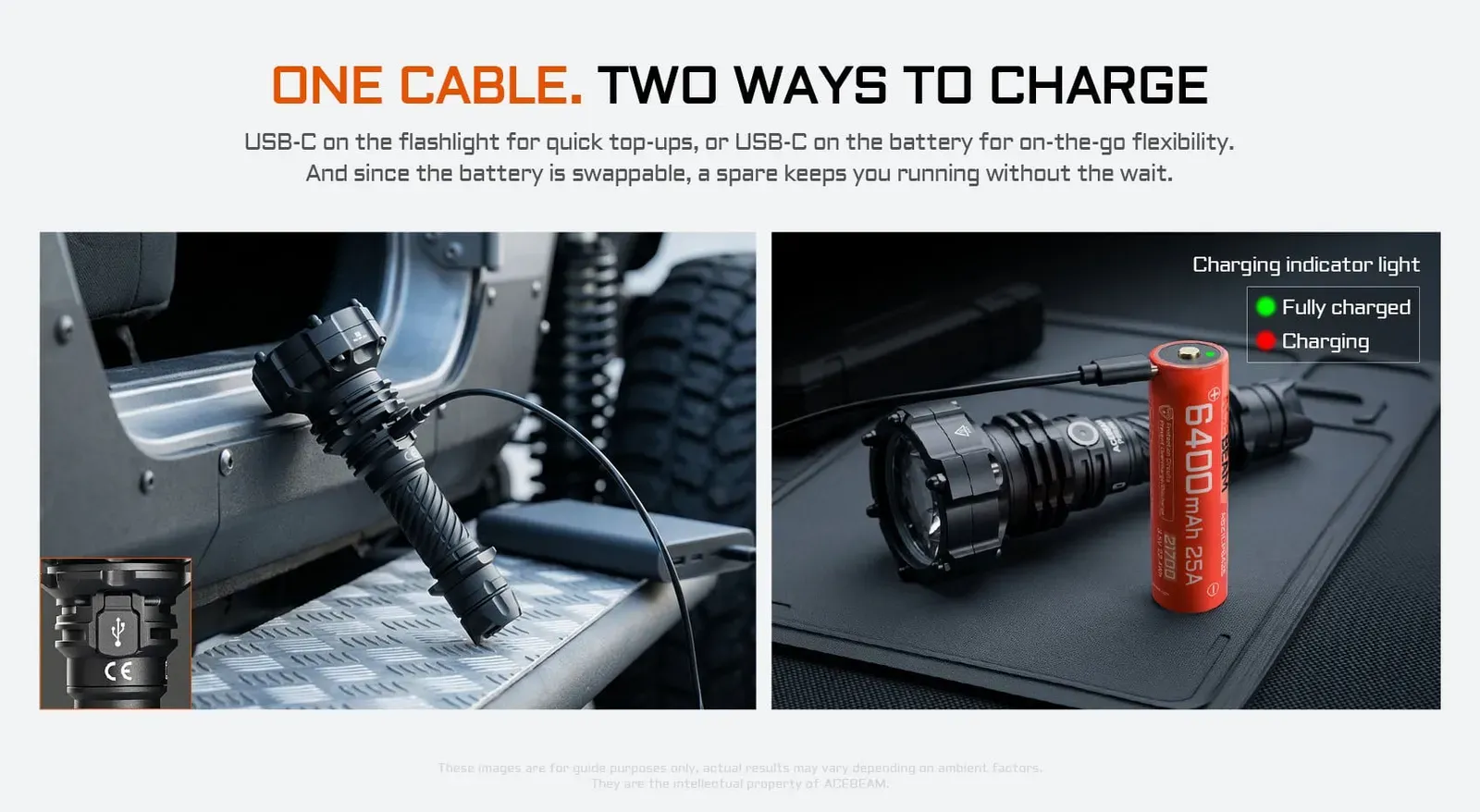

- Dual Charging Options: Features a USB-C port on the flashlight body with a durable metal cover, and the included 6400mAh 21700 battery also has a built-in USB-C port for convenient recharging.

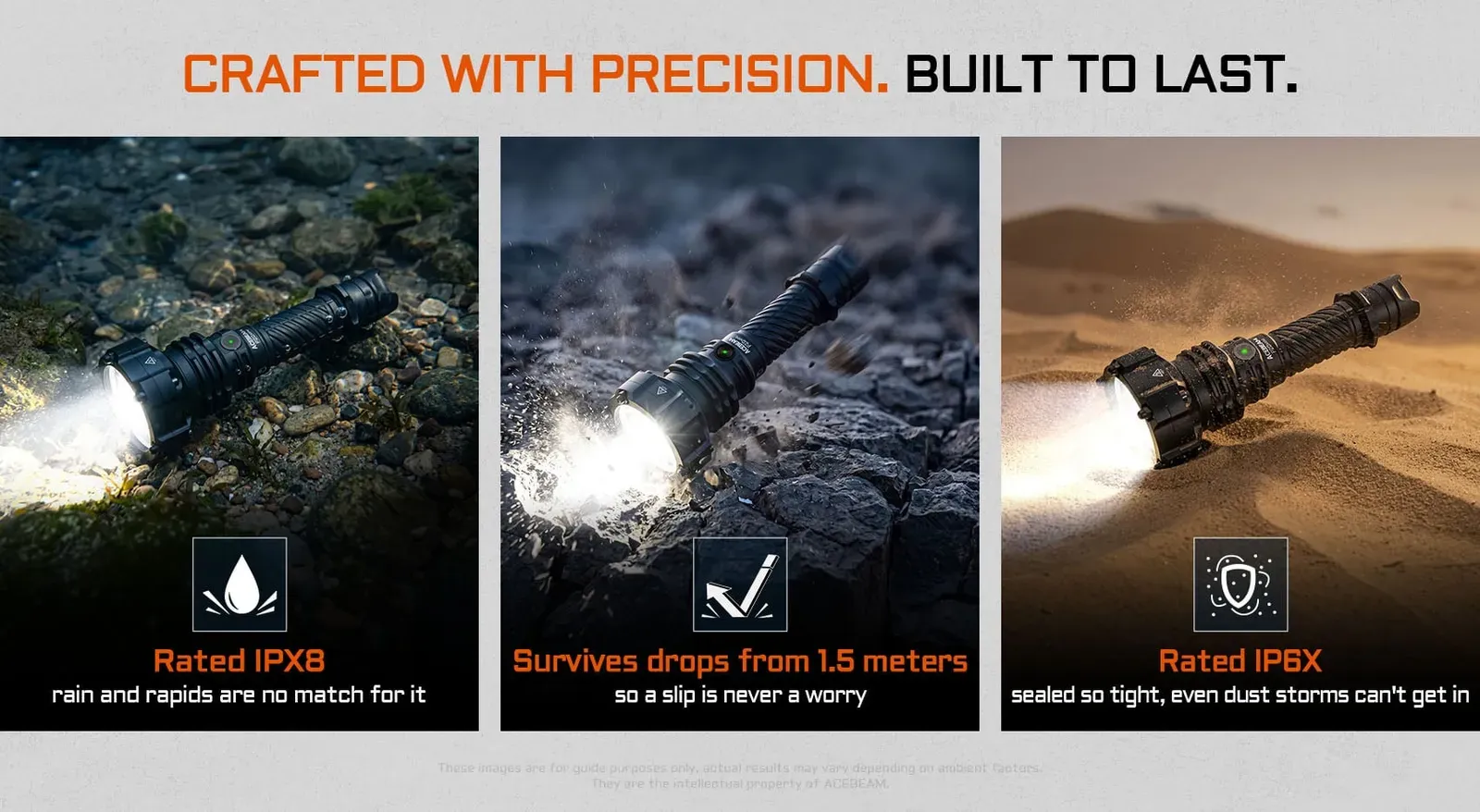

- Waterproof and Dust-proof: IP68 rated, ensuring it is fully submersible to 2 metres for 30 minutes and effectively dust-tight.

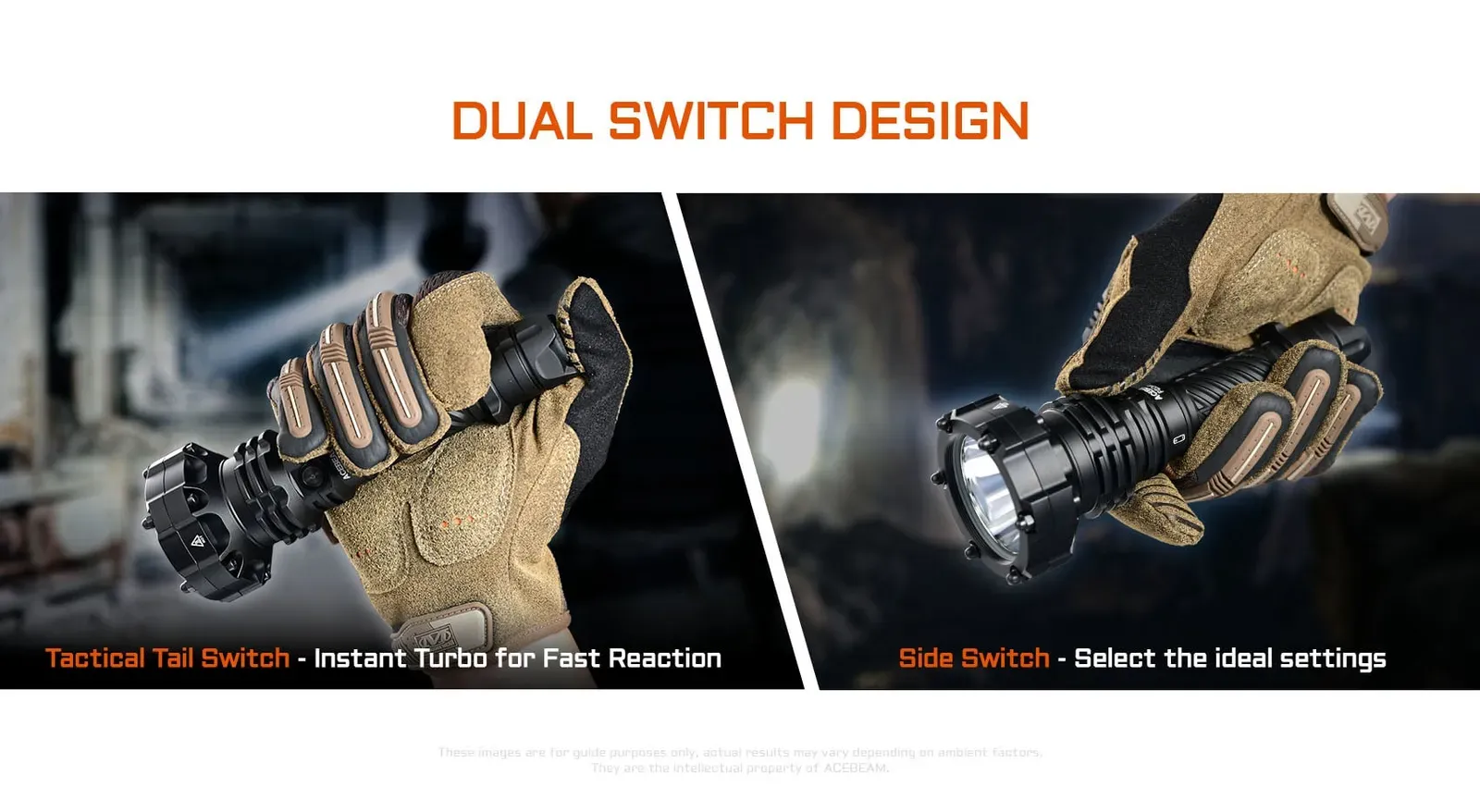

- Dual Switch System: Features a side switch for mode selection and a tactical tail switch for instant access to turbo mode, allowing for instinctive control.

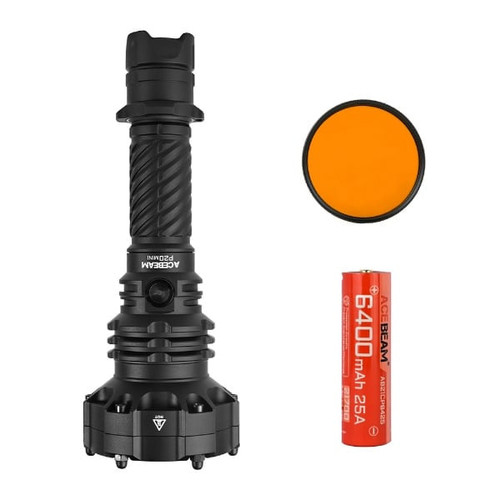

Package Includes
- 1 x Acebeam P20 Mini

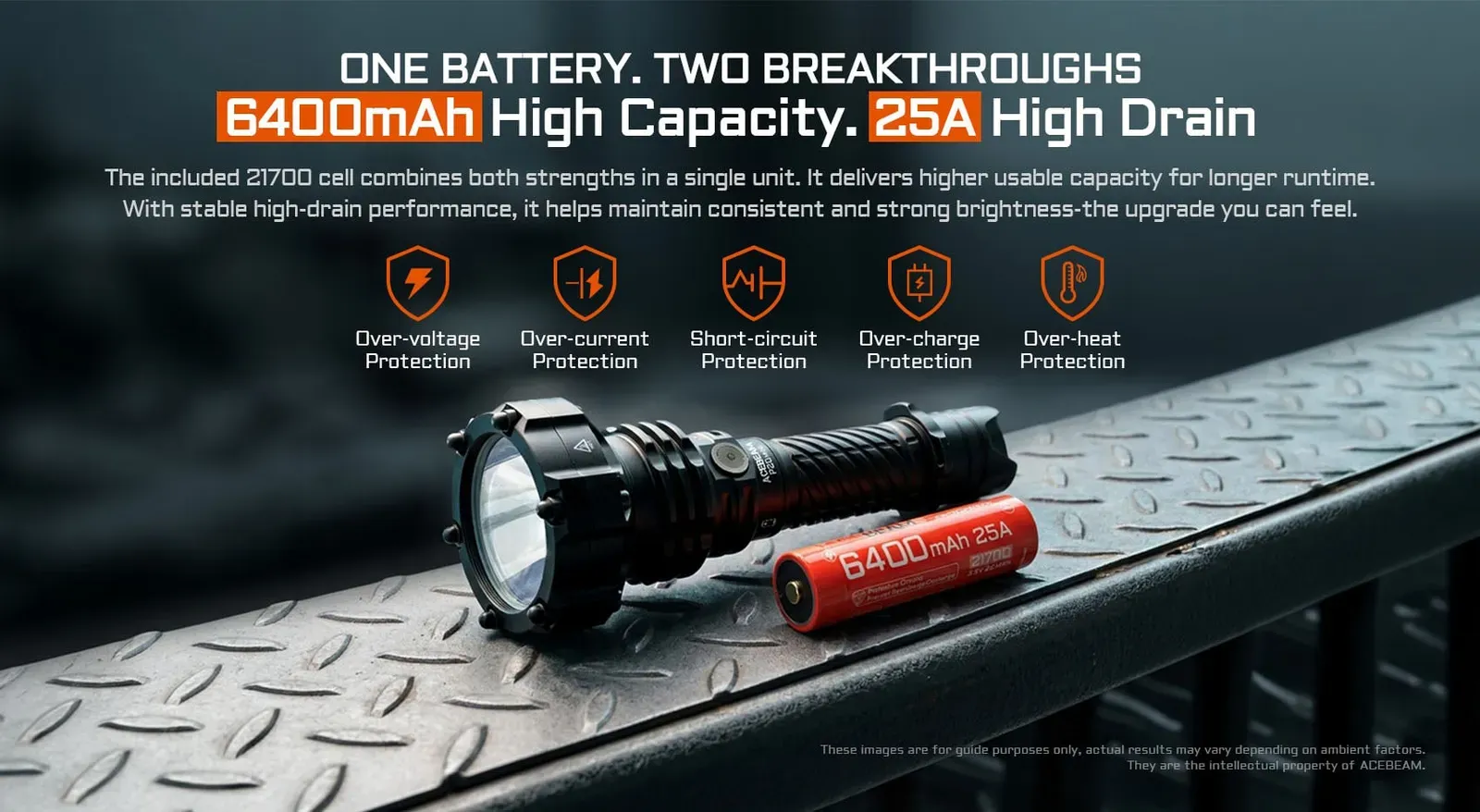

- 1 x Acebeam 6400mAh Rechargeable 21700 Lithium-ion Battery
- 1 x USB Charging Cable (USB-A to USB-C)
- 1 x Orange Filter
- 1 x Holster
- 1 x Tail Switch Cap
- 1 x Lanyard
- 1 x User Manual
Key Information
| Feature |
Details |
| Primary Light Source |
1 x Luminus SFT-60-W 6500K Cool White LED |
| Power Source |
1 x Acebeam 6400mAh Rechargeable 21700 Lithium-ion Battery |
| Recharging Methods |
USB Type-C or
USB Type-C (Charging Port on Battery) |
| Material |
Aluminium alloy |
| Warranty (Torch) |
10 years |
| Warranty (Battery) |
1 year |
| Warranty (Accessories) |
1 year |
ANSI/PLATO FL1 Specifications
| Feature |
Measurement |
| Maximum Light Output |
4000 lumens |
| Maximum Runtime |
150 hours |
| Maximum Beam Distance |

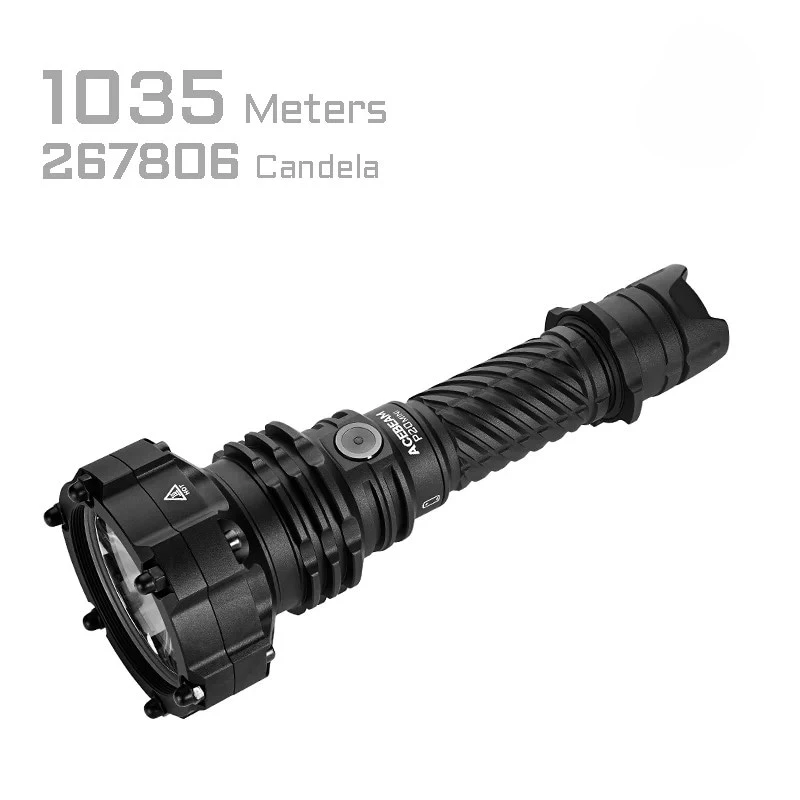

1035 metres |
| Peak Beam Intensity |
267806 candela |
| Impact Resistance |
1.5 metres |
| Ingress Protection Rating |
IP68 |

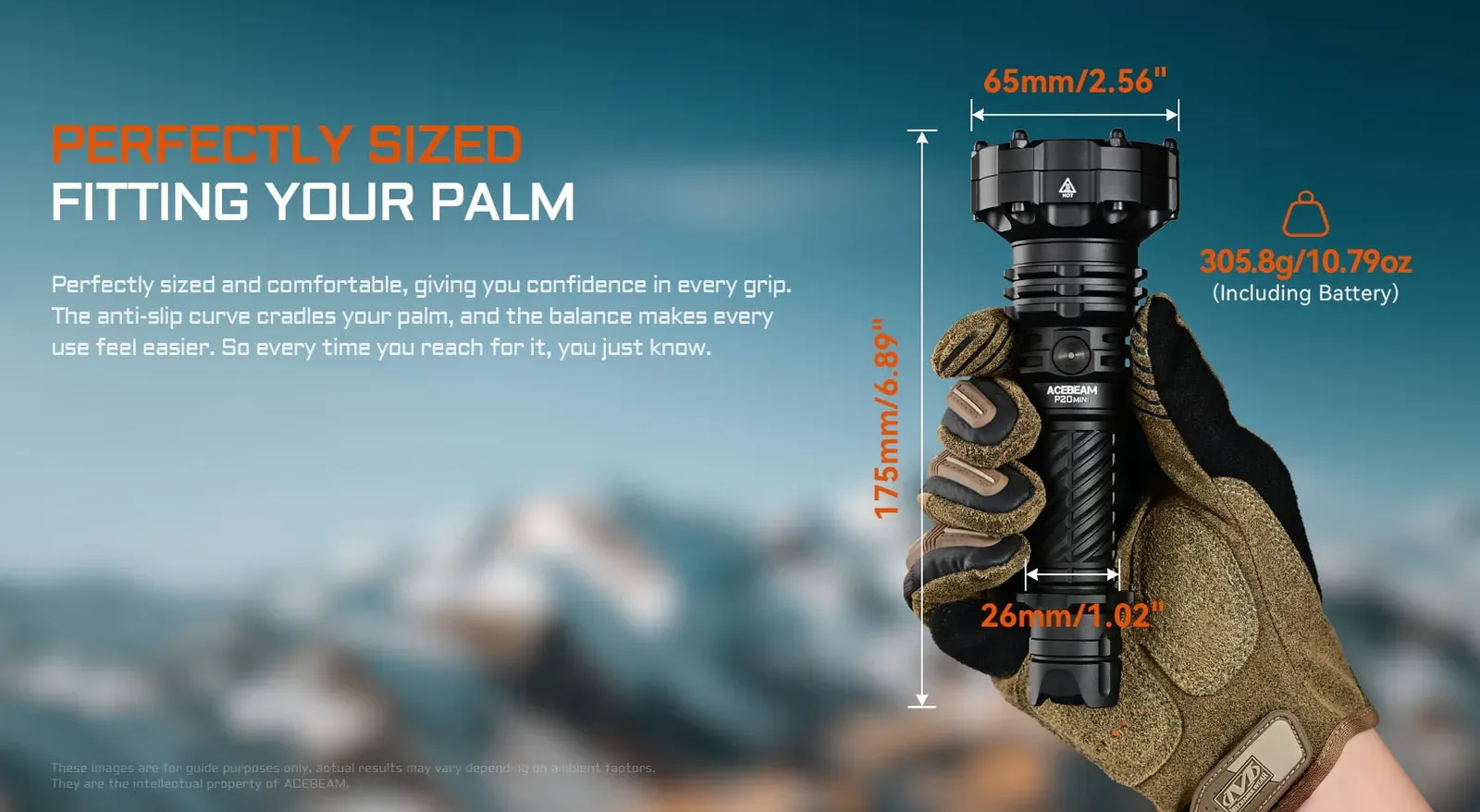

Dimensions
| Feature |
Measurement |
| Length |
175 mm |
| Head Diameter |
65 mm |
| Body Diameter |
26 mm |
| Weight |
305.8 g |
Additional Data
Manufacturer's Specs
| Mode |
Output (Lumens) |
Runtime |
Distance |
Intensity |
| Ultra Low |
15 |
150h |
87 m |
1892 cd |
| Low |
200 |
16h |
248 m |
15376 cd |
| Med 1 |
500 |
6.1h |
384 m |
36864 cd |
| Med 2 |
1000 |
2.6h |
540 m |
72900 cd |
| High |
2000 ~ 1000 |
10min + 2h 5min |
748 m |
139876 cd |
| Turbo |
4000 ~ 1000 |
90s + 2.5h |
1035 m |
267806 cd |
| Strobe |
4000 ~ 1000 |
2min + 5.1h |
1035 m |
267806 cd |
Notice: The above-mentioned parameters have been measured in accordance with the international flashlight testing standard ANSI/PLATO FL1, and are approximate and may vary from flashlights, batteries, and environments.
Performance and Runtime Disclaimer
How to read the data: The outputs provided above are maximum outputs for each mode, and the runtimes provided are the time it takes to drop to 10% of the initial output. This is in line with the International Flashlight Testing Standard ANSI FL1.
Any visual representations (graphs) of the data are approximate only.
Read more
The actual output of the torch/headlamp is controlled by an in-built temperature regulation system. As the torch/headlamp heats up, the brightness will drop to prevent overheating. The Turbo modes of torches/headlamps usually drop down significantly after anything from 15 seconds to 2 minutes. High modes often also experience a drop down over time. Medium and Low modes, however, can be constant for very close to the length of time specified. As the torch/headlamp cools down, either from being turned off or from being used on a lower output level, you will be able to access higher brightness levels again.
Example: An output of 2000 lumens and runtime of 5 hours does not mean 2000 lumens for 5 hours โ it means it starts at 2000 lumens and drops below 200 lumens after 5 hours of continuous use.
Turbo and high modes may be unavailable or limited as the battery gets low on charge.
Exact specifications can vary between torches, batteries, age and environments.
