63.8g, 1300 Lumens : The Manker E05 II model is a high-performance, CNC-machined torch crafted from aerospace aluminium alloy and available in colours like black, copper, and Titanium. This compact and lightweight torch supports multiple battery types (14500 li-ion, Ni-MH AA, Alkaline AA) and delivers a powerful 1300 lumens. Features include a solid copper LED housing, a stainless steel clip, IP68 waterproof rating, and is drop-resistant up to 1.5 meters. It's equipped with a forward 'clicky' button, tail-standing capability, and offers multi-color filter options, making it ideal for everyday carry and versatile use. AA/14500 Powered pocket-sized EDC torch!

Features:

• Gen 2 Model
• Precision CNC made by aerospace aluminium alloy
• Available in a variety of anodized colours: black / army green / sand / red / silver
• Solid copper "pill" that houses LED's copper MCPCB and driver

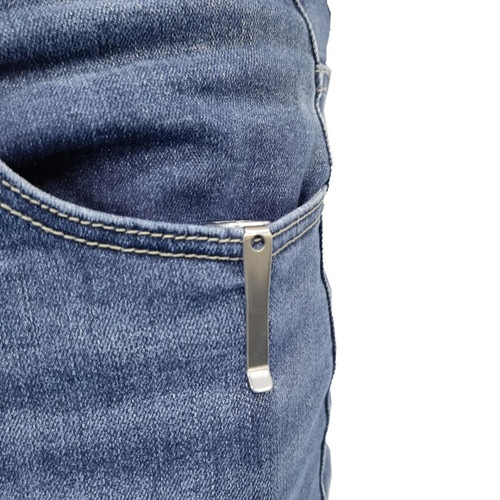

• 304 stainless steel deep carry clip design
• Ultra-compact Size, lightweight for perfect everyday carry
• Multi-fuel design:14500 li-ion, Ni-MH AA, Alkaline AA AA-size battery
• Extreme performance in its class (1300 lumens illumination / Dual constant current drivers)
• Forward 'clicky' button control for one-handed operation
• Light tail-stands easily for convenience
• 1 tritium slot at tail switch
• IP68 waterproof rated, 2 meters underwater for 60 minutes
• 1.5 metrrs drop-resistant
• Multi-color filter options: white / red
• Versatile usage applicable

• Operating Instructions
  ON/OFF: Fully press the switch.
  Momentary ON: Half-press from OFF until released.
  Output change①: Continously half-press the switch (interval more than 0.5 second) to change different outputs ( Low - Med. - High), full press to lockout the selected output.
  Output change②: From OFF status, fully press the switch to turn on Low output, and then fully press to turn OFF; fully press again to turn on Med. output, and then fully press to turn OFF; fully press again to turn on High output, and then fully press to turn OFF; If keep fully press again, turn back to low output.
  Memory function: When OFF the light for 2 seconds, full press to output last used (except Strobe)
  Strobe: Quickly double half-press the switch from OFF.

  Note: When battery voltage is low, the light will step-down directly to low output, sometime you turn off the light and then turn on again, it can be lighted up but will also step-down to low output soon. When battery voltage is extremely low, the light will shut OFF automatically.

  Battery Charging
  - E05 II Ti comes with one Mankerlight 920mAh 14500 li-ion battery with a built-in Type-C USB charging port.
  - Our 14500 battery support fast charging USB-C charger (such as QC,PD) and also works via USB-C to USB-C charging.

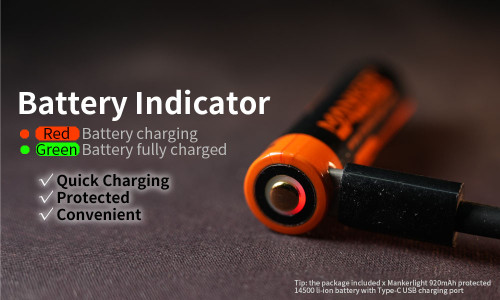

  - Battery charging indicator: plug USB Type-C socket of the included charging cable into the USB-C port of 14500 battery, and connect another USB socket to the adapter. our 14500 battery has built-in intelligent identified charging function. When battery is charging, the indicator will be red. After battery charging is completed, the indicator will change to green.
  - Fully charging time: about 2 hours via universal charging adapter

• Package Includes!
• 1 x Mankerlight E05 II
• 1 x Mankerlight 920 mAh protected 14500 Li-ion battery with USB-C port
• 1 x USB-C charging cable
• 1 x Lanyard
• 1 x Spare waterproof o-ring
• User manual

Specifications:

• Light source: 1 x 1300 Lumens 6500K Cool White/ 800 Lumens NICHIA 519A-V1 4000K R9080
• Light Modes: Low - Medium - High + Strobe
• Output: 1300 lm - 300 lm - 8 lm + 1300lm (20Hz) (powered by 14500 USB-C Li-ion Battery)
• Runtime: 2 min +1 hrs+4 hrs - 1hrs 30 min + 3hrs 50 min - 50 hrs (powered by 14500 USB-C Li-ion Battery)
• Battery: 1x 14500 li-ion / 1x Alkaline AA / 1x Ni-MH AA

• Technical Data of 6500K Cool White
  Powered by Mankerlight 14500 USB-C li-ion battery:
  Low: 8 lumens, 50 hours
  Medium: 300 lumens ~ 8 lumens 1 hrs 30 minutes + 3 hrs 50 minutes
  High: 1,300 lumens ~ 300 lumens ~ 8 lumens, 2 minutes + 1 hours +4 hours
  Strobe: 1,300 lumens 20Hz
  Beam intensity: 5,476 cd
  Beam distance: 148 meters
  Impact resistance: 1.5 meters
  Waterproof standard: IP68, 2meters underwater for 60 minutes

  Powered by AA Ni-MH Battery:
  Low: 1.5 lumens, 27 hours
  Medium: 100 lumens ~ 1.5 lumens, 1 hours 50 minutes + 3 hours 3 minutes
  High: 420 lumens ~ 100 lumens ~ 1.5 lumens, 2 minutes + 2 hours + 30 minutes
  Strobe: 420 lumens 20Hz
  Beam intensity: 1,806 cd
  Beam distance: 85 meters
  Impact resistance: 1.5 meters
  Waterproof standard: IP68, 2 meters underwater for 60 minutes

  Powered by AA Alkaline Battery:
  Low: 1.5 lumens, 55 hours
  Medium: 100 lumens ~ 1.5 lumens, 1 hours 20 minutes + 16 hours 50 minutes
  High: 420 lumens ~ 100 lumens ~ 1.5 lumens, 1 minutes + 48 minutes + 3 hours 15 minutes
  Strobe: 420 lumens 20Hz
  Beam intensity: 1,806 cd
  Beam distance: 85 meters
  Impact resistance: 1.5 meters
  Waterproof standard: IP68, 2 meters underwater for 60 minutes

  Technical Data of Nichia 519A 4000K R9080
  Powered by Mankerlight 14500 USB-C li-ion battery:
  Low: 6.5 lumens, 50 hours
  Medium: 220 lumens ~ 6.5 lumens 1 hrs 30 minutes + 3 hrs 50 minutes
  High: 800 lumens ~ 220 lumens ~6.5 lumens, 2 minutes + 1 hours +4 hours
  Strobe: 800 lumens 20Hz
  Beam intensity: 3,600 cd
  Beam distance: 120 meters
  Impact resistance: 1.5 meters
  Waterproof standard: IP68, 2meters underwater for 60 minutes

  Powered by AA Ni-MH Battery:
  Low: 1.5 lumens, 27 hours
  Medium: 80 lumens ~ 1.5 lumens, 1 hours 50 minutes + 3 hours 3 minutes
  High: 300 lumens ~ 80 lumens ~ 1.5 lumens, 2 minutes + 2 hours + 30 minutes
  Strobe: 300 lumens 20Hz
  Impact resistance: 1.5 meters
  Waterproof standard: IP68, 2 meters underwater for 60 minutes

  Powered by AA Alkaline Battery:
  Low: 1.5 lumens, 55 hours
  Medium: 80 lumens ~ 1.5 lumens, 1 hours 20 minutes + 16 hours 50 minutes
  High: 300 lumens ~ 80 lumens ~ 1.5 lumens, 1 minutes + 48 minutes + 3 hours 15 minutes
  Strobe: 300 lumens 20Hz
  Impact resistance: 1.5 meters
  Waterproof standard: IP68, 2 meters underwater for 60 minutes

• Max Beam Distance: 148 metres
• Working Voltage: 0.9 V - 4.2 V
• Driver: High efficiency constant current circuit (both 14500 and AA)
• Body Material: Aerospace aluminium alloy with type III hard anodized
• Clip Type: Deep carry clip
• Clip Material: 304 stainless steel (E05-II Silver) or 304 stainless steel with PVD black plated (E05-II Black, E05-II Sand, E05-II Red, E05-II Army Green)
• Button Material: Aerospace aluminium alloy with type III hard anodised
• Contact Spring Retainer Material: phosphore bronze / gold plated
• Lens: Dual-sided AR coated, 99% transmittance toughened Glass
• Optic: Orange peel aluminium reflector with vacuum plated
• Switch Type: Forward-click Switch (mechanical switch)
• Tritium: 1 slots in button cap. (fit for 6*1.5 mm)
• Size: 91.35mm (length) x ø17mm (min body dia.) x ø20mm (tail dia.)
• Impact Resistance: 1.5 metres
• Waterproof: IP68 rated, tested 2 metre underwater for 60 minutes
• Weight: 63.8g
