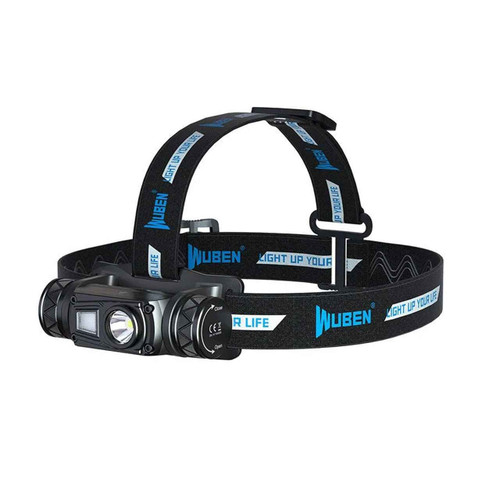

The Wuben H1 is a versatile and bright rechargeable outdoor hiking headlamp, delivering a maximum output of 1200 lumens with a wide beam that illuminates surroundings up to 125 metres. Designed for comfort and flexibility, it features an adjustable beam throw from 100 to 180 degrees. Powered by a Wuben ABE2600C 2600mAh protected rechargeable 18650 lithium-ion battery, this torch offers an impressive maximum runtime of 500 hours and recharges conveniently via USB Type-C, incorporating an intelligent charging IC chip to prevent overheating. Its aluminium alloy body ensures durability with an IP68 ingress protection rating and 1 metre impact resistance. Illumination is provided by a primary OSRAM P9 White LED, complemented by an auxiliary Neutral White LED and a Red Light Source.
Features
- Adjustable Beam: The beam throw can be adjusted from 100 degrees to 180 degrees, allowing for flexible lighting according to your needs.

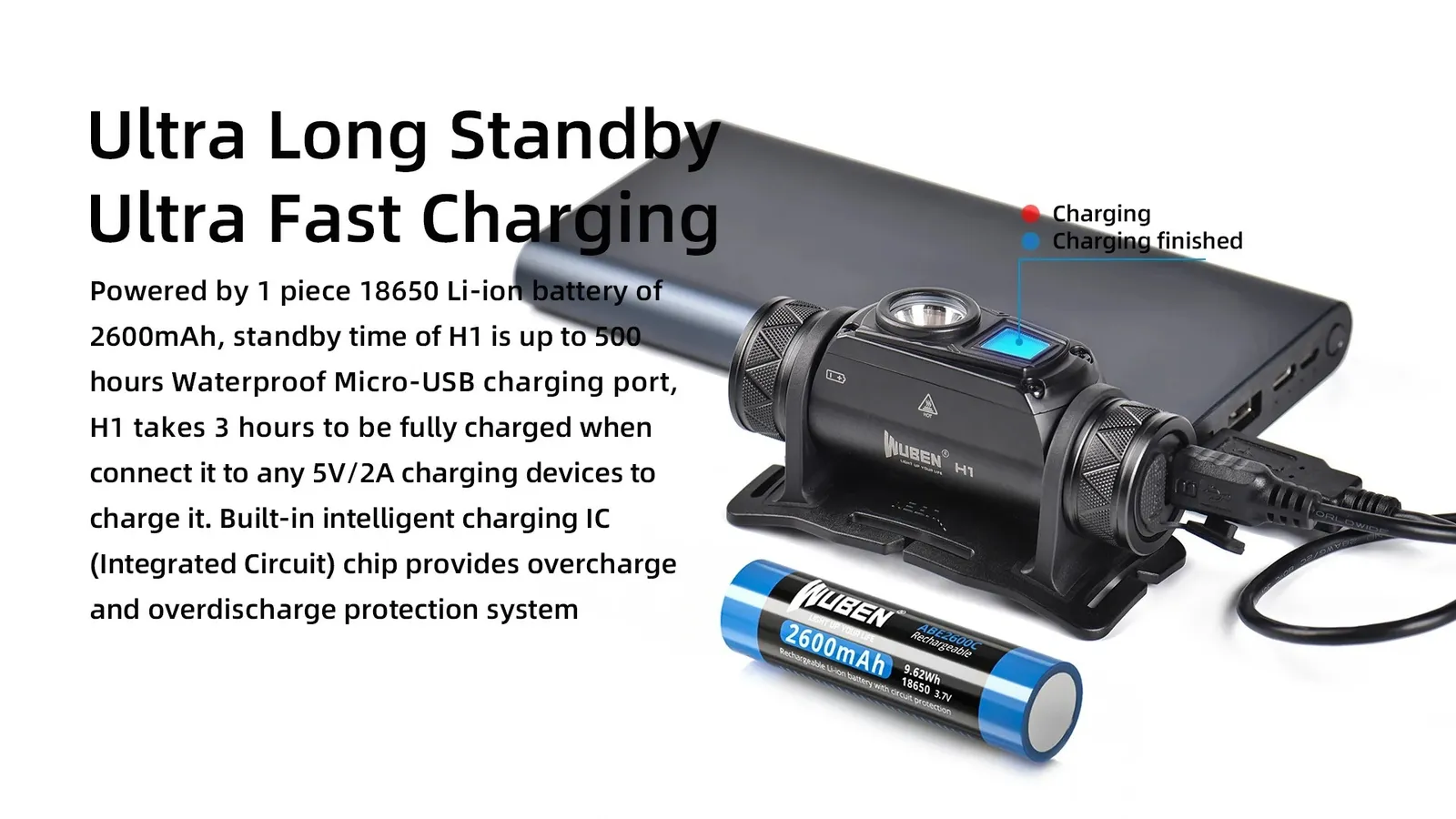

- Intelligent Charging: Powered by a 2600mAh 18650 Li-ion battery, it charges via USB-C and features a built-in intelligent charging IC chip to prevent overheating.

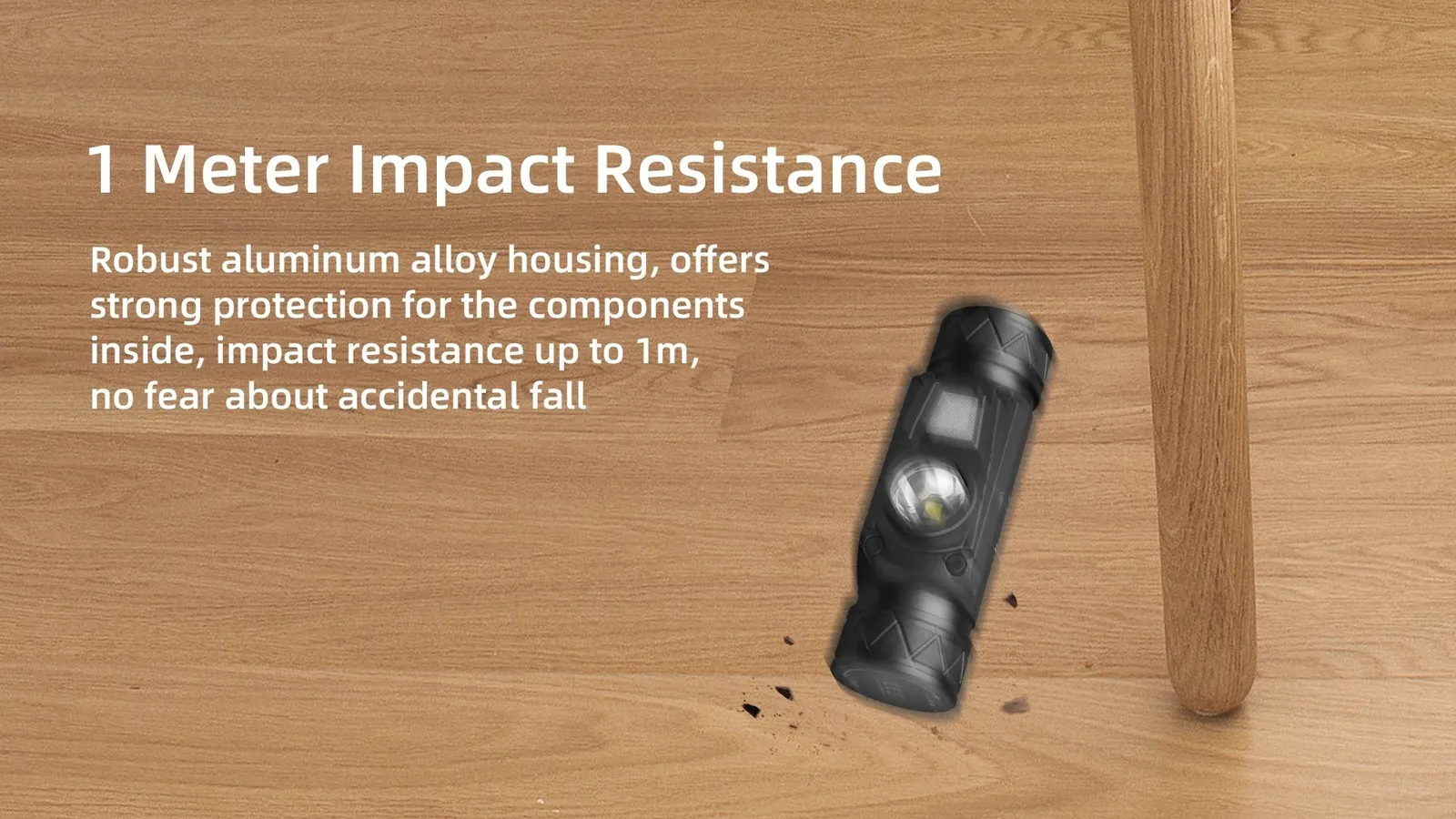

- Durable and Waterproof: With an IP68 waterproof rating, the headlamp is strong enough to withstand a 1-metre drop.

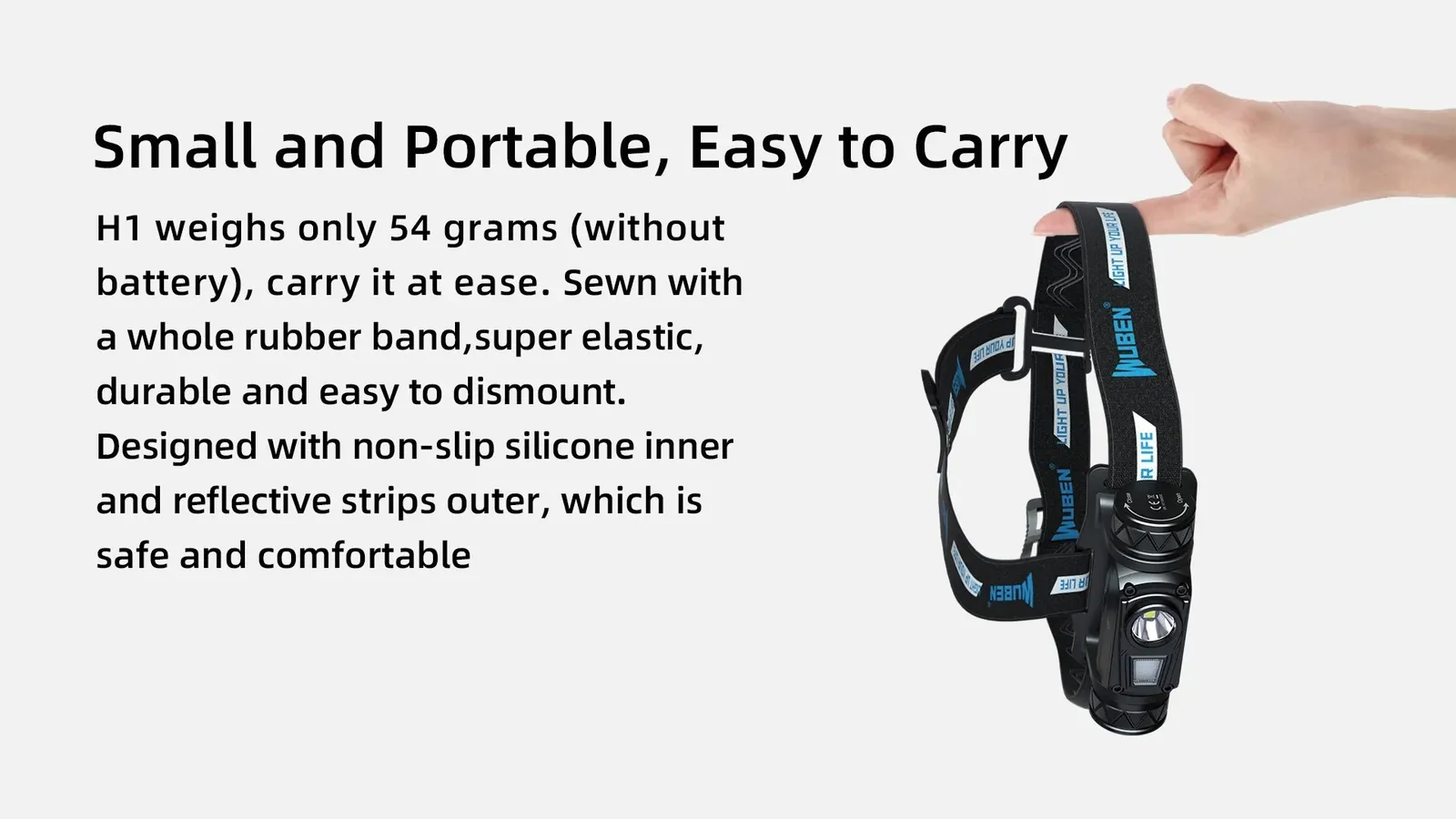

- Comfortable Design: Weighing only 102g, it features a non-slip, soft, and durable headband for comfortable wear, even overnight.
Package Includes
- 1 x Wuben H1
- 1 x Wuben ABE2600C Rechargeable 18650 Lithium-ion Battery
- 1 x USB Charging Cable (USB-A to USB-C)
- 1 x Headband
- 1 x Helmet Clip
- 1 x Spare O-ring
- 1 x User Manual
Key Information
| Feature |
Details |

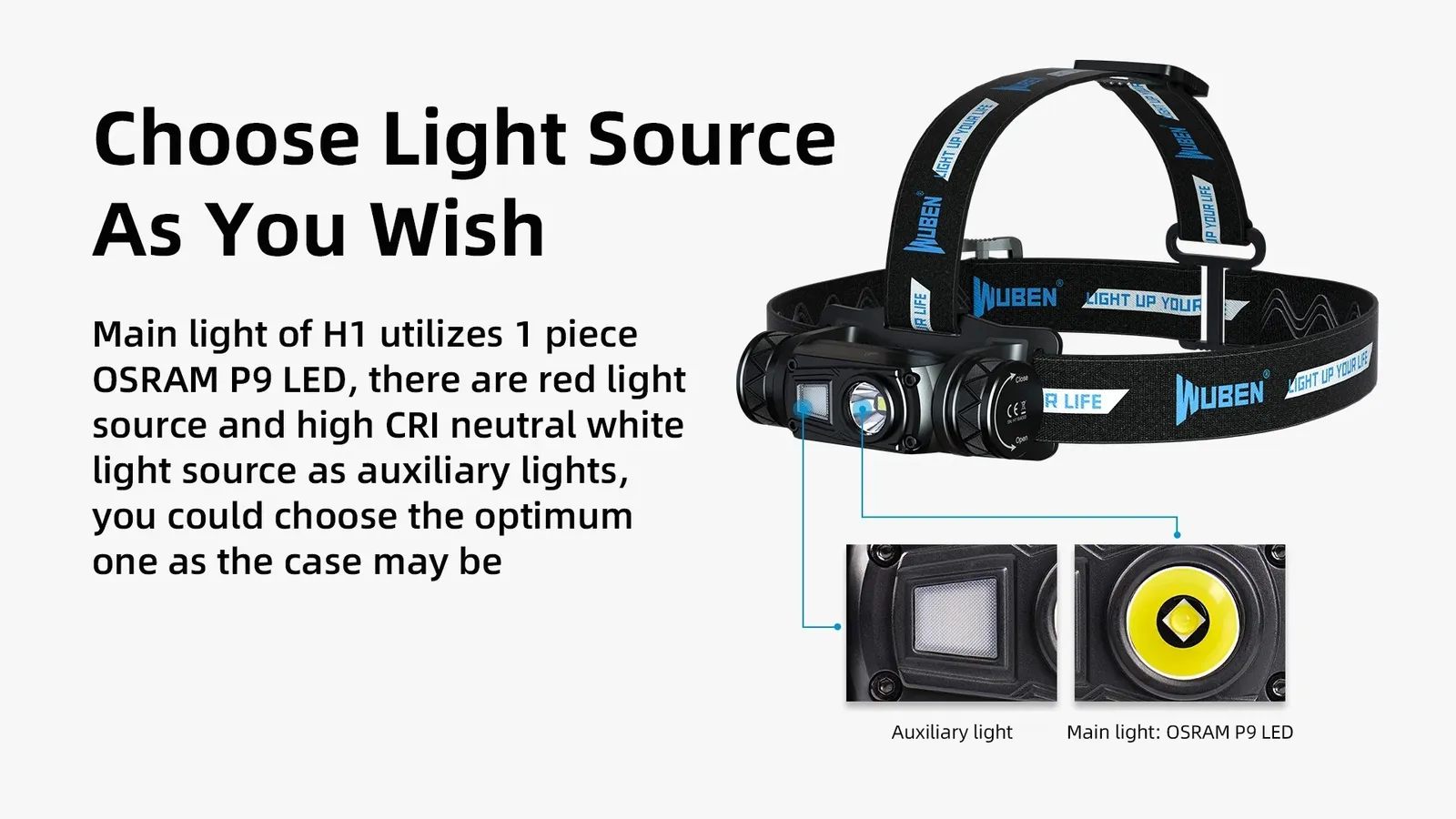

| Primary Light Source |
1 x OSRAM P9 White LED |
| Auxiliary Light Sources |
1 x Neutral White LED
1 x Red Light Source |
| Power Source |
1 x Wuben ABE2600C 2600mAh Protected Rechargeable 18650 Lithium-ion Battery |
| Recharging Method |
USB Type-C |

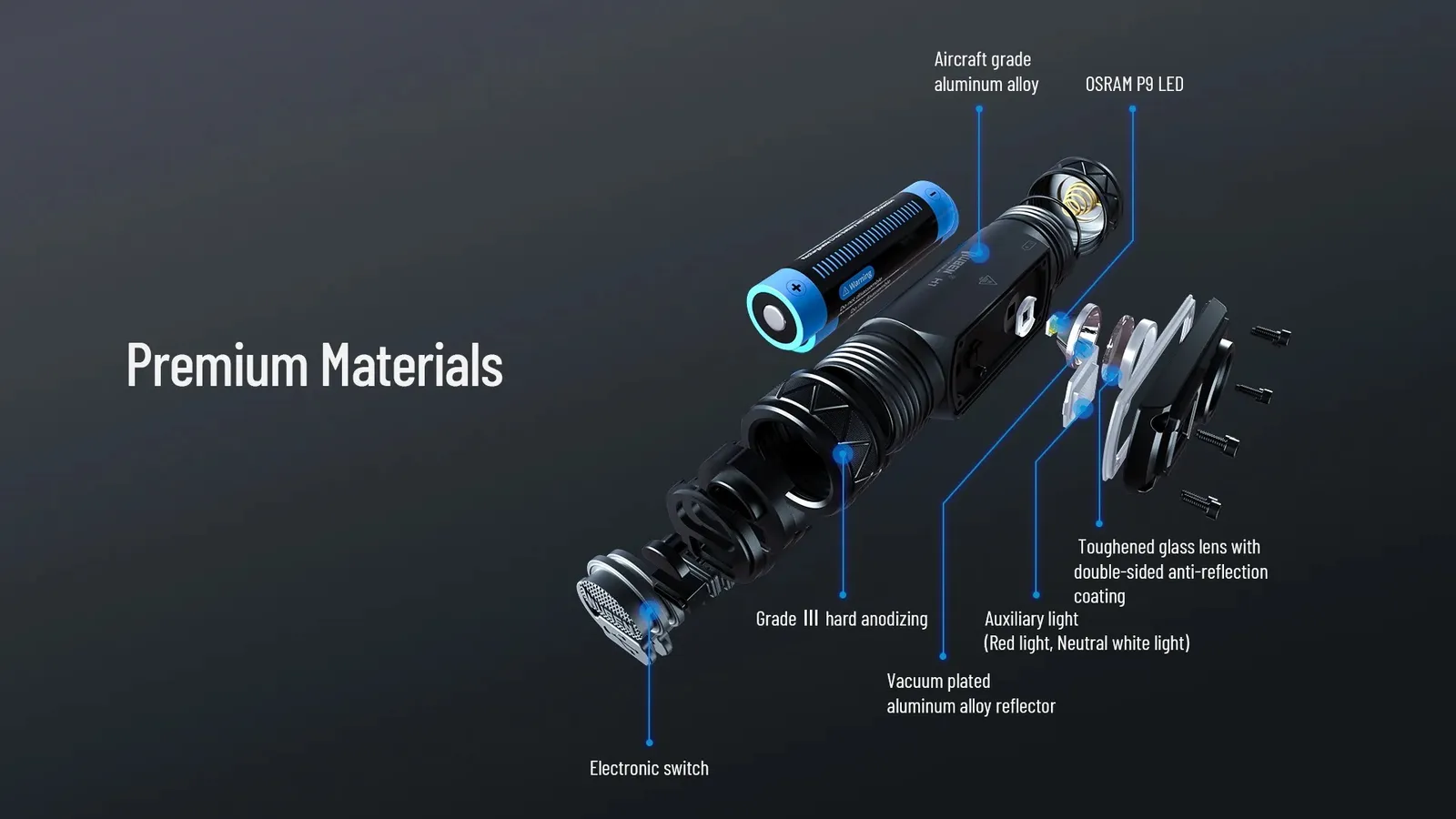

| Material |
Aluminium alloy |
| Warranty (Headlamp) |
5 years |
| Warranty (Battery) |
1 year |
| Warranty (Accessories) |
1 year |
ANSI/PLATO FL1 Specifications
| Feature |
Measurement |
| Maximum Light Output |
1200 lumens |
| Maximum Runtime |
500 hours |
| Maximum Beam Distance |
125 metres |
| Peak Beam Intensity |
3900 candela |
| Impact Resistance |
1 metre |
| Ingress Protection Rating |
IP68 |
Dimensions
| Feature |
Measurement |
| Length |
85 mm |
| Width |
26 mm |
| Height |
33 mm |
| Weight |
102 g |
Additional Data

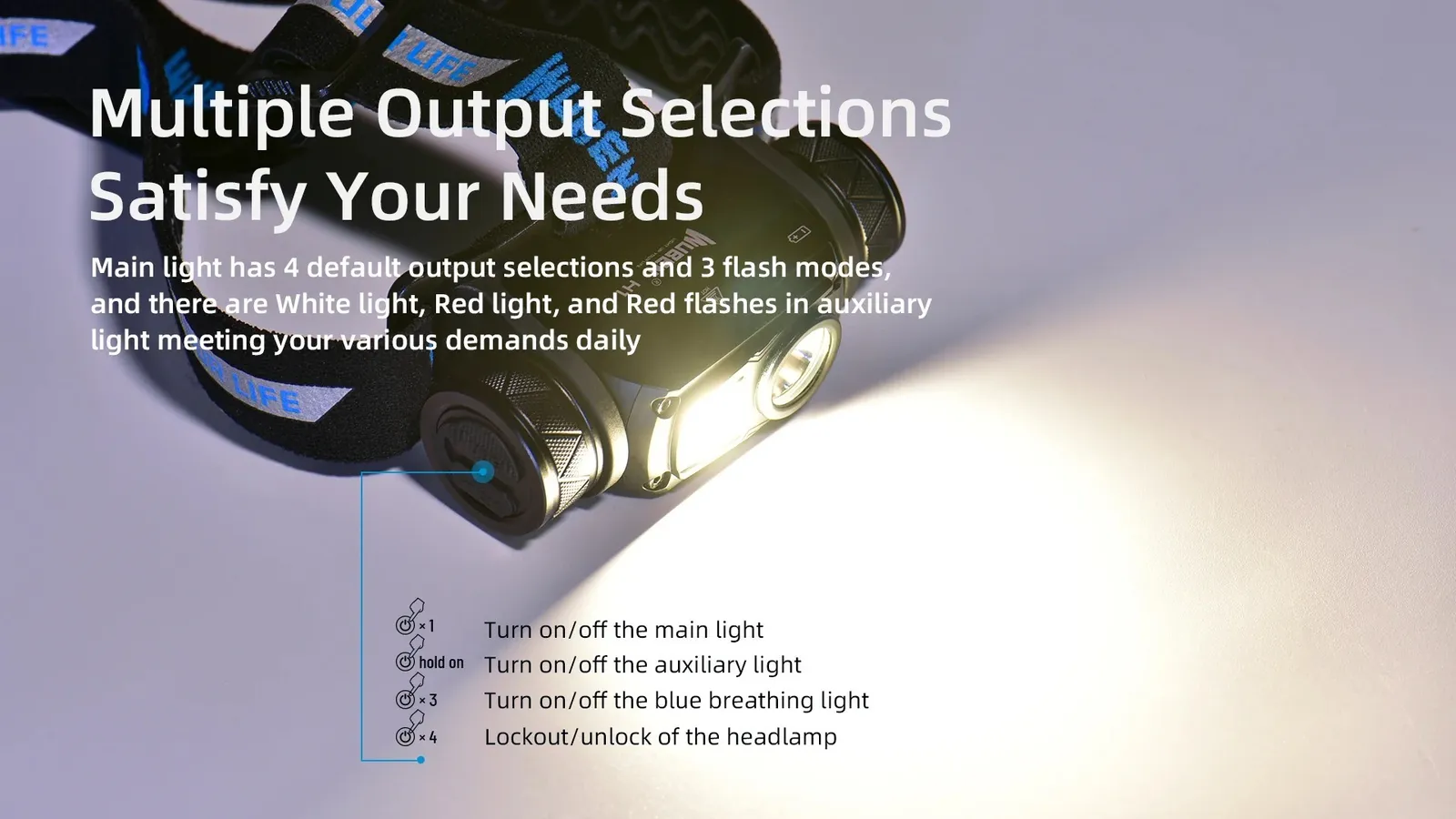

Manufacturer's Specs
| ANSI FL1 Standard |
Main Light |
Auxiliary Light |
| High |
Med |
Low |
Moon |
White Light |
Red Light |
| Max Output |
1200~500 lm |
400 lm |
80 lm |
1 lm |
10 lm |
10 lm |
| Max Runtime |
1min + 2h |
2.6h |
14h |
500h |
25h |
30h |
| Max Beam Distance |
125 m |
72 m |
32 m |
4 m |
— |
— |
| Peak Beam Intensity |
3900 cd |
1300 cd |
260 cd |
3 cd |
— |
— |
| Flash Mode |
Strobe (1200 lm), SOS (250 lm), Beacon (100 lm), Red Flash (10 lm) |
| Weight |
54 g / 1.90 oz (without battery), 102 g / 3.60 oz (with battery) |
Note: All data from experiments of WUBEN lab according to the ANSI/NEMA FL1 standard, may vary because of different experiment equipment, experiment environment or other factors. Experiments are based on a WUBEN ABE2600C Li-ion battery.
Performance and Runtime Disclaimer
How to read the data: The outputs provided above are maximum outputs for each mode, and the runtimes provided are the time it takes to drop to 10% of the initial output. This is in line with the International Flashlight Testing Standard ANSI FL1.
Any visual representations (graphs) of the data are approximate only.
Read more
The actual output of the torch/headlamp is controlled by an in-built temperature regulation system. As the torch/headlamp heats up, the brightness will drop to prevent overheating. The Turbo modes of torches/headlamps usually drop down significantly after anything from 15 seconds to 2 minutes. High modes often also experience a drop down over time. Medium and Low modes, however, can be constant for very close to the length of time specified. As the torch/headlamp cools down, either from being turned off or from being used on a lower output level, you will be able to access higher brightness levels again.
Example: An output of 2000 lumens and runtime of 5 hours does not mean 2000 lumens for 5 hours — it means it starts at 2000 lumens and drops below 200 lumens after 5 hours of continuous use.
Turbo and high modes may be unavailable or limited as the battery gets low on charge.
Exact specifications can vary between torches, batteries, age and environments.
