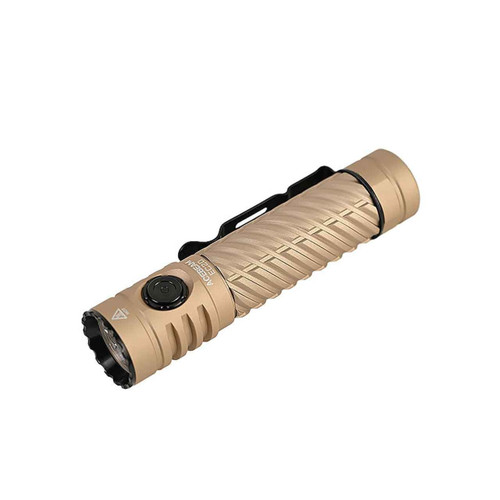

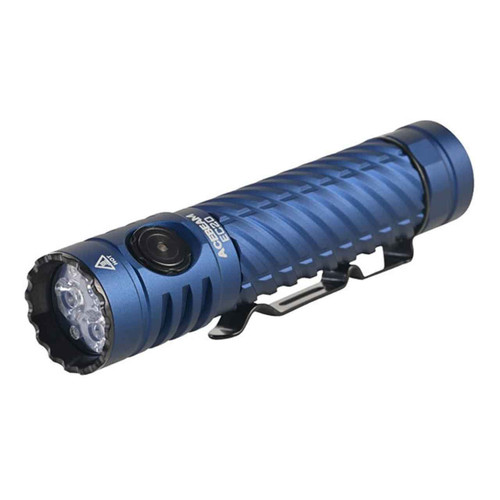

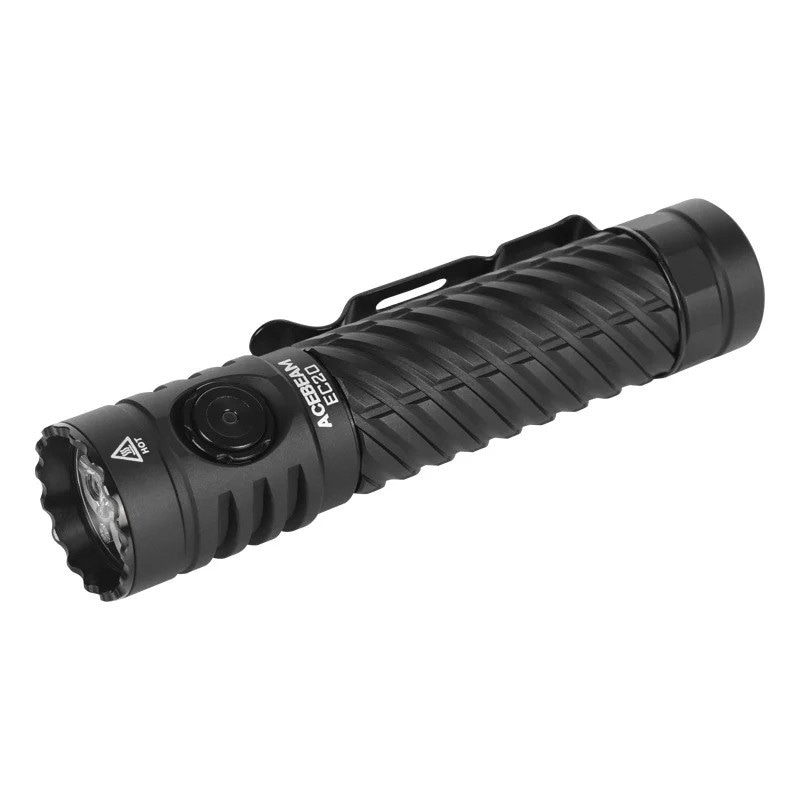

The Acebeam EC20 is a portable EDC torch with a maximum output of 2800 lumens. It offers three premium LED options and excellent performance, powerful throw up to 370 metres. The AUX light excels in creating an ambiance for outdoor activities like camping. The dual fuel design supports rechargeable 18650 and CR123A batteries, catering to different power needs in various environments. The EC20 comes with a one-way clip and a magnetic tail cap, providing multiple carrying options. Additionally, the knurled milling pattern ensures a secure grip.

Heat Warning

Due to its high output-to-size ratio, the EC20 heats up more than standard LED torches when operated in Turbo mode. This thermal buildup is an intentional part of the design. While the torch head may become too hot to touch during Turbo use, the main body remains safely within comfortable handling temperatures.

Features:

• Compact and portable
• LED options :

  • SFT-25R HI LEDs, Max throw 370 metres
  • Nichia 519A LEDs CRI > 90
  • LUXEON HL4X  6500K  LEDs, max 2800 lumens

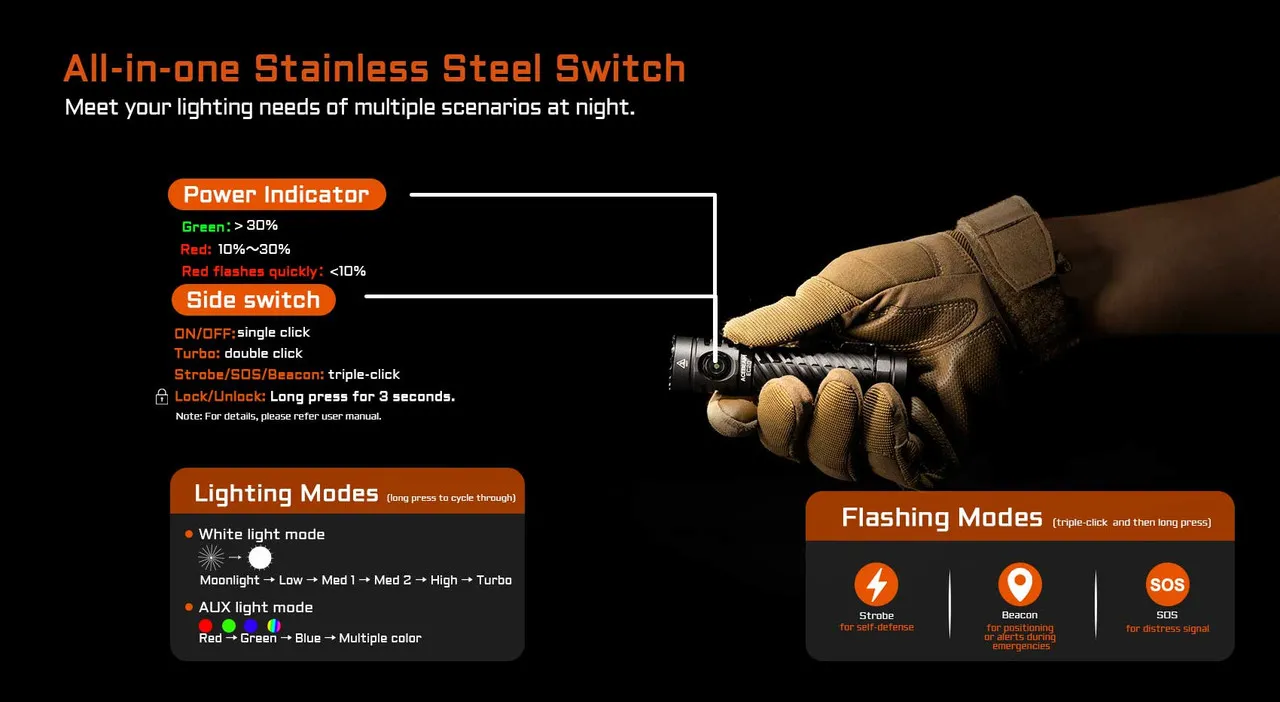

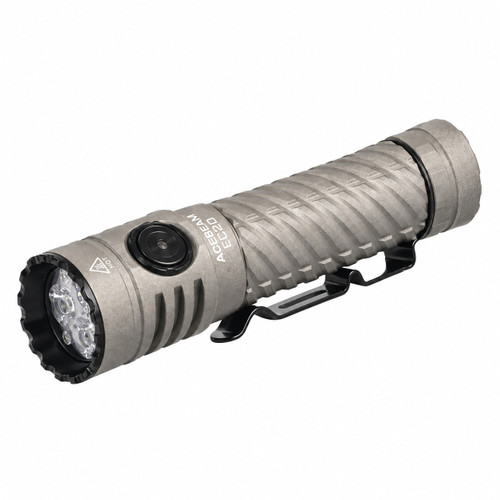

• All-in-one stainless steel switch controls all and is easy to operate even while wearing gloves

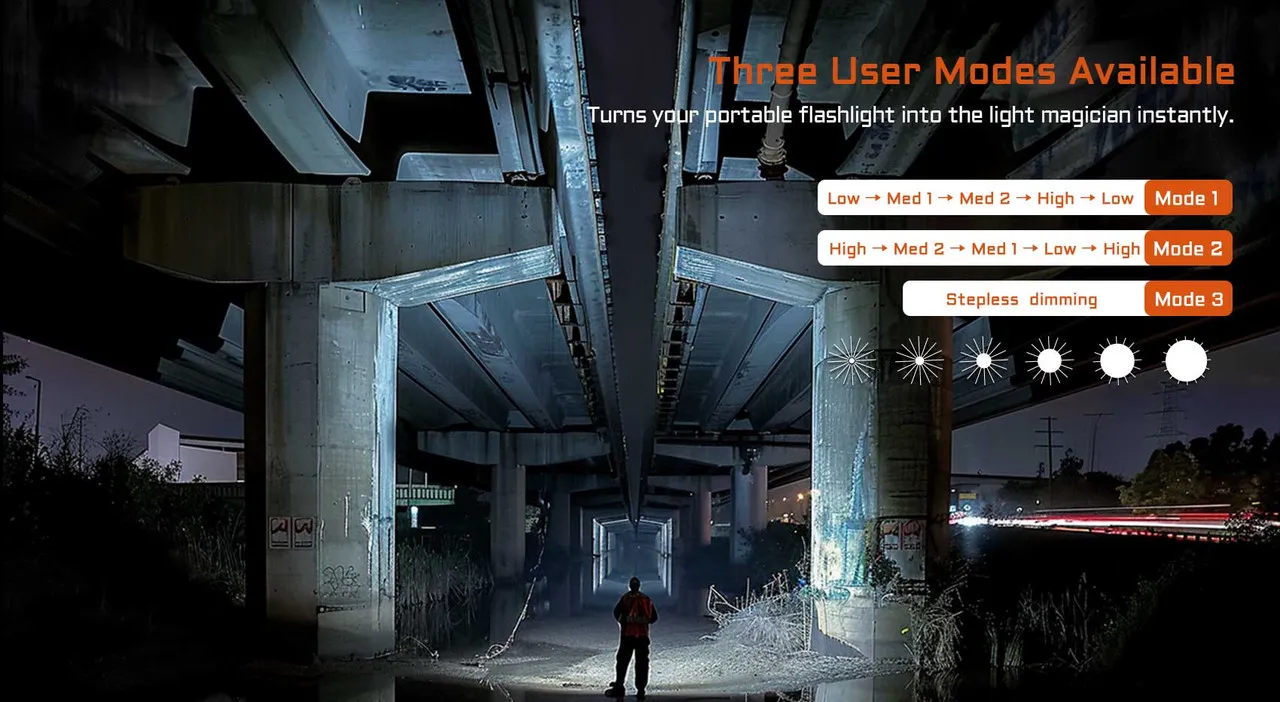

• Three dimming modes available
• Auxiliary lights (Red - Blue - Green- Multiple colors)
• 6 white brightness levels, Strobe, SOS, and Beacon cater to your lighting needs in various scenarios
• Adopts highly efficient constant circuit (Non-PWM) guarantees a comfortable visual experience

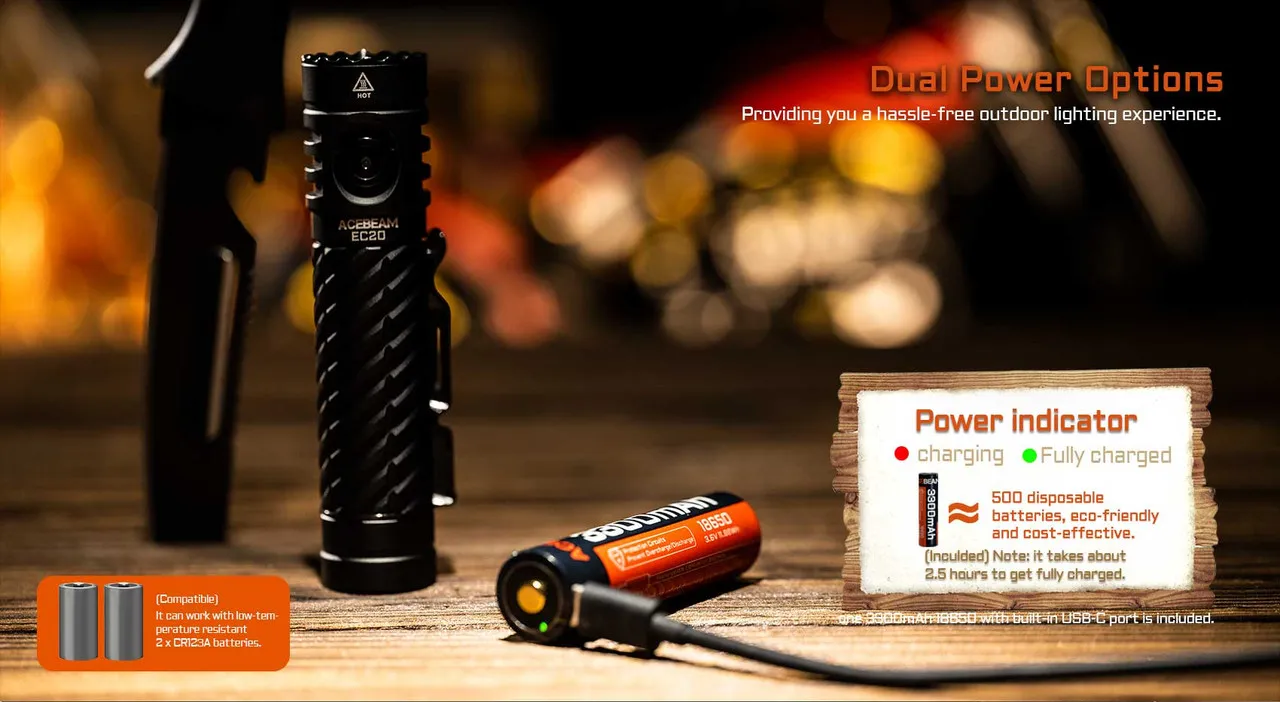

• Dual power options, it can be powered by one 18650 or two CR123A batteries
• Magnetic tail stand for versatile lighting
• High strength and impact-resistant HAIII hard-anodized anti-abrasive and corrosion-resistant finish
• All metal body (AL6061-T6 high-quality aluminum alloy) can withstand 1.5-meter drop test

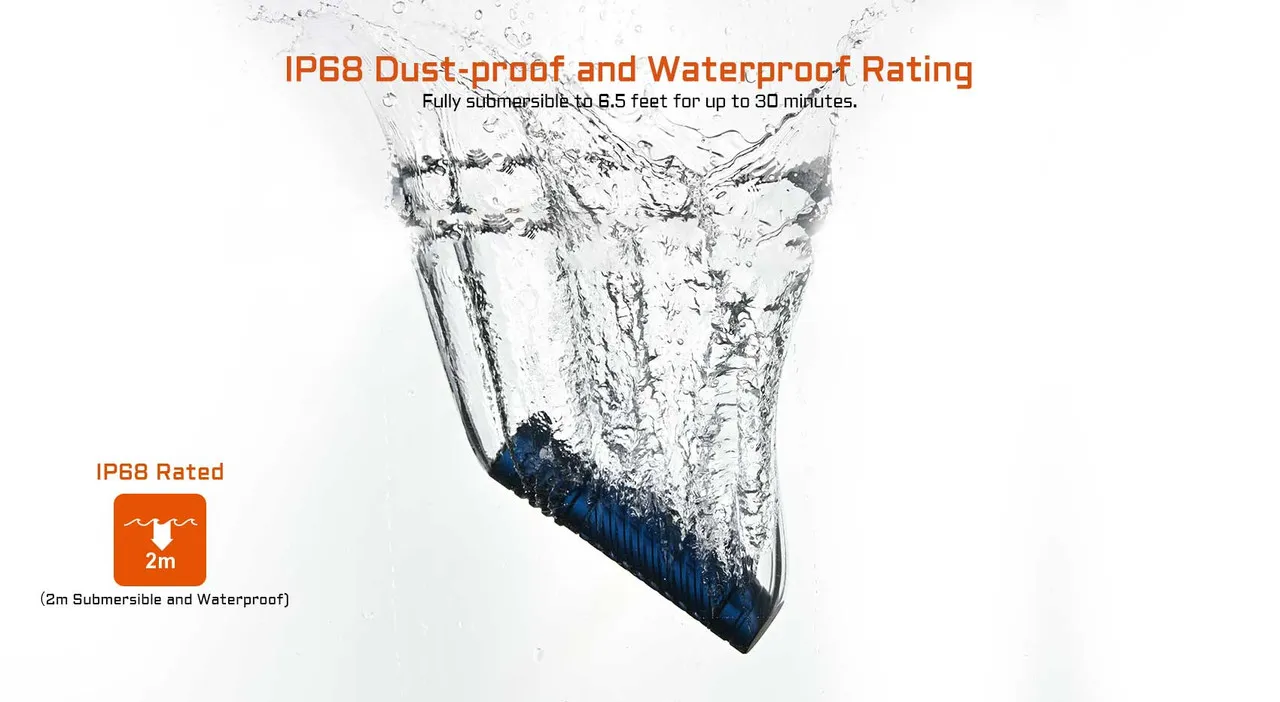

• IP68 rated, provides effective protection against dust, and can fully submersible to 2 metres for up to 30 minutes
• Ideal for exploration, patrol, dog walking, fishing, camping, night reading, and more
• Package Includes:
  • 1 x AceBeam EC20
  • 1 x 18650 USB-C rechargeable battery
  • 1 x Lanyard
  • 2 x O-rings
  • 1 x USB-C charging cable
  • Warranty card & User Manual

Specifications:

• Max. output: 1900 lumens
• Max. beam distance: 270 metres
• Max. runtime: 36hours
• Peak beam intensity: 18225cd
• Brightness Outputs: 3 x SFT-25R HI 6500K LEDs

  • Ultra Low: 1 lumen - 36 hours
  • Low: 25 lumens - 24 hours
  • Med1: 180 ~ 25 lumens - 9 hours ~ 1 hour
  • Med2: 540 ~ 25 lumens - 3.5 hours ~ 1 hour
  • High: 1300 ~ 650 ~ 25 lumens - 5 min~ 2H20min ~ 1 hour
  • Turbo: 2500 ~ 650 ~ 25 lumens - 35 seconds + 2H30min ~ 1 hour
  • Strobe: 1300 lumens - 2H50min
  • SOS: 1300 lumens - 4H30min
  • Beacon: 1300 lumens - 7H
• 3 x Nichia 519A LEDs CRI > 90

  • Ultra Low: 1 lumen - 36 hours
  • Low: 25 lumens - 24 hours
  • Med1: 140 ~ 25 lumens - 9 hours ~ 1 hour
  • Med2: 400 ~ 25 lumens - 3.5 hours ~ 1 hour
  • High: 1000 ~ 470 ~ 25 lumens - 5 min~ 2H20min ~ 1 hour
  • Turbo: 1900 ~ 470 ~ 25 lumens - 35 seconds + 2H30min ~ 1 hour
  • Strobe: 1000 lumens - 2H50min
  • SOS: 1300 lumens - 4H30min
  • Beacon: 1300 lumens - 7H
• 3 x LUXEON HL4X 6500K LEDs

  • Ultra Low: 1 lumen - 36 hours
  • Low: 25 lumens - 24 hours
  • Med1: 180 ~ 25 lumens - 9 hours ~ 1 hour
  • Med2: 540 ~ 25 lumens - 3.5 hours ~ 1 hour
  • High: 1400 ~ 650 ~ 25 lumens - 5 min~ 2H20min ~ 1 hour
  • Turbo: 2800 ~ 650 ~ 25 lumens - 35 seconds + 2H30min ~ 1 hour
  • Strobe: 1400 lumens - 2H50min
  • SOS: 1400 lumens - 4H30min
  • Beacon: 1400 lumens - 7H

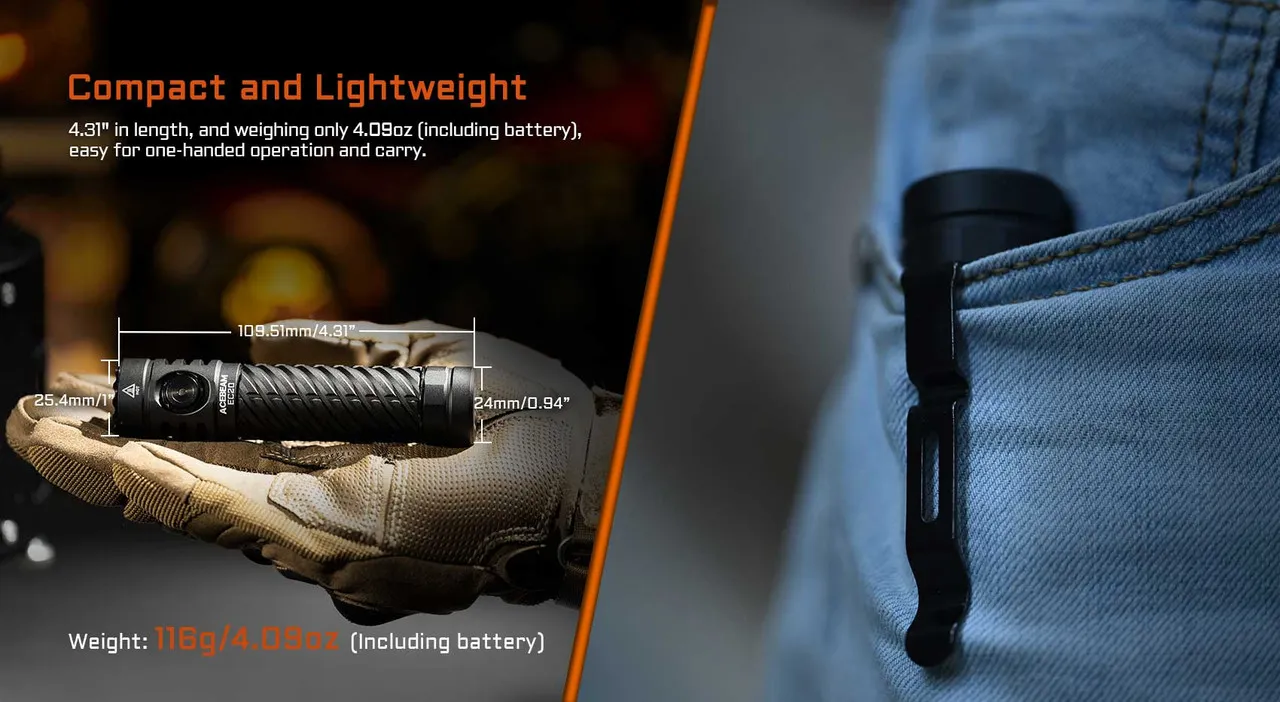

• Dimensions:
  • Length: 109.51mm
  • Head diameter: 25.4mm
  • Tail diameter: 24mm
• Weight: 116g(Incl. battery)
