The Acebeam X30 is a high-output rechargeable LED torch delivering up to 20,000 lumens with a beam distance of 600 metres. Featuring triple CREE XHP70.2 LEDs and dual white and red light sources, this powerful searchlight is ideal for tactical use, search and rescue, and outdoor applications. Powered by dual 21700 high-drain batteries with USB-C charging, and built with rugged IP68 protection, the X30 is designed to perform in the toughest environments. Built for extreme performance and reliability.
Key Features
Extreme Output: Up to 20000 lumens with 600 metre throw
Dual Light Sources: White and red light modes for versatile use
Triple Mode Operation: Tactical, Duty, and Red Light modes via toggle switch

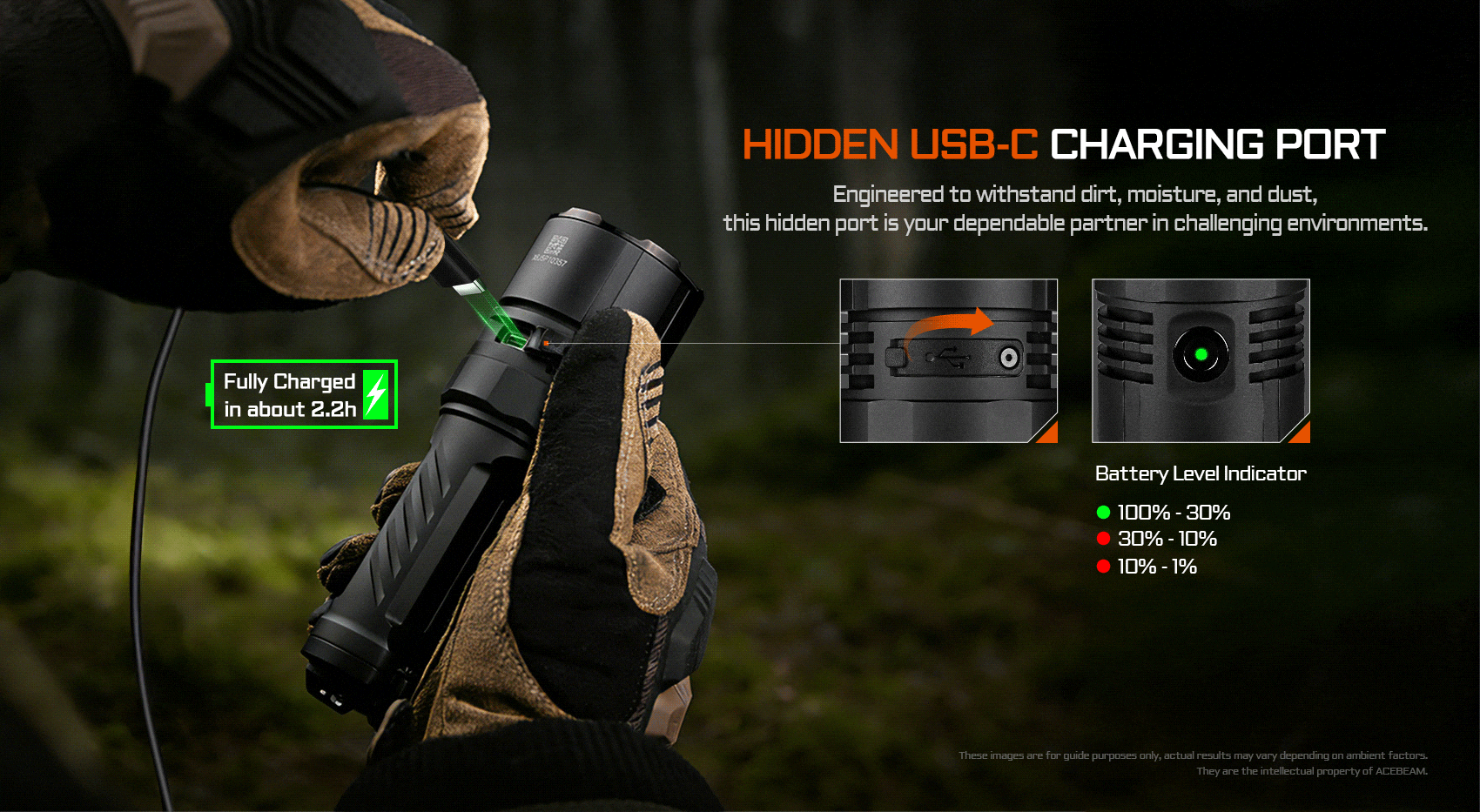

USB-C Rechargeable: Hidden charging port with battery level indicator

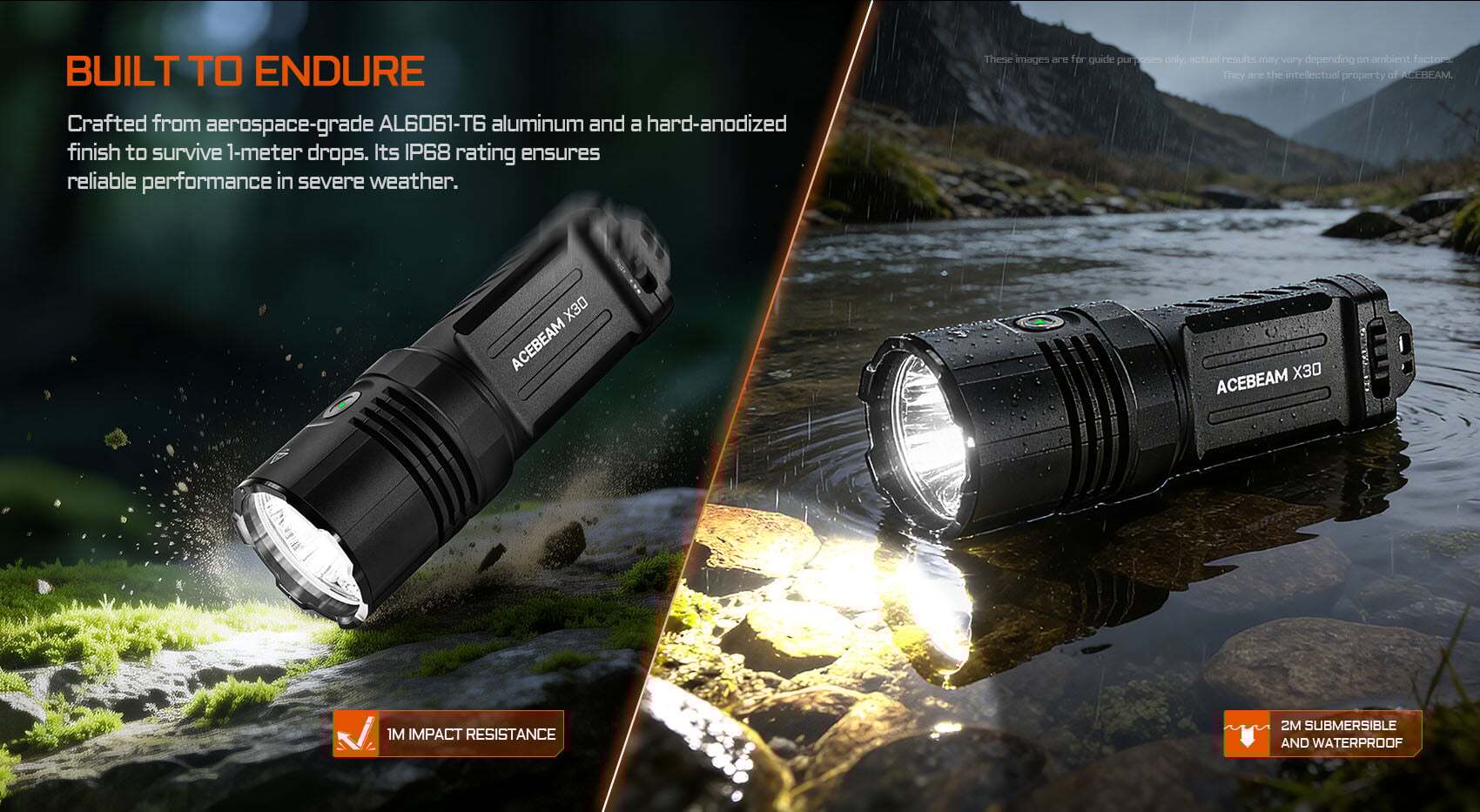

Rugged Design: IP68 waterproof with 1 metre impact resistance
Key Information
Feature
Details
Material
Aluminium Alloy
Primary Light Sources

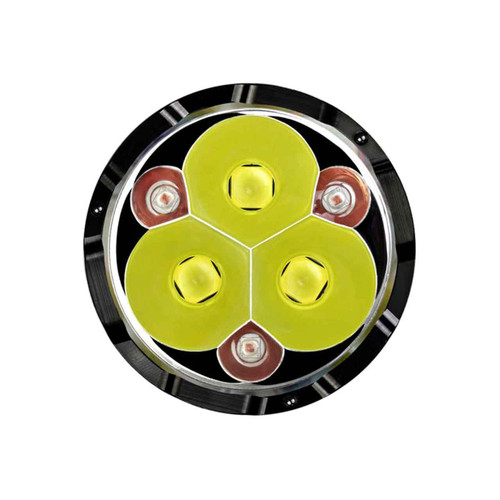

3 x CREE XHP70.2 Cool White LEDs
Auxiliary Light Sources
3 x Red LEDs
Power Source

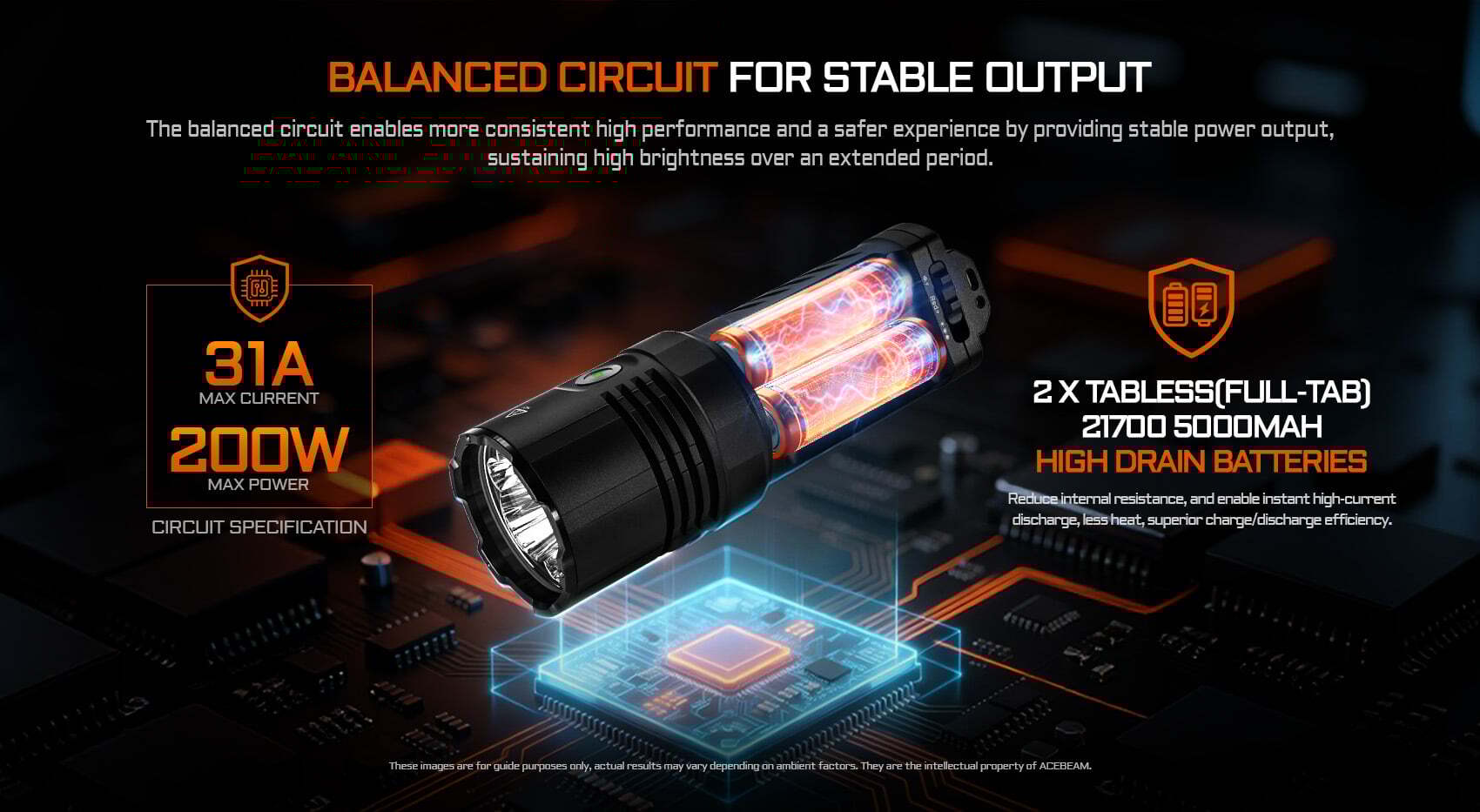

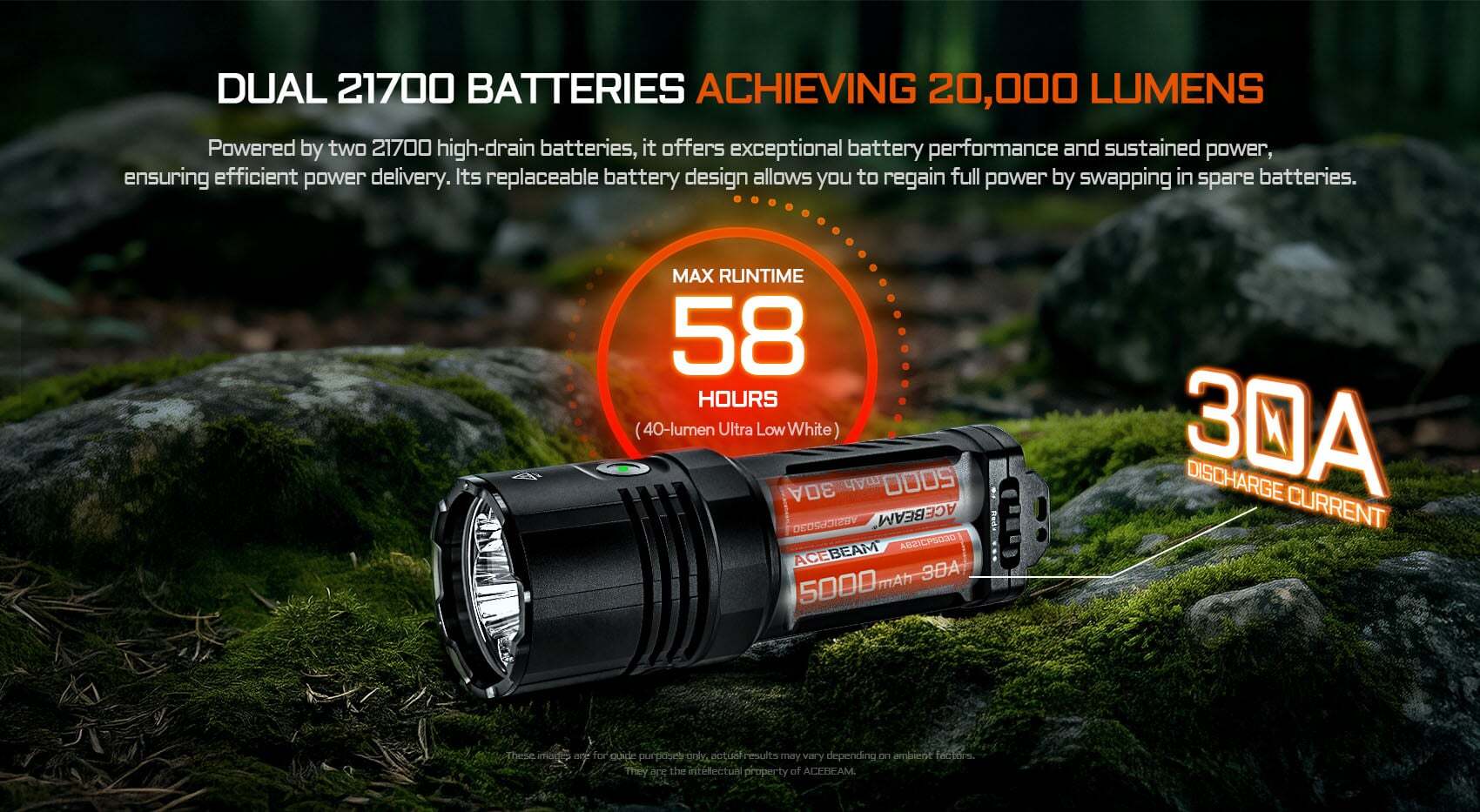

2 x Acebeam AB21CP5030 Protected High-drain 21700 Lithium-ion Batteries
Recharging Method
USB Type-C

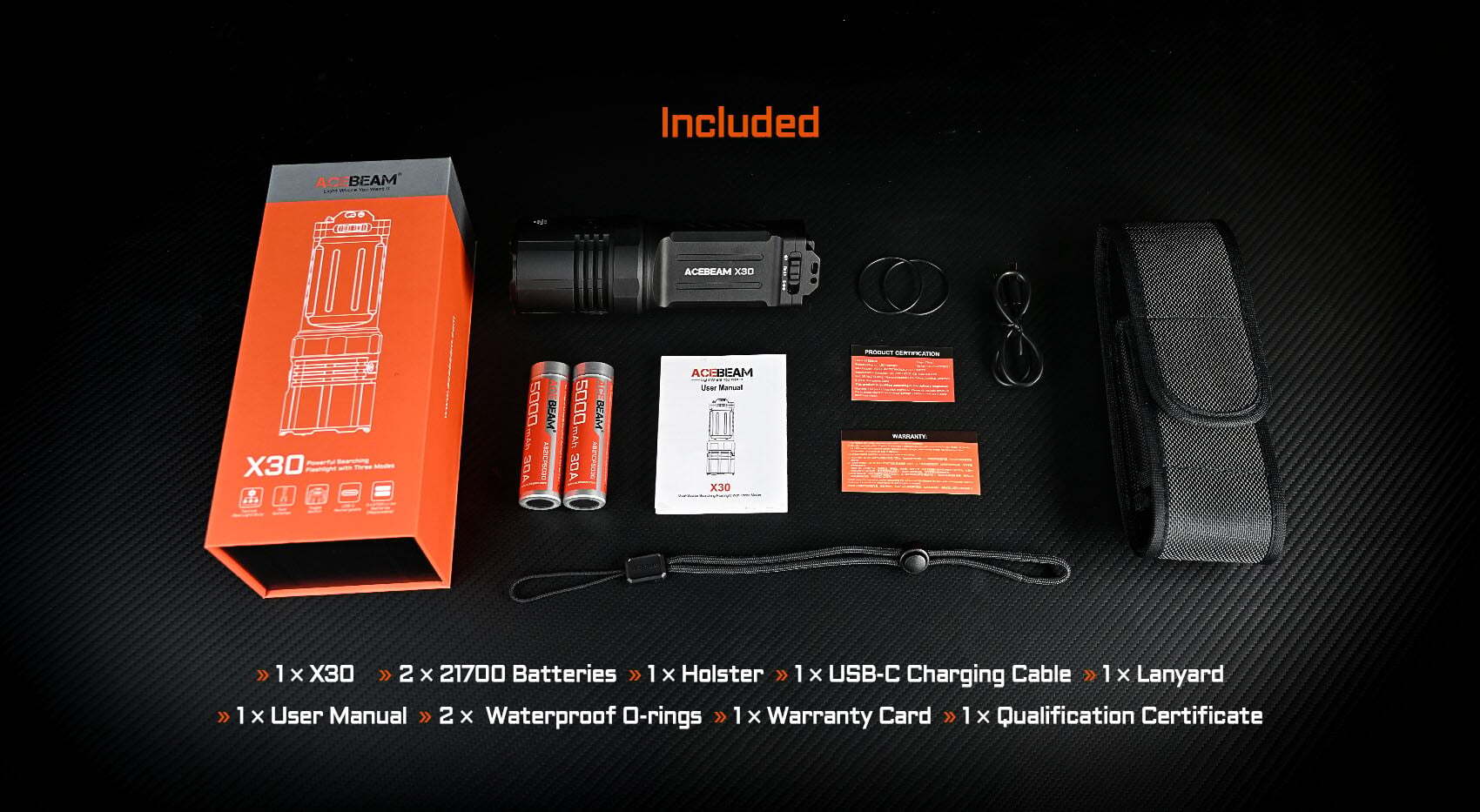

Package Includes
1 x Acebeam X30
2 x Acebeam AB21CP5030 Rechargeable Batteries
1 x USB Charging Cable (USB-A to USB-C)
1 x Holster
1 x Lanyard
2 x O-rings
1 x User Manual
Warranty (Torch)
10 years
Warranty (Batteries)
1 year
Warranty (Accessories)
1 year
ANSI FL Specifications
Feature
Measurement
Maximum Light Output
20000 lumens
Maximum Runtime
58 hours
Maximum Beam Distance
600 metres
Peak Beam Intensity
90000 candela
Impact Resistance
1 metre
Ingress Protection Rating
IP68

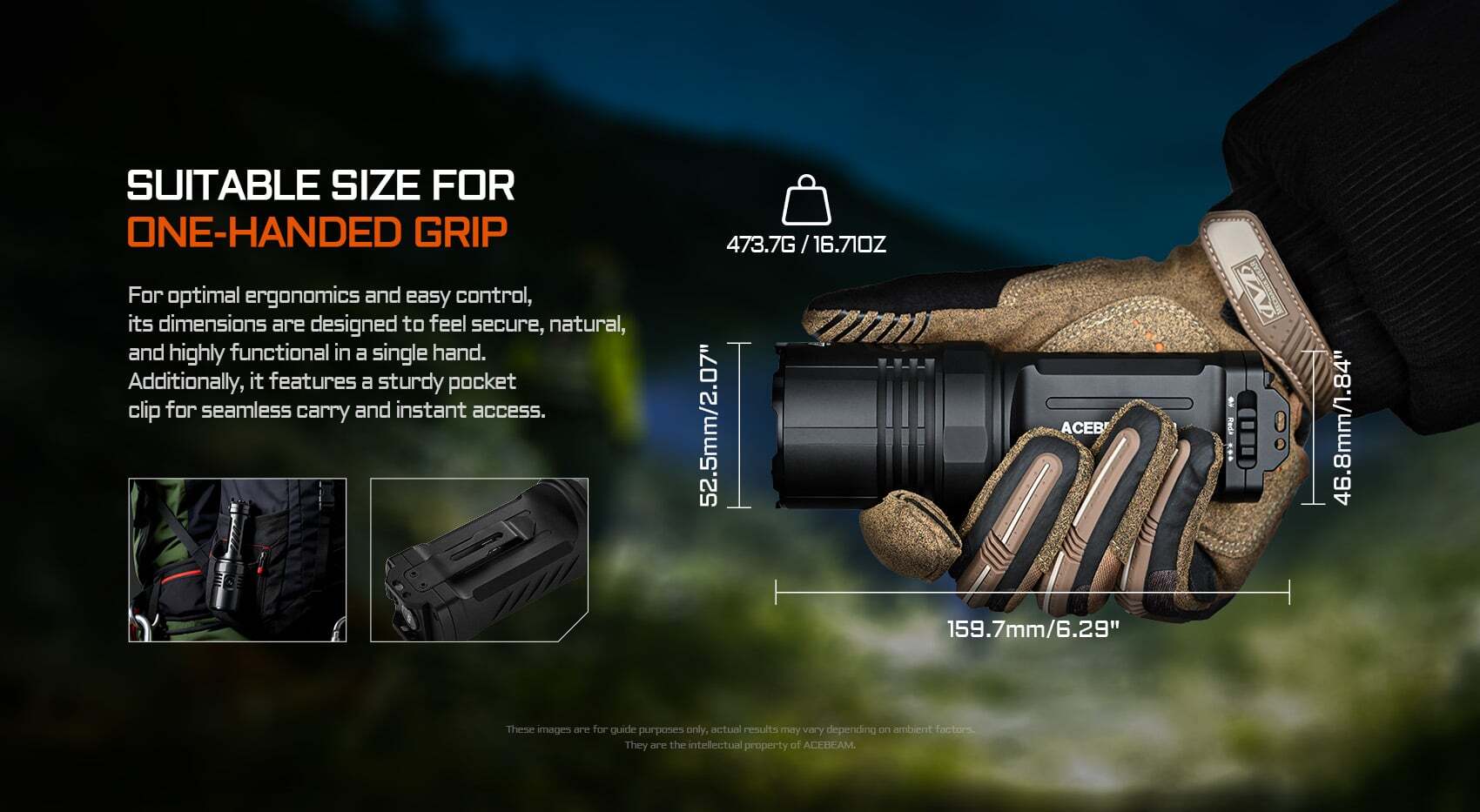

Dimensions
Feature
Measurement
Length
159.7 mm
Head Diameter
52.5 mm
Body Diameter
46.8 mm
Weight
473.7 g

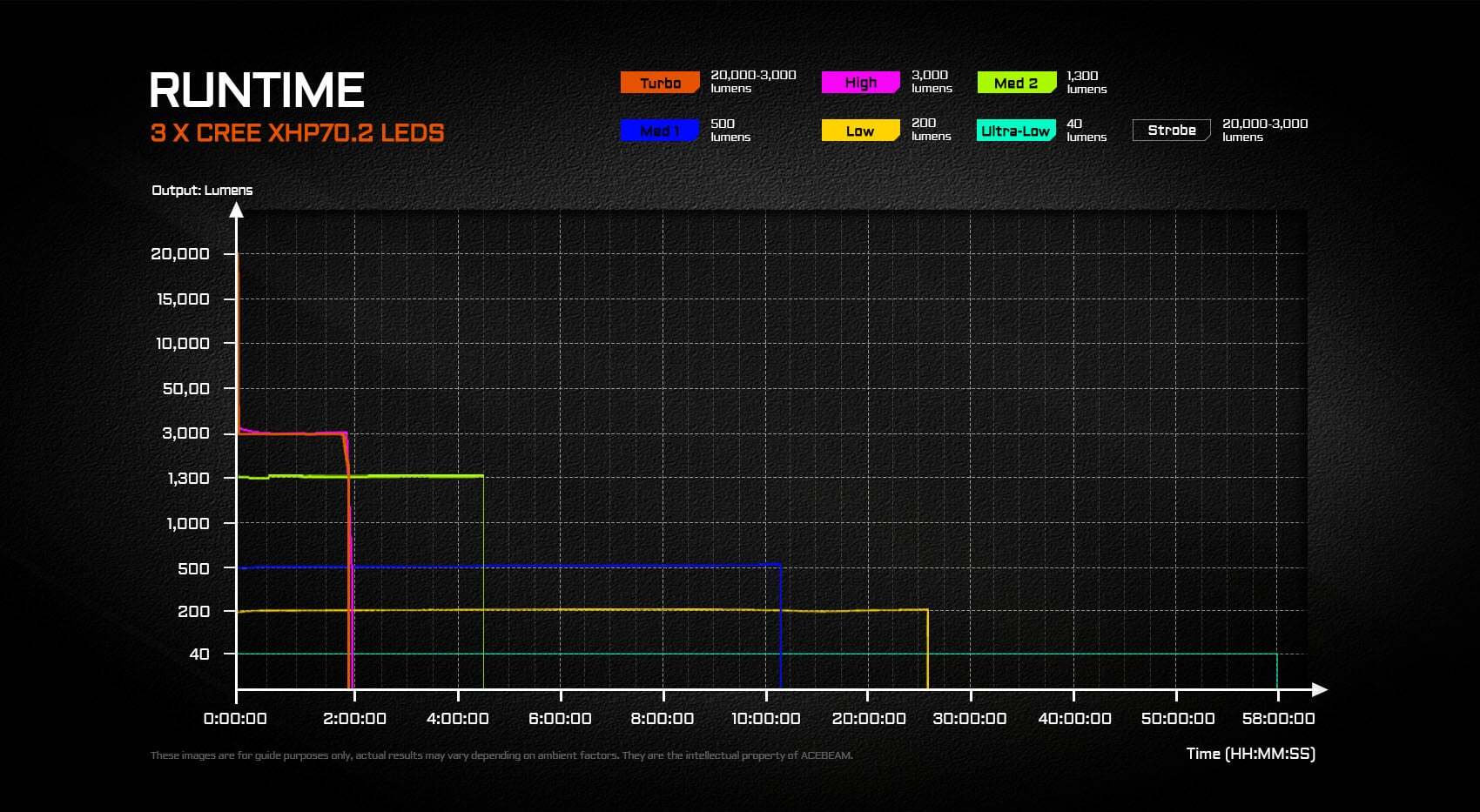

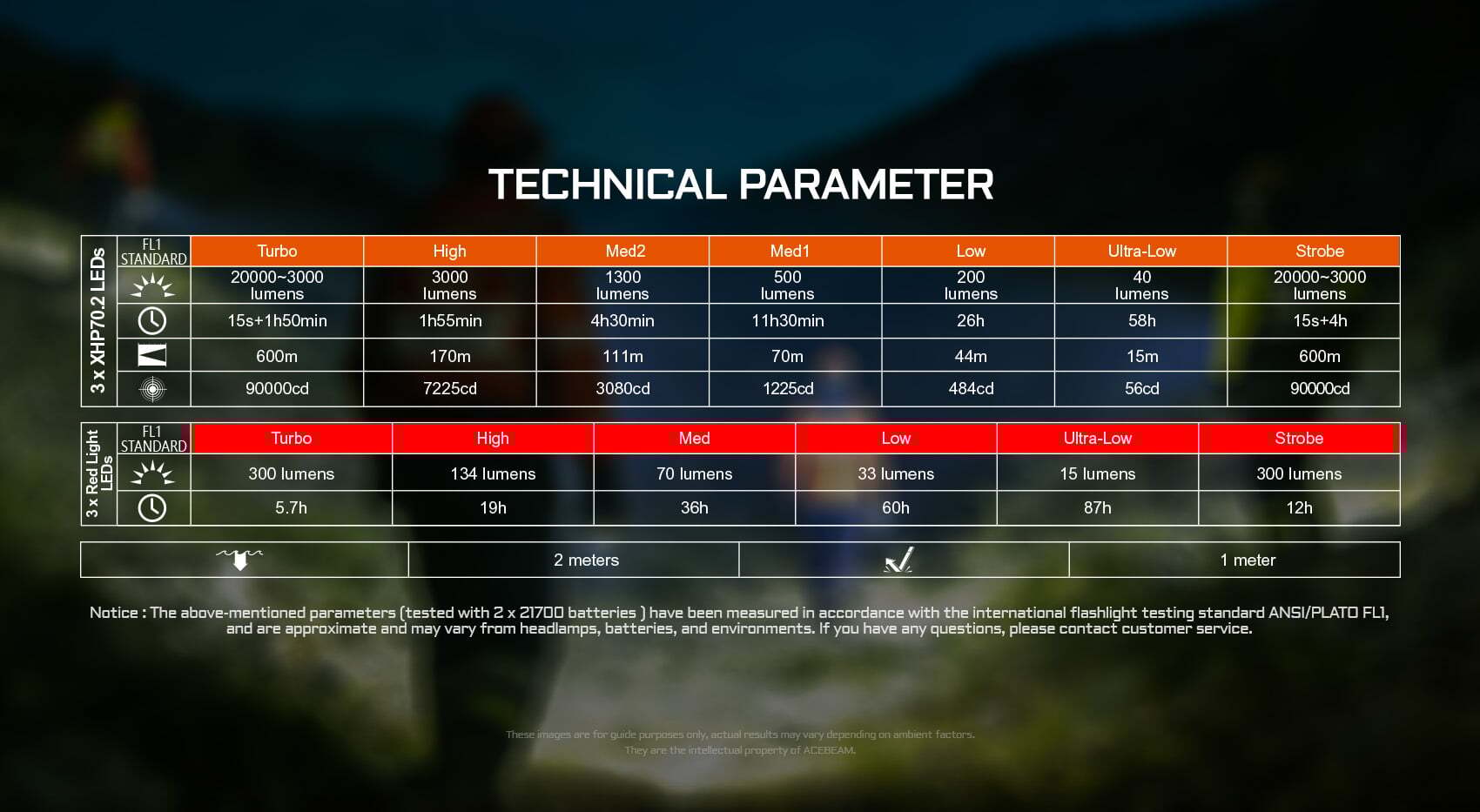

Brightness Outputs and Runtimes
Mode
Output
Runtime
Maximum Beam Distance
Peak Beam Intensity
White
Turbo
20000 lm → 3000 lm
15 s + 1 h 50 min
600 m
90000 cd
High
3000 lm
1 h 55 min
170 m
7225 cd
Medium 2
1300 lm
4 h 30 min
111 m
3080 cd
Medium 1
500 lm
11 h 30 min
70 m
1225 cd
Low
200 lm
26 h
44 m
484 cd
Ultra Low
40 lm
58 h
15 m
56 cd
Strobe
20000 lm → 3000 lm
15 s + 4 h
600 m
90000 cd
Red
Turbo
300 lm
5 h 42 min
—
—
High
134 lm
19 h
—
—
Medium
70 lm
36 h
—
—
Low
33 lm
60 h
—
—
Ultra Low
15 lm
87 h
—
—
Strobe
300 lm
12 h
—
—
Note: The above data (tested with 2 x 21700 batteries) have been measured in accordance with the international flashlight testing standard ANSI/PLATO Fl1, and are approximate and may vary across torches, batteries and environments.
