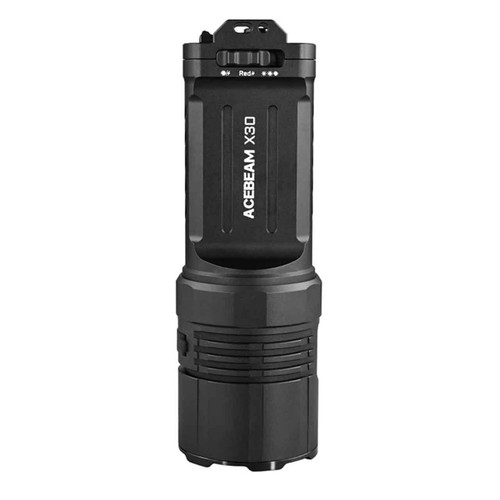

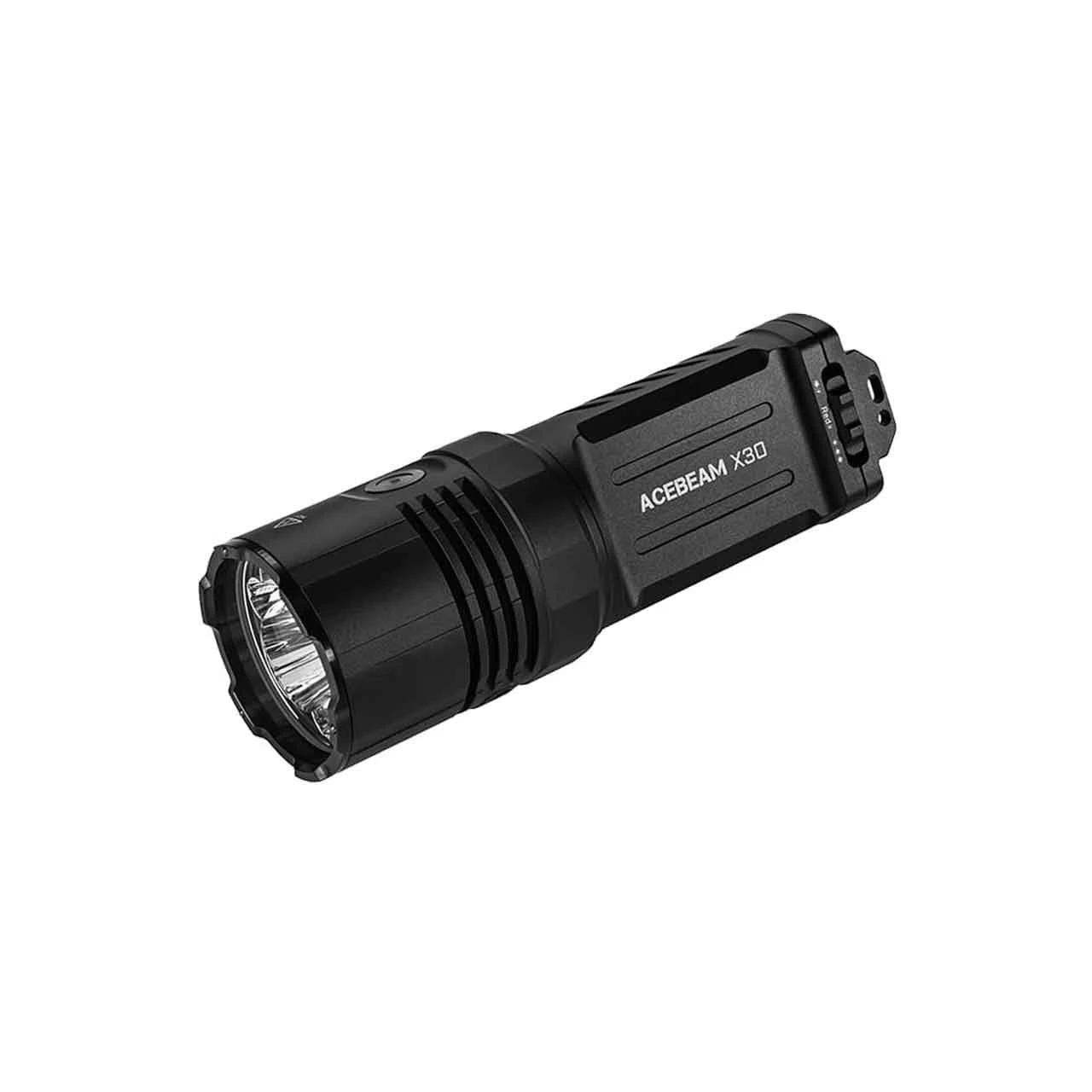

The Acebeam X30 is a high-performance search torch featuring three CREE LEDs, delivering up to 20000 lumens and a 600 metre beam distance. It offers versatile dual light sources with both white and red light, alongside three distinct operating modes. Powered by two Acebeam AB21CP5030 Protected High-drain 21700 Lithium-ion Batteries, it provides a maximum runtime of 58 hours and features convenient USB Type-C recharging via a hidden port. Its three modes (Tactical, Red Light, and Duty) are selected using a toggle switch and controlled by both a tactical tail switch and a side switch. The torch is IP68 rated for dust and water protection, and has 1 metre impact resistance. Additional features include a pocket clip, a balanced circuit for consistent output, a replaceable battery design, a clear battery indicator, and a mechanical dual-switch lockout with flashing feedback.
Features
High Lumen Output: Delivers up to 20,000 lumens of brightness for powerful illumination.
Dual Light Sources: Features both white and red light outputs for versatile use.
Replaceable Batteries: Powered by two 21700 high-drain batteries that can be swapped for continuous power.
USB-C Charging: Equipped with a hidden USB-C charging port for convenient recharging.
Package Includes
1 x Acebeam X30
2 x Acebeam AB21CP5030 Rechargeable Batteries
1 x USB Charging Cable (USB-A to USB-C)
1 x Pouch
1 x Lanyard
2 x O-rings
1 x User Manual
Key Information
Feature
Details
Primary Light Source
3 x CREE XHP70.2 Cool White LEDs
Auxiliary Light Source
3 x Red LEDs
Power Source
2 x Acebeam AB21CP5030 Protected High-drain 21700 Lithium-ion Batteries
Recharging Method
USB Type-C
Material
Aluminium alloy
Warranty (Torch)
10 years
Warranty (Batteries)
1 year
Warranty (Accessories)
1 year
Feature
Details
Primary Light Source
3 x CREE XHP70.3 HI Cool White LEDs
Auxiliary Light Source
3 x Red LEDs
Power Source
2 x Acebeam AB21CP5030 Protected High-drain 21700 Lithium-ion Batteries
Recharging Method
USB Type-C
Material
Aluminium alloy
Warranty (Torch)
10 years
Warranty (Batteries)
1 year
Warranty (Accessories)
1 year
ANSI/PLATO FL1 Specifications
Feature
Measurement
Maximum Light Output
20000 lumens
Maximum Runtime
58 hours
Maximum Beam Distance
600 metres
Peak Beam Intensity
90000 candela
Impact Resistance
1 metre
Ingress Protection Rating
IP68
Feature
Measurement
Maximum Light Output
18000 lumens
Maximum Runtime
58 hours
Maximum Beam Distance
680 metres
Peak Beam Intensity
115600 candela
Impact Resistance
1 metre
Ingress Protection Rating
IP68
Dimensions
Feature
Measurement
Length
159.7 mm
Head Diameter
52.5 mm
Body Diameter
46.8 mm
Weight
473.7 g
Additional Data
FL1 STANDARD
Turbo
High
Med2
Med1
Low
Ultra-Low
Strobe
Max Output
20000~3000 lumens
3000 lumens
1300 lumens
500 lumens
200 lumens
40 lumens
20000~3000 lumens
Max Runtime
15s+1h 50min
1h 55min
4h 30min
11h 30min
26h
58h
15s+4h
Max Beam Distance
600 m
170 m
111 m
70 m
44 m
15 m
600 m
Peak Beam Intensity
90000 cd
7225 cd
3080 cd
1225 cd
484 cd
56 cd
90000cd
Notice: The above-mentioned parameters (tested with 2 x 21700 batteries) have been measured in accordance with the international flashlight testing standard ANSI/PLATO FL1, and are approximate and may vary from headlamps, batteries, and environments.
FL1 STANDARD
Turbo
High
Med2
Med1
Low
Ultra-Low
Strobe
Max Output
18000~2900 lumens
2900 lumens
1250 lumens
500 lumens
200 lumens
40 lumens
18000~2900 lumens
Max Runtime
15s+1h 50min
1h 55min
4h 30min
11h 30min
26h
58h
15s+4h
Max Beam Distance
680 m
222 m
143 m
88 m
55 m
26 m
680 m
Peak Beam Intensity
115600 cd
12321 cd
5112 cd
1936 cd
756 cd
169 cd
115600 cd
Notice: The above-mentioned parameters (tested with 2 x 21700 batteries) have been measured in accordance with the international flashlight testing standard ANSI/PLATO FL1, and are approximate and may vary from headlamps, batteries, and environments.
FL1 STANDARD
Turbo
High
Med
Low
Ultra-Low
Strobe
Max Output
300 lm
134 lm
70 lm
33 lm
15 lm
300 lm
Max Runtime
5.7h
19h
36h
60h
87h
12h
Notice: The above-mentioned parameters (tested with 2 x 21700 batteries) have been measured in accordance with the international flashlight testing standard ANSI/PLATO FL1, and are approximate and may vary from headlamps, batteries, and environments.
Performance and Runtime Disclaimer
How to read the data: The outputs provided above are maximum outputs for each mode, and the runtimes provided are the time it takes to drop to 10% of the initial output. This is in line with the International Flashlight Testing Standard ANSI FL1.
Any visual representations (graphs) of the data are approximate only.
Read more
The actual output of the torch/headlamp is controlled by an in-built temperature regulation system. As the torch/headlamp heats up, the brightness will drop to prevent overheating. The Turbo modes of torches/headlamps usually drop down significantly after anything from 15 seconds to 2 minutes. High modes often also experience a drop down over time. Medium and Low modes, however, can be constant for very close to the length of time specified. As the torch/headlamp cools down, either from being turned off or from being used on a lower output level, you will be able to access higher brightness levels again.
Example: An output of 2000 lumens and runtime of 5 hours does not mean 2000 lumens for 5 hours — it means it starts at 2000 lumens and drops below 200 lumens after 5 hours of continuous use.
Turbo and high modes may be unavailable or limited as the battery gets low on charge.
Exact specifications can vary between torches, batteries, age and environments.
