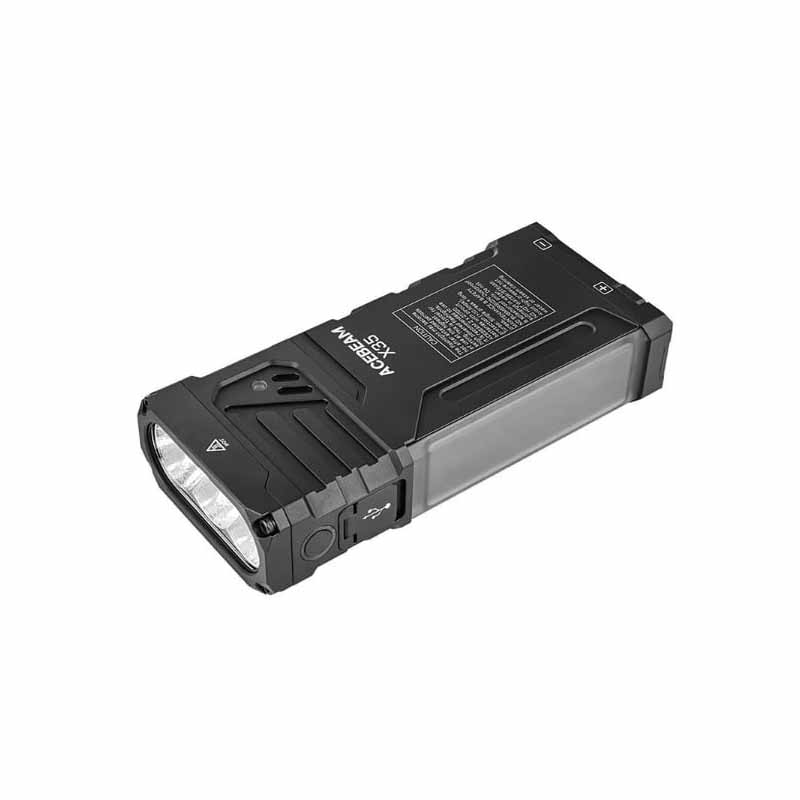

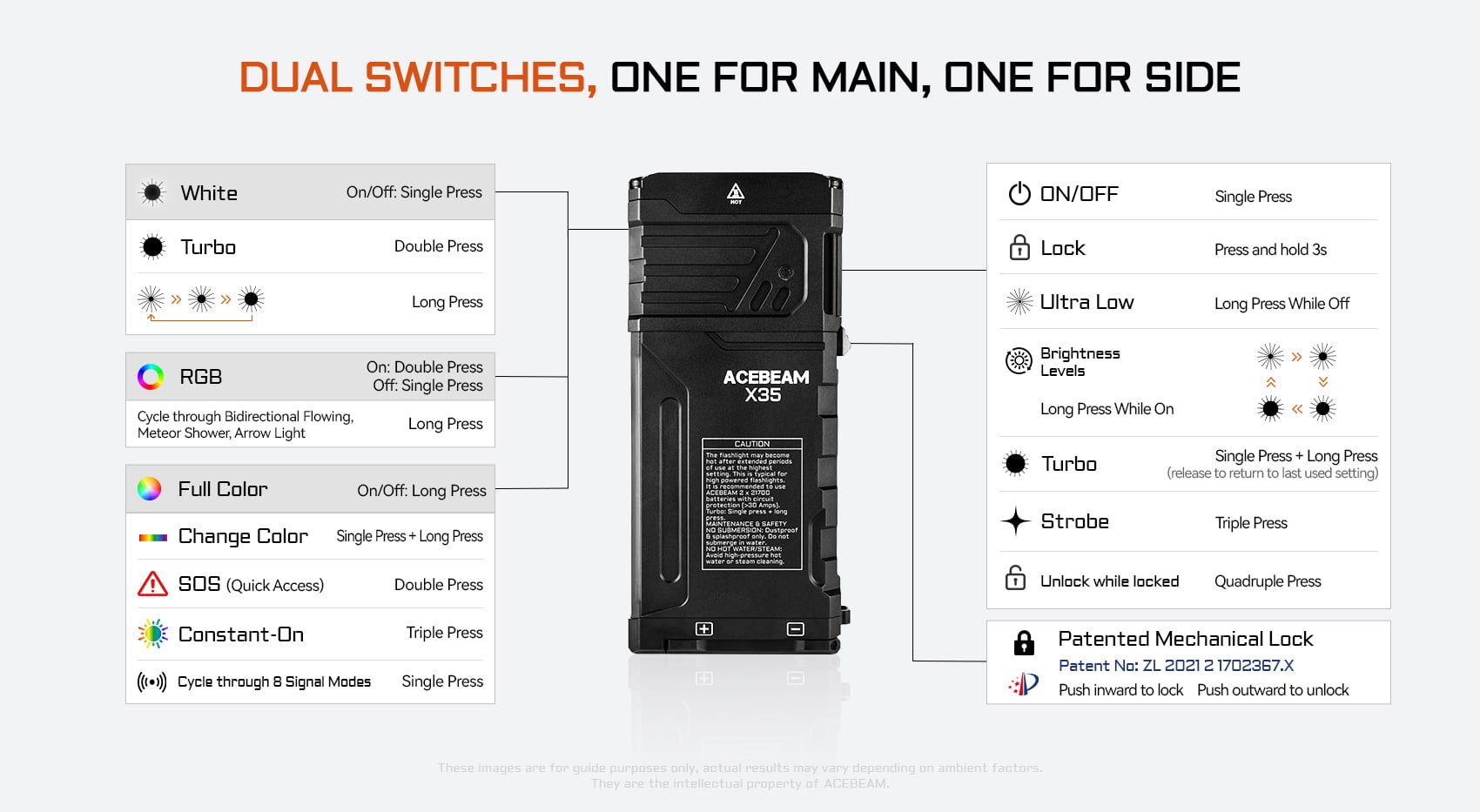

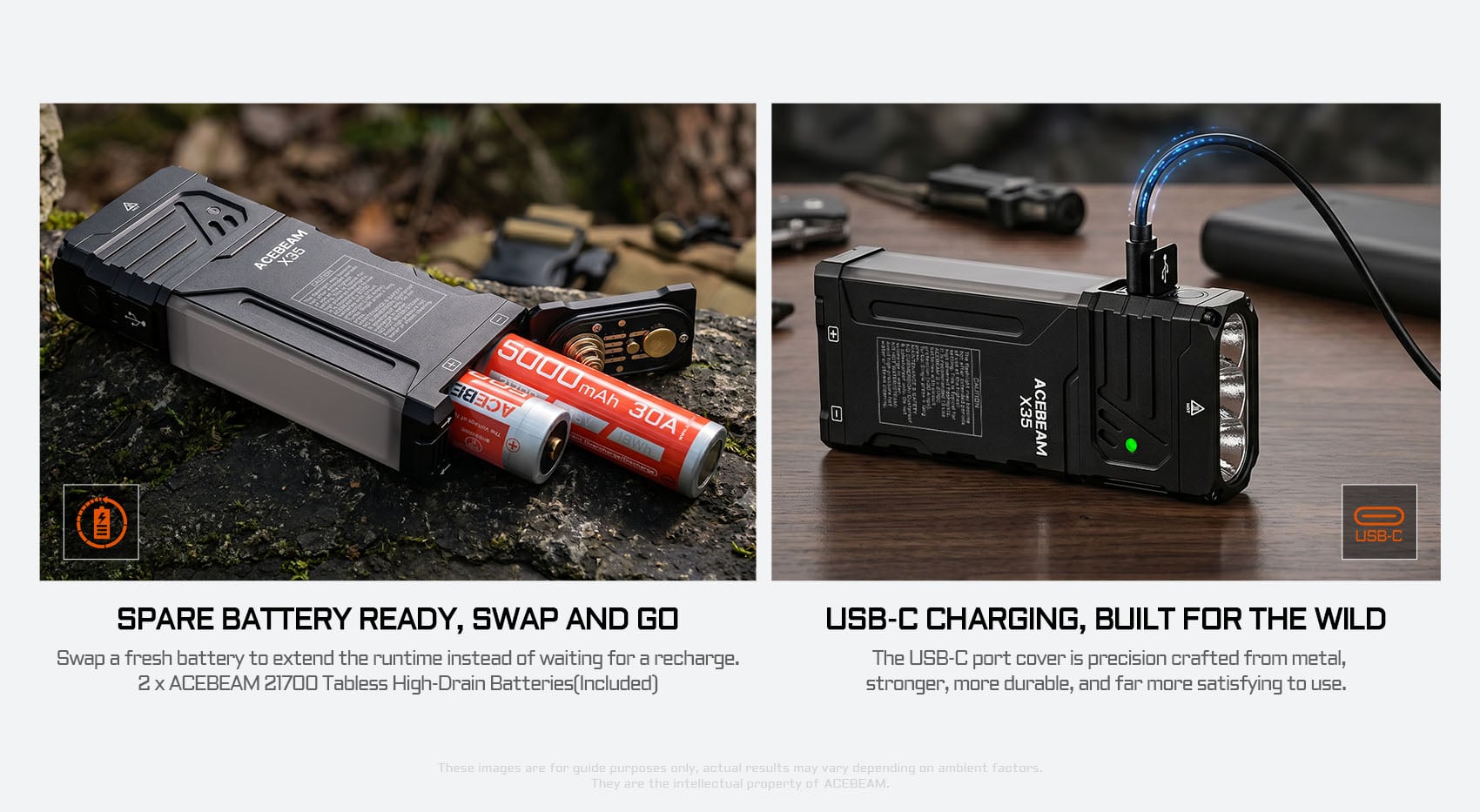

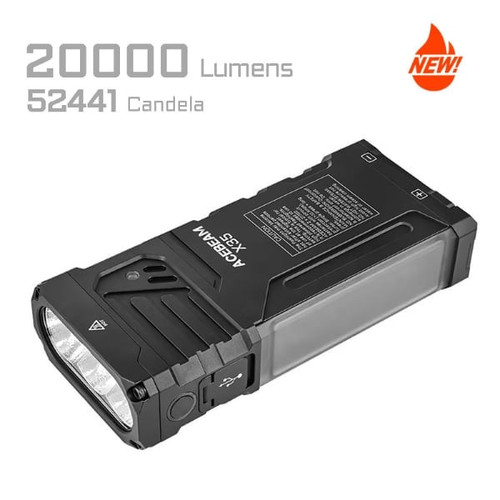

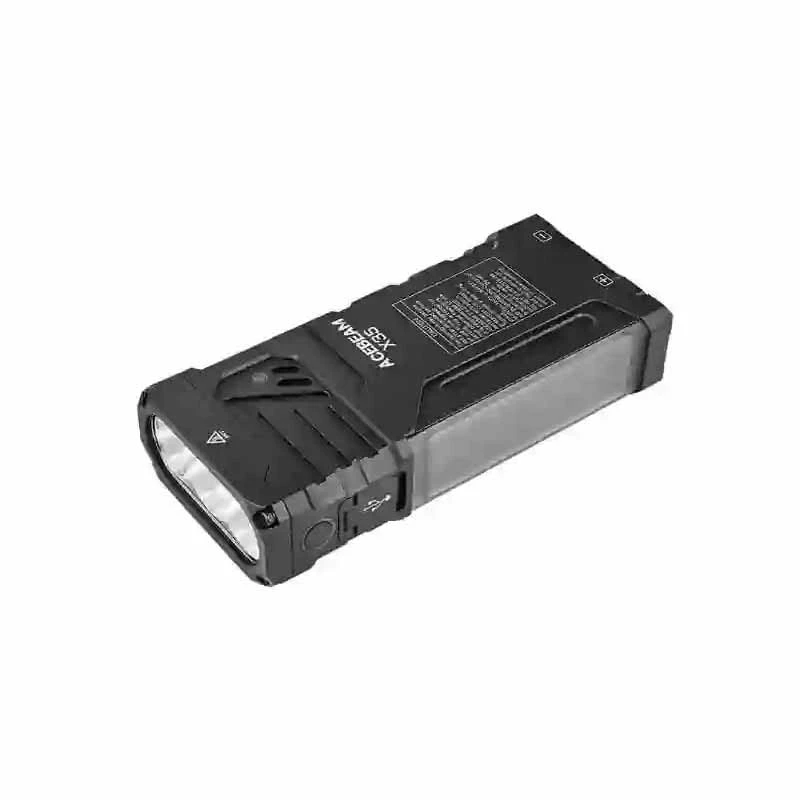

The Acebeam X35 is a multi-light-source powerful searchlight. Featuring three CREE LEDs, it delivers an exceptionally wide, uniform light up to 20,000 lumens. The RGB auxiliary side light can be used as a signal in a wide range of applications. The X35 is powered by two 21700 5000mAh Tabless high-drain batteries (30A continuous discharge) with triple balanced protection for safety, stability, and extended runtime. It features USB-C charging with a precision metal cover, plus the ability to swap batteries for extanded operation. Dual switches, one for the main light and one for the side light, allow for instant, intuitive control. Built for search & rescue, camping, caving, and largeโscale operations.
Key Features
- Up to 20000 lumens or 551 metre throw (dependant on LED option)
- White and RGB light modes for versatile use

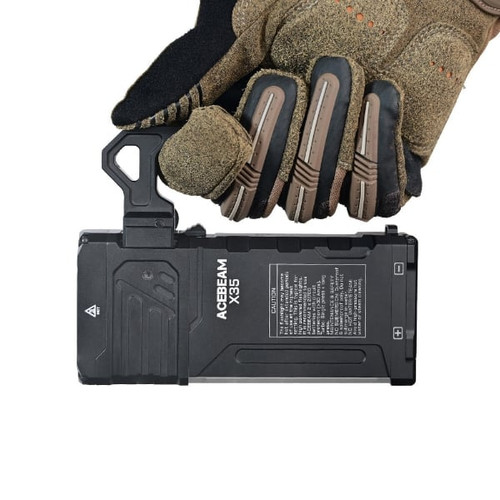

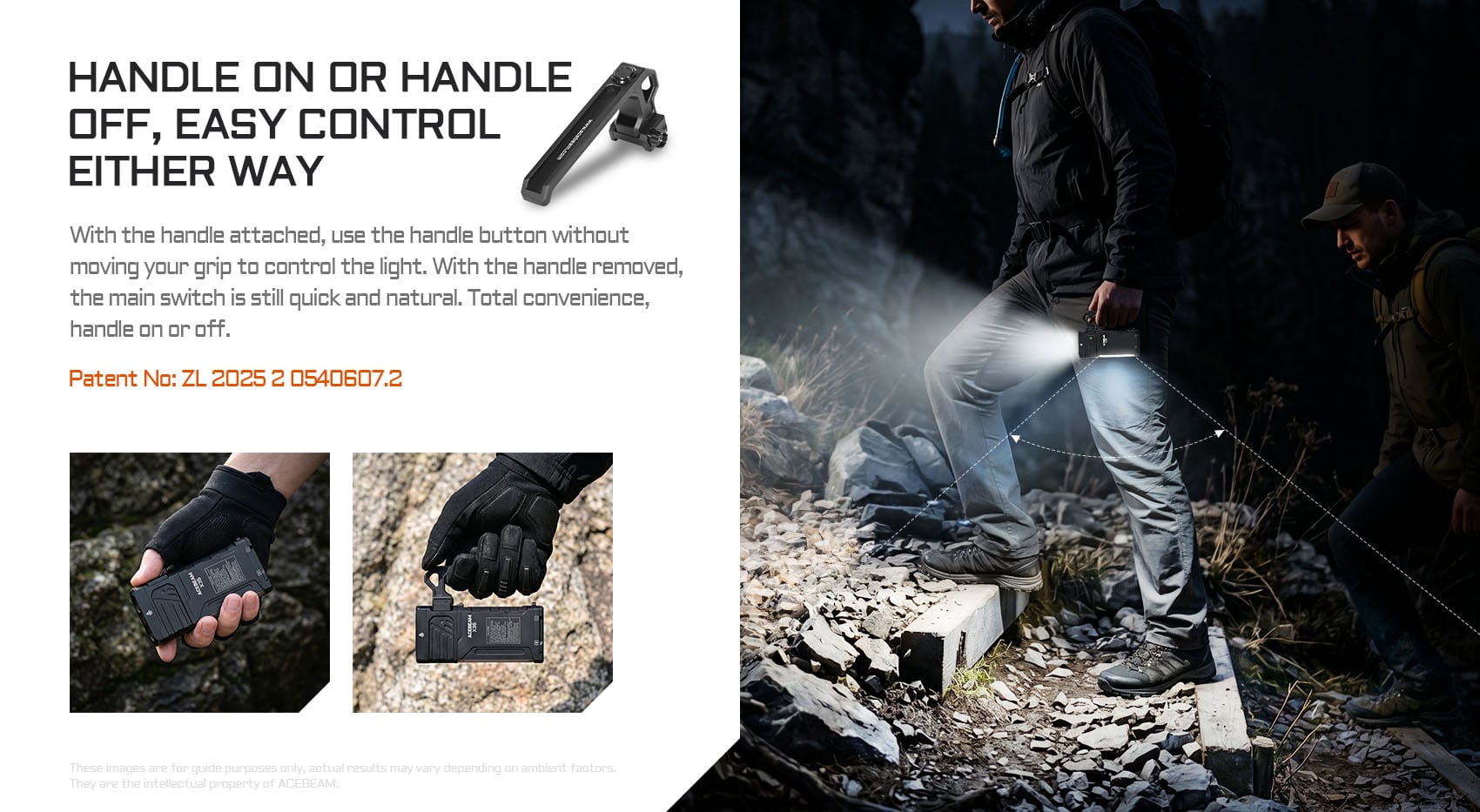

- Detacheable handle
- USB-C rechargeable
Key Information
| Feature |
Details |
| Material |
Aluminium Alloy |
| Primary Light Source |
3 x CREE XHP70.2 Cool White LEDs
or
3 x CREE XHP70.3 Cool White LEDs
|
| Auxiliary Light Source |
- 1 x White LED
- 1 x RGB Light Source
|
| Power Source |
2 x Acebeam AB21CP5030 Protected High-drain 21700 Rechargeable Lithium-ion Batteries
|
| Recharging Method |
USB Type-C |

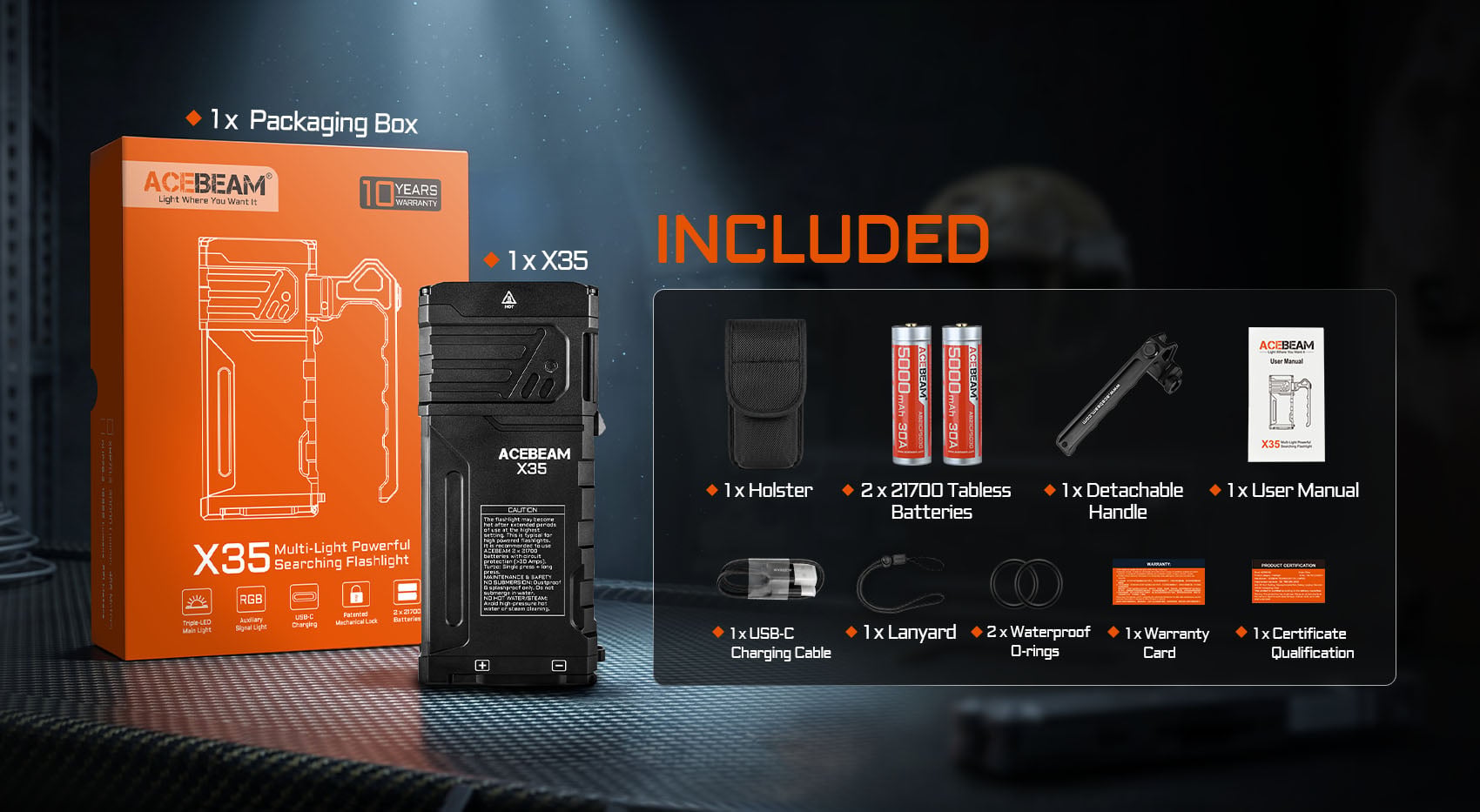

| Package Includes |
- 1 x Acebeam X35
- 1 x Detacheable Handle
- 2 x Acebeam AB21CP5030 Rechargeable Batteries
- 1 x USB Charging Cable (USB-A to USB-C)
- 1 x Nylon holster
- 1 x Lanyard
- 2 x O-rings
- 1 x User Manual
|
| Warranty (Torch) |
10 years |
| Warranty (Batteries) |
1 year |
| Warranty (Accessories) |
1 year |
ANSI FL Specifications
| Feature |
Measurement |
| LEDs |
CREE XHP70.2 LEDs |
CREE XHP70.3 LEDs |
| Maximum Light Output |
20000 lumens |
18000 lumens |
| Maximum Runtime |
106 hours |
| Maximum Beam Distance |
458 metres |
551 metres |
| Peak Beam Intensity |
52441 candela |
75900 candela |
| Impact Resistance |
1 metre |
| Ingress Protection Rating |
IP66 |

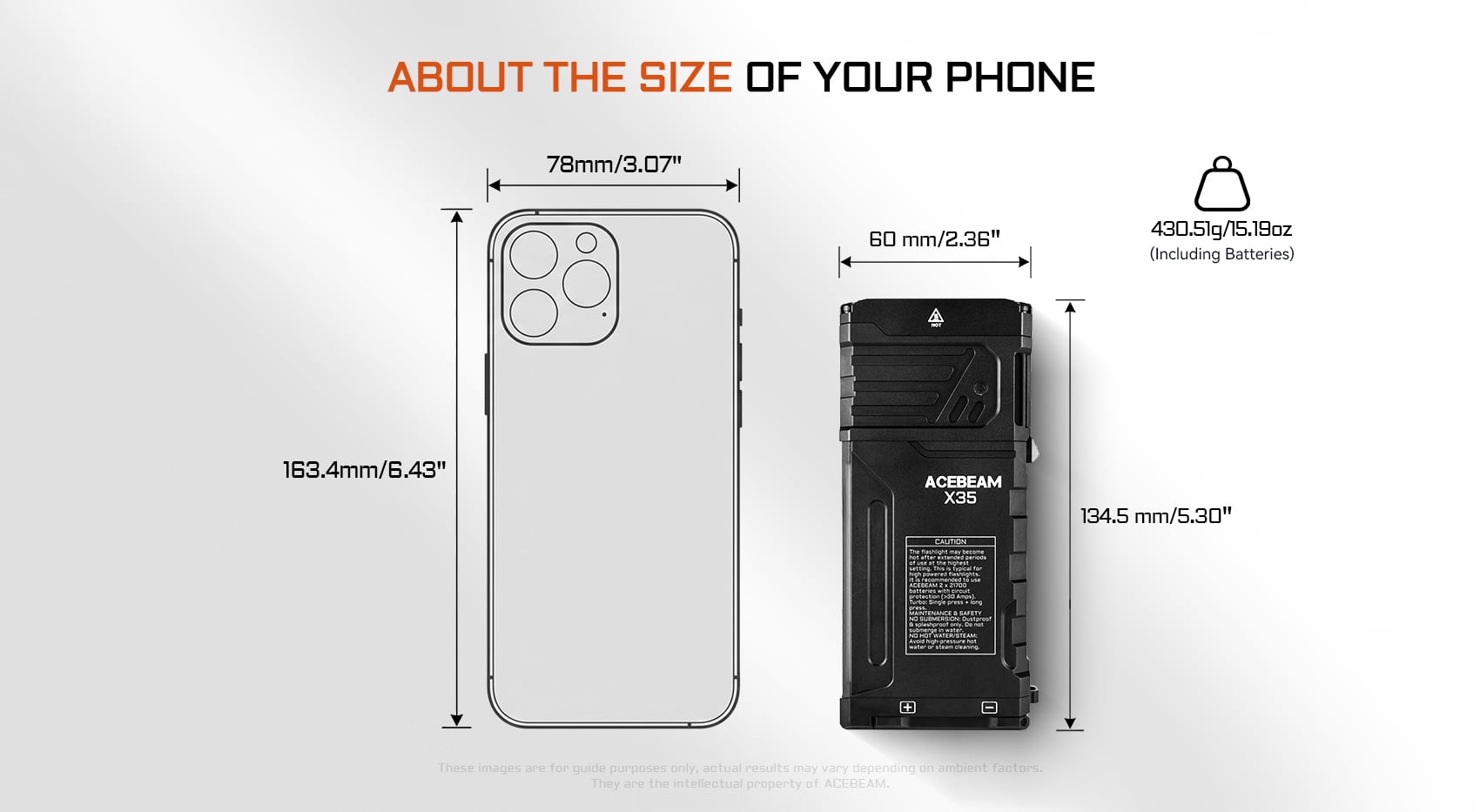

Dimensions
| Feature |
Measurement |
| Length |
134.5 mm |
| Width |
≈60 mm |
| Weight |
480.81 g |

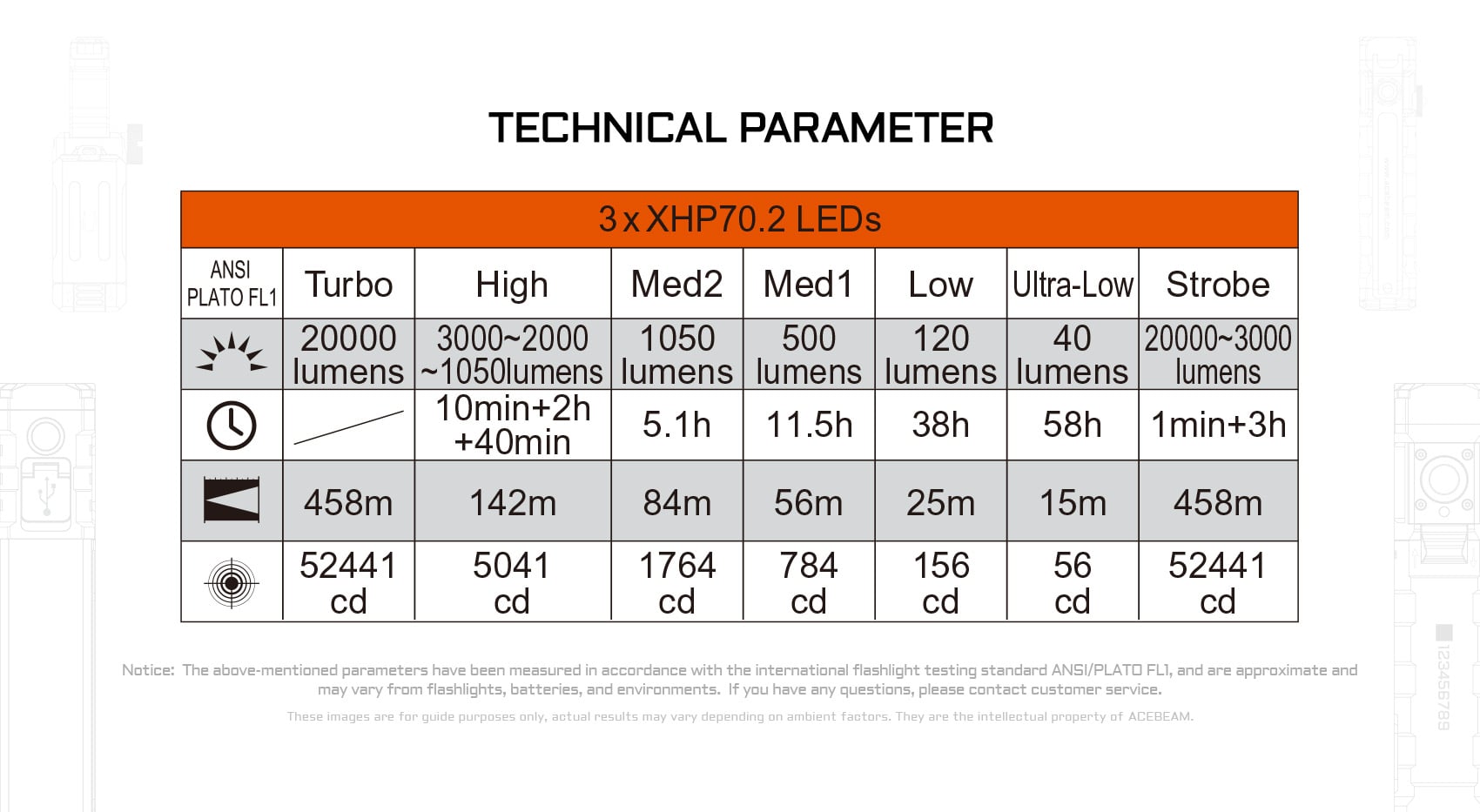

Brightness Outputs and Runtimes (CREE XHP70.2 LEDs)
| Mode |
Output |
Runtime |
Maximum
Beam
Distance |
Peak
Beam
Intensity |
| White |
Turbo |
20000 lm |
— |
458 m |
52441 cd |
| High |
3000 lm → 2000 lm → 1050 lm |
10 min + 2 h + 40 min |
142 m |
5041 cd |
| Medium 2 |
1050 lm |
5 h 6 min |
84 m |
1764 cd |
| Medium 1 |
500 lm |
11 h 30 min |
56 m |
784 cd |
| Low |
120 lm |
38 h |
25 m |
156 cd |
| Ultra Low |
40 lm |
58 h |
15 m |
56 cd |
| Strobe |
20000 lm → 3000 lm |
1 min + 3 h |
458 m |
52441 cd |
Side
Light
(White) |
Turbo |
190 lm |
6 h 30 min |
— |
— |
| High |
75 lm |
17 h |
— |
— |
| Medium |
30 lm |
41 h |
— |
— |
| Low |
9 lm |
106 h |
— |
— |
Brightness Outputs and Runtimes (CREE XHP70.3 LEDs)
| Mode |
Output |
Runtime |
Maximum
Beam
Distance |
Peak
Beam
Intensity |
| White |
Turbo |
18000 lm |
— |
551 m |
75900 cd |
| High |
3000 lm → 2000 lm → 1050 lm |
10 min + 2 h + 40 min |
179 m |
8010 cd |
| Medium 2 |
1050 lm |
5 h 6 min |
107 m |
2862 cd |
| Medium 1 |
500 lm |
11 h 30 min |
72 m |
1296 cd |
| Low |
120 lm |
38 h |
35 m |
306 cd |
| Ultra Low |
40 lm |
58 h |
20 m |
100 cd |
| Strobe |
18000 lm → 3000 lm |
1 min + 3 h |
551 m |
75900 cd |
Side
Light
(White) |
Turbo |
190 lm |
6 h 30 min |
— |
— |
| High |
75 lm |
17 h |
— |
— |
| Medium |
30 lm |
41 h |
— |
— |
| Low |
9 lm |
106 h |
— |
— |
Note: The above data (tested with 2 x 21700 batteries) have been measured in accordance with the international flashlight testing standard ANSI/PLATO Fl1, and are approximate and may vary across torches, batteries and environments.
