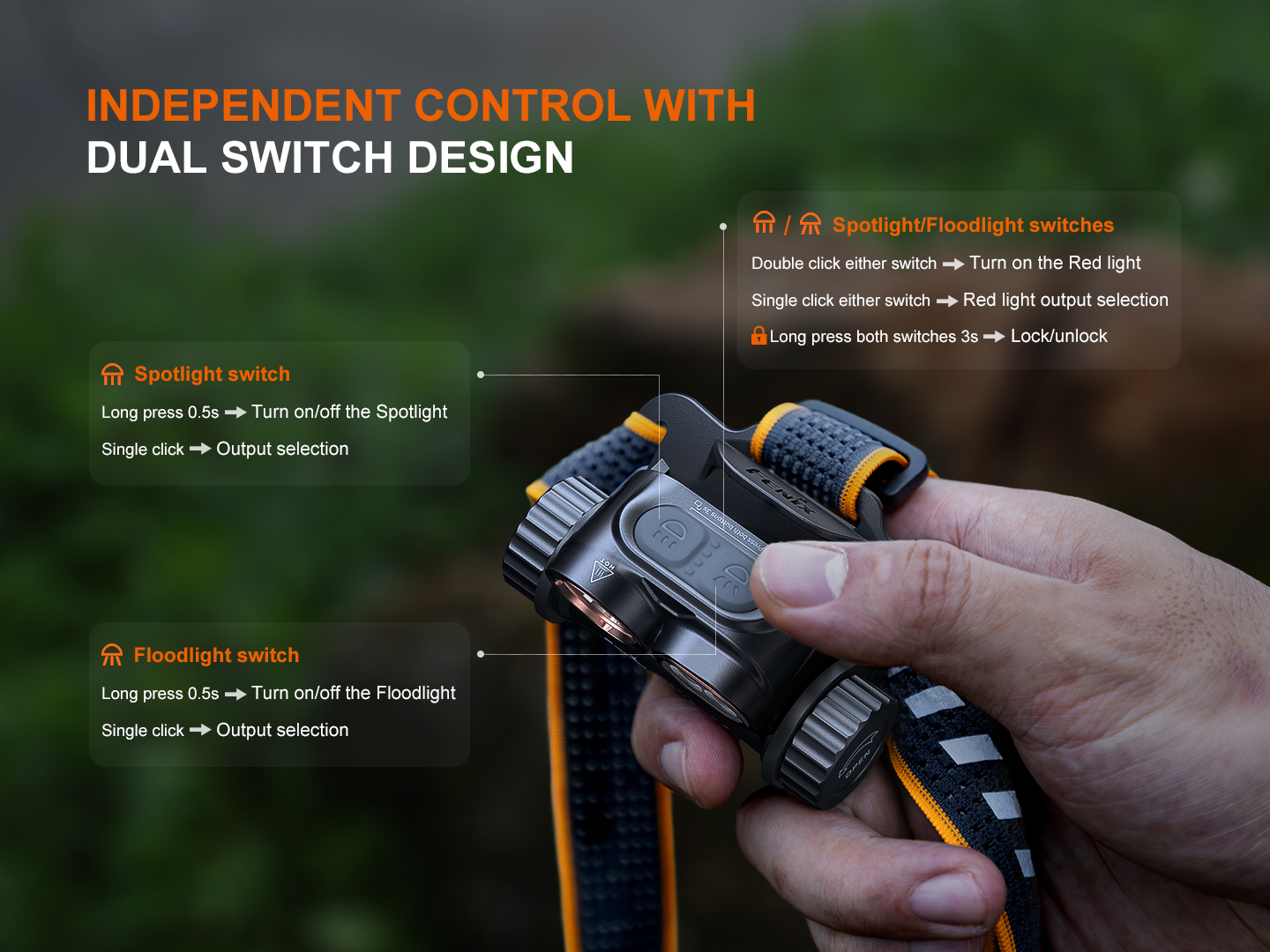

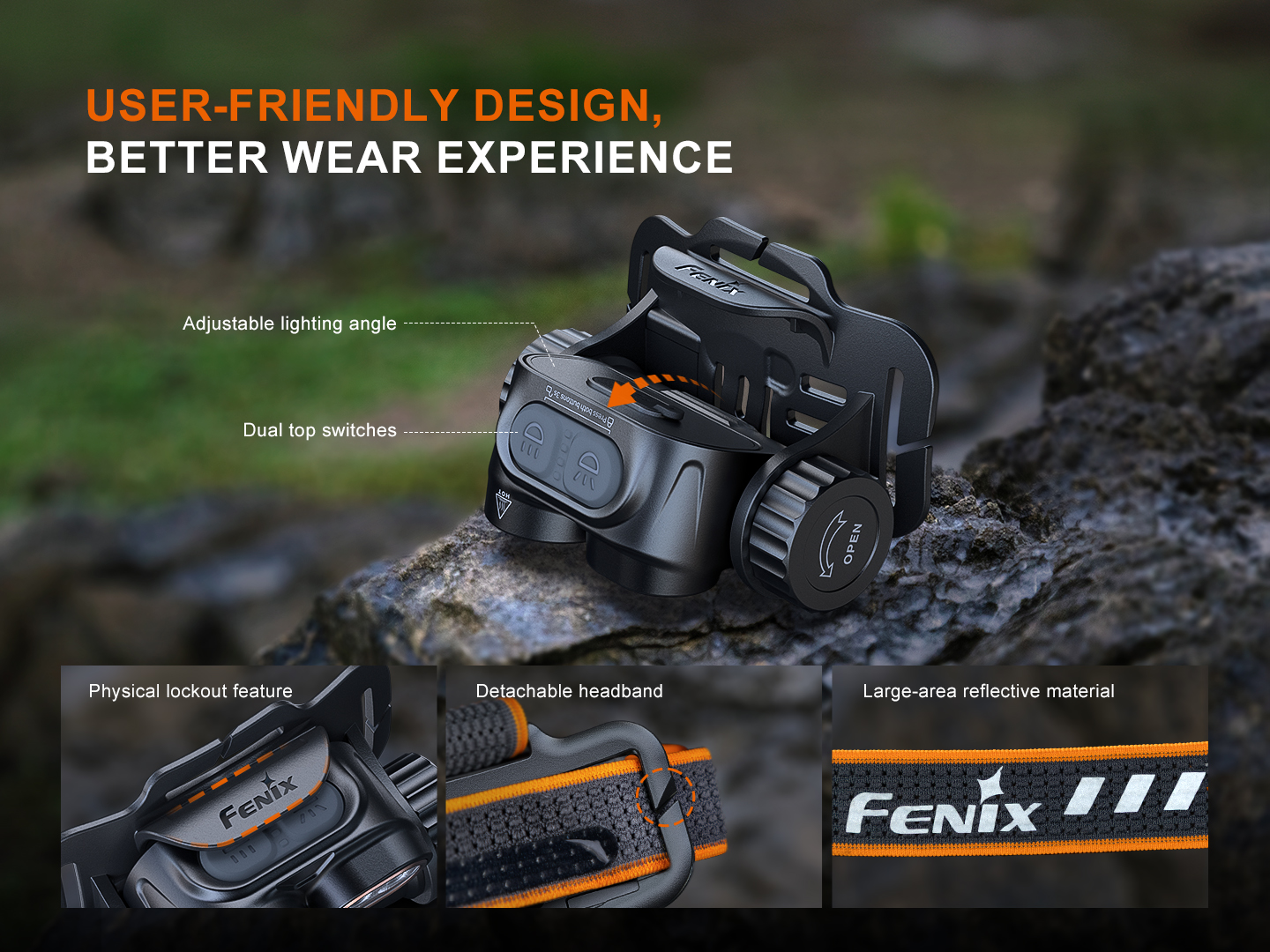

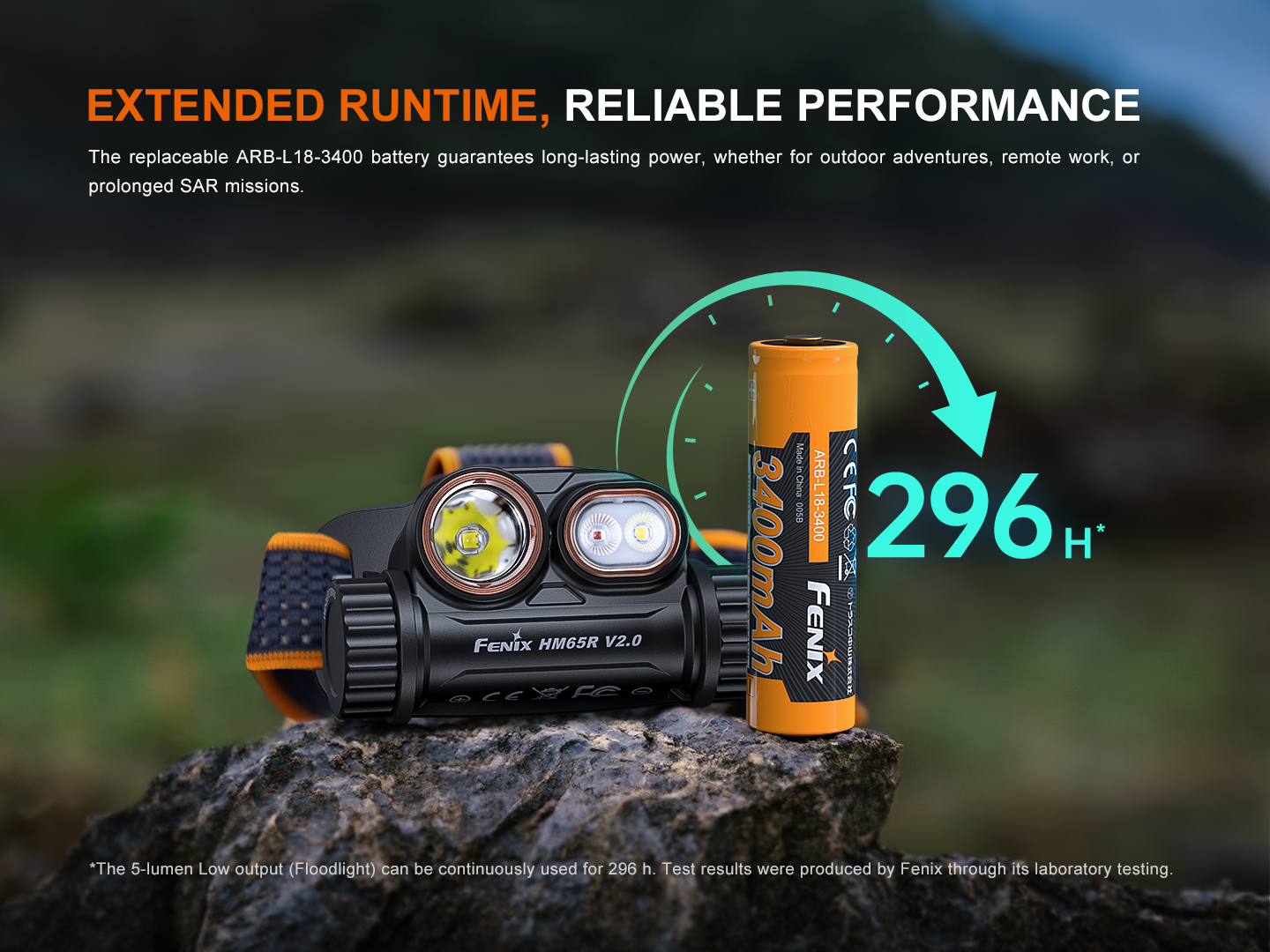

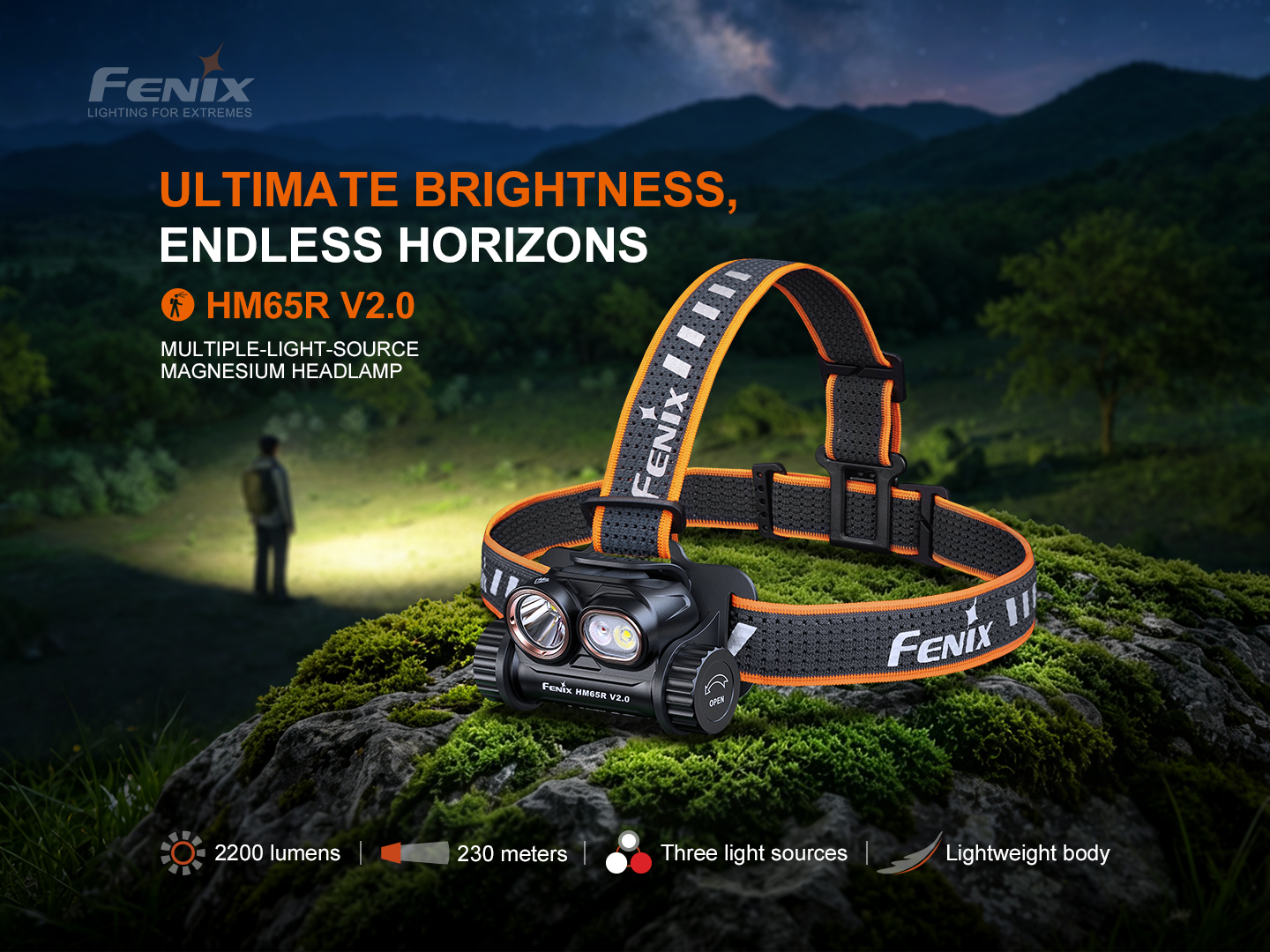

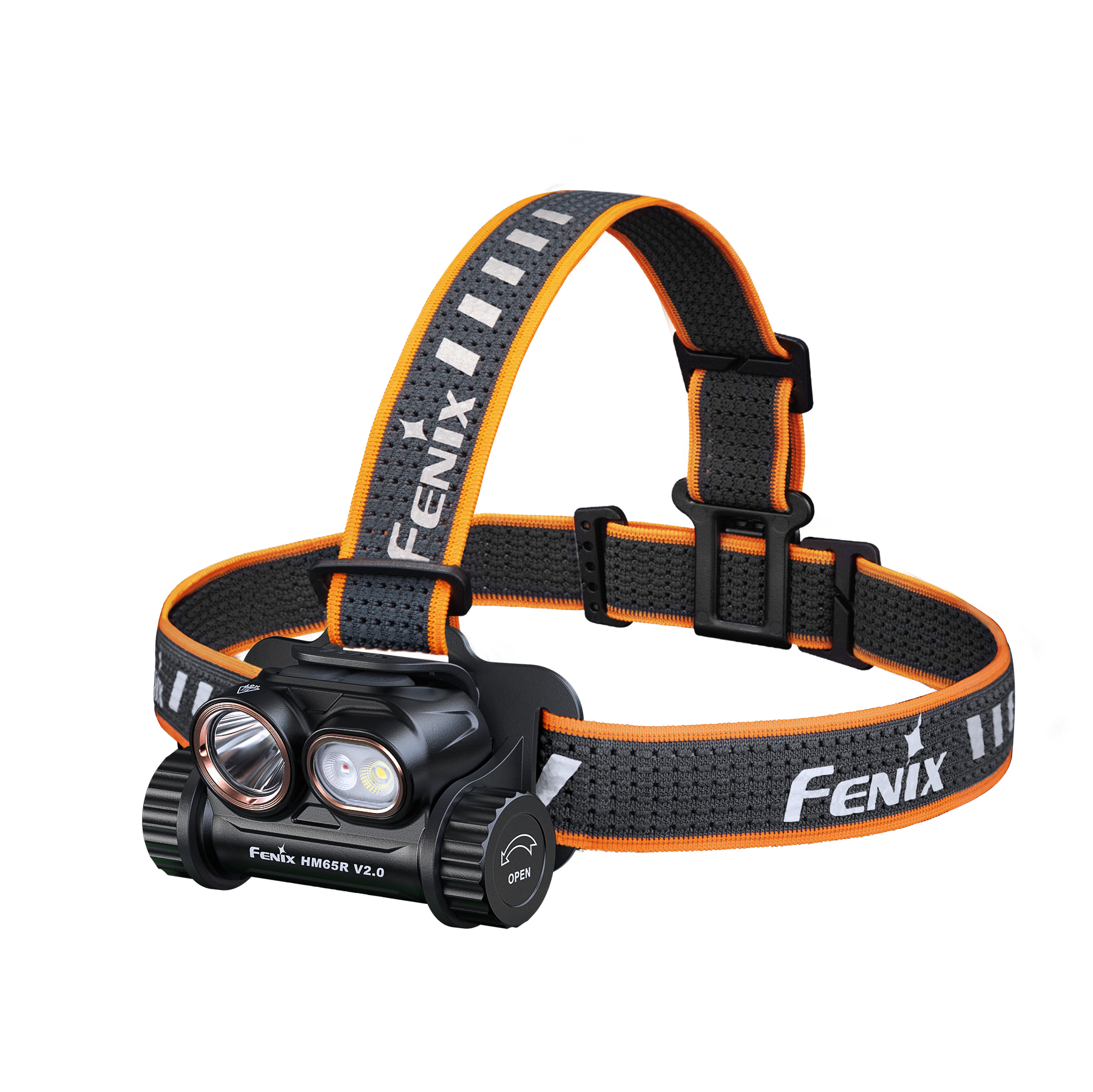

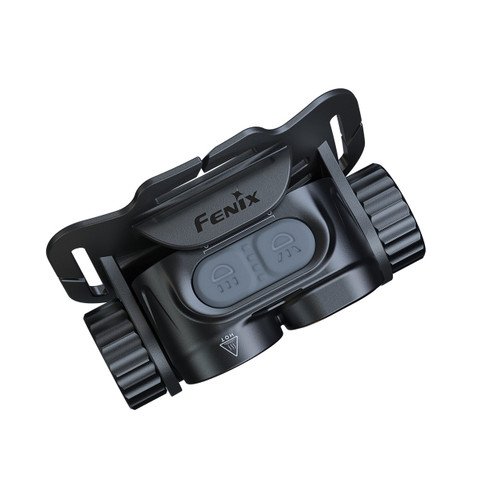

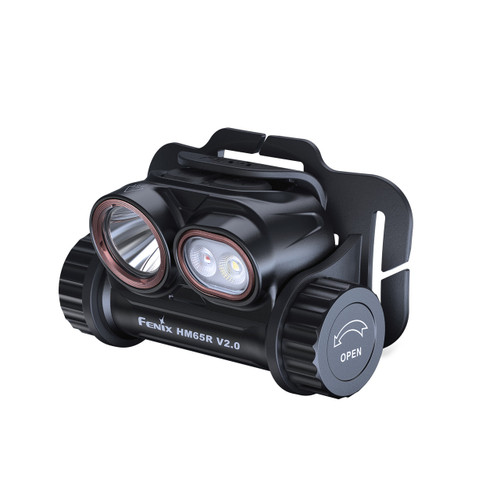

The Fenix HM65R V2.0 is a lightweight, magnesium alloy headlamp engineered for harsh environments and industrial-grade operational requirements, with an IP68 ingress protection rating and 2 metre impact resistance. The HM65R V2.0 delivers a maximum output of 2200 lumens, with a maximum beam distance of 230 metres. It features multiple light sources, including a Luminus SST40-GEN2 LED for spotlight, a Luminus SST-20F LED for floodlight, and a 3535 Red LED for auxiliary lighting, offering spotlight, floodlight, combined output, and red light modes. Powered by an included Fenix ARB-L18-3400 rechargeable 18650 lithium-ion battery, it offers a maximum runtime of 296 hours and features an inner waterproof USB Type-C charging port. Its top-mounted dual-switch design allows for independent control and quick adjustments of brightness and mode.
Features
- High output: 2200 lumens maximum output, 230 meters maximum beam distance.
- Multiple light modes: Spotlight, floodlight, combined output, and red light meet various lighting needs in complex outdoor scenarios.

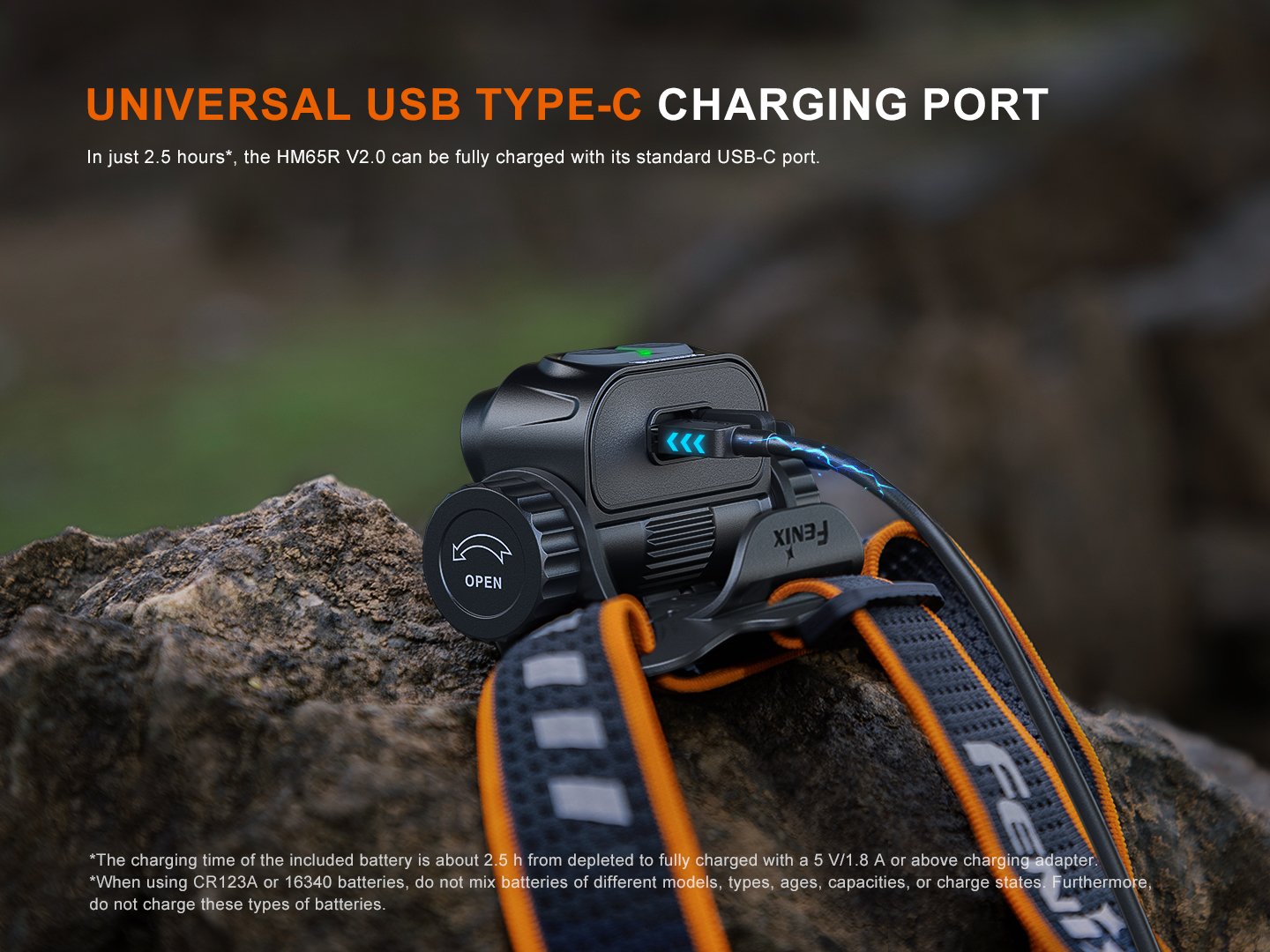

- USB Type-C charging: USB Type-C charging port with inner waterproof treatment.

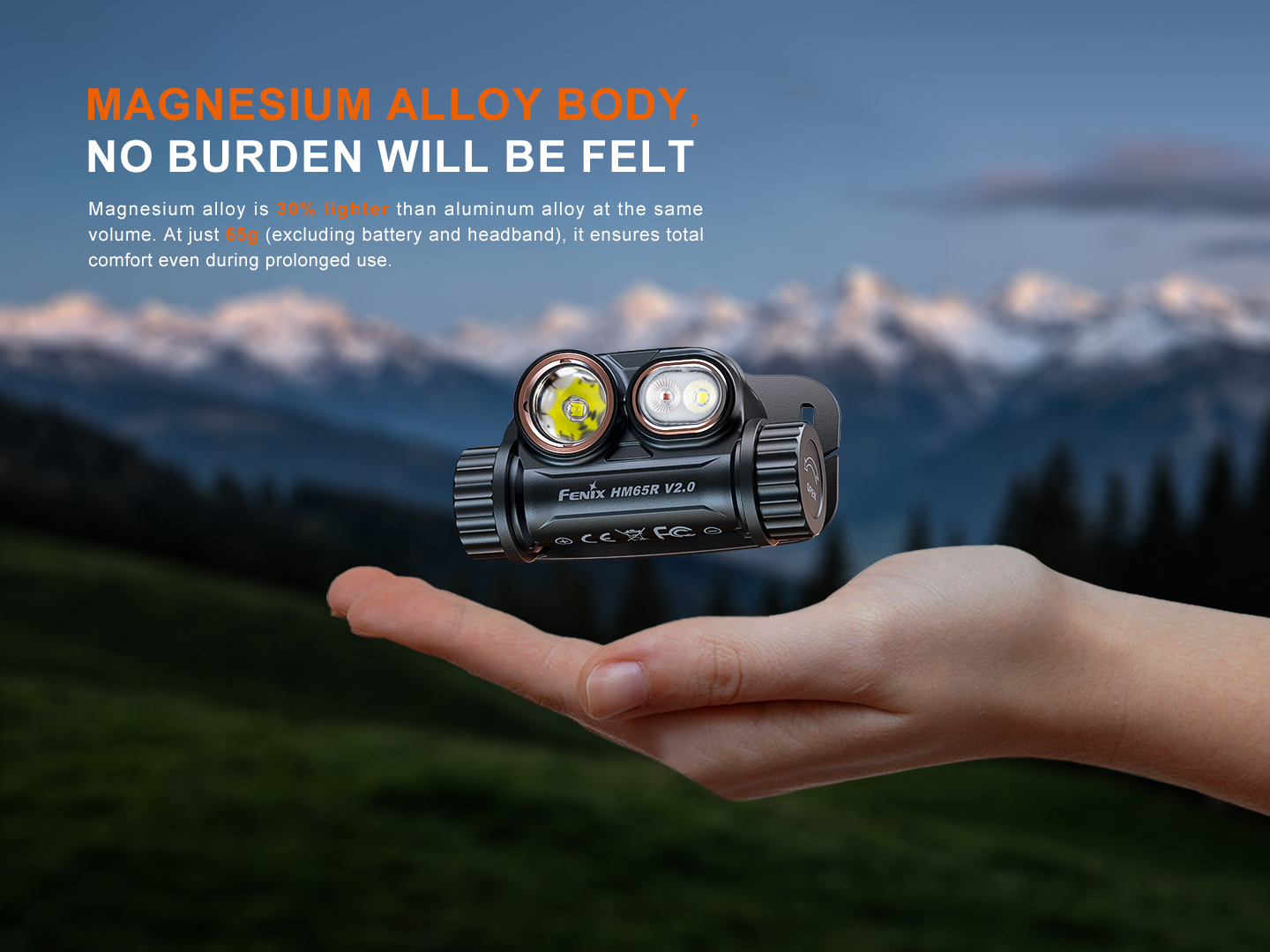

- Lightweight body: Magnesium alloy lamp body, lightweight and portable.

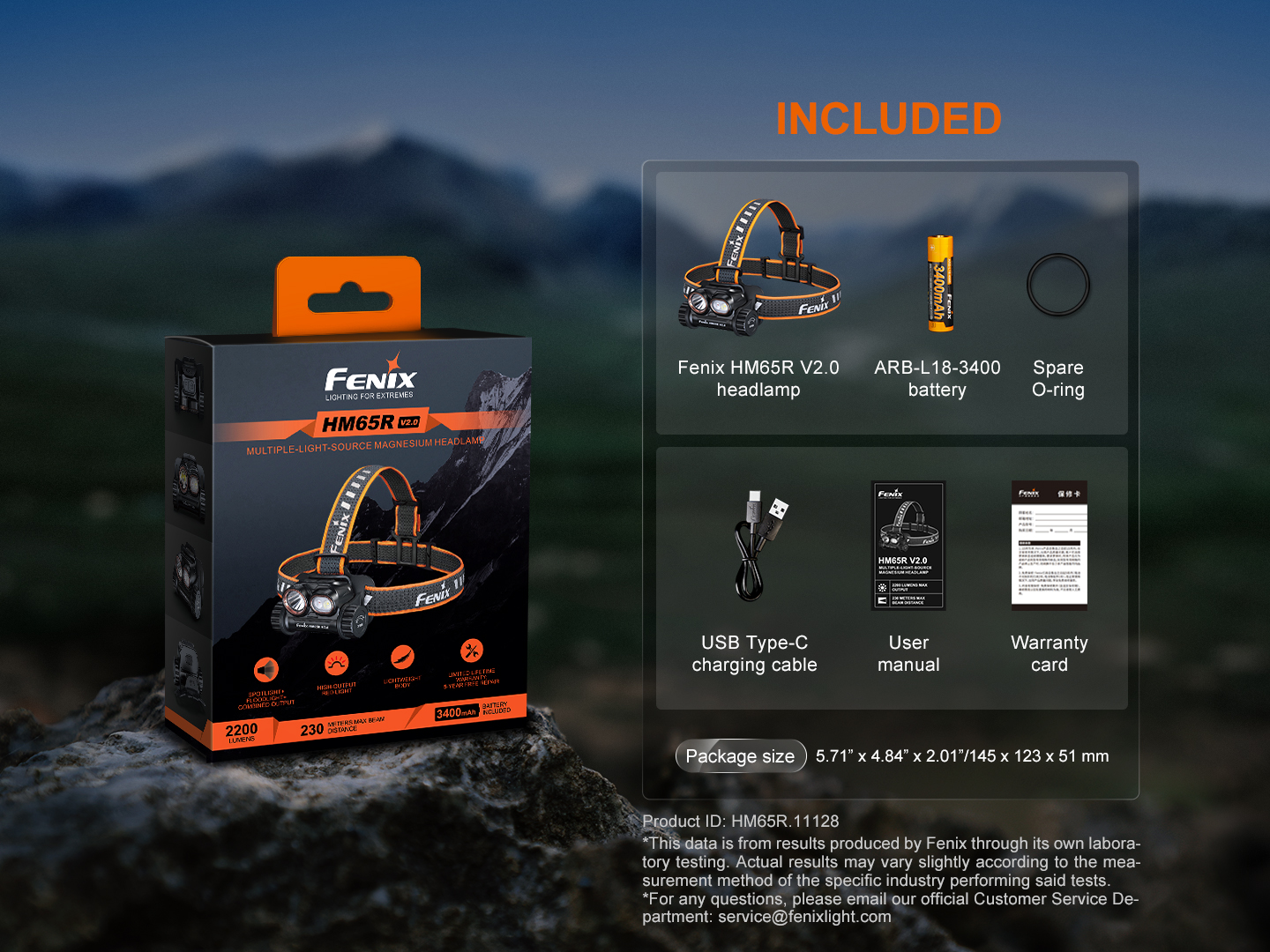

Package Includes
- 1 x HM65R V2.0 Headlamp
- 1 x ARB-L18-3400 Rechargeable 18650 Battery
- 1 x USB Charging Cable (USB-A to USB-C)
- 1 x Spare O-ring
- 1 x User Manual
Key Information
| Feature |
Details |
| Primary Light Sources |
Floodlight: 1 x Luminus SST-20F LED
Spotlight: 1 x Luminus SST40-GEN2 LED |
| Auxiliary Light Source |
1 x 3535 Red LED |
| Power Source |
1 x Fenix ARB-L18-3400 Protected Rechargeable 18650 Lithium-ion Battery |
| Recharging Method |
USB Type-C |
| Material |
Magnesium alloy |
| Warranty (Headlamp) |
5 years |
| Warranty (Battery) |
1 year |
| Warranty (Accessories) |
1 year |
ANSI/PLATO FL1 Specifications
| Feature |
Measurement |
| Maximum Light Output |
2200 lumens |
| Maximum Runtime |
296 hours |
| Maximum Beam Distance |
230 metres |
| Peak Beam Intensity |
13220 candela |
| Impact Resistance |
2 metres |

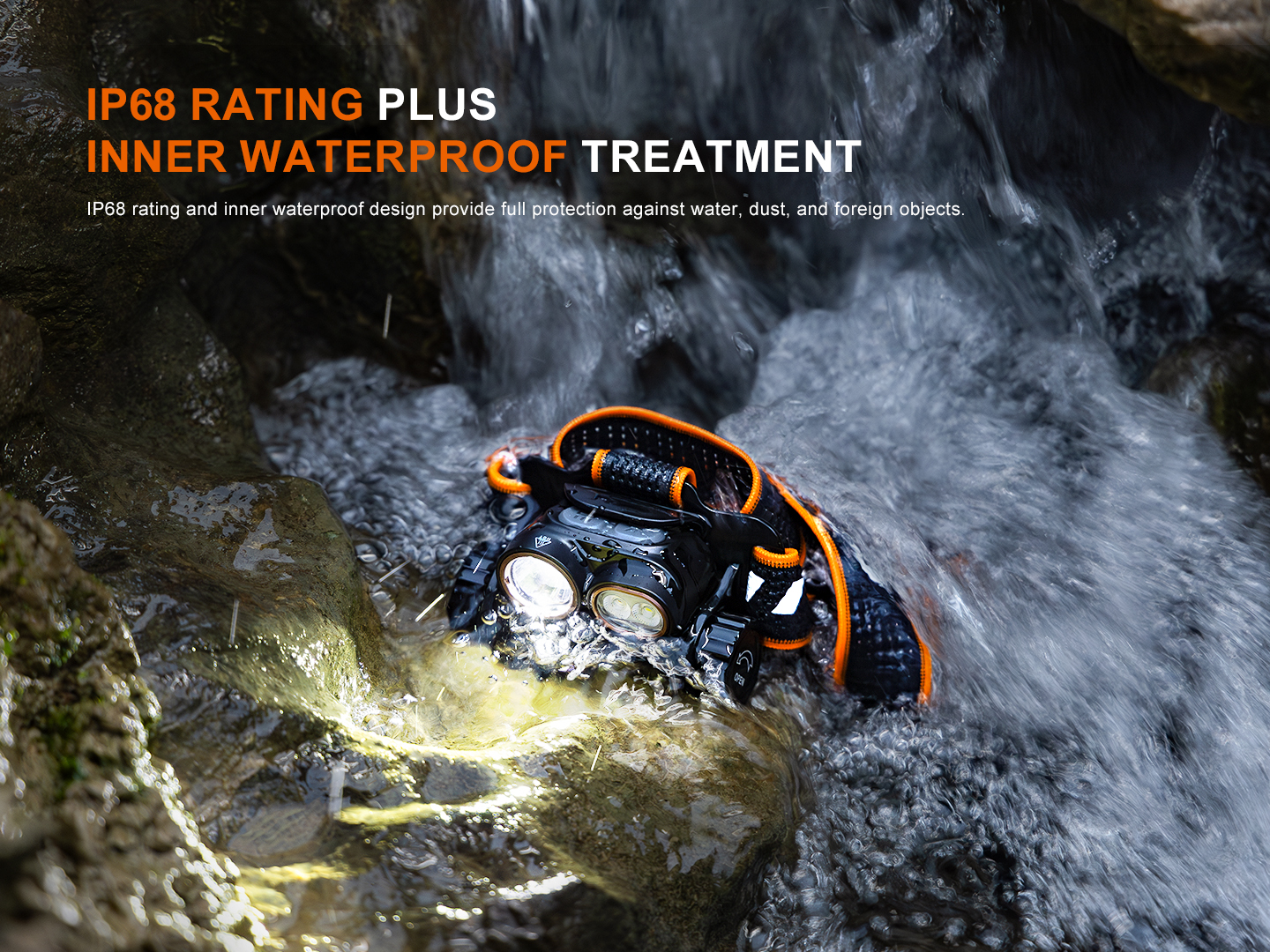

| Ingress Protection Rating |
IP68 |
Dimensions
| Feature |
Measurement |
| Length |
80 mm |
| Width |
52.5 mm |
| Height |
39.5 mm |
| Weight |
144 g |
Additional Data

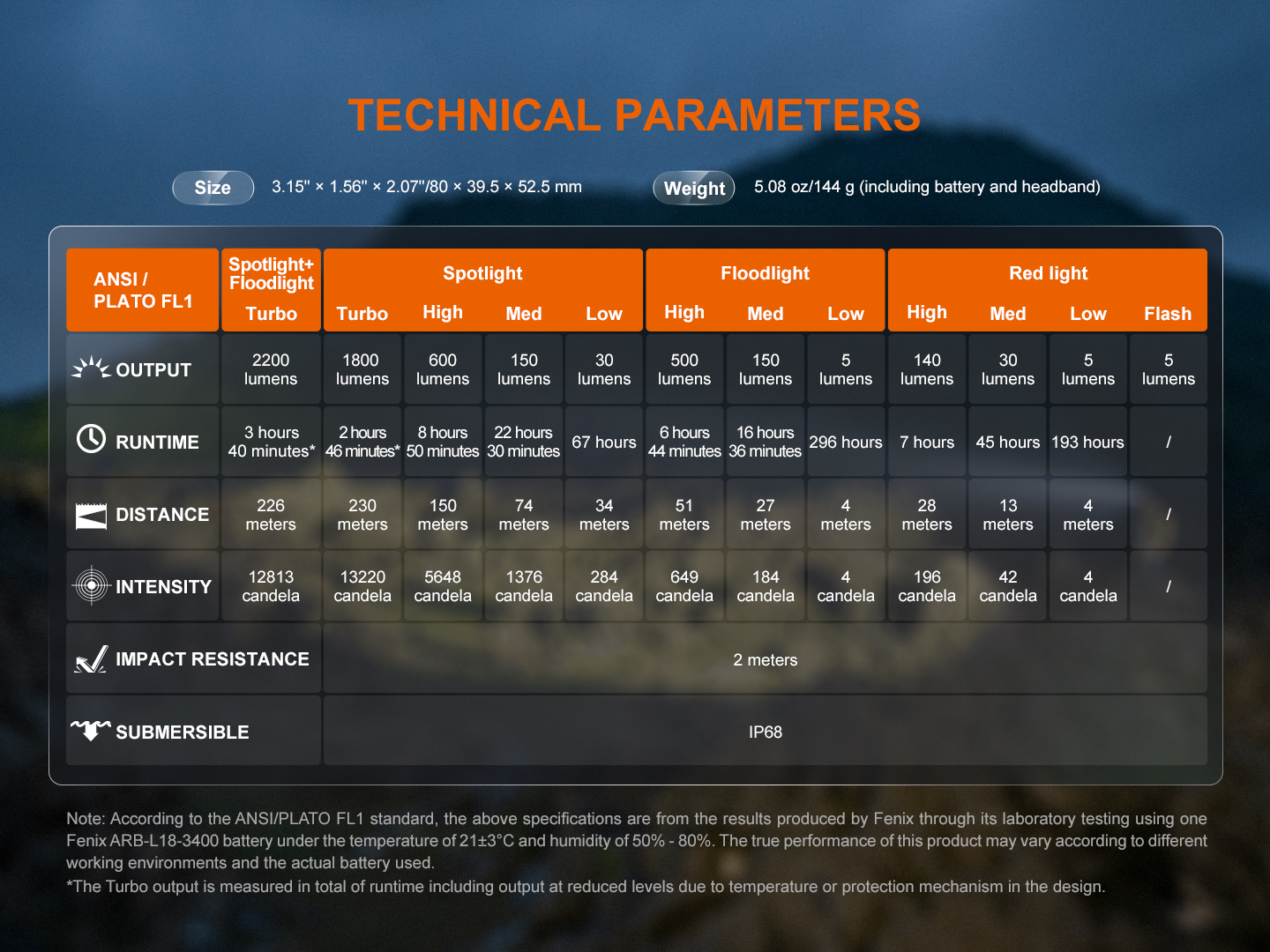

Technical Parameters
| ANSI / PLATO FL1 |
Spot+Flood |
Spotlight |
Floodlight |
Red Light |
| Turbo |
Turbo |
High |
Med |
Low |
High |
Med |
Low |
High |
Med |
Low |
Flash |
| Max Output |
2200 lm |
1800 lm |
600 lm |
150 lm |
30 lm |
500 lm |
150 lm |
5 lm |
140 lm |
30 lm |
5 lm |
5 lm |
| Max Runtime |
3h 40min* |
2h 46min* |
8h 50min |
22h 30min |
67h |
6h 44min |
16h 36min |
296h |
7h |
45h |
193h |
/ |
| Max Beam Distance |
226 m |
230 m |
150 m |
74 m |
34 m |
51 m |
27 m |
4 m |
28 m |
13 m |
4 m |
/ |
| Peak Beam Intensity |
12813 cd |
13220 cd |
5648 cd |
1376 cd |
284 cd |
649 cd |
184 cd |
4 cd |
196 cd |
42 cd |
4 cd |
/ |
Note: According to the ANSI/PLATO FL1 standard, the above specifications are from the results produced by Fenix through its laboratory testing using one Fenix ARB-L18-3400 battery under the temperature of 21±3°C and humidity of 50% - 80%. The true performance of this product may vary according to different working environments and the actual battery used.
*The Turbo output is measured in total of runtime including output at reduced levels due to temperature or protection mechanism in the design.
Performance and Runtime Disclaimer
How to read the data: The outputs provided above are maximum outputs for each mode, and the runtimes provided are the time it takes to drop to 10% of the initial output. This is in line with the International Flashlight Testing Standard ANSI FL1.
Any visual representations (graphs) of the data are approximate only.
Read more
The actual output of the torch/headlamp is controlled by an in-built temperature regulation system. As the torch/headlamp heats up, the brightness will drop to prevent overheating. The Turbo modes of torches/headlamps usually drop down significantly after anything from 15 seconds to 2 minutes. High modes often also experience a drop down over time. Medium and Low modes, however, can be constant for very close to the length of time specified. As the torch/headlamp cools down, either from being turned off or from being used on a lower output level, you will be able to access higher brightness levels again.
Example: An output of 2000 lumens and runtime of 5 hours does not mean 2000 lumens for 5 hours — it means it starts at 2000 lumens and drops below 200 lumens after 5 hours of continuous use.
Turbo and high modes may be unavailable or limited as the battery gets low on charge.
Exact specifications can vary between torches, batteries, age and environments.
