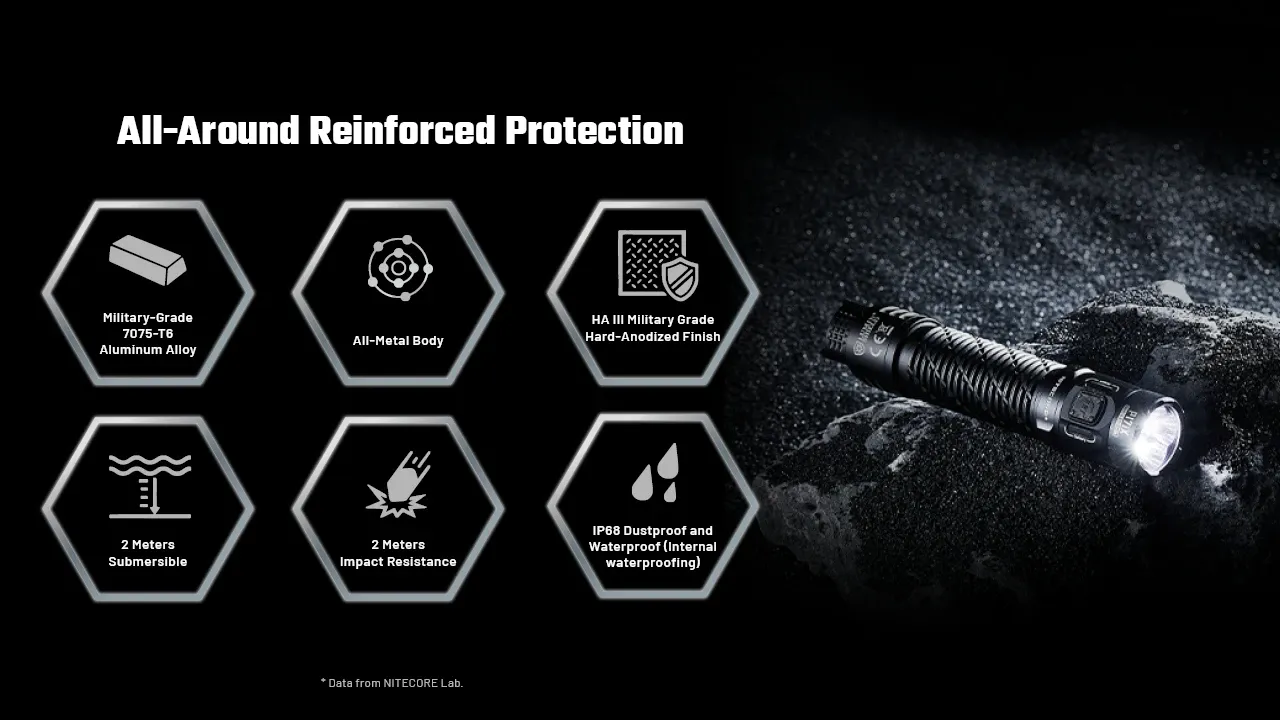

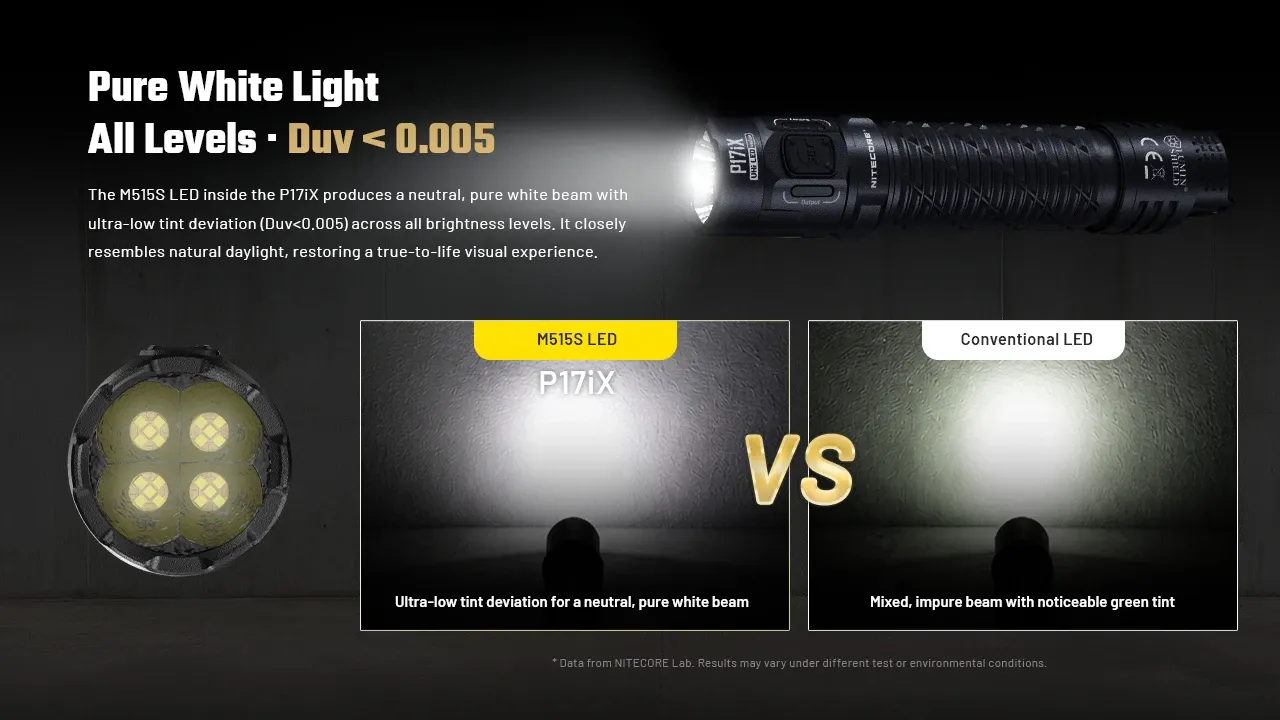

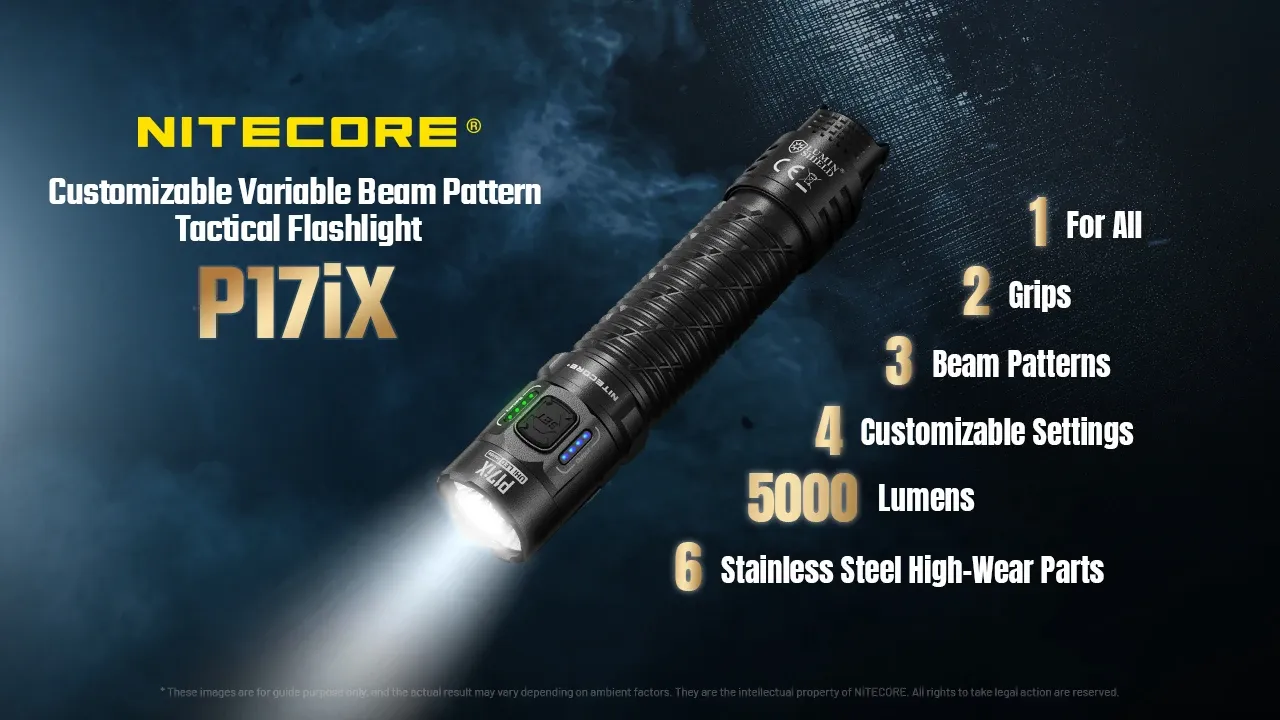

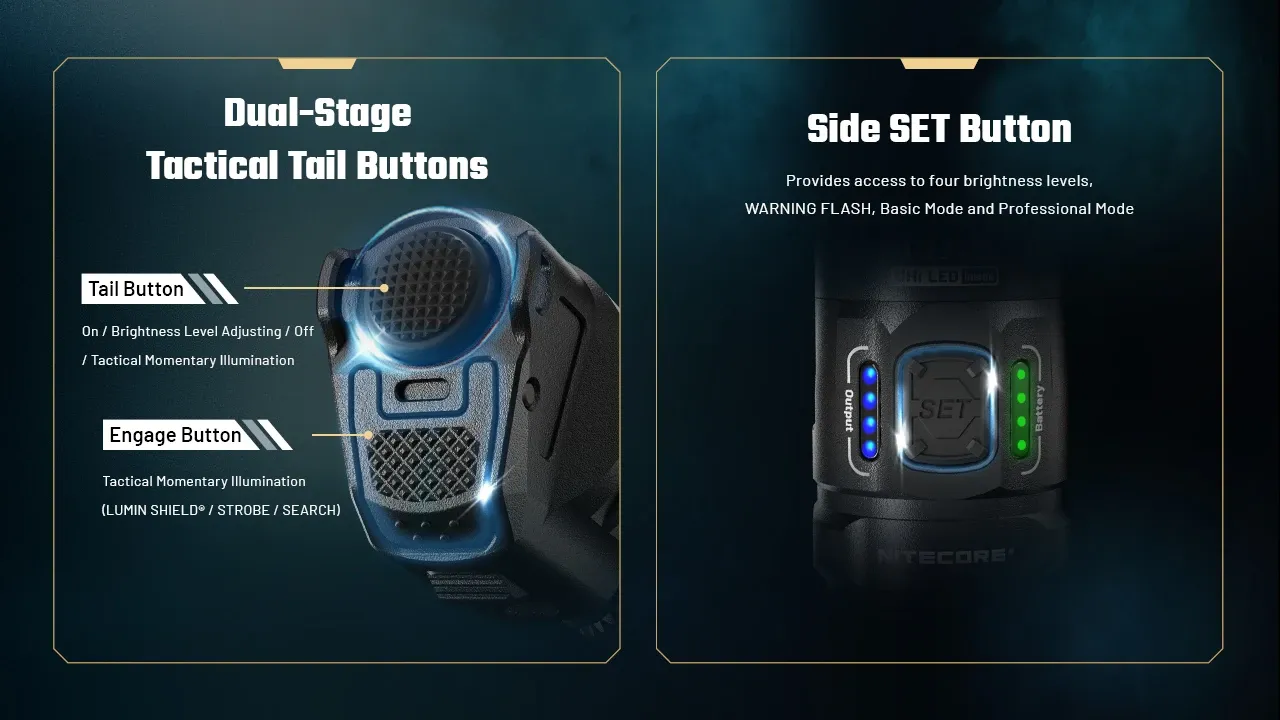

The Nitecore P17iX is an advanced tactical torch featuring 5000 lumens of output and a 330 metre beam distance, offering a customisable variable beam pattern. It is equipped with 4 NiteLab M515S LEDs and supports full customisation across beam pattern, LUMIN SHIELDยฎ, STROBE, SEARCH, and brightness configurations, alongside tactical and duty grip options. Powered by a proprietary 21700 Li-ion battery, it recharges conveniently via its integrated USB-C port with QC/PD fast charging, providing up to 100 hours of runtime. This torch has an IP68 ingress protection rating and is impact resistant to 2 metres, ensuring reliability in challenging conditions. Control is intuitive with dual tail buttons and a side SET button, offering 4 brightness levels, LUMIN SHIELD, STROBE READY, SEARCH, and WARNING FLASH modes, complemented by a Rapid Lockโข switch and Advanced Temperature Regulation.
Features
Customisable Beam Patterns: The Nitecore P17iX offers long-throw, floodlight, and mixed light, with adjustable brightness levels.
Dual Grip Options: Duty Grip for everyday use and a Tactical Grip for tactical applications, each with dedicated button controls.

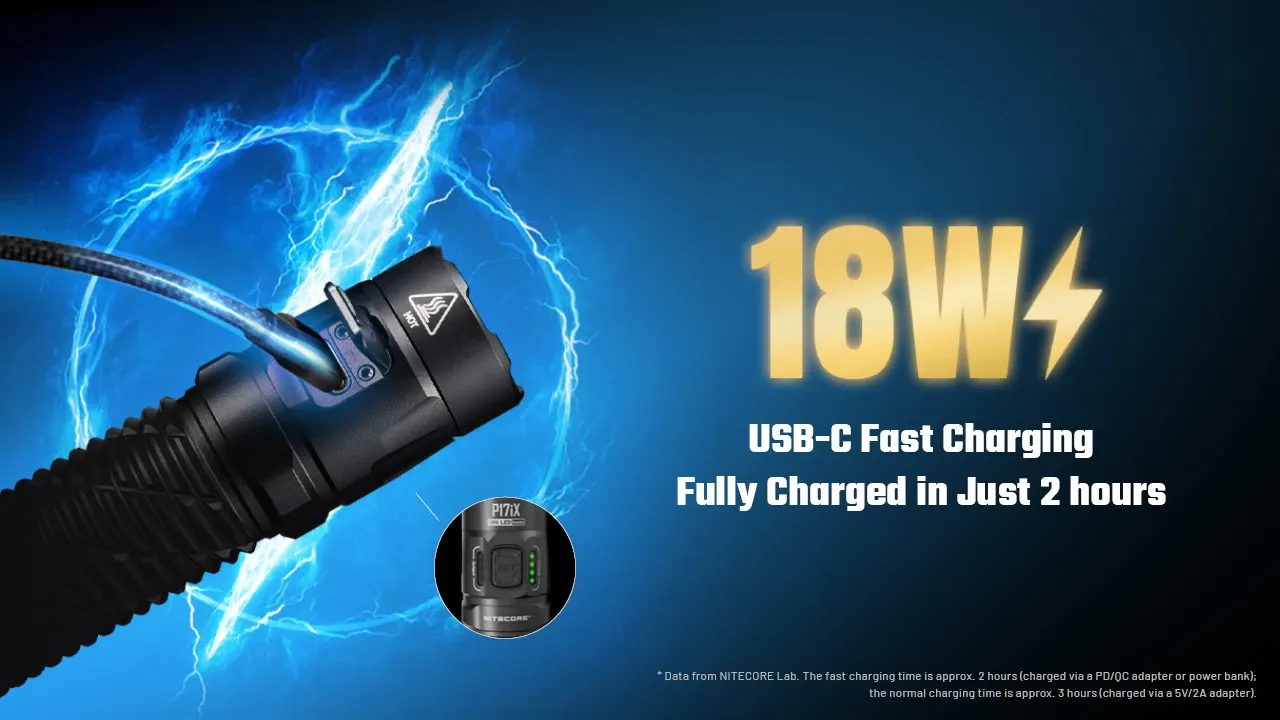

USB-C Rechargeable: Includes a Nitecore NL2155HPi 21700 Li-ion battery and supports USB-C fast charging up to 18W.
Advanced Temperature Regulation: Automatically adjusts output to prevent overheating and prolong the flashlight's lifespan.

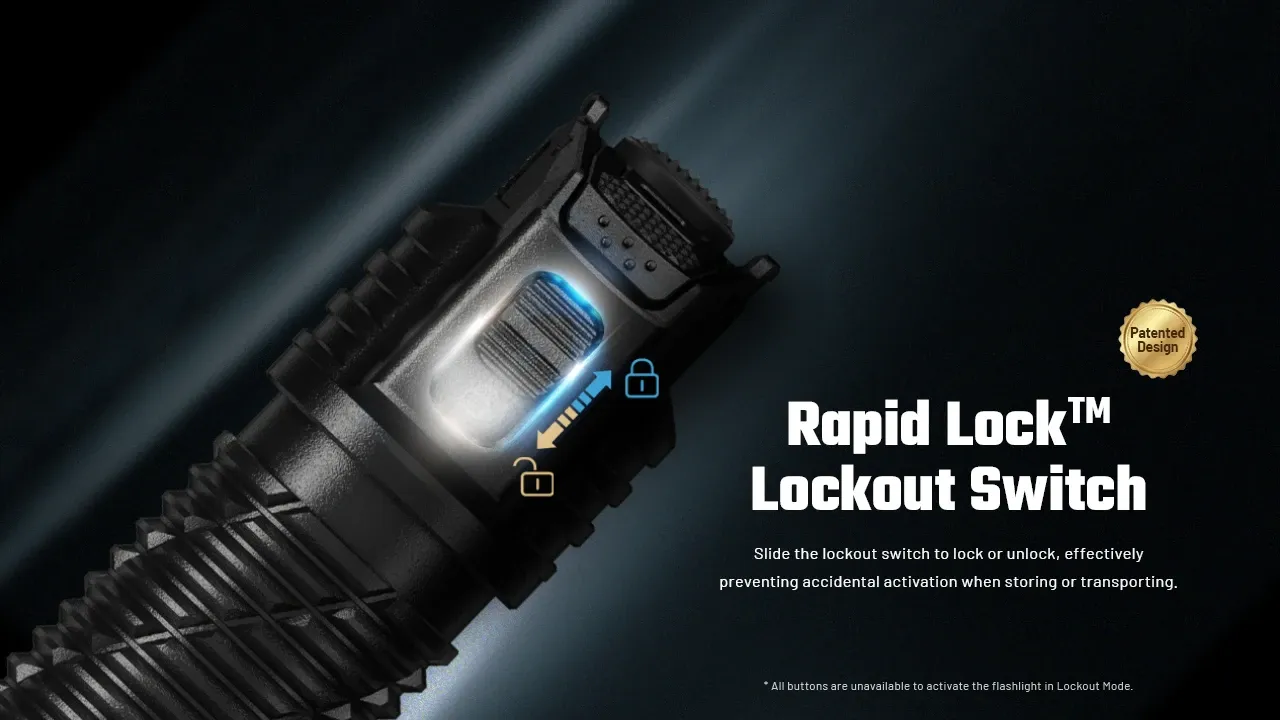

Rapid Lock Switch: A Rapid Lock switch is available to prevent accidental activation during storage or transport.
Package Includes
1 x Nitecore P17iX

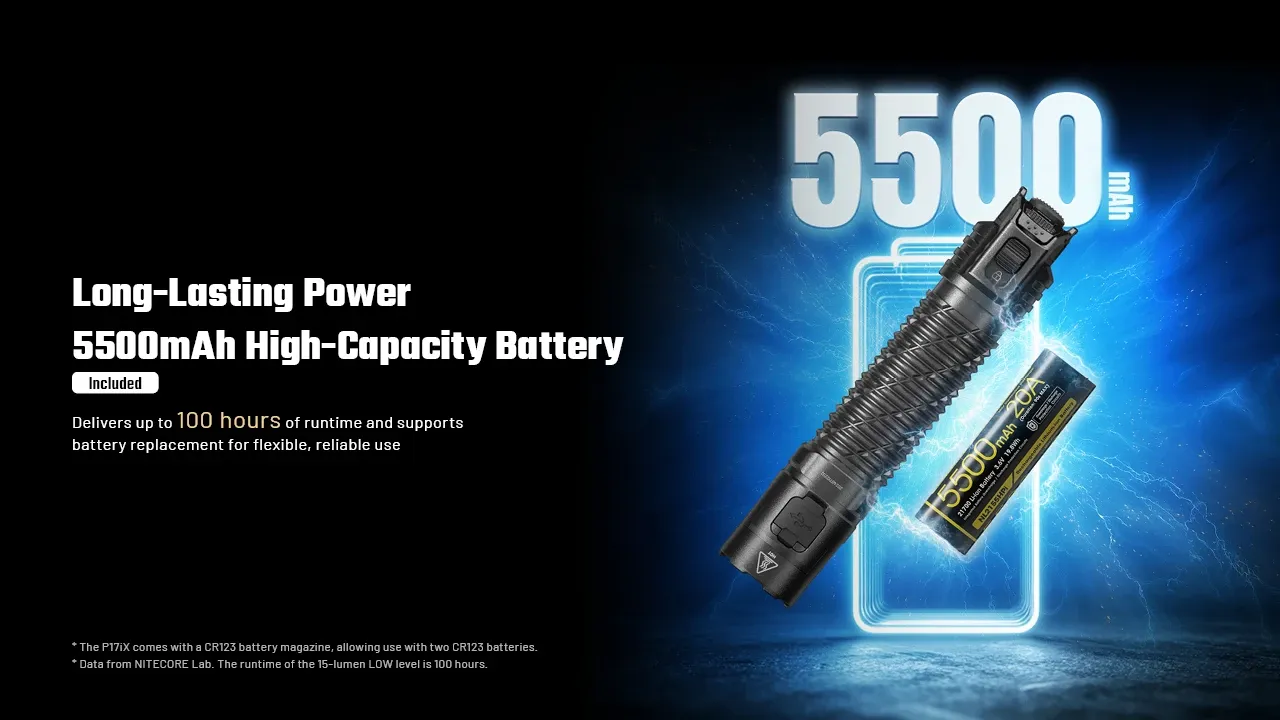

1 x Nitecore NL2155HPi Proprietary High-capacity Rechargeable 21700 Li-ion Battery
1 x USB Charging Cable (USB-C to USB-C)
1 x CR123 Battery Magazine

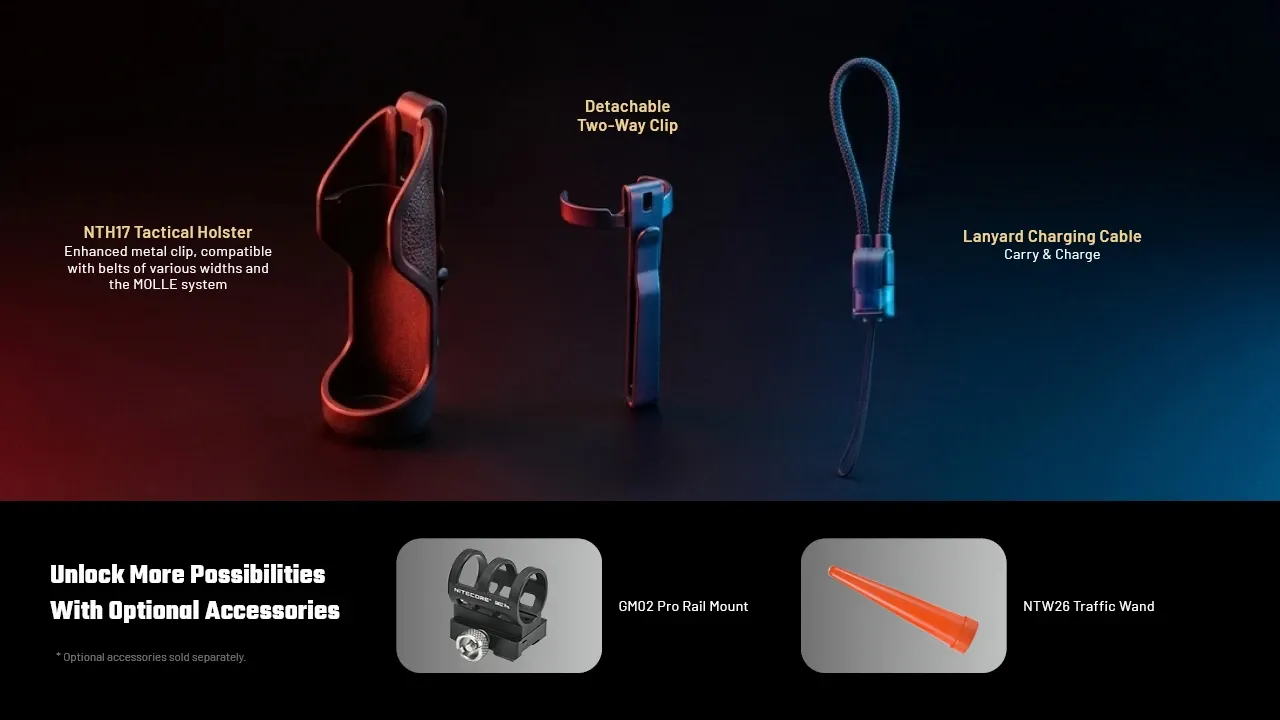

1 x NTH17 Tactical Holster
1 x Clip
1 x Spare O-ring
1 x User Manual
Key Information
Feature
Details
Primary Light Source
4 x NiteLab M515S LEDs
Power Source
1 x Nitecore NL2155HPi Proprietary High-capacity Rechargeable 21700 Li-ion Battery
Recharging Method
USB Type-C
Material
Aluminium alloy
Warranty (Torch)
5 years
Warranty (Battery)
1 year
Warranty (Accessories)
1 year
ANSI/PLATO FL1 Specifications
Feature
Measurement
Maximum Light Output
5000 lumens
Maximum Runtime
100 hours
Maximum Beam Distance
330 metres
Peak Beam Intensity
27225 candela
Impact Resistance
2 metres
Ingress Protection Rating
IP68

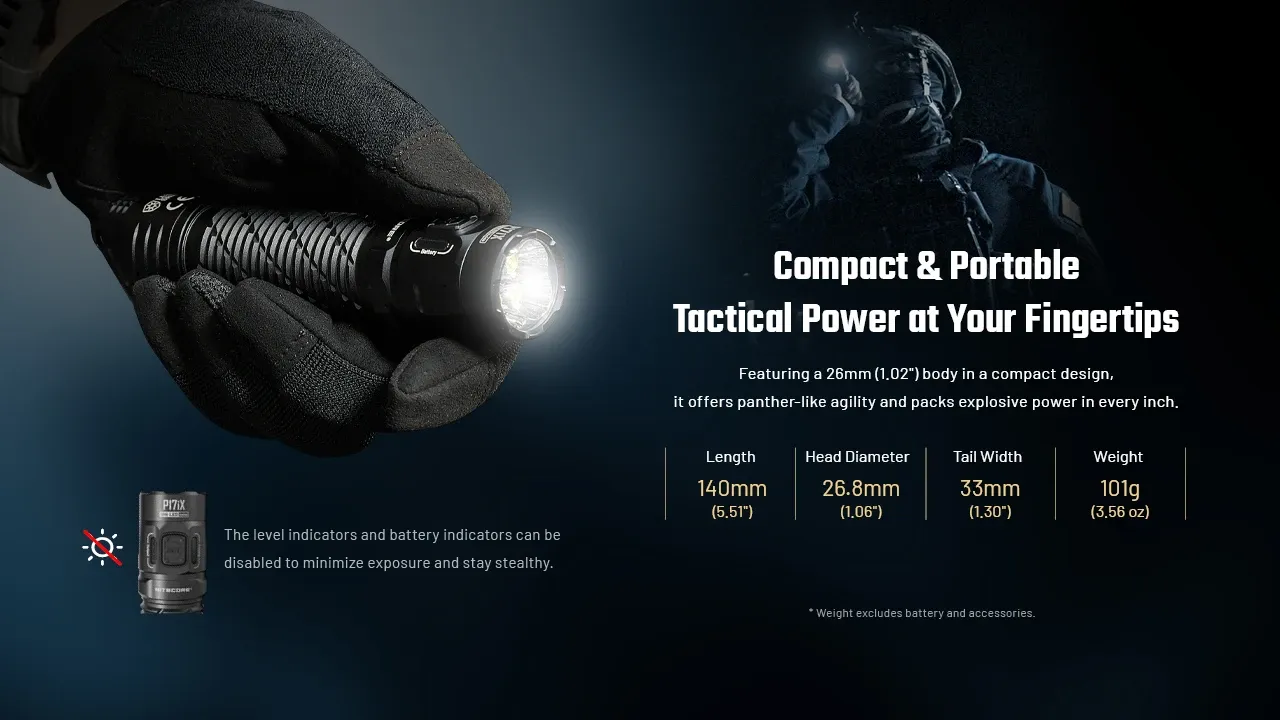

Dimensions
Feature
Measurement
Length
140 mm
Head Diameter
26.8 mm
Weight
178 g
Additional Data
FL1 STANDARD
TURBO
HIGH
MID
LOW
Max Output
1500 lm
400 lm
80 lm
15 lm
Max Runtime
3h
6h
25h
100h
Max Beam Distance
297 m
158 m
58 m
28 m
Peak Beam Intensity
22023 cd
6241 cd
841 cd
196 cd
Note:
1. The stated data is measured by using a 21700 i Series rechargeable Li-ion battery (5,500mAh), in accordance with the international flashlight testing standards ANSI/PLATO FL 1-2019, at an ambient temperature of 26ยฐC (79ยฐF) from the NITECORE Lab. The data may vary in real world use due to different battery usage or environmental conditions.
FL1 STANDARD
TURBO
HIGH
MID
LOW
Max Output
1500 lm
400 lm
80 lm
15 lm
Max Runtime
3h
6h
25h
100h
Max Beam Distance
243 m
106 m
45 m
17 m
Peak Beam Intensity
14805 cd
2830 cd
506 cd
72 cd
Note:
1. The stated data is measured by using a 21700 i Series rechargeable Li-ion battery (5,500mAh), in accordance with the international flashlight testing standards ANSI/PLATO FL 1-2019, at an ambient temperature of 26ยฐC (79ยฐF) from the NITECORE Lab. The data may vary in real world use due to different battery usage or environmental conditions.
FL1 STANDARD
TURBO
HIGH
MID
LOW
Max Output
1500 lm
400 lm
80 lm
15 lm
Max Runtime
3h
6h
25h
100h
Max Beam Distance
179 m
80 m
32 m
13 m
Peak Beam Intensity
7976 cd
1614 cd
271 cd
43 cd
Note:
1. The stated data is measured by using a 21700 i Series rechargeable Li-ion battery (5,500mAh), in accordance with the international flashlight testing standards ANSI/PLATO FL 1-2019, at an ambient temperature of 26ยฐC (79ยฐF) from the NITECORE Lab. The data may vary in real world use due to different battery usage or environmental conditions.
FL1 STANDARD
LUMIN SHIELDยฎ
SEARCH
WARNING FLASH
STROBE
Max Output
*5000 lm
*2500 lm
1000 lm
*5000 lm
Max Runtime
โ
โ
โ
โ
Max Beam Distance
295 m
330 m
โ
โ
Peak Beam Intensity
21895 cd
27225 cd
โ
โ
Note:
1. The stated data is measured by using a 21700 i Series rechargeable Li-ion battery (5,500mAh), in accordance with the international flashlight testing standards ANSI/PLATO FL 1-2019, at an ambient temperature of 26ยฐC (79ยฐF) from the NITECORE Lab. The data may vary in real world use due to different battery usage or environmental conditions.
2. When LUMIN SHIELDยฎ / STROBE / SEARCH is activated, the flashlight will automatically adjust the brightness to prevent overheating and prolong the lifespan of the flashlight. To restore the previous brightness, simply reactivate LUMIN SHIELDยฎ / STROBE / SEARCH.
* The max outputs of LUMIN SHIELD, SEARCH, and STROBE are only accessible when using NITECORE 21700 i Series batteries with an output over 15A.
* The data is tested without the temperature regulation.
Performance and Runtime Disclaimer
How to read the data: The outputs provided above are maximum outputs for each mode, and the runtimes provided are the time it takes to drop to 10% of the initial output. This is in line with the International Flashlight Testing Standard ANSI FL1.
Any visual representations (graphs) of the data are approximate only.
Read more
The actual output of the torch/headlamp is controlled by an in-built temperature regulation system. As the torch/headlamp heats up, the brightness will drop to prevent overheating. The Turbo modes of torches/headlamps usually drop down significantly after anything from 15 seconds to 2 minutes. High modes often also experience a drop down over time. Medium and Low modes, however, can be constant for very close to the length of time specified. As the torch/headlamp cools down, either from being turned off or from being used on a lower output level, you will be able to access higher brightness levels again.
Example: An output of 2000 lumens and runtime of 5 hours does not mean 2000 lumens for 5 hours โ it means it starts at 2000 lumens and drops below 200 lumens after 5 hours of continuous use.
Turbo and high modes may be unavailable or limited as the battery gets low on charge.
Exact specifications can vary between torches, batteries, age and environments.
