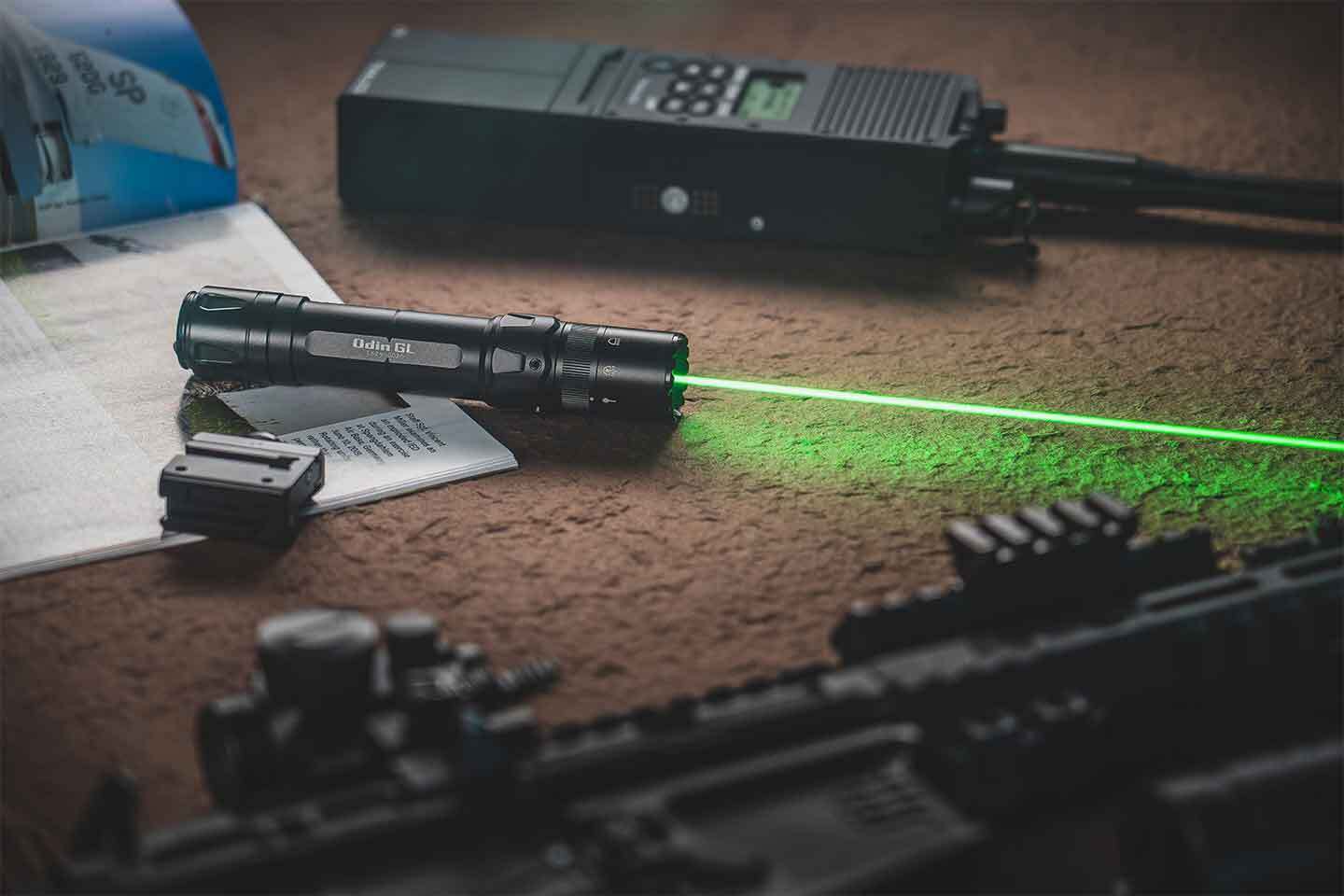

The Olight Odin GL is a precision tactical LED torch and weapon mounted light (WML). Combining a high-output white beam up to 1,500 lumens with a visible green laser for fast target acquisition, the Odin GL delivers reliable performance, easy rail mounting and convenient USB magnetic charging for field-ready power.

Looking for the M-LOK rail version? ➡ Check out the Olight Odin GL with M-LOK Rail Mount

Odin GL Picatinny User Manual

Features

• Delivers up to 1,500 lumens of white light with a 215 m beam distance for clear target ID.
• Provides a GL (green laser) beam for pinpoint aiming visible day or night.
• Offers three mode options (white only, GL only, or combined) via a selector ring.
• Mounts securely to Picatinny rails for wide compatibility with long setups.
• Includes a dual-button magnetic remote pressure switch for instant control without breaking grip.
• Charges the customised 5000mAh 21700 battery via MCC3 USB magnetic cable no special charger required.
• Features a vibration battery indicator and silent metal tail switch for tactical use.
• Built from aircraft-grade aluminium with IPX4 water resistance and 1.5 m impact resistance.

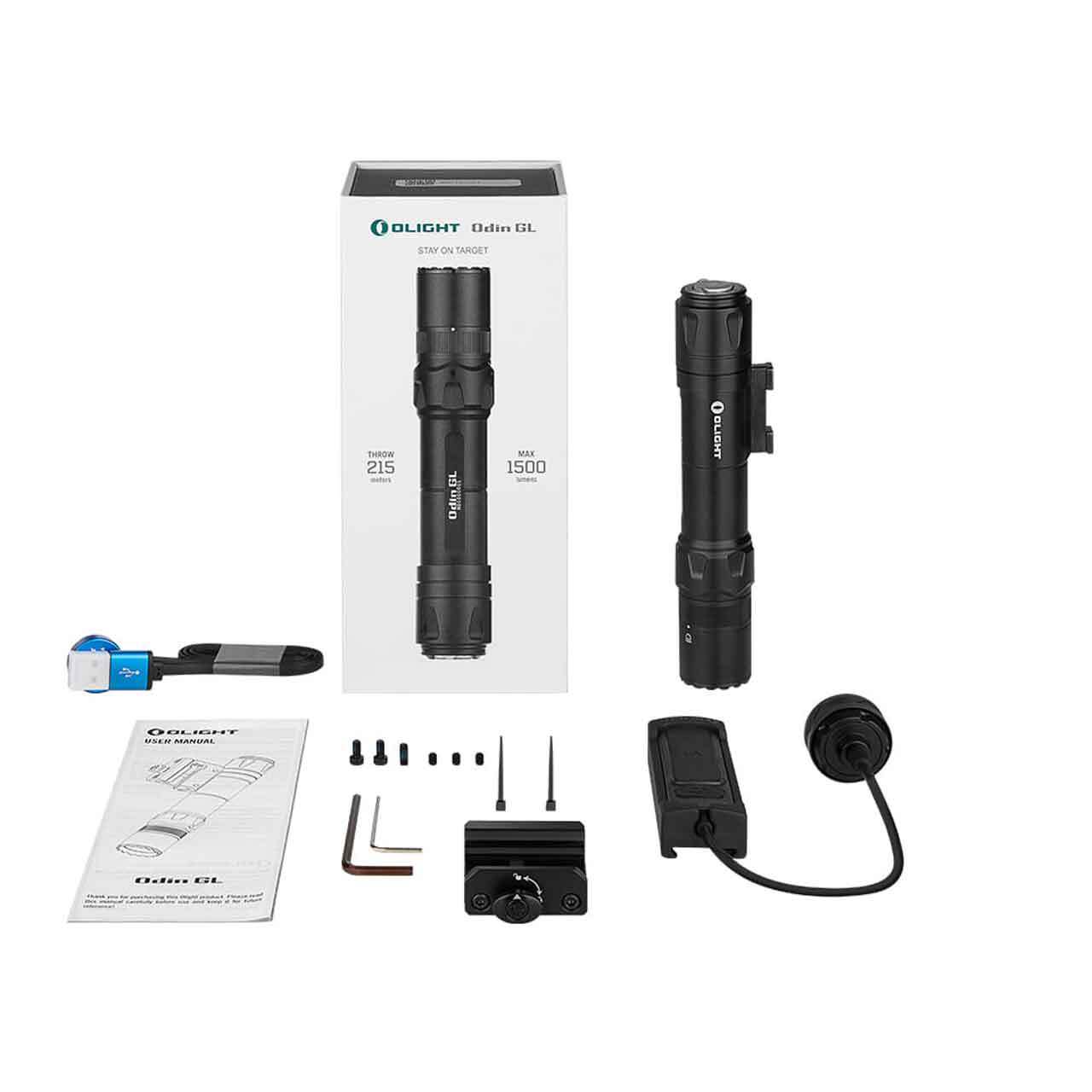

Package Includes

• 1 x Olight Odin GL

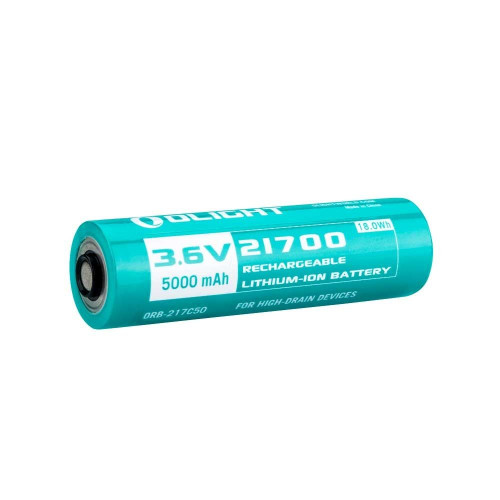

• 1 x Olight 21700 5000mAh Rechargeable Battery
• 1 x Picatinny Rail Mount
• 1 x sROD-7 Magnetic Remote Switch
• 1 x MCC3 USB Magnetic Charging Cable
• 1 x NYLOK Oval Point Set Screws
• 3 x M3x4 Socket Screw
• 2 x Screw
• 1 x H1.5 Allen Wrench
• 1 x H2.5 Allen Wrench
• 2 x Cable Zip Ties
• User Manual

Specifications

• LED: High Performance NW LED + GL Beam Emitter <5mW
• Power Source: Customized 5000mAh 3.6V 21700 Rechargeable Lithium Battery
• Maximum Beam Distance: 215 metres
• Maximum Beam Intensity:11,556 candela
• Brightness Outputs
  • GL Beam ON:

    • High: 1,500~550 ~300 lumens - 2.5 + 155 + 15 minutes
    • Low: 300 lumens - 6 hrs
  • GL Beam OFF:
    • High:1,500~550 ~300 lumens - 2.5 + 168 + 20 minutes
    • Low: 300 lumens - 6 hrs
• IPX Rating: IPX4
• Impact Resistance: 1.5 meters
• Dimensions:

  • Length: 149 mm
  • Head Diameter: 29 mm
  • Tube Diameter: 26.6 mm
• Weight: 228 g (including battery)
