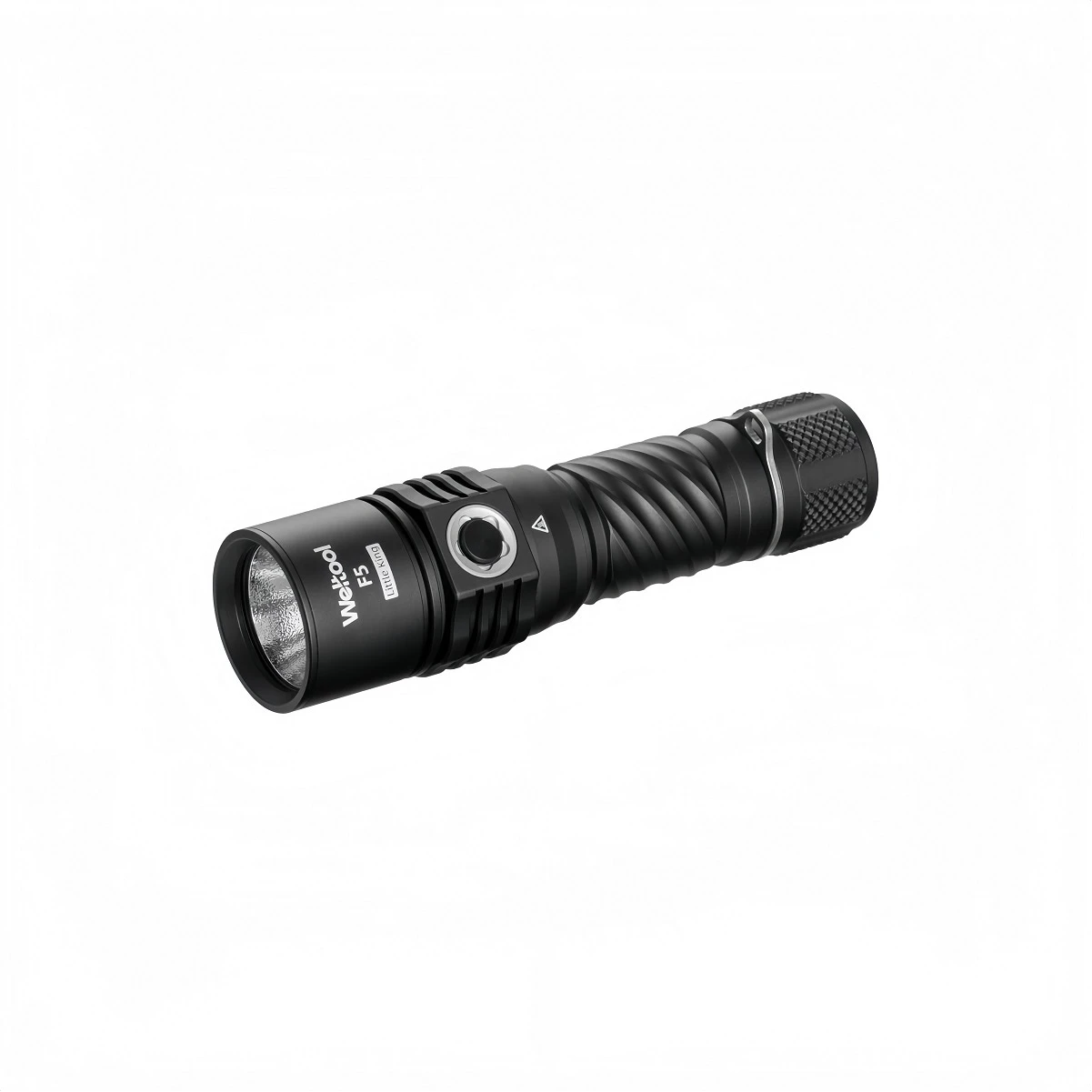

The Weltool F5 is a high-lumen outdoor LED torch that delivers a maximum light output of 4600 lumens and a maximum beam distance of 342 metres. It is powered by a single Weltool UB26-70 7000mAh USB-C rechargeable 26650 lithium-ion battery. It features an IP67 ingress protection rating and 1 metre impact resistance, ensuring durability in challenging conditions. Constructed from aluminium alloy, the torch houses a 5000K neutral white X-LED primary light source. With a peak beam intensity of 29250 candela, the F5 offers a natural beam colour, providing an excellent balance of throw and flood illumination. A side switch controls operation, featuring a battery level indicator and a lockout function to prevent accidental activation. It also includes a strobe mode. Integrated protections include battery over-discharge, reverse polarity, low-voltage warning, and low-voltage cutoff. Both Turbo and High modes are equipped with overheat protection, and the torch operates flicker-free and noise-free with low standby current consumption. A stainless steel lanyard ring is included for secure carrying, making the F5 especially suitable for outdoor hiking, maintenance work, and general outdoor applications.
Features
- High Lumen Output: Delivers up to 4600 lumens in turbo mode for powerful illumination.
- Long Beam Distance: Achieves a maximum beam distance of 342 metres, providing excellent throw.

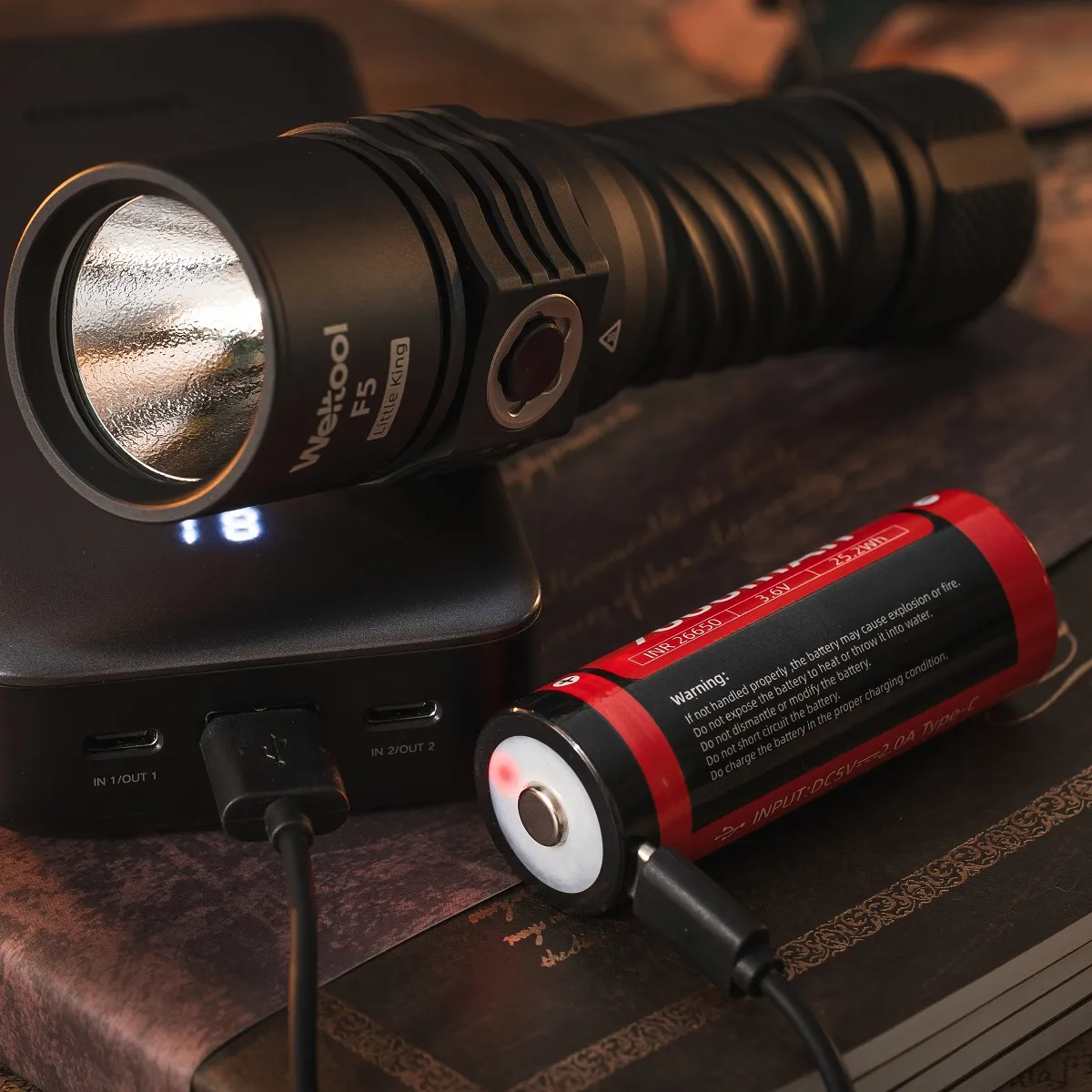

- USB Charging Capability: Features a USB charging port on the included 26650 lithium-ion battery for convenient recharging.

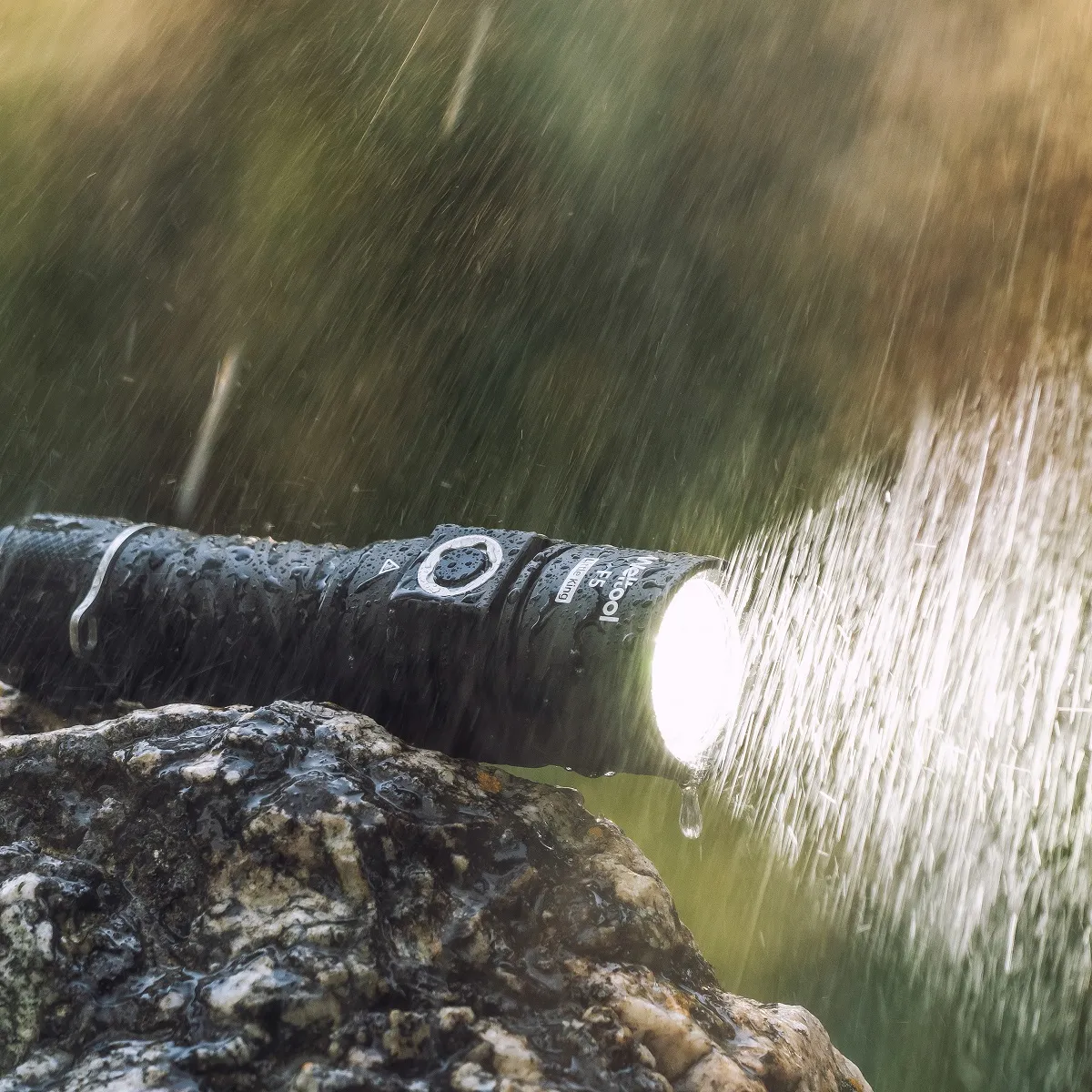

- Waterproof Design: Rated IP67 waterproof, making it suitable for use in heavy rain.
- Battery Level Indicator: The side switch includes a battery level indicator to monitor power status.
- Multiple Protection Features: Equipped with over-discharge, reverse polarity, low-voltage warning, and overheat protection.
Package Includes
- 1 x Weltool F5
- 1 x Weltool UB26-70 7000mAh Rechargeable 26650 Li-ion Battery
- 1 x USB-C Charging Cable
- 1 x Spare O-ring
- 1 x Stainless Steel Lanyard Ring
- 1 x User Manual
Key Information
| Feature |
Details |
| Primary Light Source |
1 x 5000K Neutral White X-LED |
| Power Source |
1 x Weltool UB26-70 7000mAh USB-C Rechargeable 26650 Lithium-ion Battery |
| Recharging Method |
USB Type-C (Charging Port on Battery) |
| Material |
Aluminium alloy |
| Warranty (Torch) |
5 years |
| Warranty (Battery) |
1 year |
| Warranty (Accessories) |
1 year |
ANSI/PLATO FL1 Specifications
| Feature |
Measurement |
| Maximum Light Output |
4600 lumens |
| Maximum Runtime |
64.5 hours |
| Maximum Beam Distance |
342 metres |
| Peak Beam Intensity |
29250 candela |
| Impact Resistance |
1 metre |
| Ingress Protection Rating |
IP67 |
Dimensions
| Feature |
Measurement |
| Length |
158 mm |
| Head Diameter |
41.5 mm |
| Body Diameter |
33 mm |
| Weight |
336 g |
Additional Data
| FL1 Standard
|
Full-Power |
High |
Medium |
Low |
Eco |
Strobe |
| Max Output |
4600~1680 lm |
2150~1350 lm |
1100 lm |
560 lm |
45 lm |
N/A |
| Max Beam Distance |
342 m |
227 m |
161 m |
116 m |
33 m |
N/A |
| Peak Beam Intensity |
29250 cd |
12900 cd |
6500 cd |
3390 cd |
280 cd |
N/A |
| Max Runtime |
1min + 1h 40min |
3min + 2h 7min |
2h 45min |
5h 45min |
64h 30min |
N/A |
The above performance data was tested using the Weltool UB26-70 lithium-ion battery under normal ambient temperature conditions. Test results may vary depending on environmental conditions and testing methods and are provided for reference only.
Performance and Runtime Disclaimer
How to read the data: The outputs provided above are maximum outputs for each mode, and the runtimes provided are the time it takes to drop to 10% of the initial output. This is in line with the International Flashlight Testing Standard ANSI FL1.
Any visual representations (graphs) of the data are approximate only.
Read more
The actual output of the torch/headlamp is controlled by an in-built temperature regulation system. As the torch/headlamp heats up, the brightness will drop to prevent overheating. The Turbo modes of torches/headlamps usually drop down significantly after anything from 15 seconds to 2 minutes. High modes often also experience a drop down over time. Medium and Low modes, however, can be constant for very close to the length of time specified. As the torch/headlamp cools down, either from being turned off or from being used on a lower output level, you will be able to access higher brightness levels again.
Example: An output of 2000 lumens and runtime of 5 hours does not mean 2000 lumens for 5 hours โ it means it starts at 2000 lumens and drops below 200 lumens after 5 hours of continuous use.
Turbo and high modes may be unavailable or limited as the battery gets low on charge.
Exact specifications can vary between torches, batteries, age and environments.
