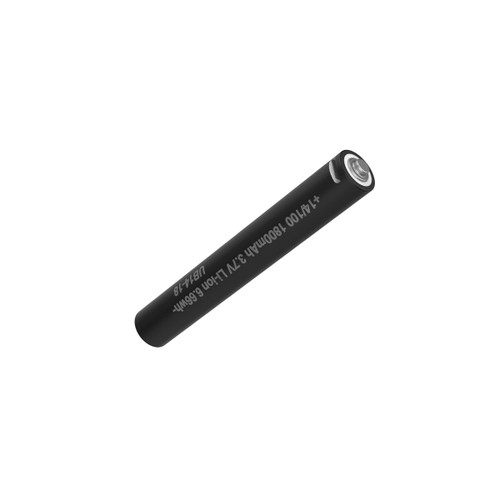

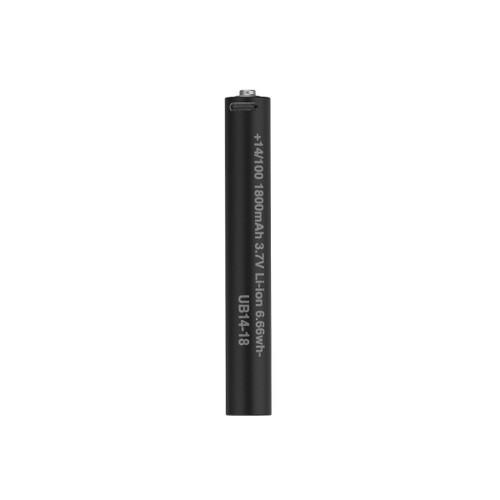

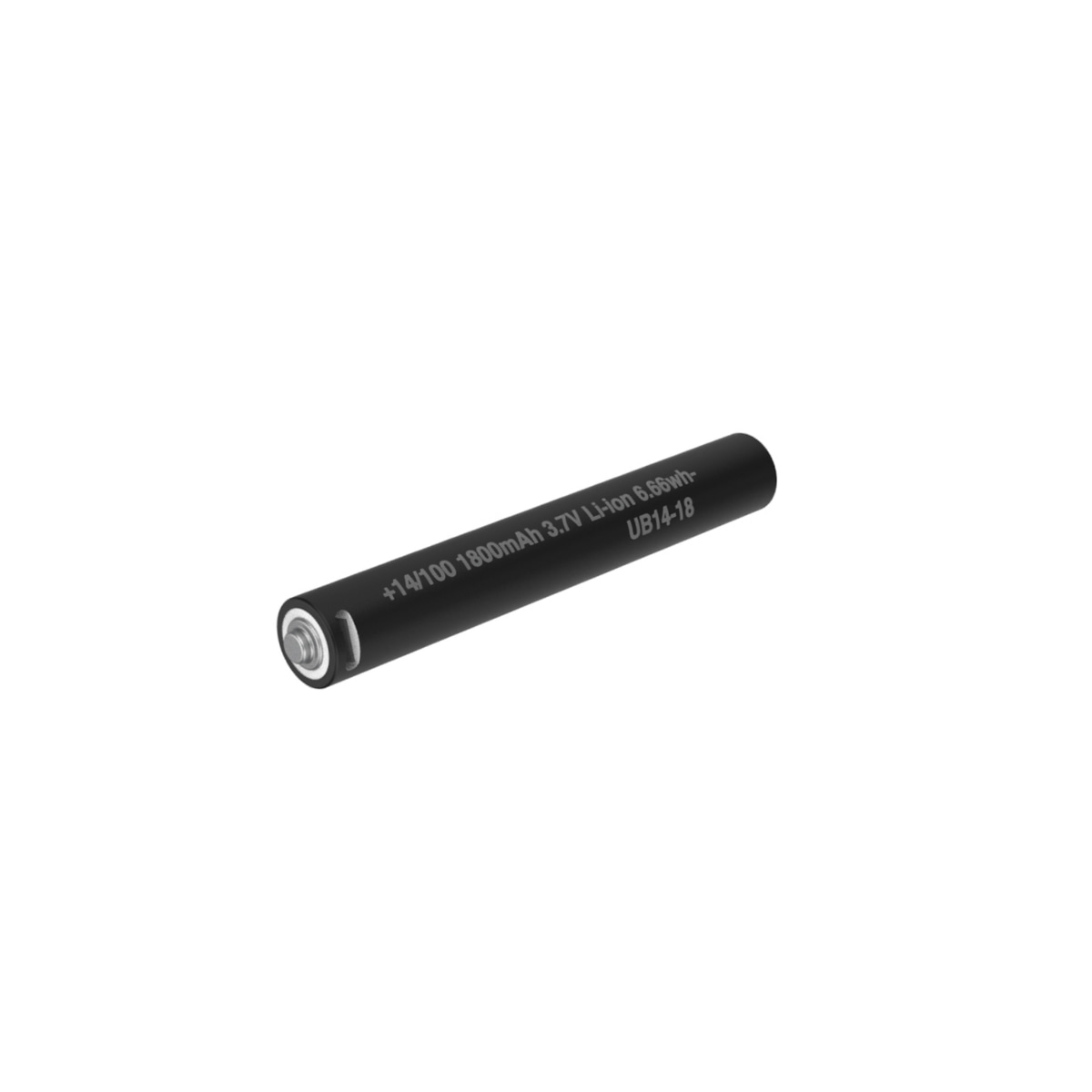

The Weltool UB14-18 is a rechargeable, protected lithium-ion battery with a nominal capacity of 1800mAh and a nominal voltage of 3.7V. It charges via a built-in Type-C USB port at up to 1A, with an LED indicator showing red while charging and blue once full, and retains at least 70% of its capacity after 300 charge cycles.
Features
- Integrated USB-C Charging Port: The battery features a USB-C charging port, allowing for direct charging with a 5V adapter or power bank.
- Charging Status Indicator: A charging indicator on the battery displays a red light when charging and a blue light when fully charged.
- Protection Circuit: Equipped with a protection circuit on the positive pole to ensure safe operation.
- Overcharge Protection: Includes overcharge protection with a cut-off voltage of 4.25ยฑ0.05V.
- Over-discharge Protection: Features over-discharge protection with a cut-off voltage of 2.75ยฑ0.1V.
Key Information
| Feature |
Details |
| Chemistry |
Lithium-ion |
| Size |
14100 |
| Nominal Capacity |
1800 mAh |
| Rated Capacity |
1800 mAh |
| Nominal Voltage |
3.7 V |
| Nominal Energy |
6.66 Wh |
| Maximum Continuous Discharge |
3.6 A |
| Charging Current |
1 A |
| Warranty |
1 year |
Dimensions
| Feature |
Measurement |
| Diameter |
14.3 mm |
| Length |
100 mm |
| Weight |
43 g |
Lithium-ion Battery warning: All Li-ion batteries have a risk of fire and/or explosion. Handle batteries with care, ensuring not to overcharge or over discharge, even if the battery contains a protection circuit. If battery is visibly damaged, stop use immediately and dispose of appropriately (Li-ion batteries pose a serious fire risk if thrown into household waste). If a battery is not to be used for over two weeks, store partially charged (30-50%) for maximum capacity retention.
