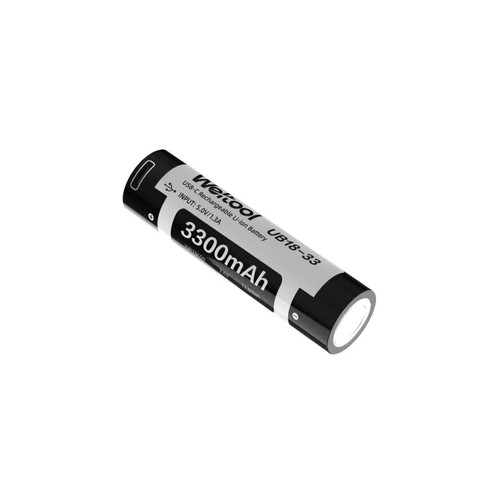

The Weltool UB18-33 is a rechargeable protected 18650 lithium-ion battery with a maximum capacity of 3300mAh.
Features
- Integrated USB-C Charging Port: The battery features a USB-C charging port, allowing for direct charging with a 5V adapter or power bank.
- Charging Status Indicator: A charging indicator on the battery displays a red light when charging and a blue light when fully charged.
- Protection Circuit: Equipped with a protection circuit on the positive pole to ensure safe operation.
- Overcharge Protection: Includes overcharge protection with a cut-off voltage of 4.250.05V.
- Over-discharge Protection: Features over-discharge protection with a cut-off voltage of 2.50.1V.
Package Includes
- 1 x Weltool UB18-33 Rechargeable 18650 Lithium-ion Battery
Key Information
| Feature |
Details |
| Chemistry |
Lithium-ion |
| Size |
18650 |
| Nominal Capacity |
3300 mAh |
| Nominal Voltage |
3.6 V |
| Nominal Energy |
11.88 Wh |
| Maximum Continuous Discharge |
8 A |
| Charging Current |
1.3 A |
| Charge Cycles |
โ 300 |
| Warranty |
1 year |
Dimensions
| Feature |
Measurement |
| Diameter |
18.8 mm |
| Length |
69.8 mm |
| Weight |
50 g |
Lithium-ion Battery warning: All Li-ion batteries have a risk of fire and/or explosion. Handle batteries with care, ensuring not to overcharge or over discharge, even if the battery contains a protection circuit. If battery is visibly damaged, stop use immediately and dispose of appropriately (Li-ion batteries pose a serious fire risk if thrown into household waste). If a battery is not to be used for over two weeks, store partially charged (30-50%) for maximum capacity retention.
