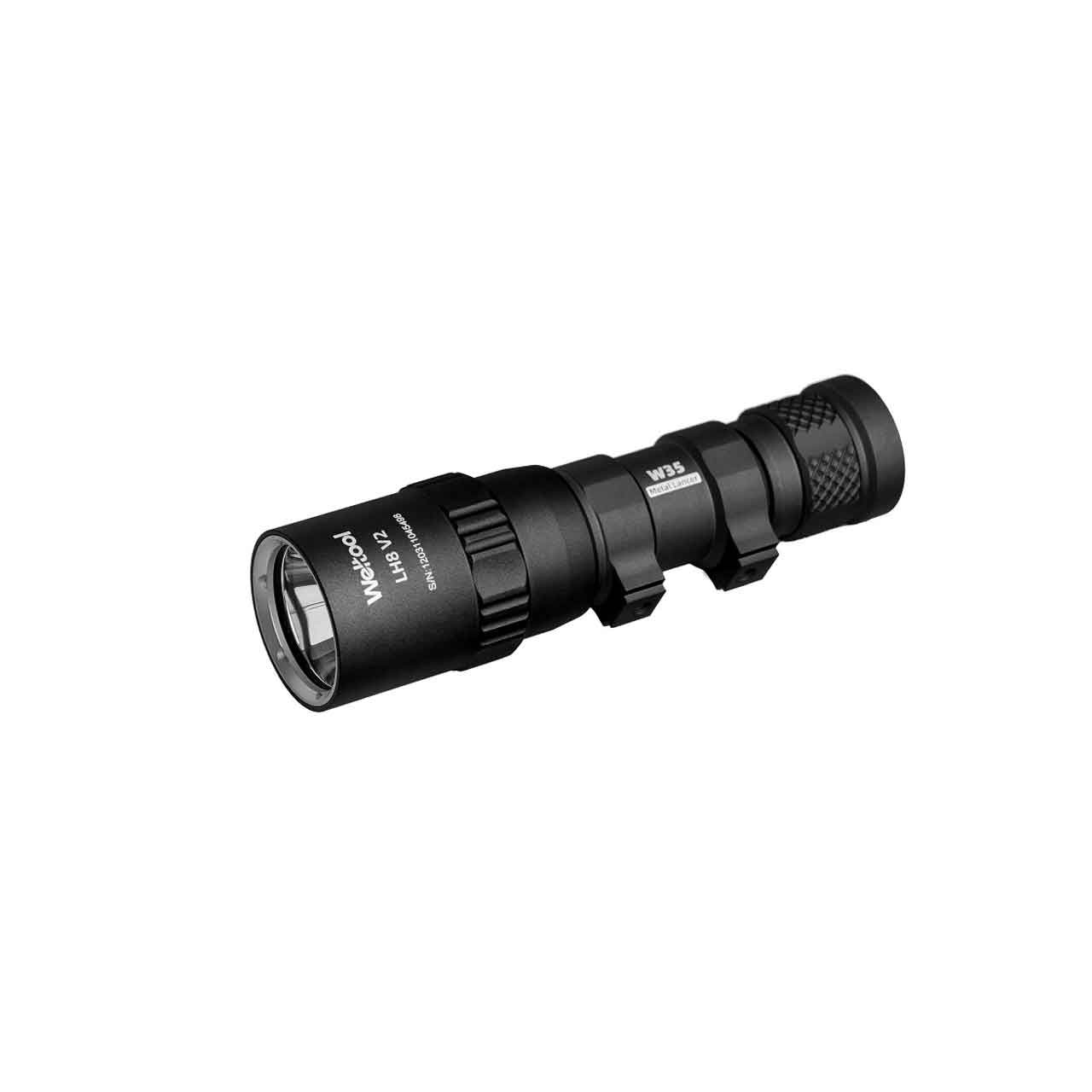

The Weltool W35B V2 is a compact tactical rail torch designed to deliver high luminous flux and intensity. It produces a maximum light output of 1520 lumens and a peak beam intensity of 120000 candela, projecting a beam up to 692 metres. Its robust design features a fully potted light head for superior shock and vibration resistance, and an IP67 ingress protection rating ensures dust and water resistance. Powering the torch is a Weltool UB18-12P 1200mAh high-drain 18350 lithium-ion battery, which is Micro-USB rechargeable via a port on the battery itself, providing a maximum runtime of 33 minutes. The torch incorporates a 5700K neutral white X-LED and is operated by a tail tactical momentary switch, offering silent momentary activation with a soft press and constant-on mode with a click. Additional features include reverse-polarity protection, low-battery warning, over-discharge protection, temperature regulation, and a tempered glass lens with double-sided anti-reflective coating, all within a 1-metre impact resistant body. Its modular design allows compatibility with various Weltool series accessories and mounting on Picatinny, MIL-STD-1913, STANAG 2324, STANAG 4694, and Weaver rails using the Weltool PM4 mount, or M-LOK and KeyMod rails with other dedicated mounts.
Features
- Long Range and High Intensity: Beam distance of up to 692 metres, with a peak intensity of 120000 candela.
- Versatile Mounting Options: Features two mounting holes for compatibility with Picatinny, MIL-STD-1913, STANAG 2324, STANAG 4694, Weaver, and other rails.
- Temperature Regulation Protection: Equipped with temperature regulation protection to prevent overheating and automatically step down brightness when needed.
- Reverse-Polarity Protection: Includes reverse-polarity protection to prevent damage from incorrect battery insertion.
- Waterproof and Dustproof: IP67-rated for dust and water resistance, allowing use in heavy rain.
Key Information
| Feature |
Details |
| Primary Light Source |
1 x 5700K Neutral White X-LED |
| Power Source |
1 x Weltool UB18-12P 1200mAh High-drain Rechargeable 18350 Lithium-ion Battery |
| Recharging Method |
Micro-USB (Charging Port on Battery) |
| Material |
Aluminium alloy |
| Warranty (Torch) |
5 years |
| Warranty (Battery) |
1 year |
| Warranty (Accessories) |
1 year |
ANSI/PLATO FL1 Specifications
| Feature |
Measurement |
| Maximum Light Output |
1520 lumens |
| Maximum Runtime |
33 hours |
| Maximum Beam Distance |
692 metres |
| Peak Beam Intensity |
120000 candela |
| Impact Resistance |
1 metre |
| Ingress Protection Rating |
IP67 |
Dimensions
| Feature |
Measurement |
| Length |
119 mm |
| Head Diameter |
31.5 mm |
| Weight |
132 g |
Additional Data
Manufacturer's Specs
|
|
W35B V2 |
| Colour Temperature |
5700K |
| Max Output |
1520 lm |
| Peak Beam Intensity |
120000 cd |
| Max Beam Distance |
692 m |
| Max Runtime |
33 min |
The above data were obtained through testing with a Weltool UB18-12P lithium-ion battery in a well-ventilated outdoor environment.
Performance and Runtime Disclaimer
How to read the data: The outputs provided above are maximum outputs for each mode, and the runtimes provided are the time it takes to drop to 10% of the initial output. This is in line with the International Flashlight Testing Standard ANSI FL1.
Any visual representations (graphs) of the data are approximate only.
Read more
The actual output of the torch/headlamp is controlled by an in-built temperature regulation system. As the torch/headlamp heats up, the brightness will drop to prevent overheating. The Turbo modes of torches/headlamps usually drop down significantly after anything from 15 seconds to 2 minutes. High modes often also experience a drop down over time. Medium and Low modes, however, can be constant for very close to the length of time specified. As the torch/headlamp cools down, either from being turned off or from being used on a lower output level, you will be able to access higher brightness levels again.
Example: An output of 2000 lumens and runtime of 5 hours does not mean 2000 lumens for 5 hours — it means it starts at 2000 lumens and drops below 200 lumens after 5 hours of continuous use.
Turbo and high modes may be unavailable or limited as the battery gets low on charge.
Exact specifications can vary between torches, batteries, age and environments.
