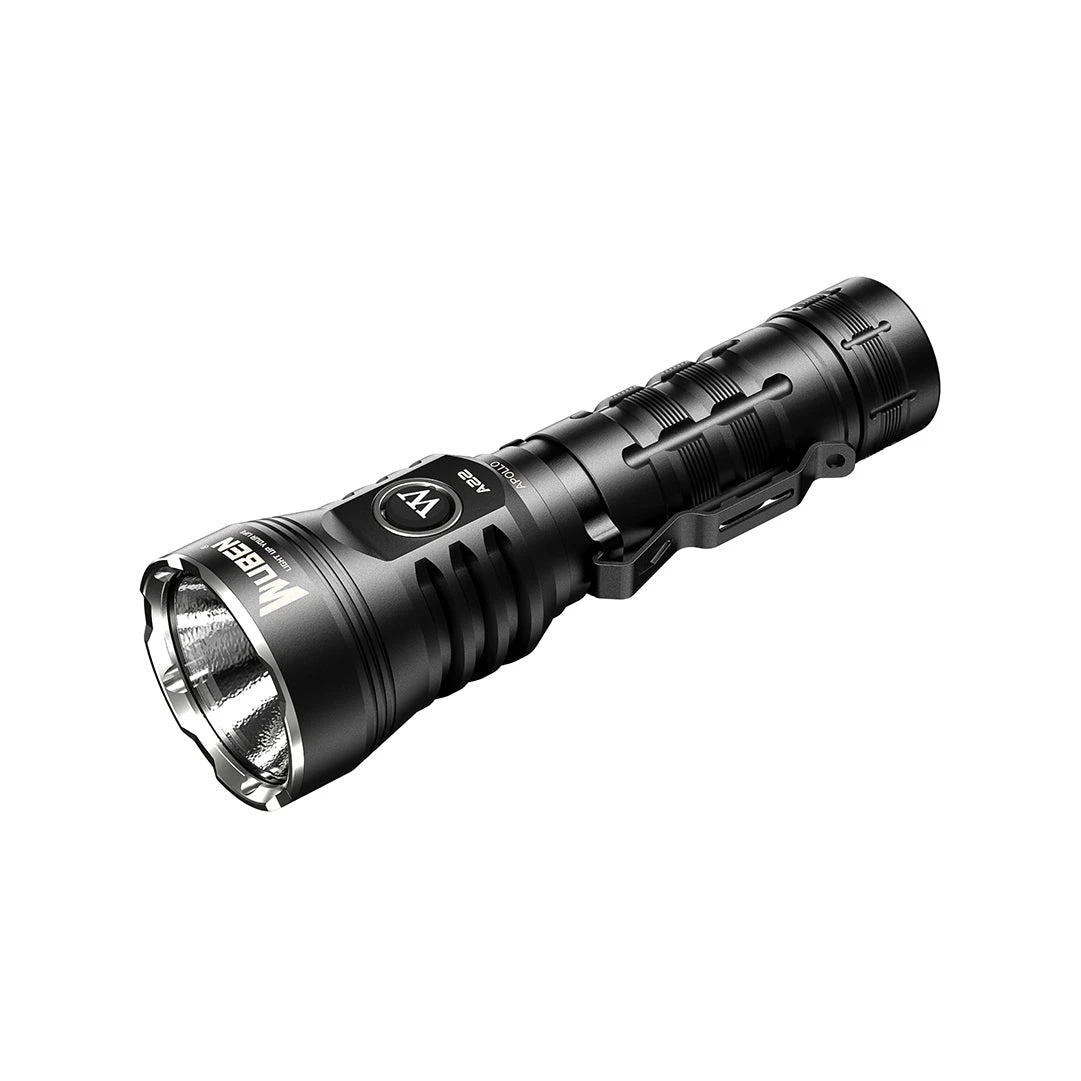

The Wuben A22 is a high-power rechargeable torch delivering 4500 lumens and a beam distance of 290 metres. It is powered by a Wuben ABD4800 4800mAh rechargeable 21700 lithium-ion battery, utilising a CREE XHP70.2 Cool White LED for its primary light source. This robust torch features an IP68 ingress protection rating and 1.5 m impact resistance, making it suitable for demanding conditions. Recharging is convenient via USB Type-C. The A22 offers 7 brightness modes, including a firefly function, and incorporates a switch lock to prevent accidental activation.
Features

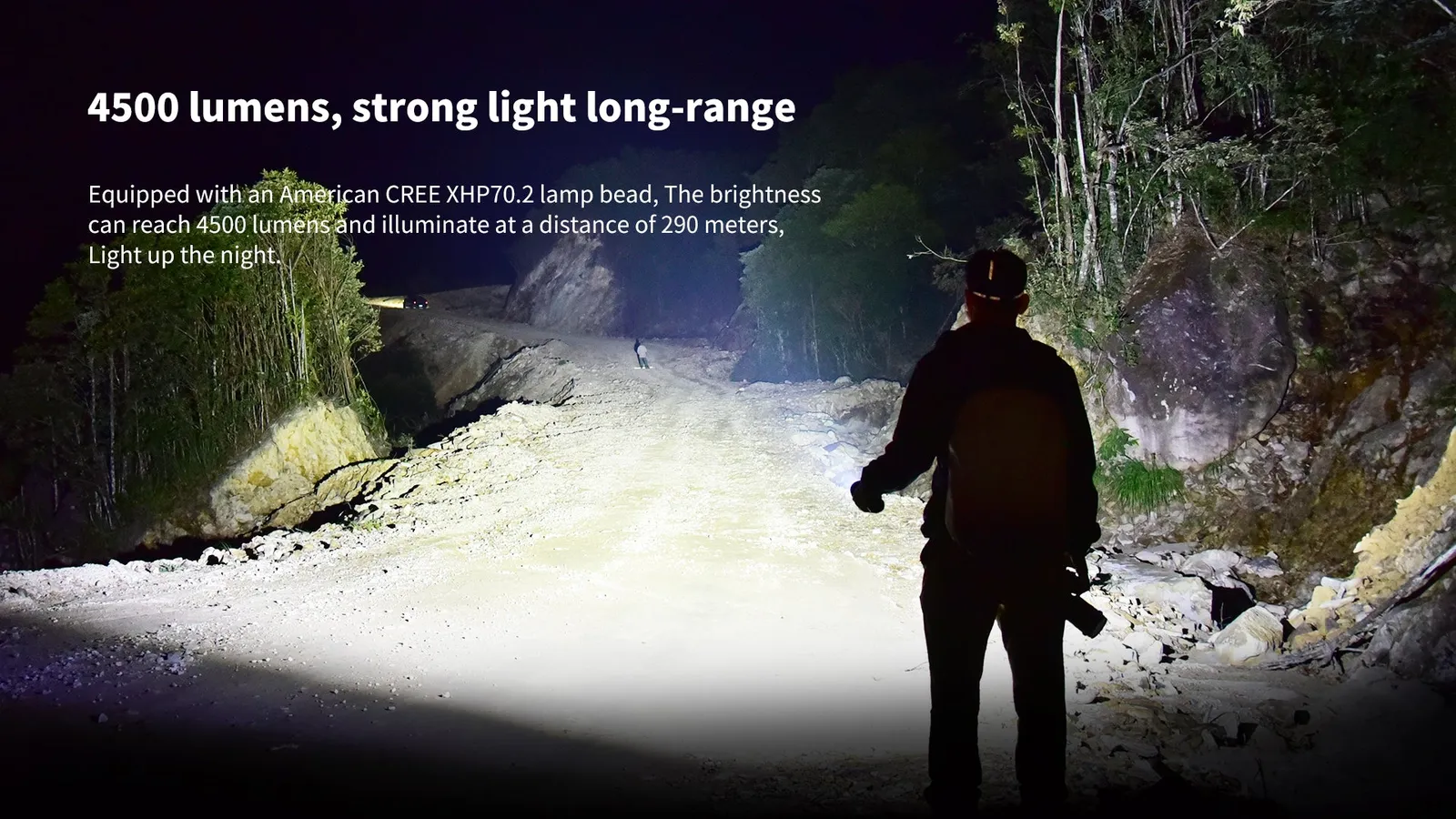

- High Brightness Output: Equipped with one CREE XHP 70.2 LED, it delivers a maximum brightness of 4500 lumens.
- Multiple Illumination Modes: Features seven brightness modes to suit various lighting needs.
- Switch Lock Function: Includes a switch lock to prevent accidental activation.

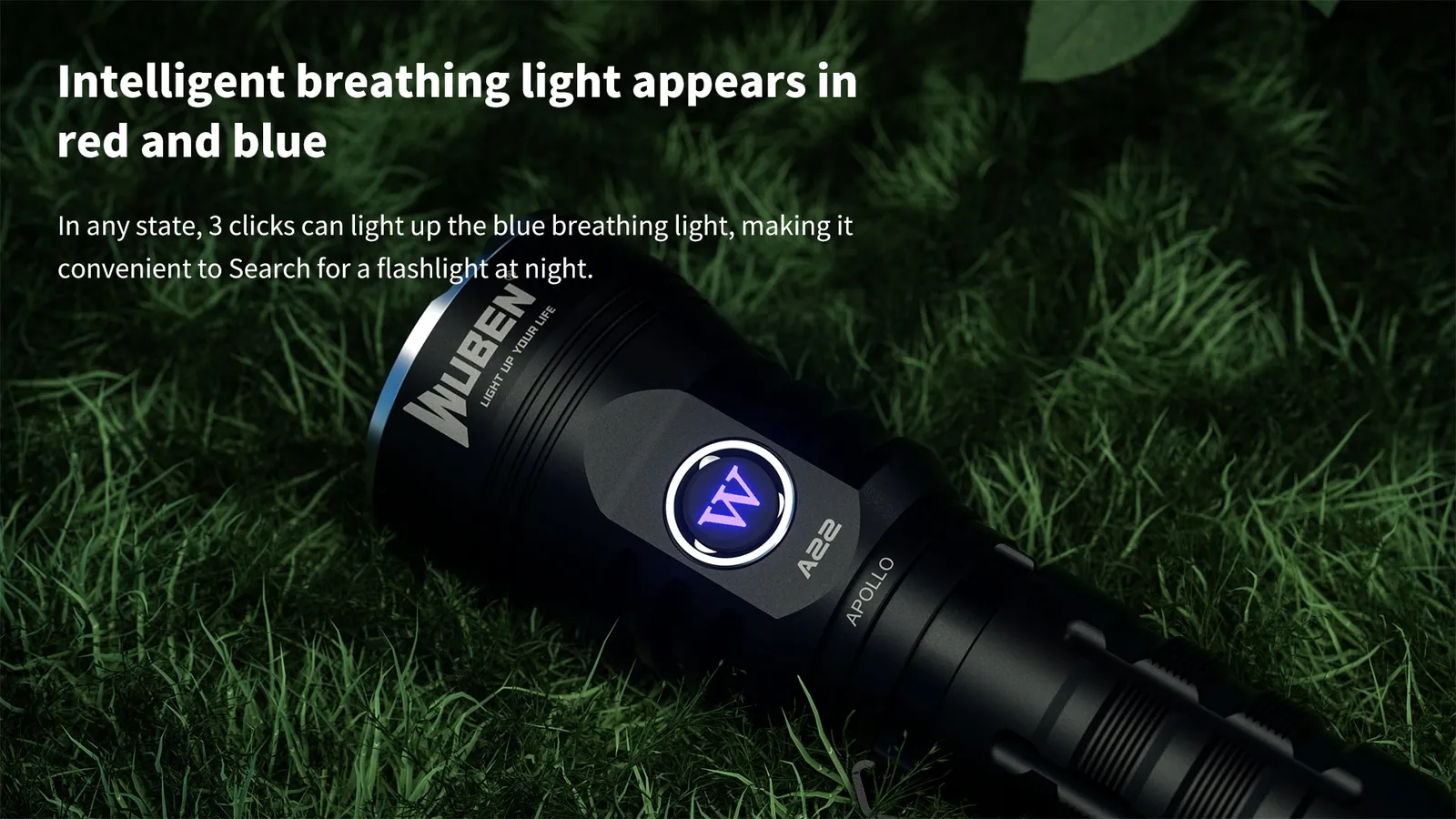

- Firefly Function: Equipped with a fluorite light to help locate the unit in the dark.

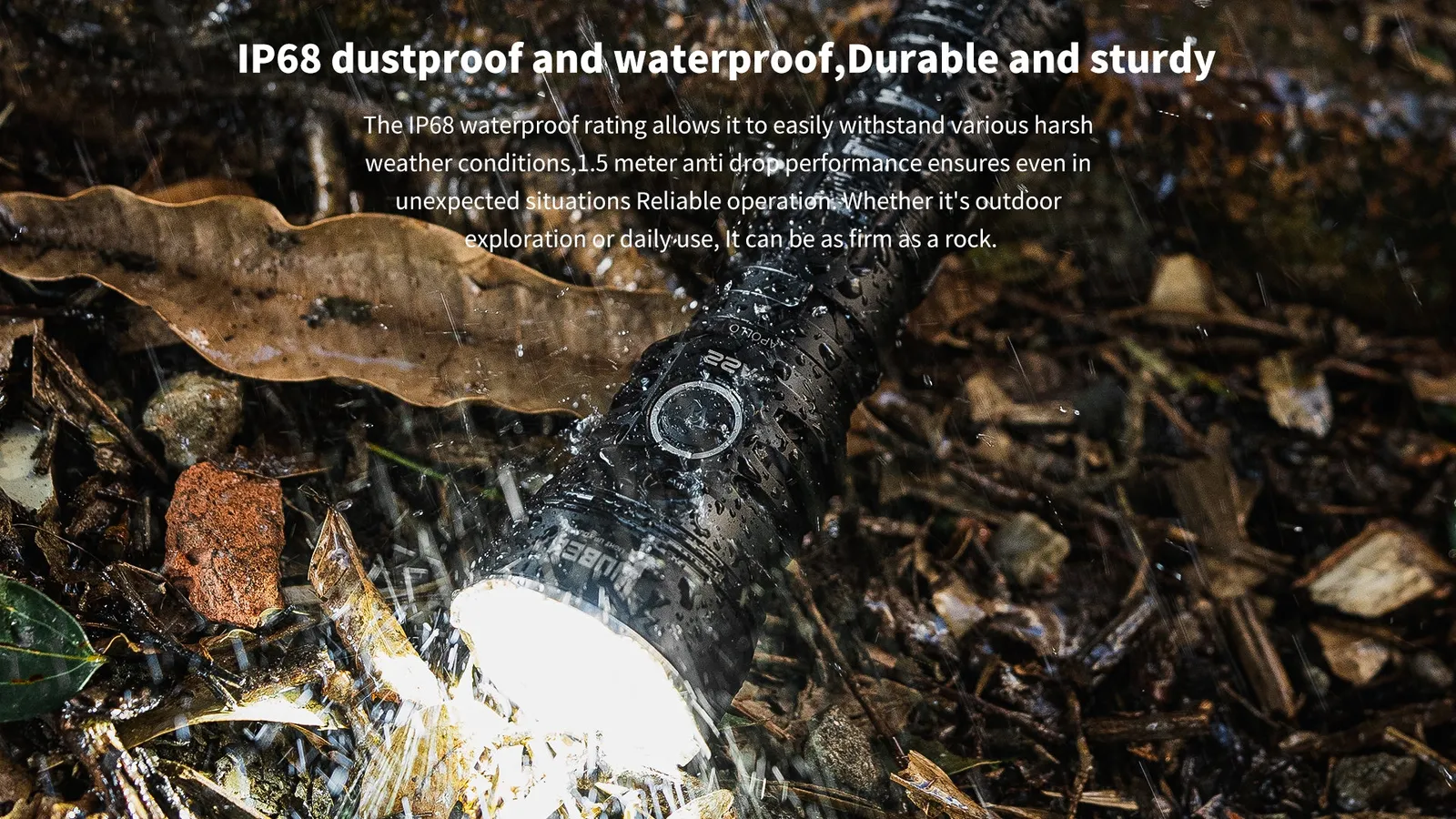

- IP68 Rated Durability: Offers excellent dustproof and waterproof performance, capable of withstanding storms and blizzards.

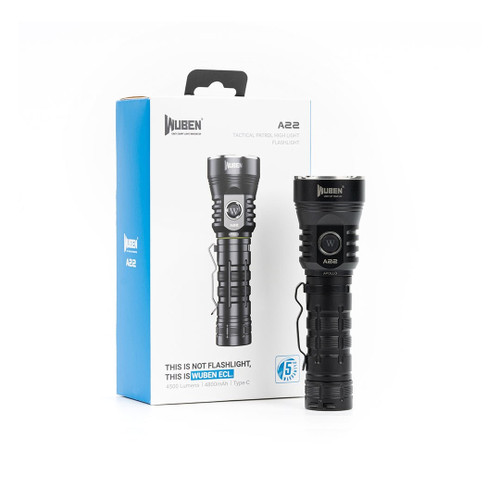

Package Includes
- 1 x Wuben A22

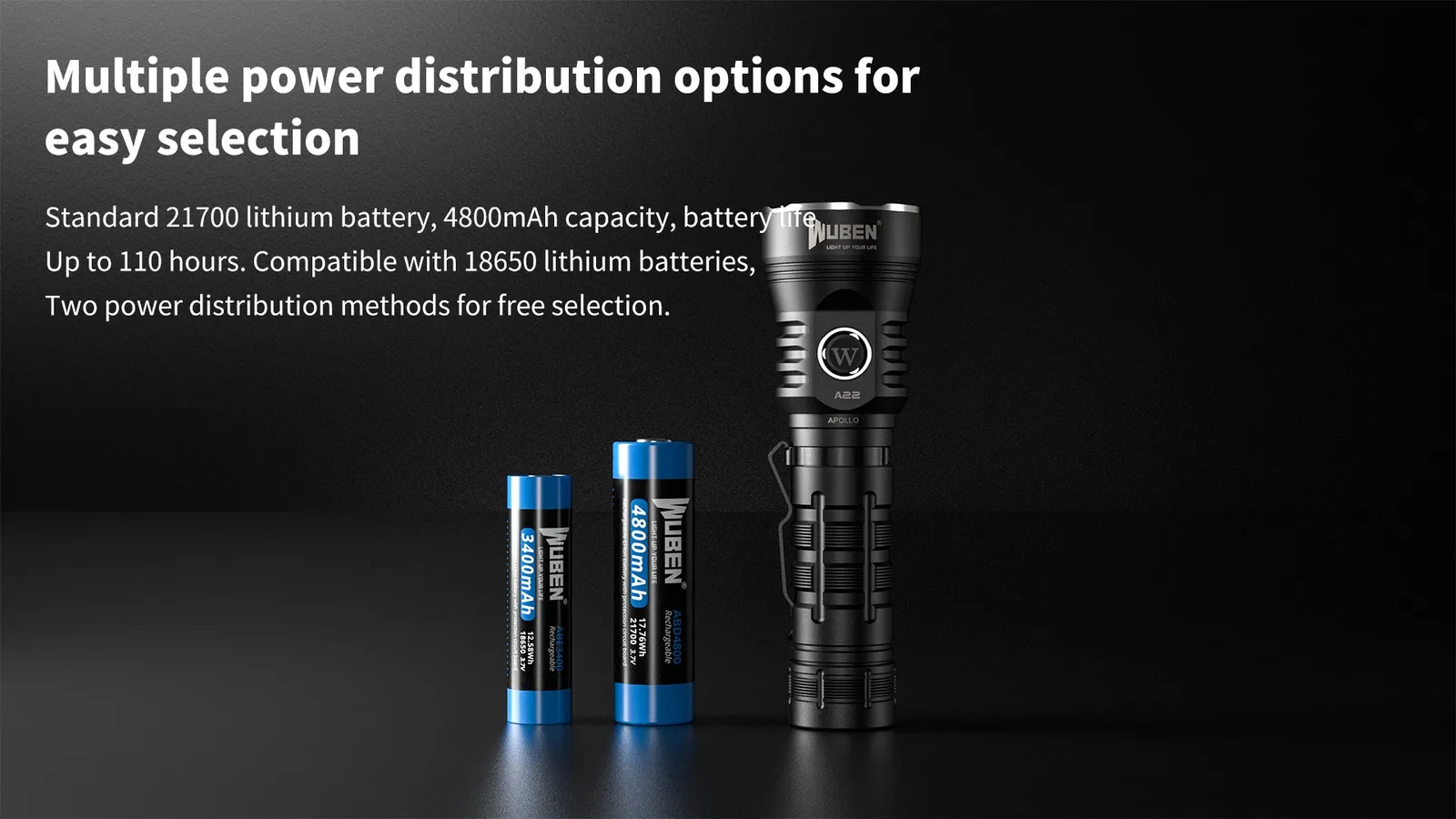

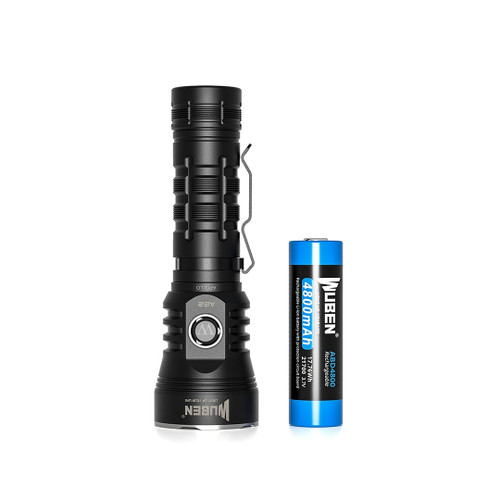

- 1 x Wuben ABD4800 4800mAh Rechargeable 21700 Lithium-ion Battery
- 1 x USB Charging Cable (USB-A to USB-C)
- 1 x Holster

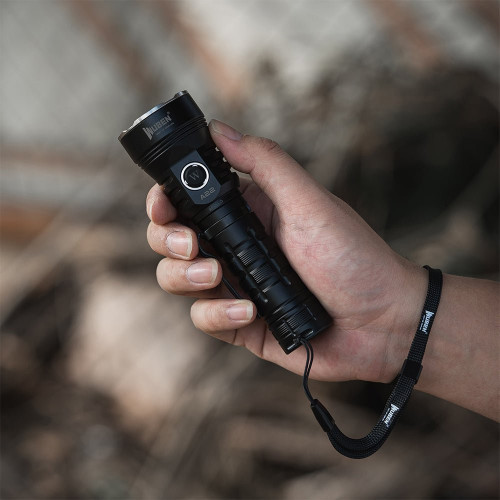

- 1 x Lanyard
- 1 x Spare O-ring
- 1 x User Manual
Key Information
| Feature |
Details |
| Primary Light Source |
1 x CREE XHP70.2 Cool White LED |
| Power Source |
1 x Wuben ABD4800 4800mAh Rechargeable 21700 Lithium-ion Battery |
| Recharging Method |

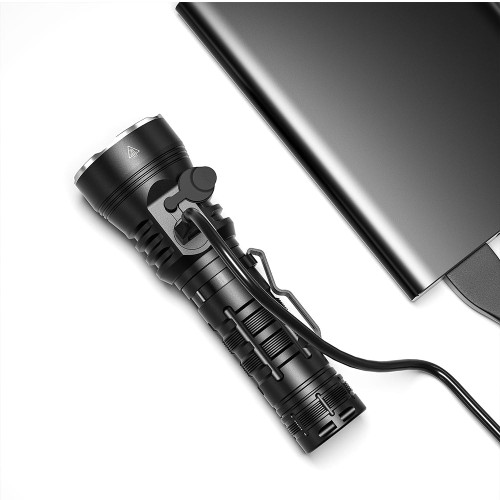

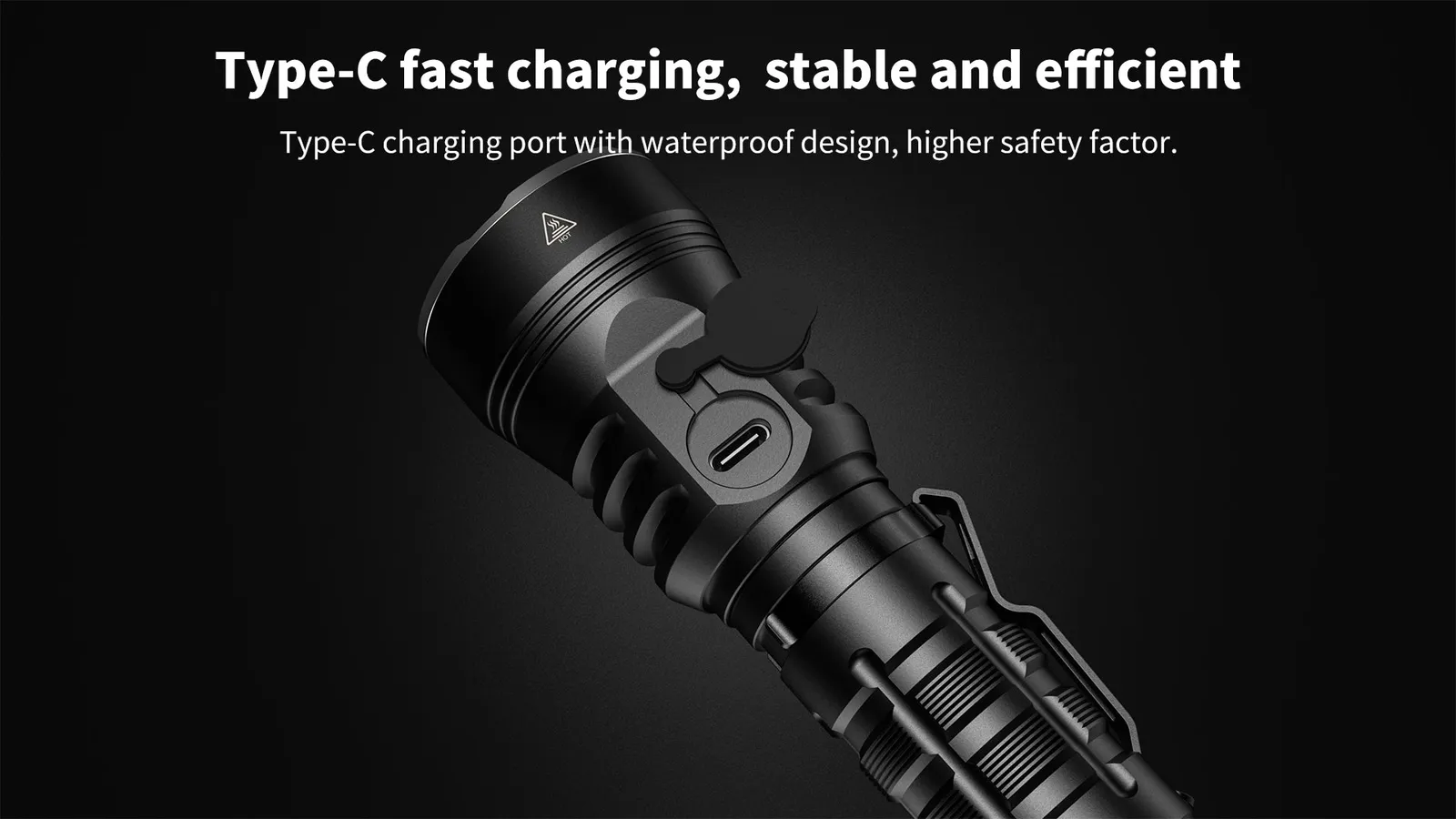

USB Type-C |
| Warranty (Torch) |
5 years |
| Warranty (Battery) |
1 year |
| Warranty (Accessories) |
1 year |
ANSI/PLATO FL1 Specifications
| Feature |
Measurement |
| Maximum Light Output |
4500 lumens |
| Maximum Runtime |
110 hours |
| Maximum Beam Distance |
290 metres |
| Peak Beam Intensity |
21000 candela |
| Impact Resistance |
1.5 metres |
| Ingress Protection Rating |
IP68 |
Dimensions
| Feature |
Measurement |
| Length |
135 mm |
| Head Diameter |
42 mm |
| Body Diameter |
27 mm |
| Weight |
218 g |
Additional Data
Manufacturer's Data

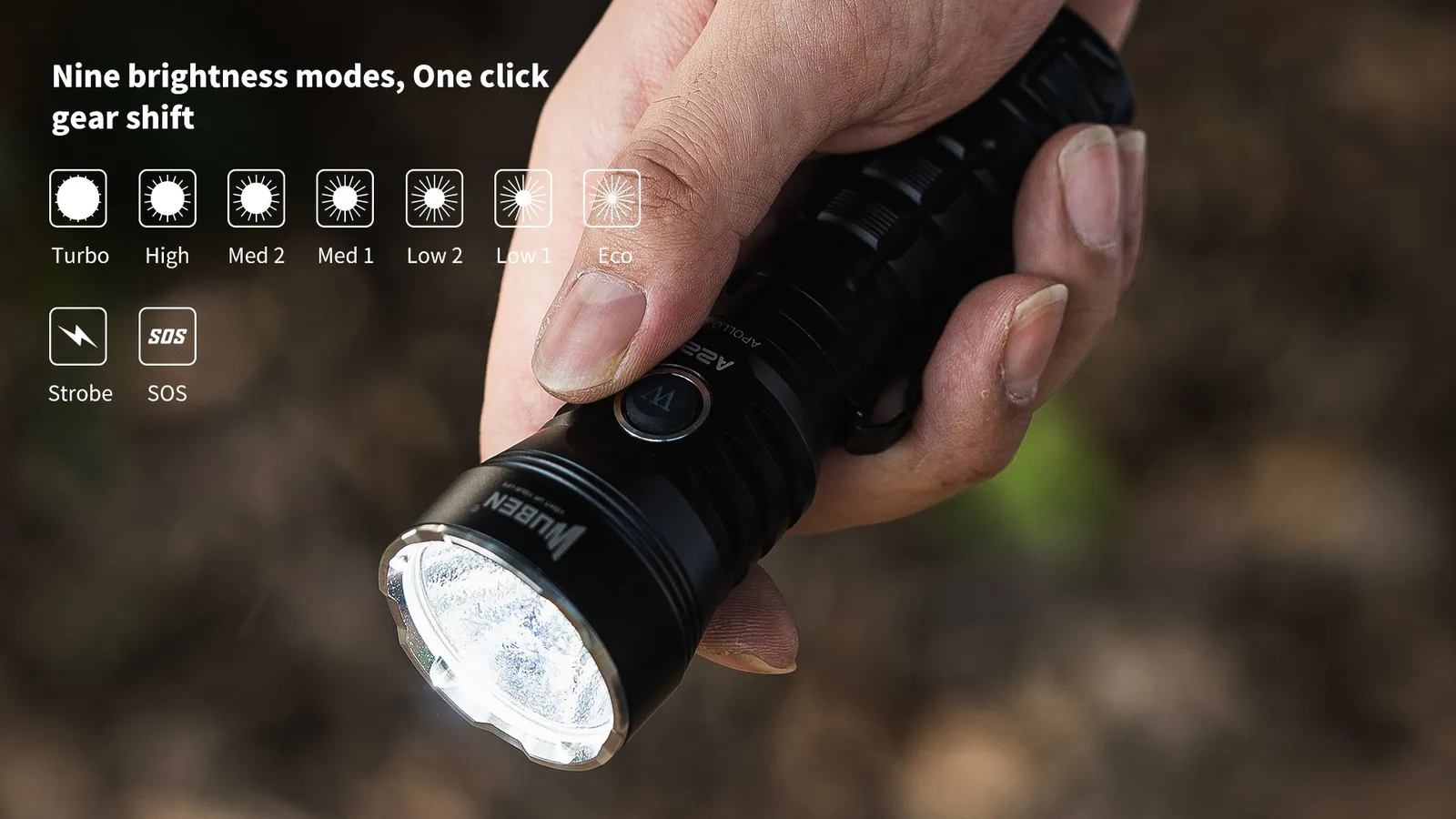

| ANSI FL1 Standard |
Turbo |
High |
Med 2 |
Med 1 |
Low 2 |
Low 1 |
Eco |
Strobe |
SOS |
| Max Output |
4500 lm ~ 1500 lm |
2000 lm ~ 800 lm |
1200 lm |
400 lm |
130 lm |
40 lm |
5 lm |
1200 lm |
400 lm |
| Max Runtime |
1min + 2.5h |
3min + 3h |
5h |
8.5h |
20h |
45h |
110h |
— |
— |
Note: All data is from experiments of WUBEN lab according to ANSI/NEMA FL1 standard, may vary because of different experiment equipment, experiment environment, or other factors. Experiments are based on WUBEN ABD4800 Li-ion battery.
Performance and Runtime Disclaimer
How to read the data: The outputs provided above are maximum outputs for each mode, and the runtimes provided are the time it takes to drop to 10% of the initial output. This is in line with the International Flashlight Testing Standard ANSI FL1.
Any visual representations (graphs) of the data are approximate only.
Read more
The actual output of the torch/headlamp is controlled by an in-built temperature regulation system. As the torch/headlamp heats up, the brightness will drop to prevent overheating. The Turbo modes of torches/headlamps usually drop down significantly after anything from 15 seconds to 2 minutes. High modes often also experience a drop down over time. Medium and Low modes, however, can be constant for very close to the length of time specified. As the torch/headlamp cools down, either from being turned off or from being used on a lower output level, you will be able to access higher brightness levels again.
Example: An output of 2000 lumens and runtime of 5 hours does not mean 2000 lumens for 5 hours — it means it starts at 2000 lumens and drops below 200 lumens after 5 hours of continuous use.
Turbo and high modes may be unavailable or limited as the battery gets low on charge.
Exact specifications can vary between torches, batteries, age and environments.
