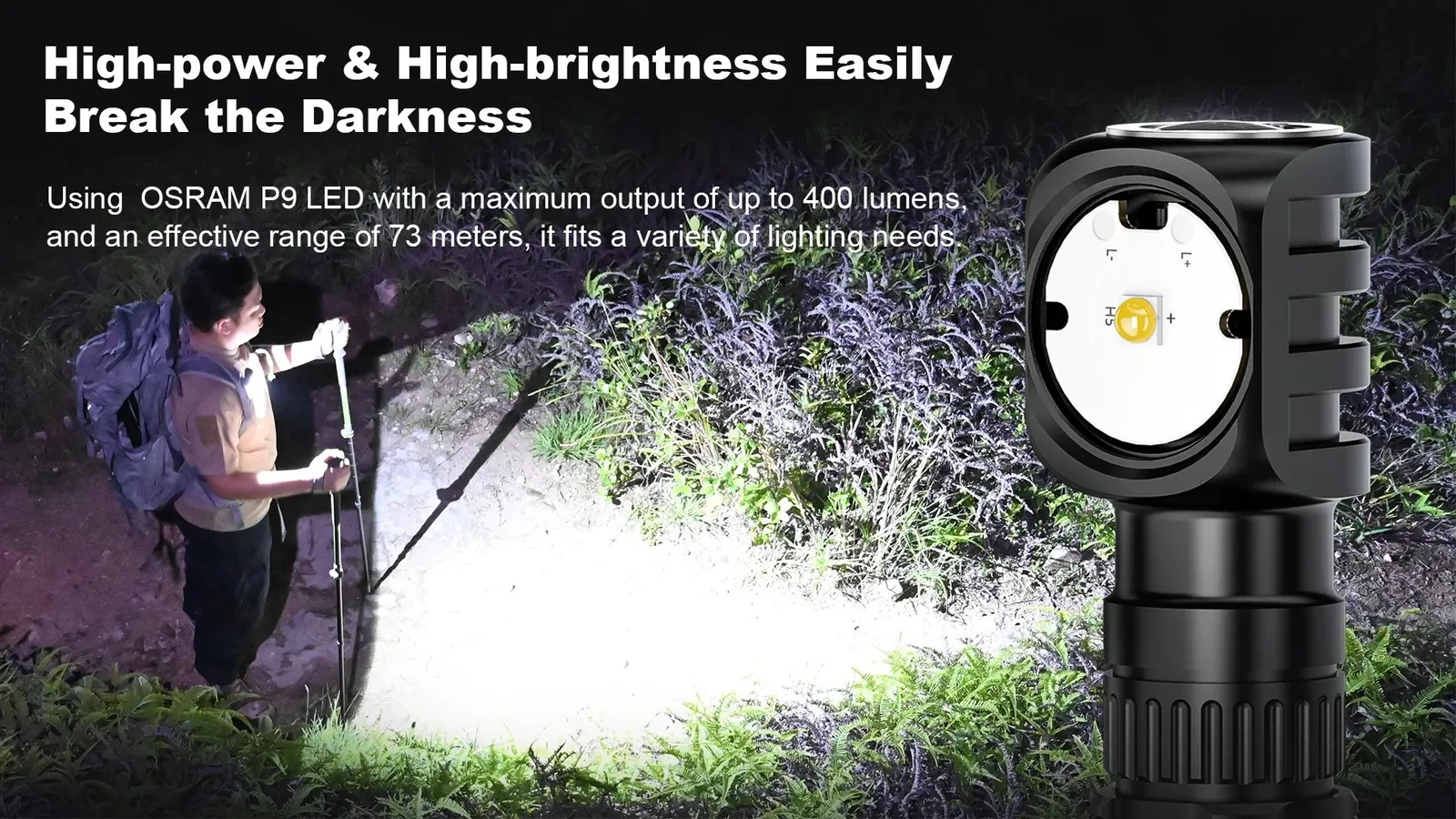

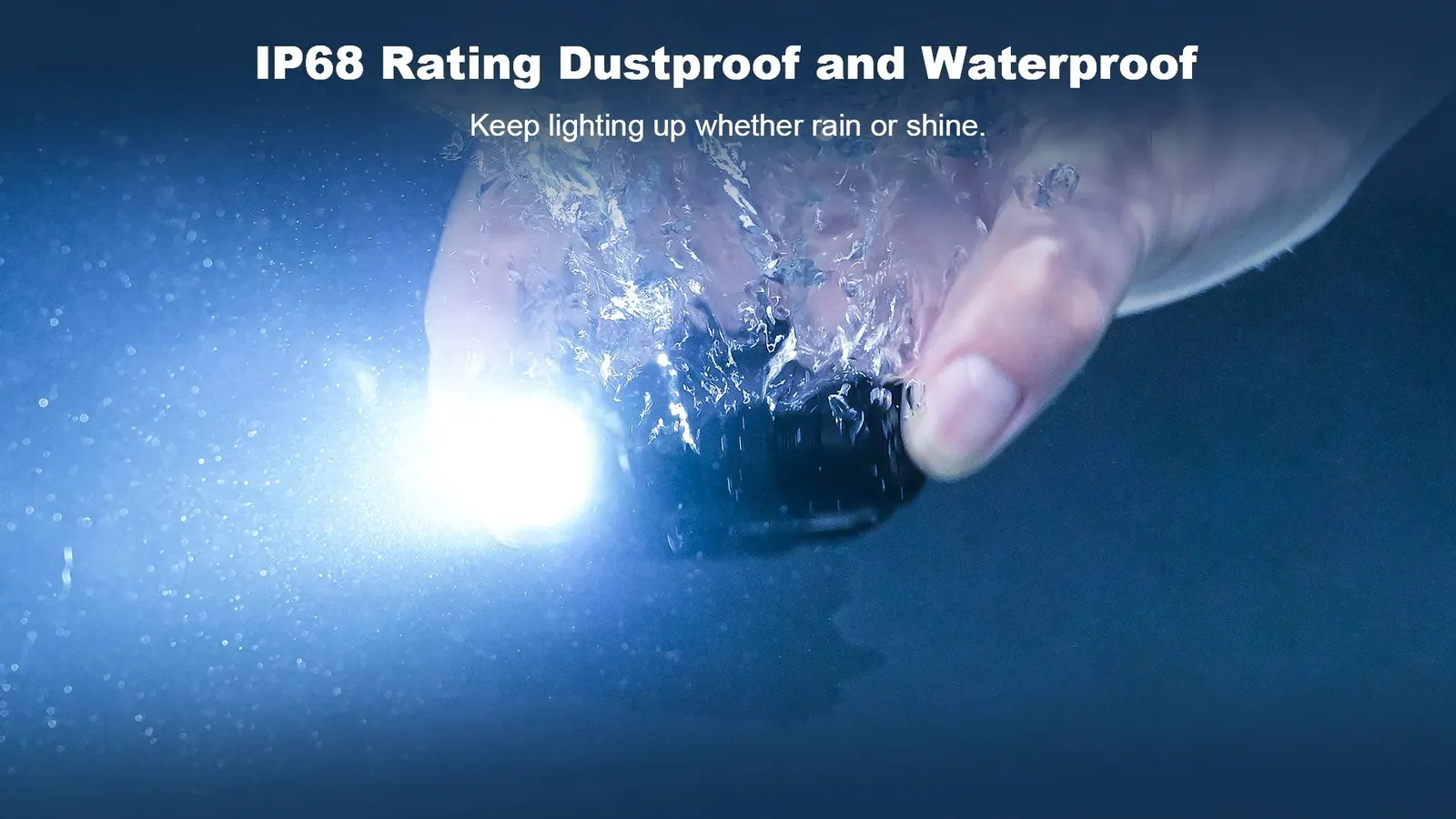

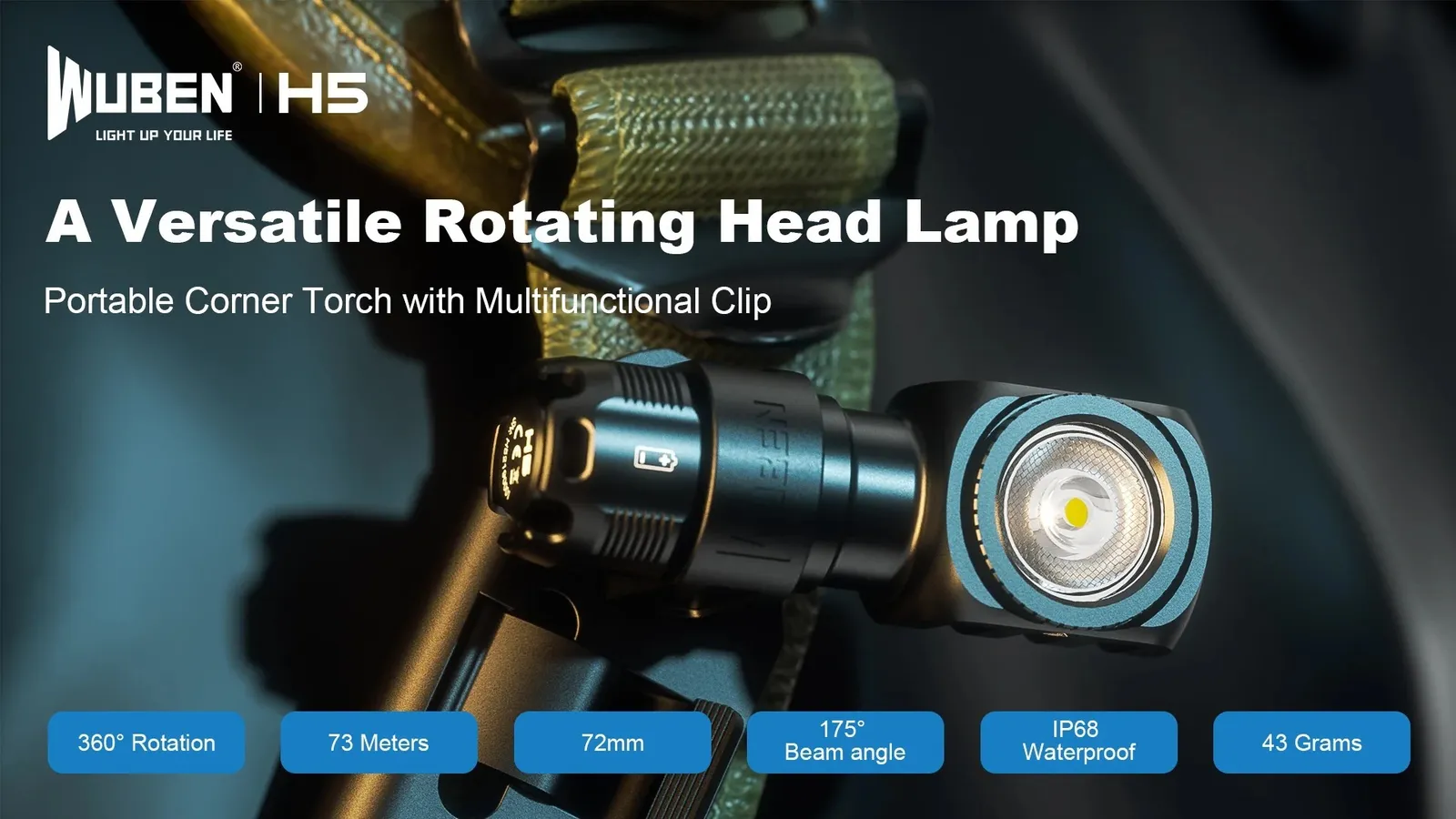

The Wuben H5 is a versatile headlamp designed for hiking, repairs, and daily tasks, delivering up to 400 lumens of light from its OSRAM P9 LED. Its innovative dual-axis rotating clamp allows for full 360° adjustment and 180° forward/backward tilt, ensuring flexible, no-dead-angle illumination. With a maximum beam distance of 73 metres and a peak beam intensity of 1338 cd, it also offers a wide 175° beam coverage. Powered by either a Wuben ABF920R rechargeable 14500 lithium-ion battery or a standard AA Ni-MH battery, it features convenient USB Type-C recharging and provides an ultra-long runtime of up to 120 hours. The H5 includes five practical lighting modes: High, Medium, Low, Moon, and SOS. Constructed from durable aluminium alloy, it has an IP68 ingress protection rating and 1.5 metres of impact resistance, complemented by a magnetic tail cap for hands-free use.
Features

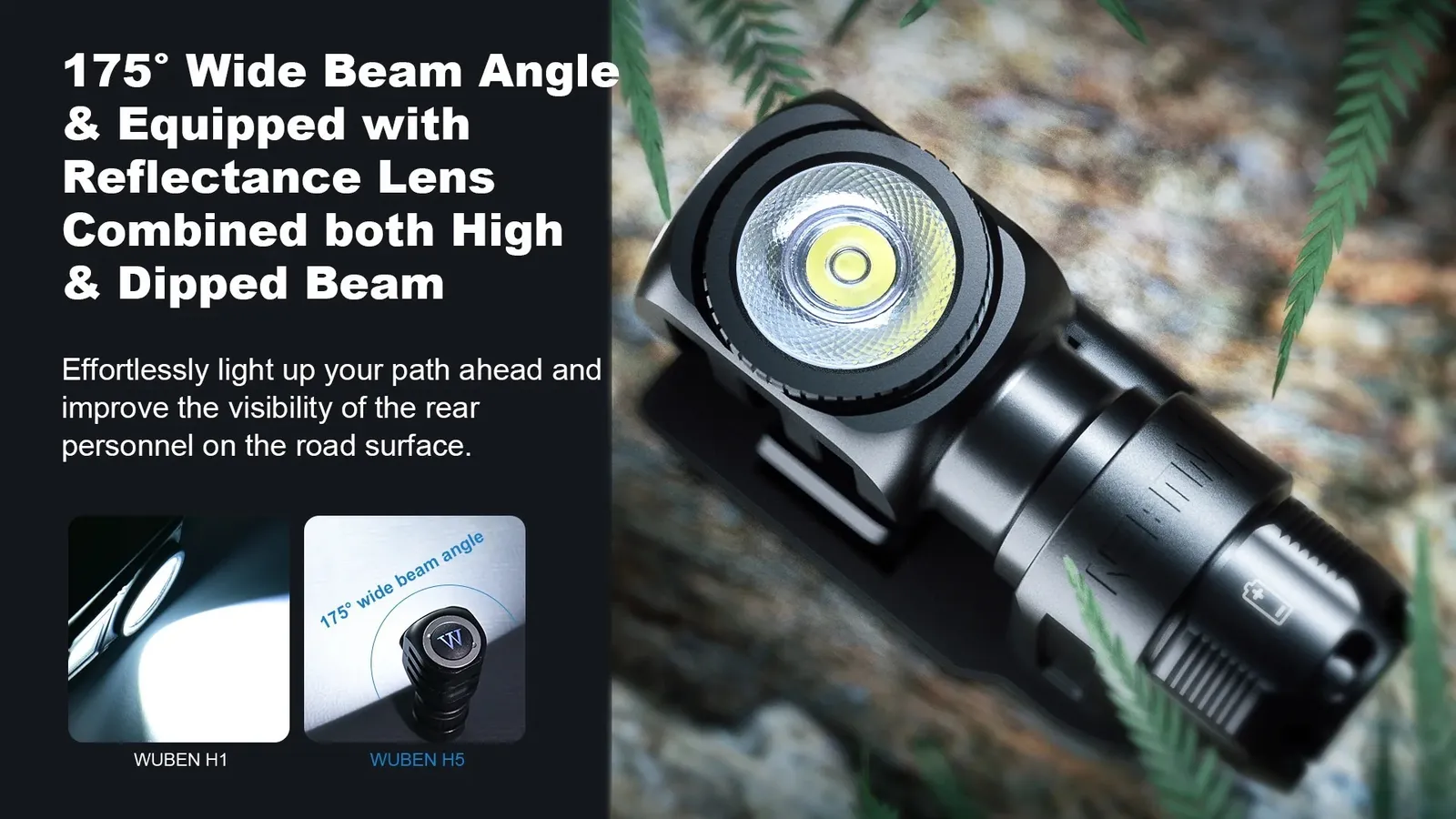

- 175° Wide Beam Coverage: With a reflectance lens and wide 175° beam angle, the H5 combines flood and spot lighting to illuminate both your path and surroundings effectively.

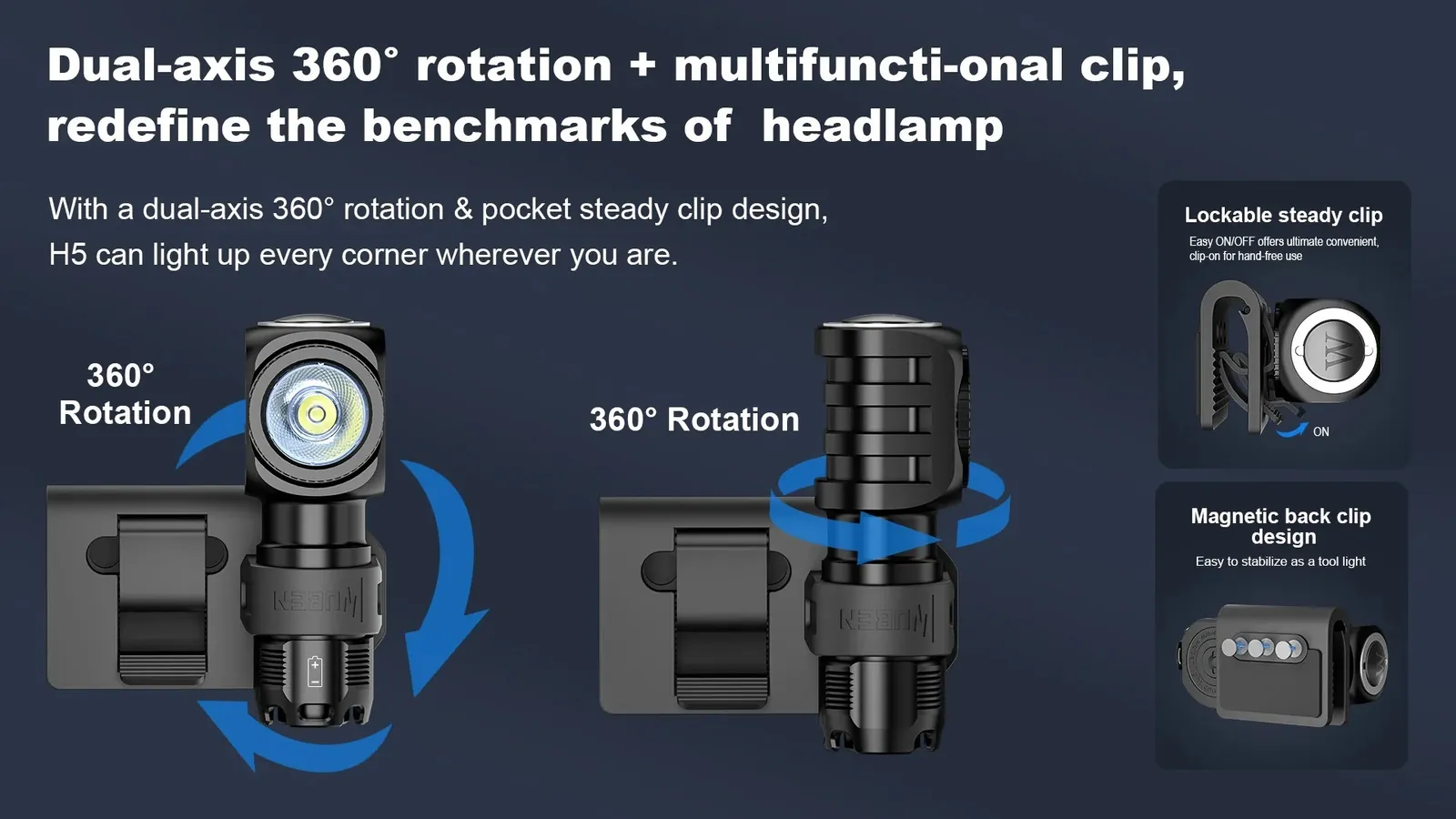

- Dual-Axis 360° Rotation: The innovative rotating clamp allows full 360° adjustment plus 180° forward/backward tilt, ensuring precise, no-dead-angle lighting in any situation.

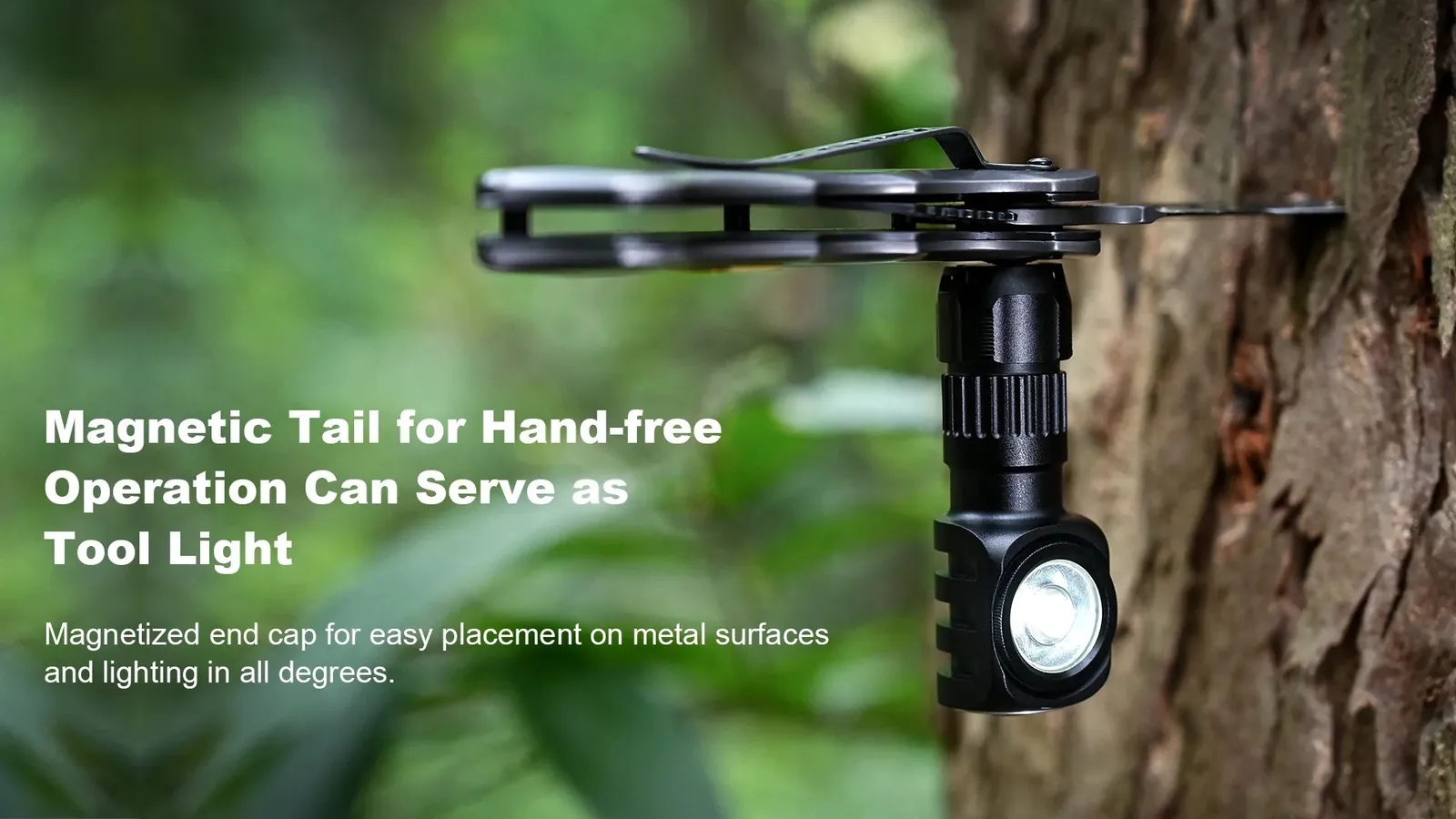

- Magnetic Tail for Hands-Free Use: The magnetic end cap lets you attach the light to metal surfaces, turning it into a convenient hands-free work light.
- 5 Practical Lighting Modes: Switch effortlessly between High, Medium, Low, Moon, and SOS modes for various situations.
- Ultra-Long Battery Life: The Wuben H5 features a USB-C rechargeable design that fully charges in just 3 hours and delivers up to 120 hours of runtime.
Package Includes
- 1 x Wuben H5
- 1 x Wuben ABF920R Rechargeable 14500 Lithium-ion Battery
- 1 x USB Charging Cable (USB-A to USB-C)

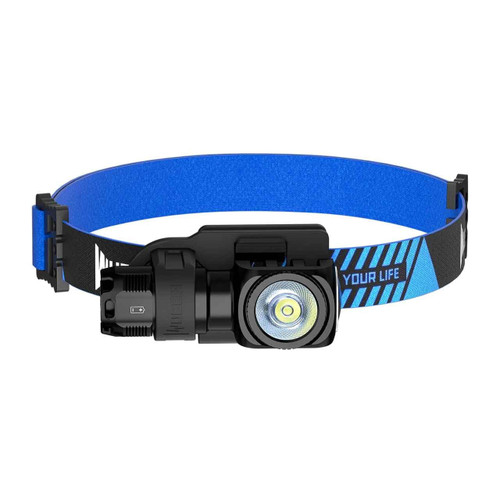

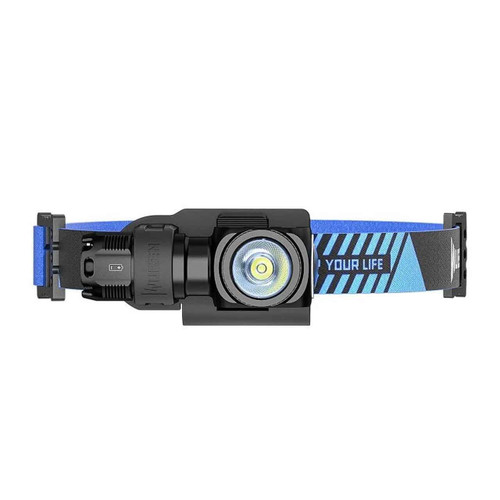

- 1 x Headlamp Strap
- 2 x Spare O-rings
- 1 x User Manual
Key Information
| Feature |
Details |
| Primary Light Source |
1 x OSRAM P9 LED |
| Power Sources |
1 x Wuben ABF920R Rechargeable 14500 Lithium-ion Battery or 1 x AA Ni-MH Battery |
| Recharging Method |
USB Type-C |

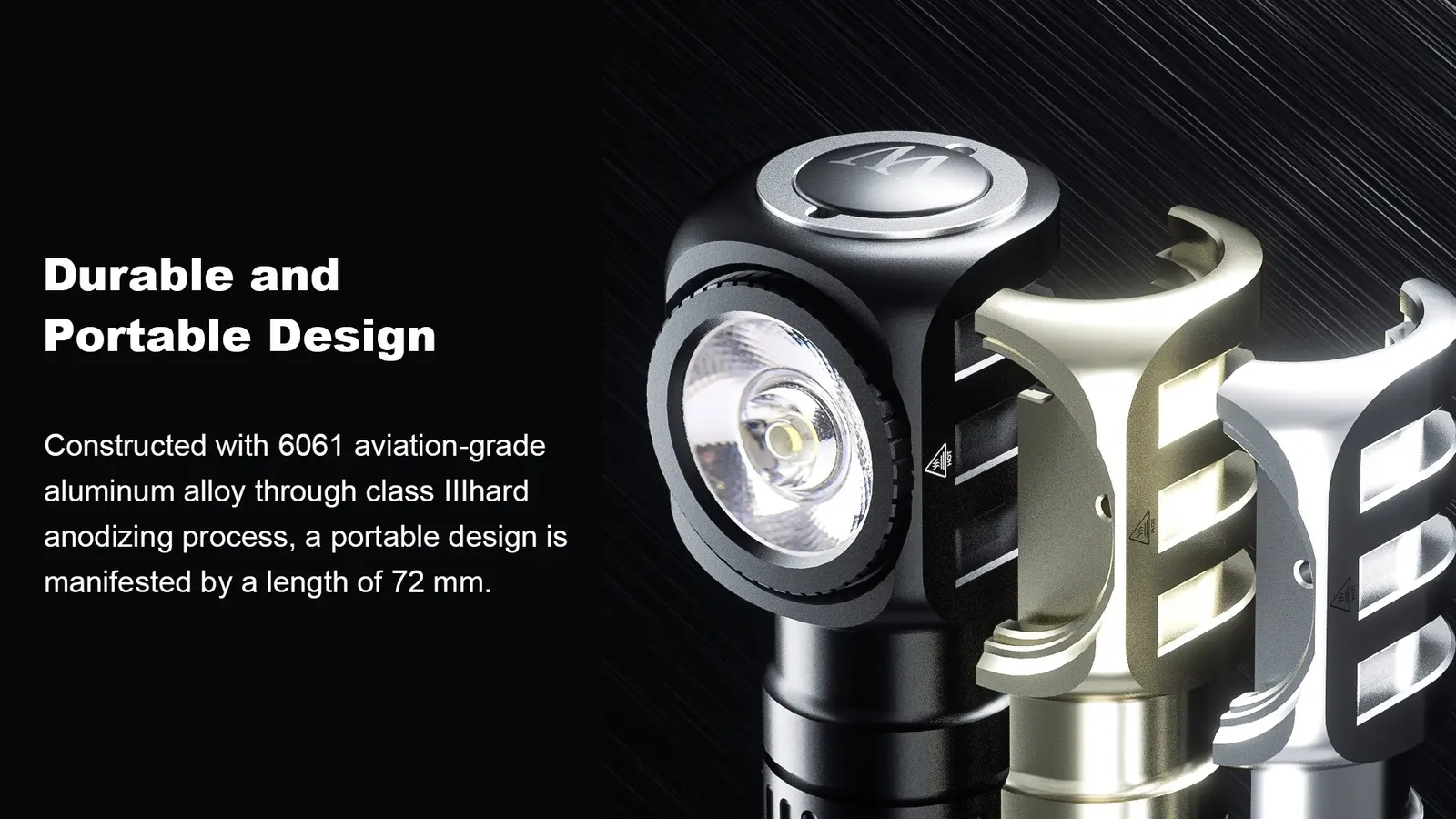

| Material |
Aluminium alloy |
| Warranty (Headlamp) |
5 years |
| Warranty (Battery) |
1 year |
| Warranty (Accessories) |
1 year |
ANSI/PLATO FL1 Specifications
| Feature |
1 x Wuben ABF920R Rechargeable 14500 Lithium-ion Battery |
1 x AA Ni-MH Battery |
| Maximum Light Output |
400 lumens |
250 lumens |
| Maximum Runtime |
120 hours |
80 hours |
| Maximum Beam Distance |
73 metres |
| Peak Beam Intensity |
1338 candela |
| Impact Resistance |
1.5 metres |
| Ingress Protection Rating |
IP68 |

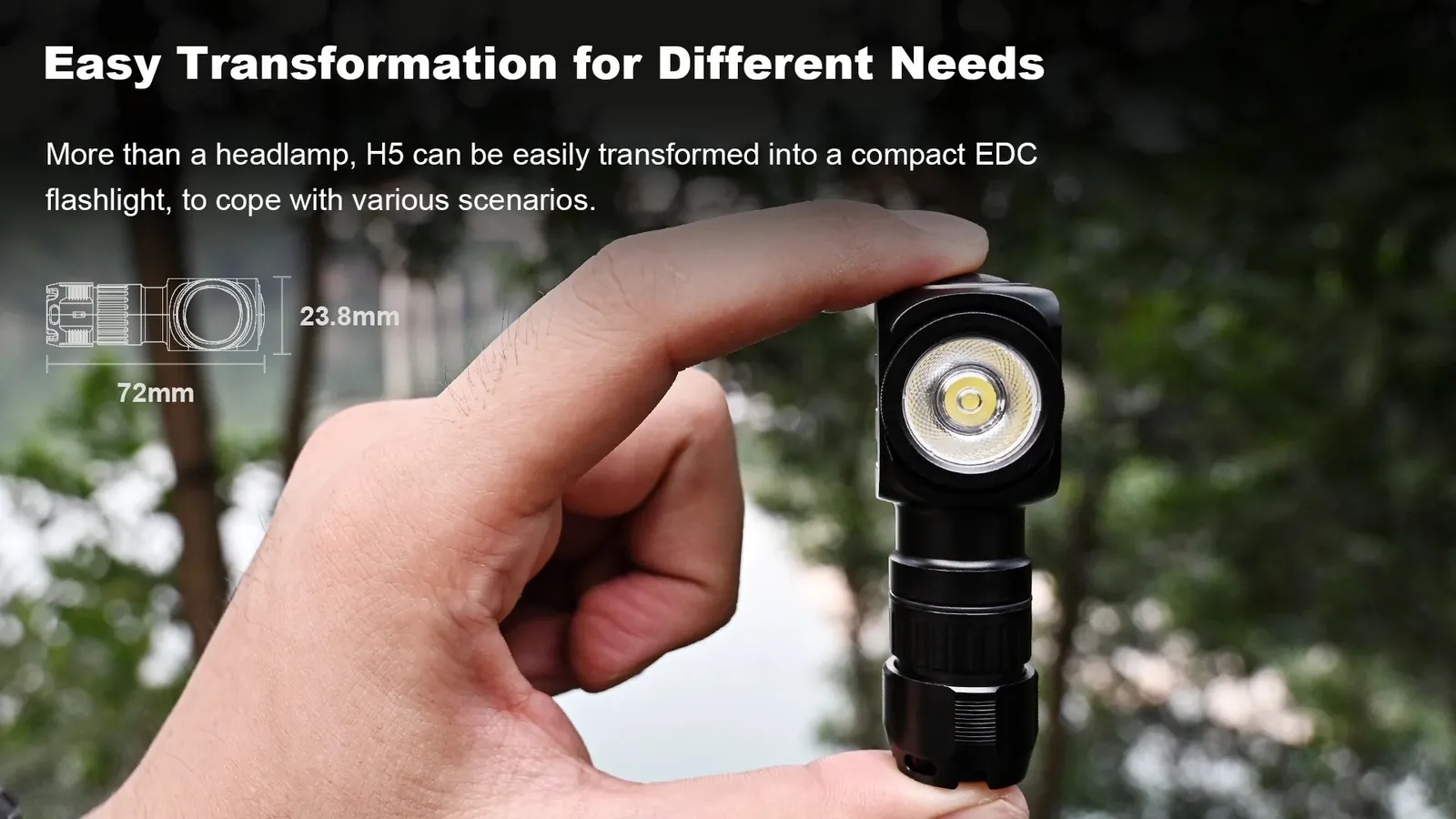

Dimensions
| Feature |
Measurement |
| Length |
72 mm |
| Head Diameter |
23.8 mm |
| Body Diameter |
22.8 mm |
| Weight |
63 g |
Additional Data
ABF920R Specs
| Wuben ABF920R Li-ion Battery |
High |
Med |
Low |
Moon |
SOS |
| Max Output |
400~250 lm |
150 lm |
50 lm |
1 lm |
150 lm |
| Max Runtime |
10 min + 1.5 h |
3 h |
7 h |
120 h |
— |
| Max Beam Distance |
73 m |
| Weight |
43g / 1.51oz (without battery), 63g / 2.23oz (with battery) |
| Dimensions |
72 mm × 22.8 mm × 23.8 mm, 3.43in × 1.18 in × 0.94 in |
All data from experiments of WUBEN lab according to ANSI/NEMA Fl1 standard, may vary because of different experiment equipment, experiment environment, or other batteries. Experiments are based on WUBEN ABF920 or Eneloop Pro Ni-MH battery of 2450mAh.
Performance and Runtime Disclaimer
How to read the data: The outputs provided above are maximum outputs for each mode, and the runtimes provided are the time it takes to drop to 10% of the initial output. This is in line with the International Flashlight Testing Standard ANSI FL1.
Any visual representations (graphs) of the data are approximate only.
Read more
The actual output of the torch/headlamp is controlled by an in-built temperature regulation system. As the torch/headlamp heats up, the brightness will drop to prevent overheating. The Turbo modes of torches/headlamps usually drop down significantly after anything from 15 seconds to 2 minutes. High modes often also experience a drop down over time. Medium and Low modes, however, can be constant for very close to the length of time specified. As the torch/headlamp cools down, either from being turned off or from being used on a lower output level, you will be able to access higher brightness levels again.
Example: An output of 2000 lumens and runtime of 5 hours does not mean 2000 lumens for 5 hours — it means it starts at 2000 lumens and drops below 200 lumens after 5 hours of continuous use.
Turbo and high modes may be unavailable or limited as the battery gets low on charge.
Exact specifications can vary between torches, batteries, age and environments.
