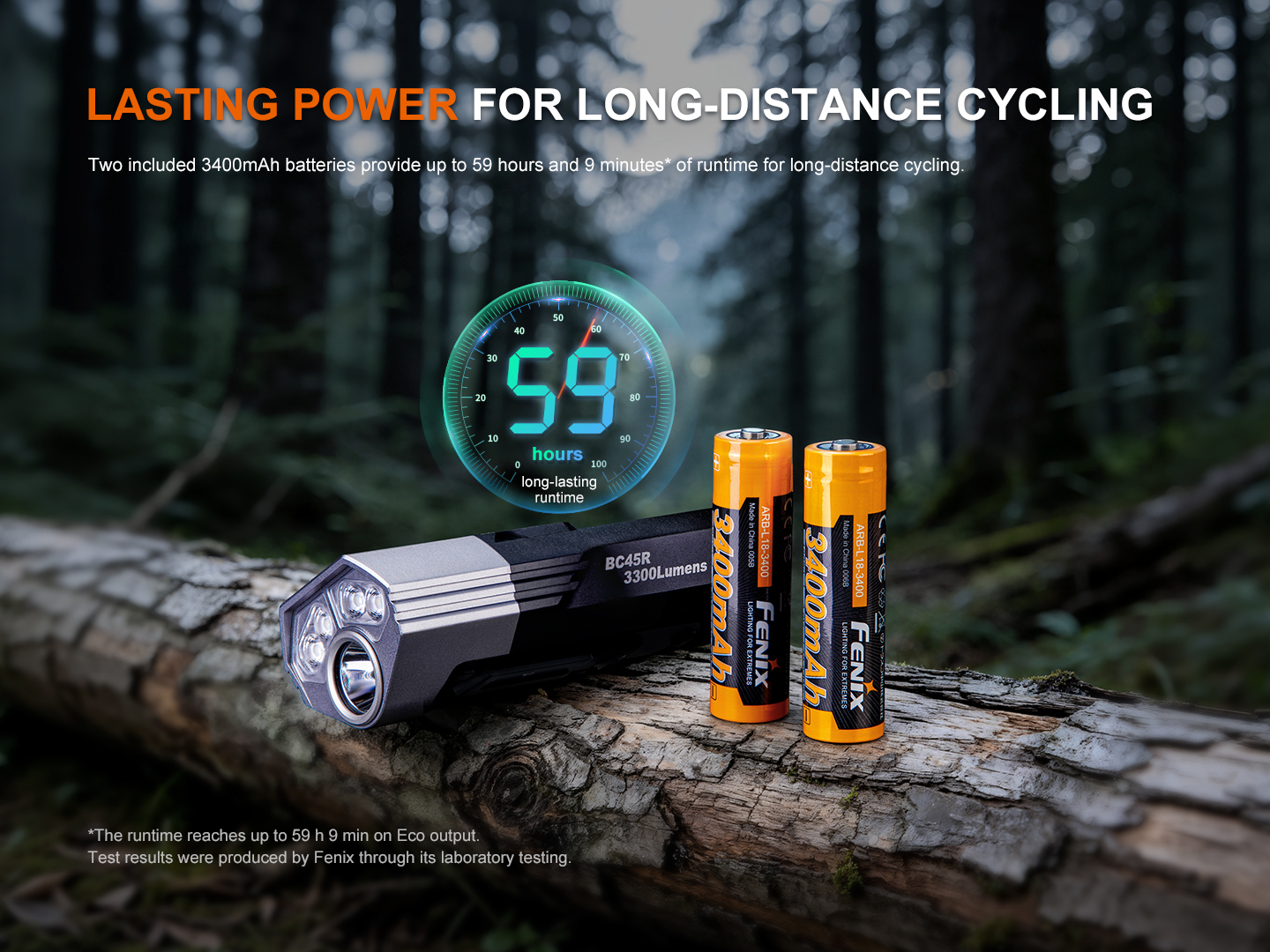

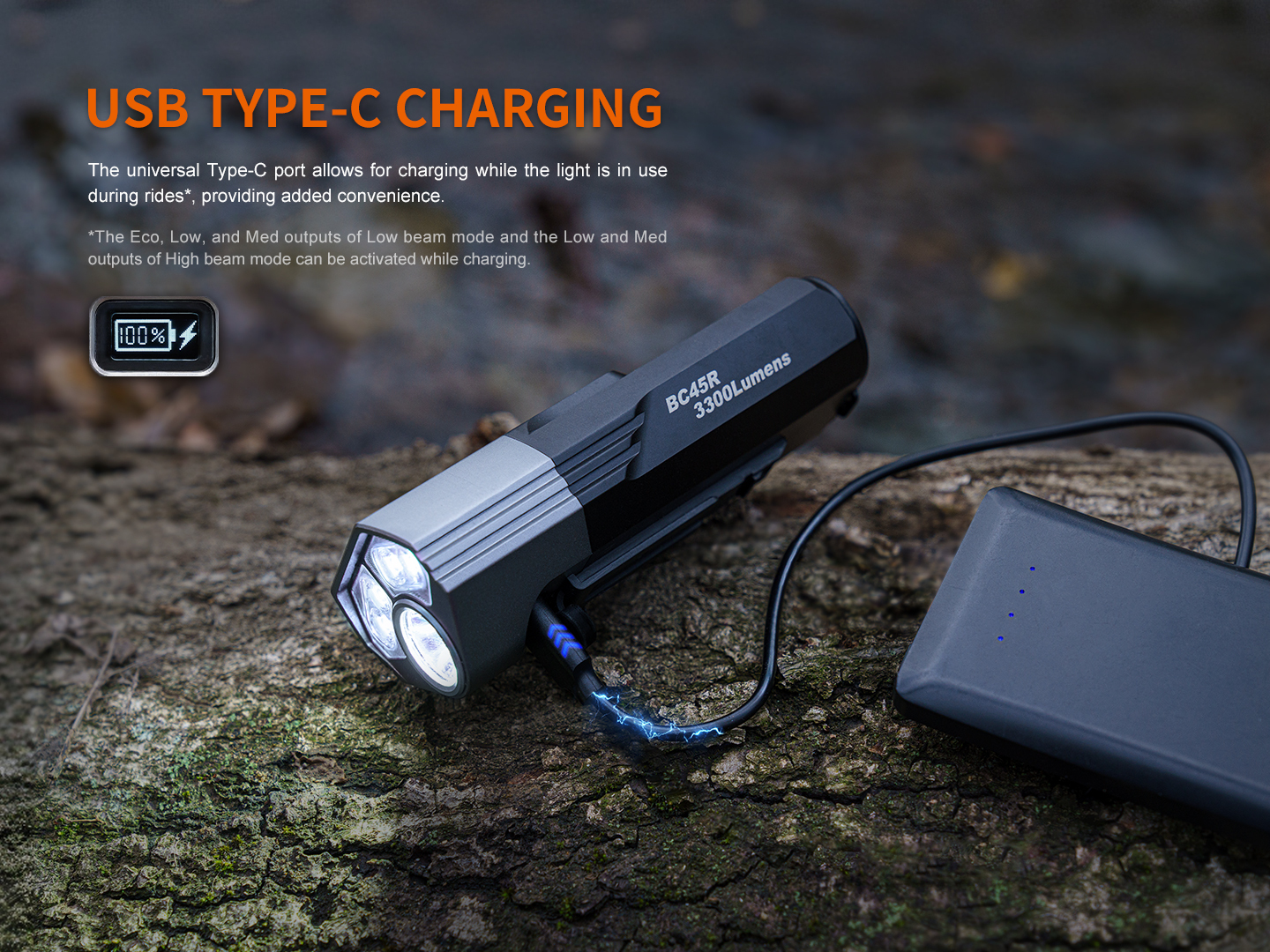

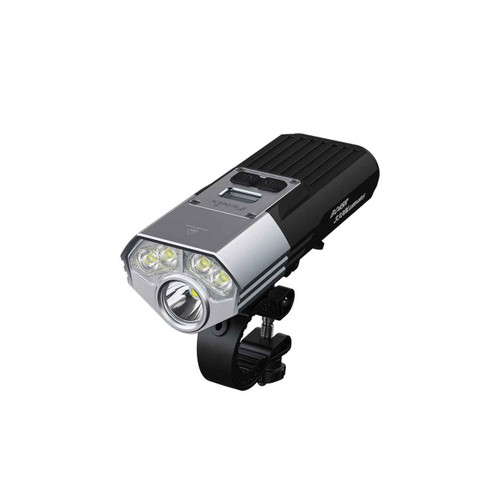

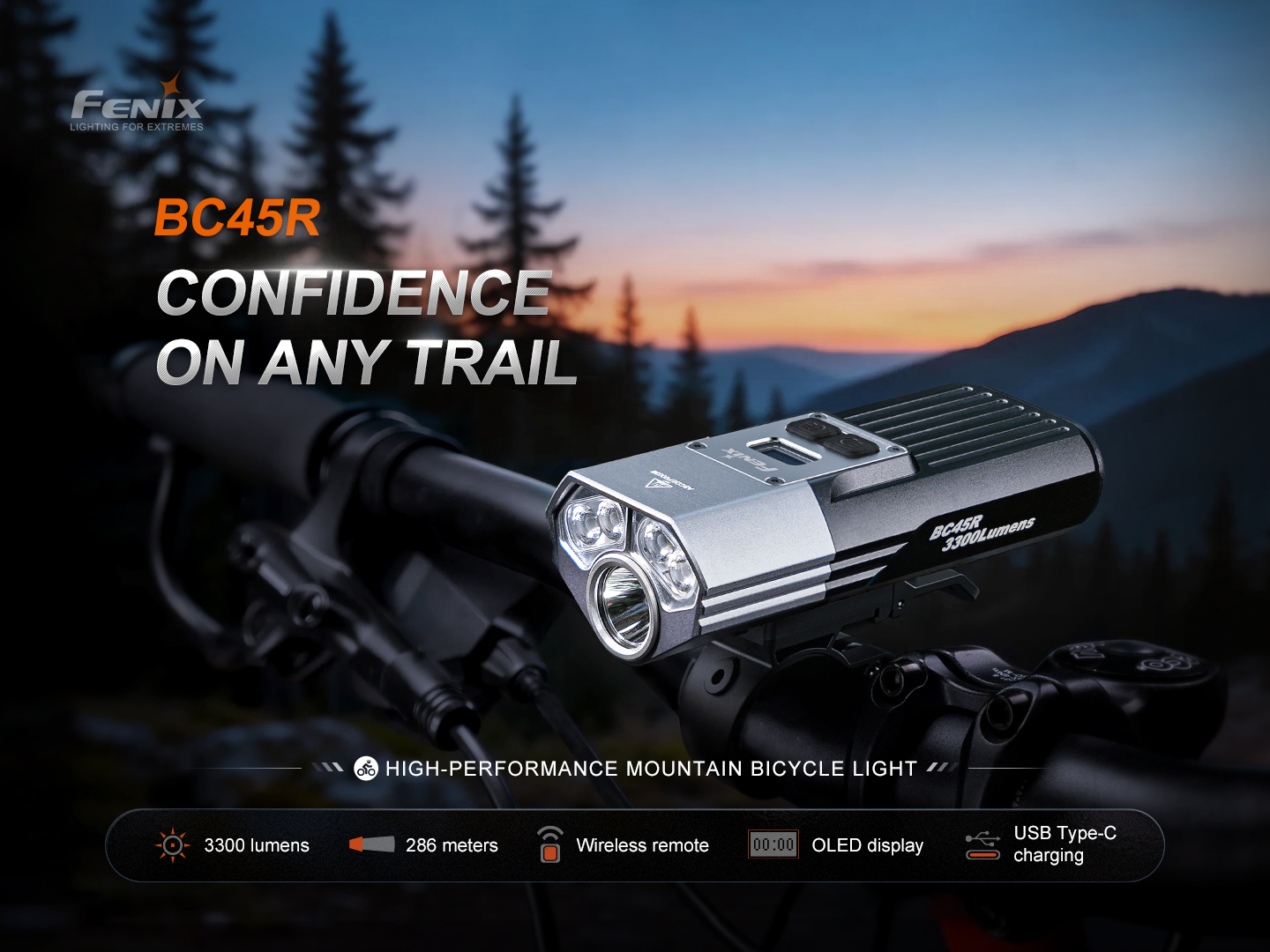

The Fenix BC45R is a bike torch that delivers a maximum light output of 3300 lumens and a beam distance of 286 metres. It features an independent spotlight and floodlight system, allowing for customisable beam patterns. Powered by two replaceable, rechargeable Fenix 3400mAh 18650 lithium-ion batteries, it offers a maximum runtime of 59 hours, with convenient recharging via an inner waterproof USB Type C port. An OLED display provides real-time data, while a wireless remote switch allows for seamless control, including access to nine lighting modes. The light sources include one Luminus SFT-40 Cool White LED for the spotlight and four Luminus SST12 Cool White LEDs for the floodlight.
Features
- High Lumen Output: The light delivers a maximum output of 3300 lumens and a beam distance of 286 meters.

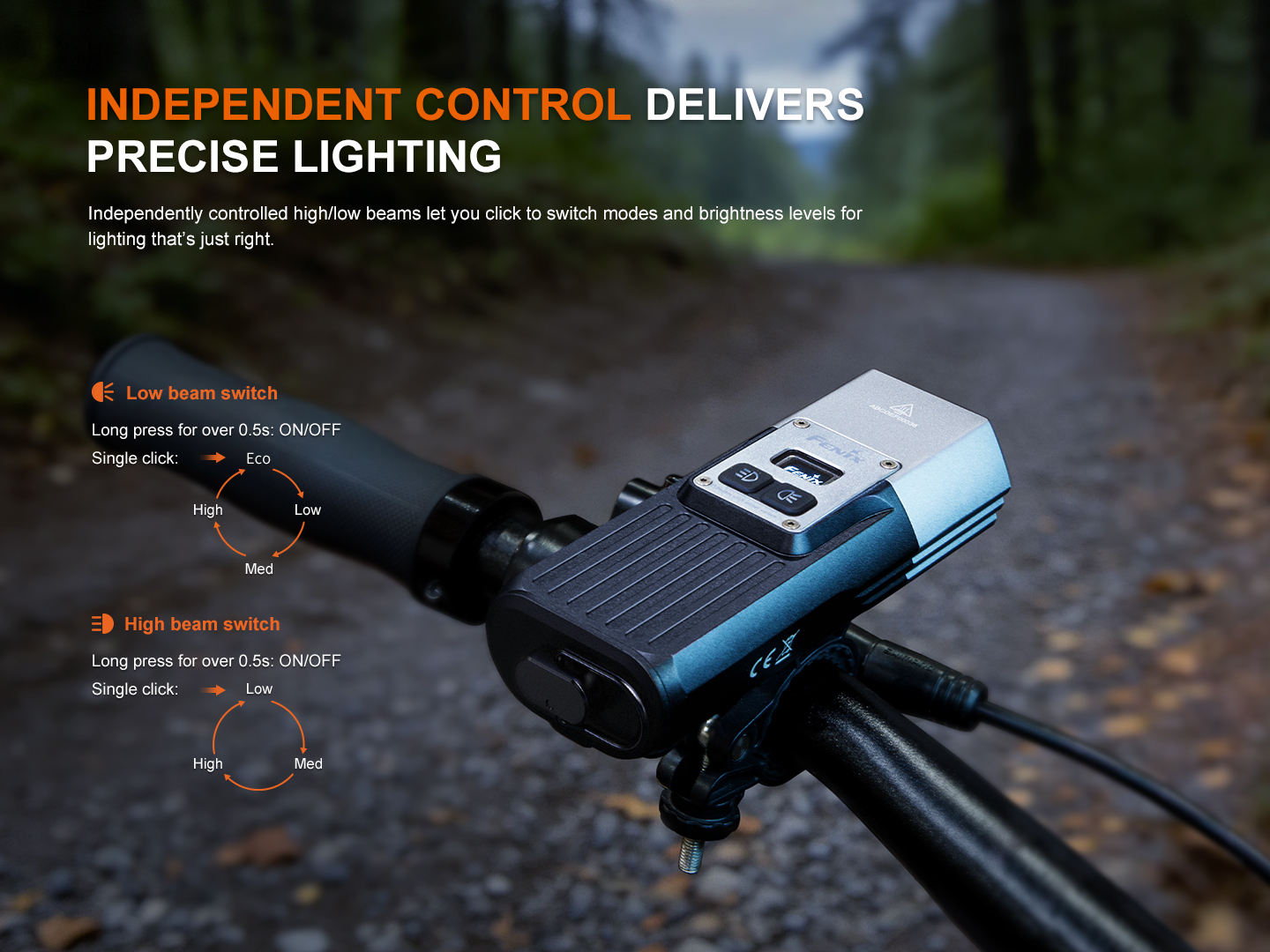

- Dual Lighting Systems: Features an independent spotlight and floodlight, allowing for customisable beam patterns.

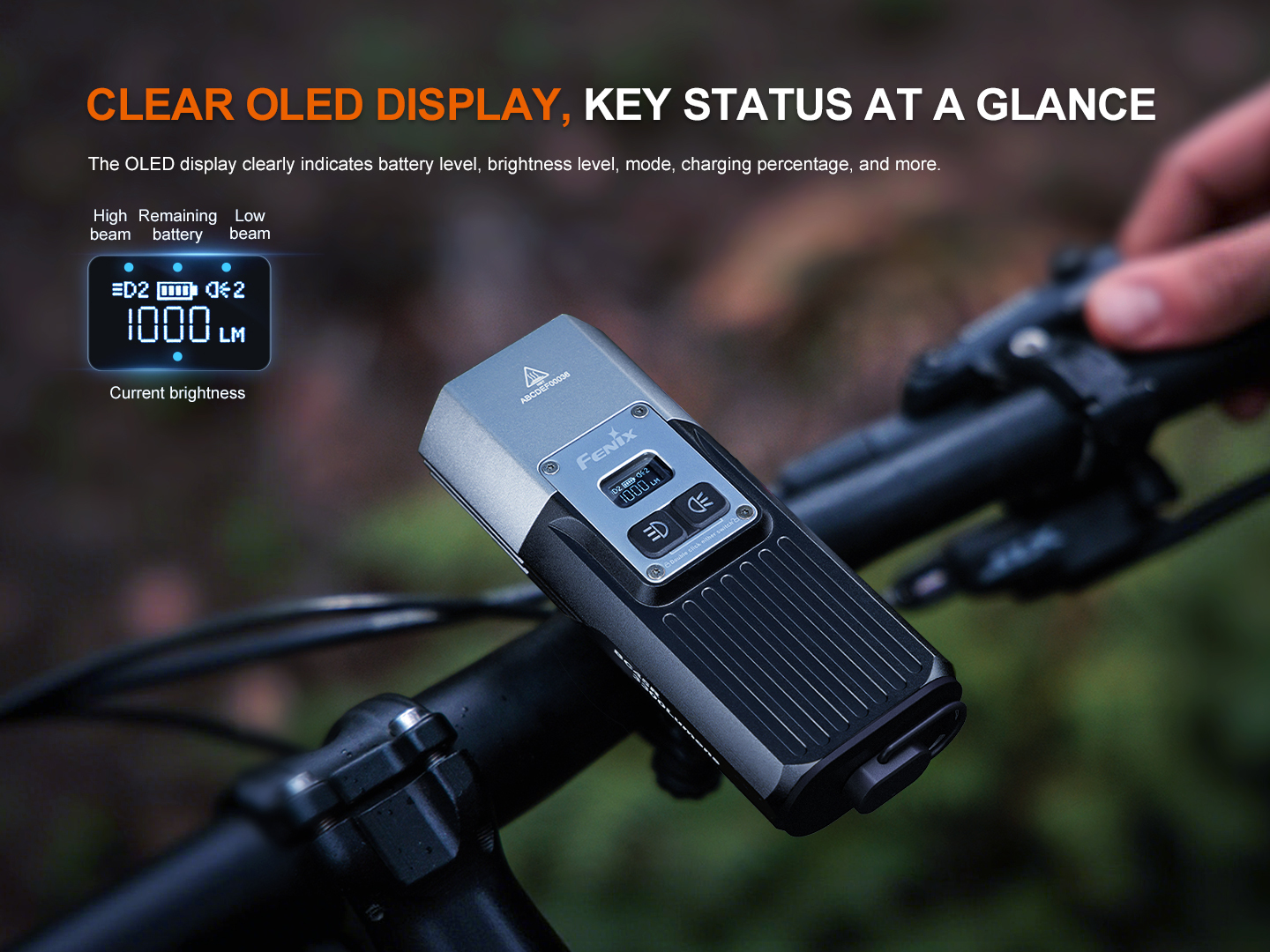

- OLED Display: An OLED display provides real-time information on battery life, active light sources, and current lumen output.

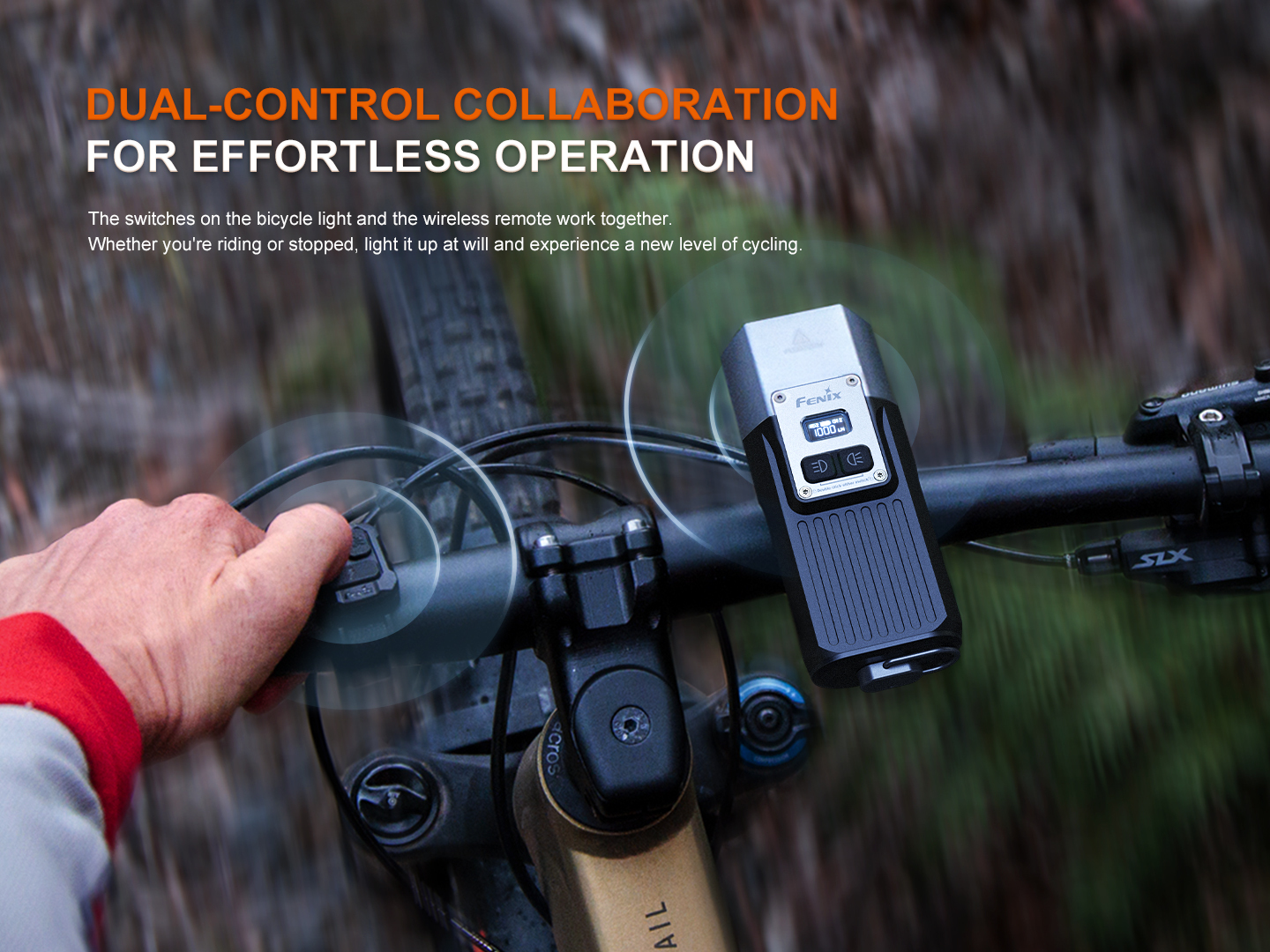

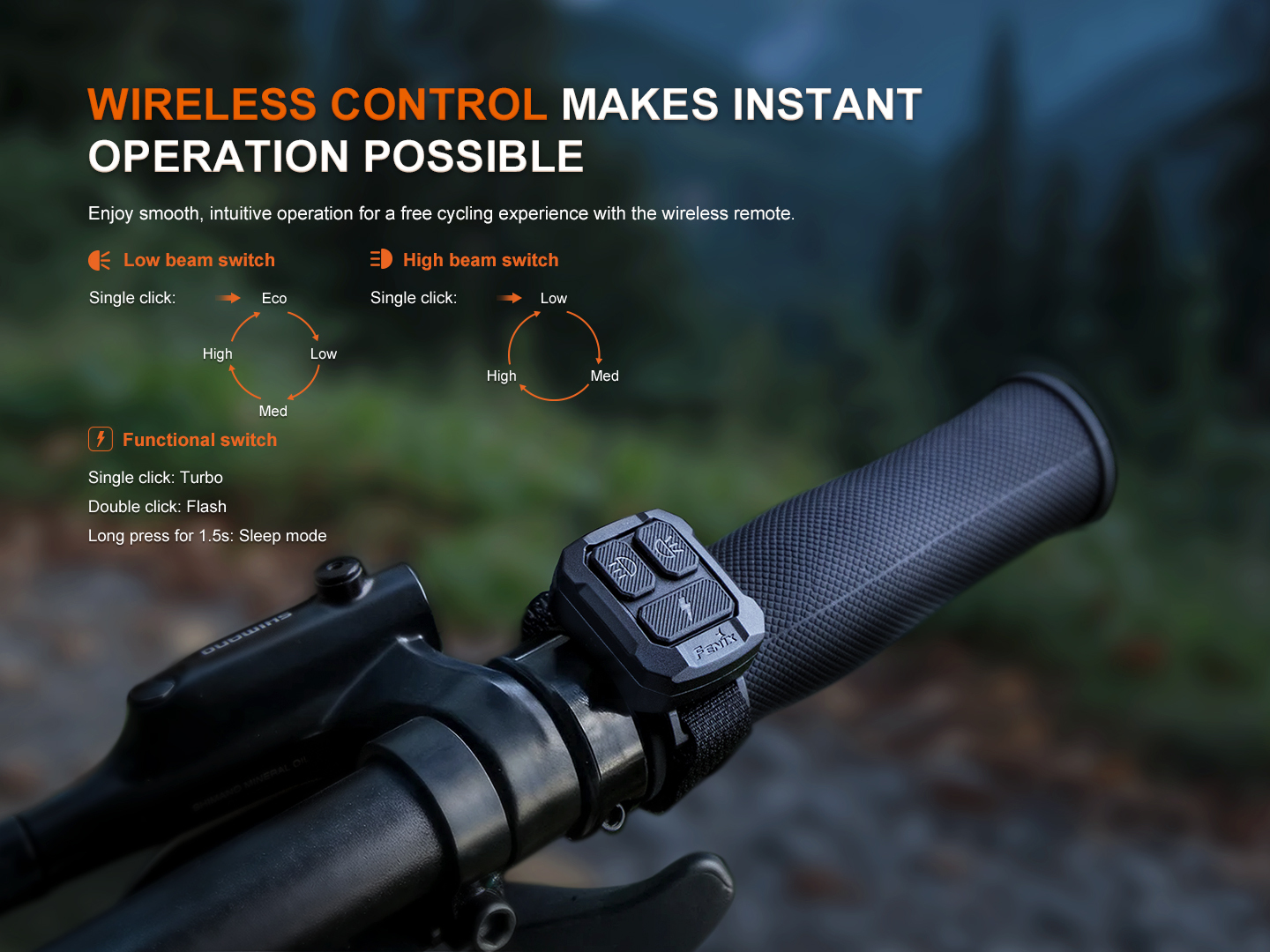

- Wireless Remote Control: Includes a wireless remote switch for convenient access to Instant Turbo and Flash modes during rides.

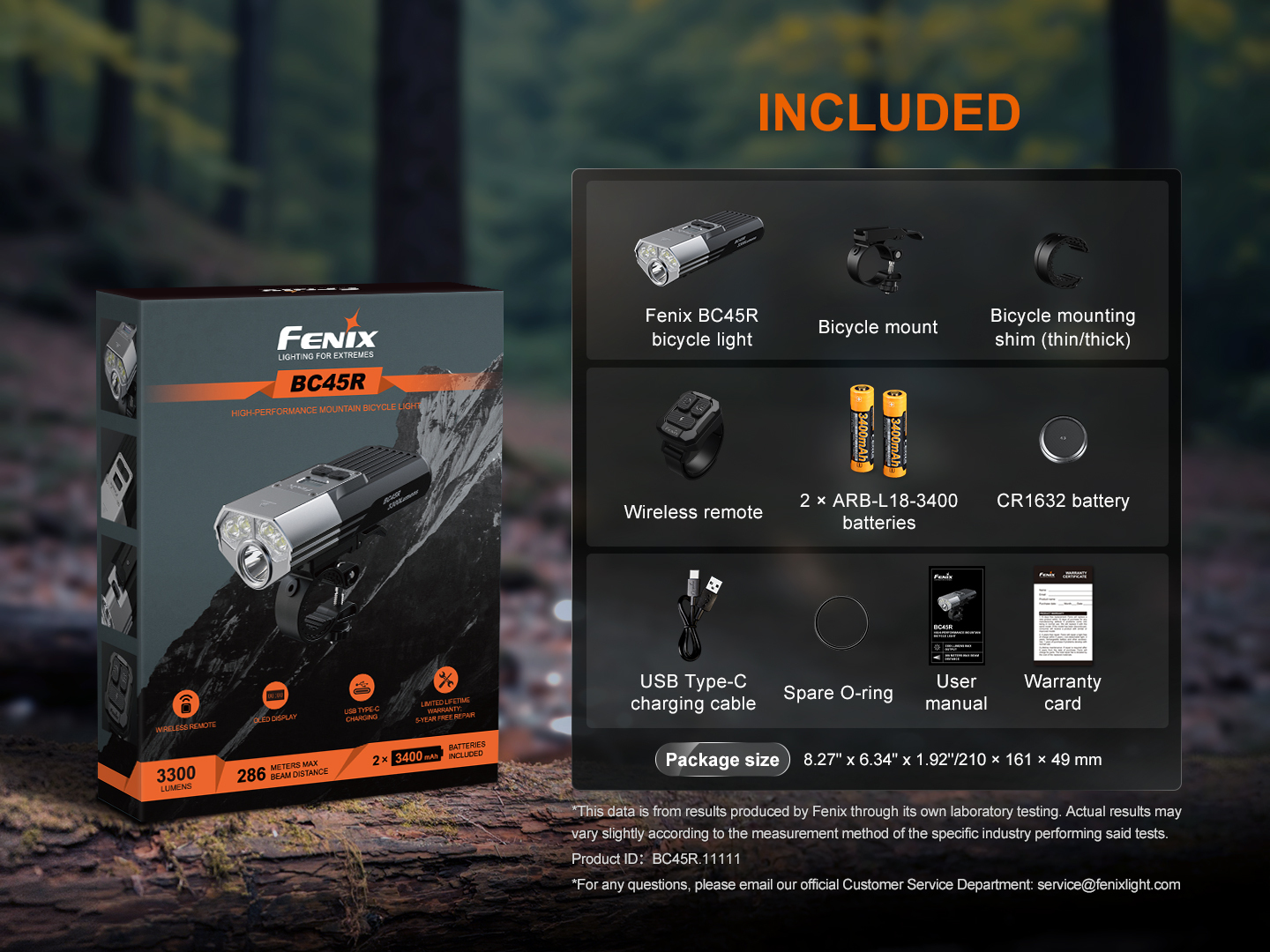

Package Includes
- 1 x Fenix BC45R Bike Light
- 2 x Fenix ARB-L18-3400 Rechargeable 18650 Lithium-ion Batteries
- 1 x CR1632 Battery
- 1 x USB Charging Cable (USB-A to USB-C)
- 1 x Wireless Remote
- 1 x Bicycle Mount
- 1 x Bicycle Mounting Shim
- 1 x Spare O-ring
- 1 x User Manual
Key Information
| Feature |
Details |
| Primary Light Sources |
Floodlight: 4 x Luminus SST12 Cool White LEDs
Spotlight: 1 x Luminus SFT-40 Cool White LED |
| Power Source |
2 x Fenix 3400mAh Replaceable Rechargeable 18650 Lithium-ion Batteries |
| Recharging Method |
USB Type C |
| Material |
Aluminium alloy |
| Warranty (Torch) |
5 years |
| Warranty (Batteries) |
1 year |
| Warranty (Accessories) |
1 year |
ANSI/PLATO FL1 Specifications
| Feature |
Measurement |
| Maximum Light Output |
3300 lumens |
| Maximum Runtime |
59 hours |
| Maximum Beam Distance |
286 metres |
| Peak Beam Intensity |
20486 candela |
| Impact Resistance |
1.5 metres |

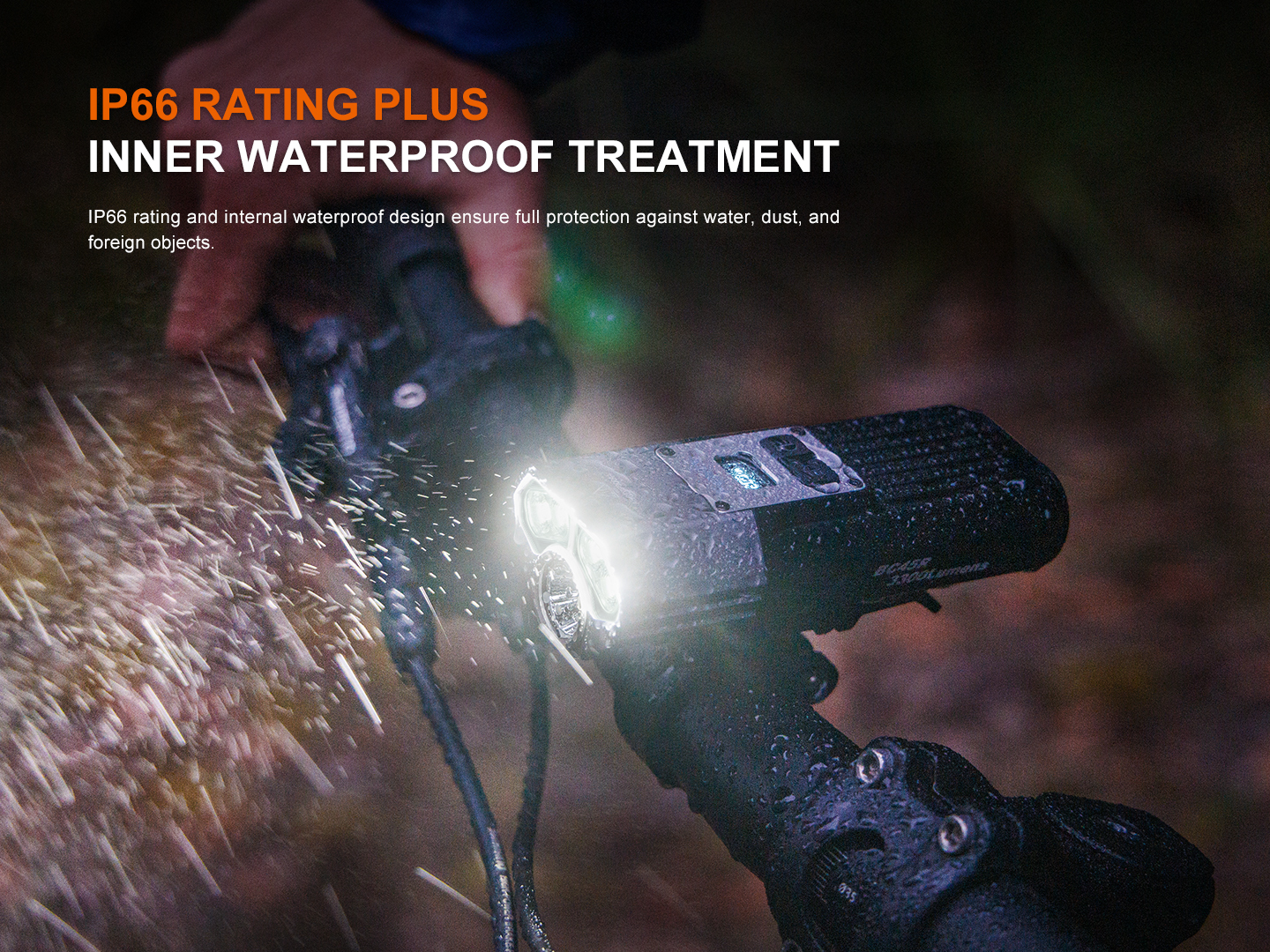

| Ingress Protection Rating |
IP66 |
Dimensions
| Feature |
Measurement |
| Length |
125 mm |
| Width |
50 mm |
| Height |
37 mm |
| Weight |
300 g |
Additional Data
Technical parameters
|
|
HIGH BEAM MODE |
LOW BEAM MODE |
SPECIAL MODE |
| HIGH |
MED |
LOW |
HIGH |
MED |
LOW |
ECO |
TURBO |
FLASH |
| Max Output |
2000 lm |
800 lm |
200 lm |
1500 lm |
800 lm |
200 lm |
50 lm |
3300 lm* |
800-100 lm |
| Max Runtime |
5h 15min |
6h 15min |
16h 45min |
5h 30min |
6h 15min |
20h 15min |
59h 9min |
3h |
/ |
| Max Beam Distance |
269 m |
174 m |
85 m |
142 m |
102 m |
50 m |
25 m |
286 m |
/ |
| Peak Beam Intensity |
18211 cd |
7651 cd |
1820 cd |
5049 cd |
2617 cd |
629 cd |
157 cd |
20486 cd |
/ |
Note: The above specifications are from the results produced by Fenix through its laboratory testing using two Fenix ARB-L18-3400 batteries under the temperature of 21±3°C and humidity of 50% - 80%. The true performance of this product may vary according to different working environments and the actual battery used.
*The Turbo output is measured in total of runtime including output at reduced levels due to temperature or protection mechanism in the design.
Performance and Runtime Disclaimer
How to read the data: The outputs provided above are maximum outputs for each mode, and the runtimes provided are the time it takes to drop to 10% of the initial output. This is in line with the International Flashlight Testing Standard ANSI FL1.
Any visual representations (graphs) of the data are approximate only.
Read more
The actual output of the torch/headlamp is controlled by an in-built temperature regulation system. As the torch/headlamp heats up, the brightness will drop to prevent overheating. The Turbo modes of torches/headlamps usually drop down significantly after anything from 15 seconds to 2 minutes. High modes often also experience a drop down over time. Medium and Low modes, however, can be constant for very close to the length of time specified. As the torch/headlamp cools down, either from being turned off or from being used on a lower output level, you will be able to access higher brightness levels again.
Example: An output of 2000 lumens and runtime of 5 hours does not mean 2000 lumens for 5 hours — it means it starts at 2000 lumens and drops below 200 lumens after 5 hours of continuous use.
Turbo and high modes may be unavailable or limited as the battery gets low on charge.
Exact specifications can vary between torches, batteries, age and environments.
