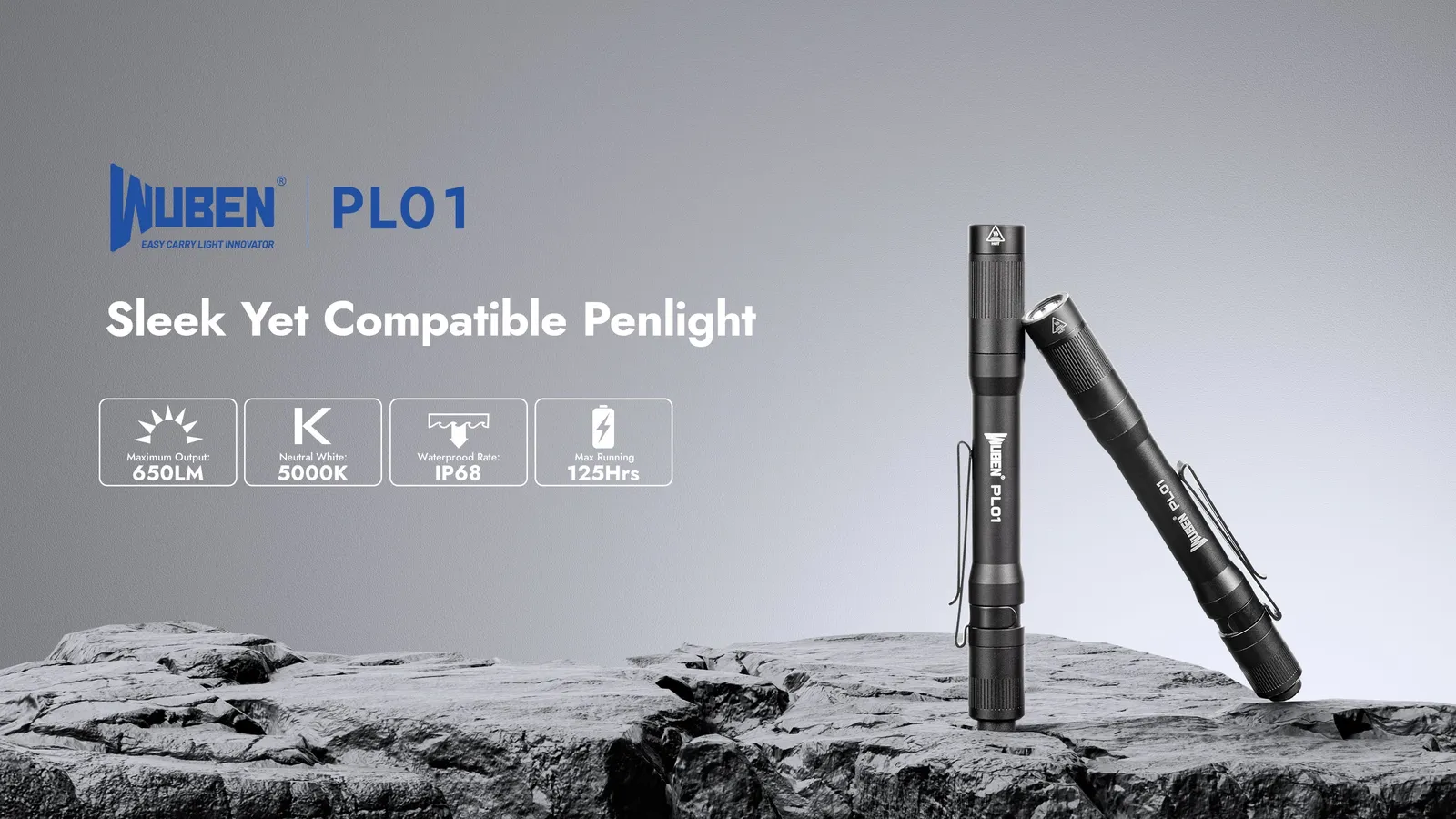

The Wuben PL01 is a featherlight, rechargeable and waterproof EDC pen torch, designed for everyday carry and tactical applications. It delivers a maximum light output of 650 lumens with a beam distance of 110 metres, and offers an maximum runtime of 125 hours. Powered by an included Wuben ABK600R 600mAh USB-C rechargeable 10880 lithium-ion battery, the PL01 features a Samsung 315D 5000K neutral white LED with a peak beam intensity of 3000 candela. It has an IP68 ingress protection rating and is impact resistant to 2 metres, ensuring durability in demanding conditions.
Features

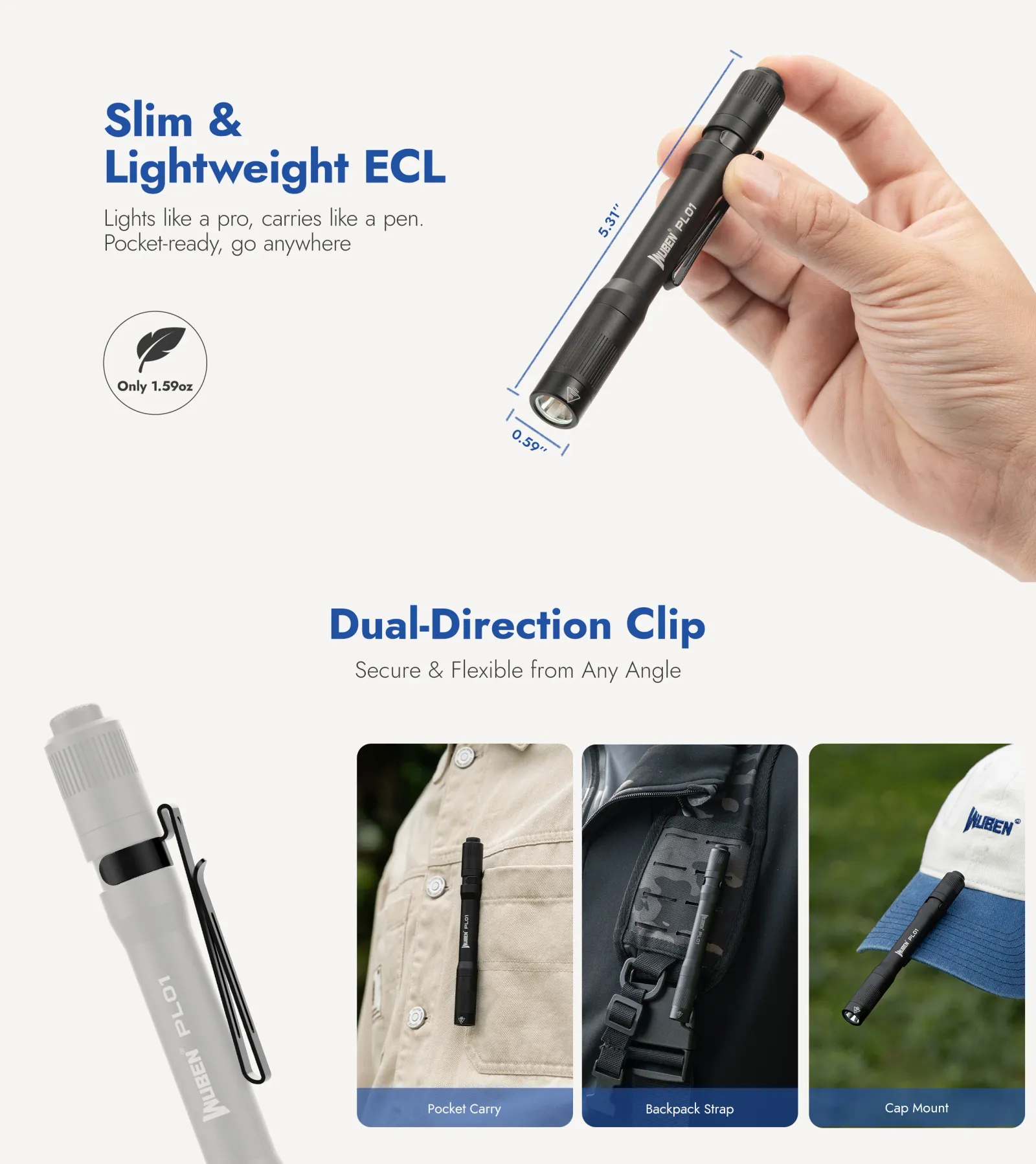

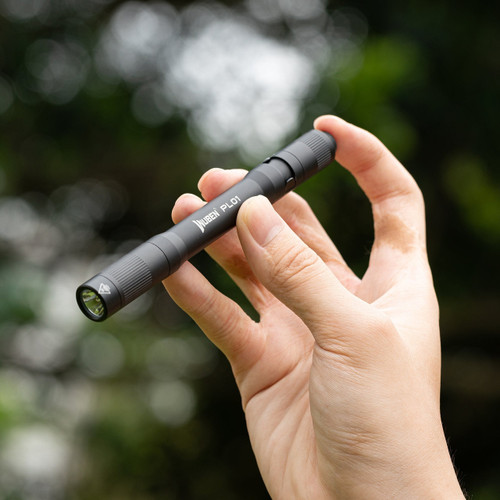

- Compact and Lightweight Design: Weighing only 49 grams (battery included), the Wuben PL01 is a featherlight and compact pen flashlight, ideal for everyday carry.
- Rechargeable Battery: This flashlight features a rechargeable battery for convenient power replenishment.

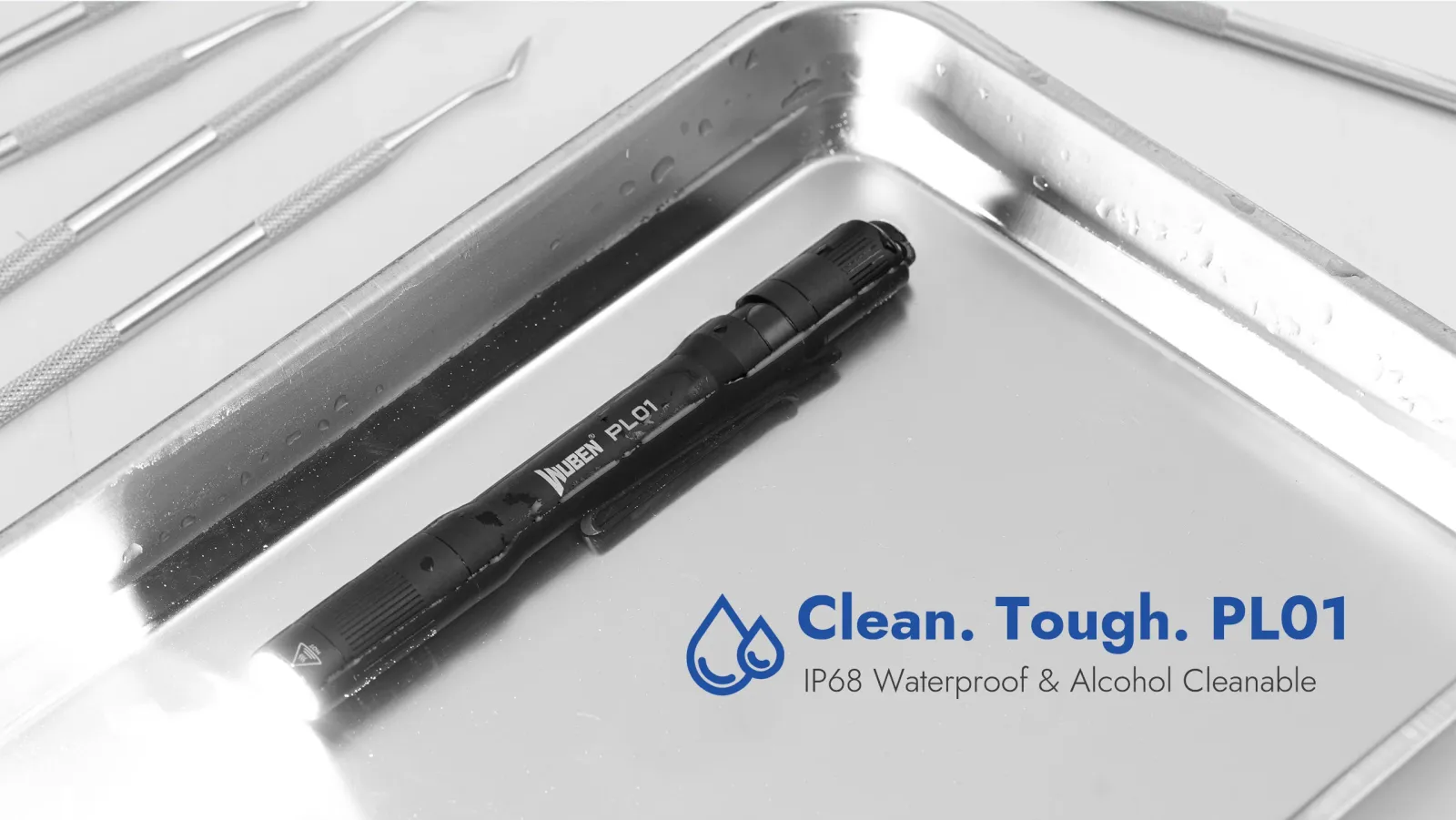

- Waterproof Construction: The Wuben PL01 has an IP68 Ingress Protection Rating, making it water resistant at a depth of 2 metres for up to 30 minutes.
Package Includes
- 1 x Wuben PL01

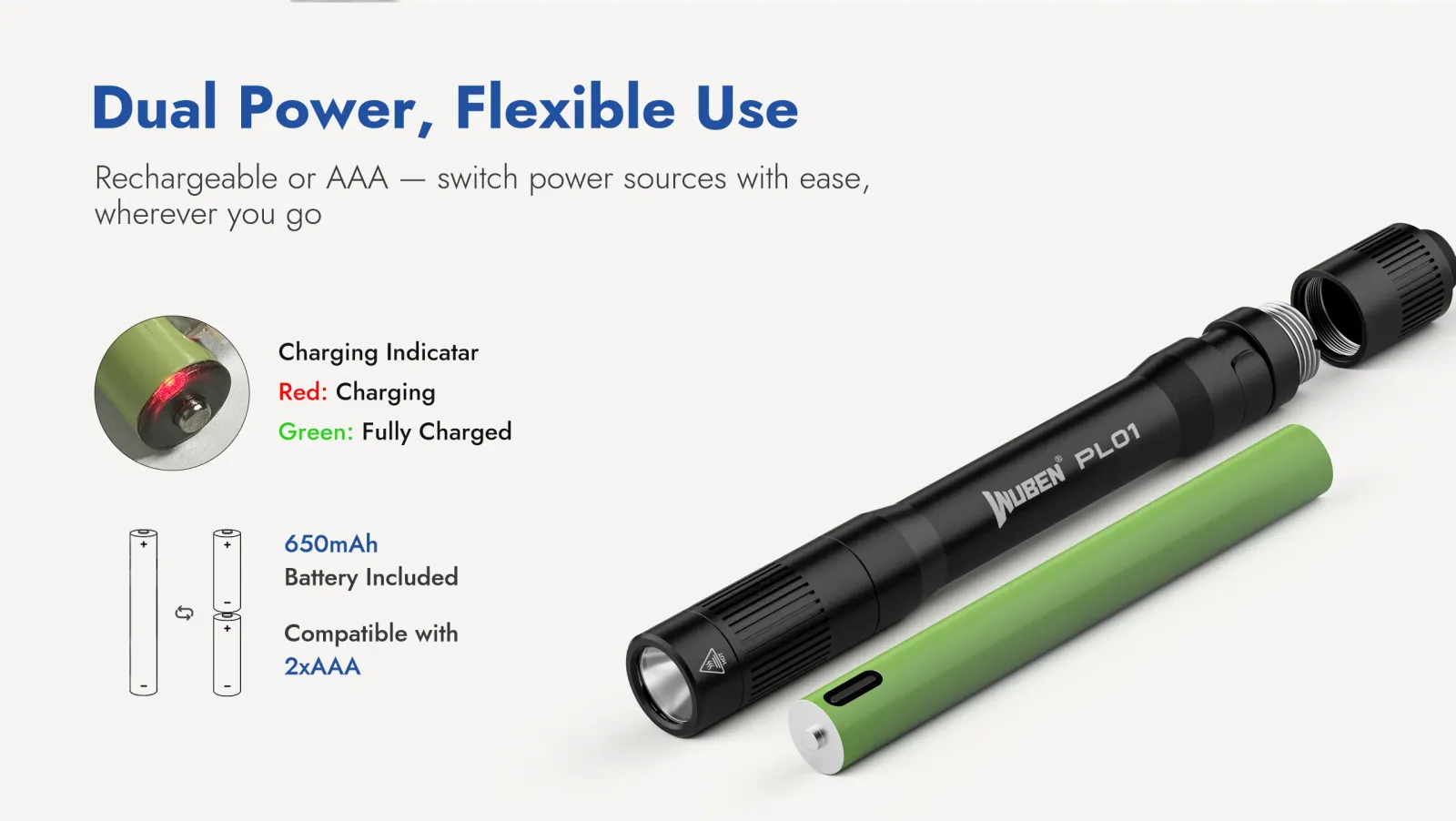

- 1 x Wuben ABK600R 600mAh USB-C Rechargeable 10880 Lithium-ion Battery
- 1 x USB Charging Cable (USB-A to USB-C)
- 1 x Lanyard
- 2 x Spare O-rings
- 1 x User Manual
Key Information
| Feature |
Details |
| Primary Light Source |

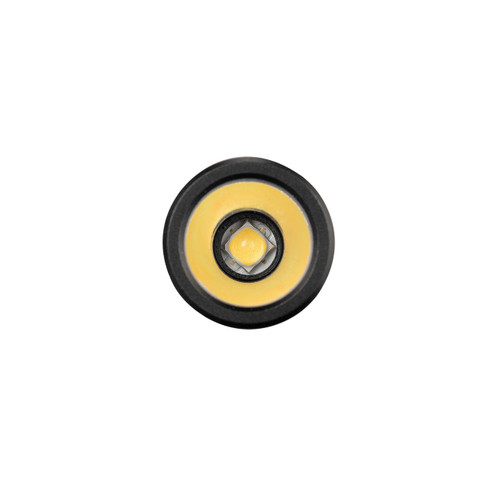

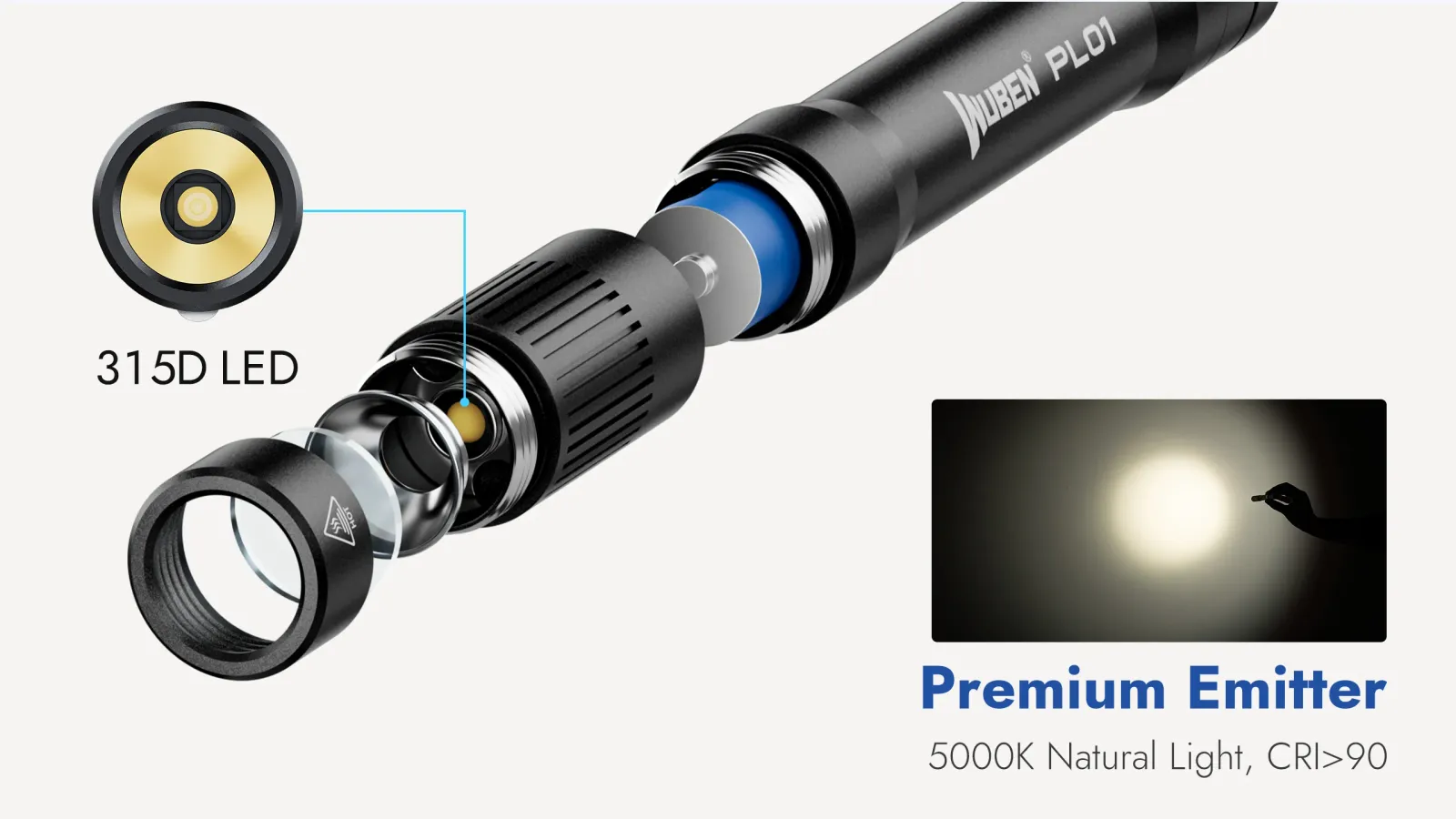

1 x Samsung 315D 5000K Neutral White LED |
| Power Source |
1 x Wuben ABK600R 600mAh USB-C Rechargeable 10880 Lithium-ion Battery |
| Recharging Method |
USB Type-C (Charging Port on Battery) |
| Material |

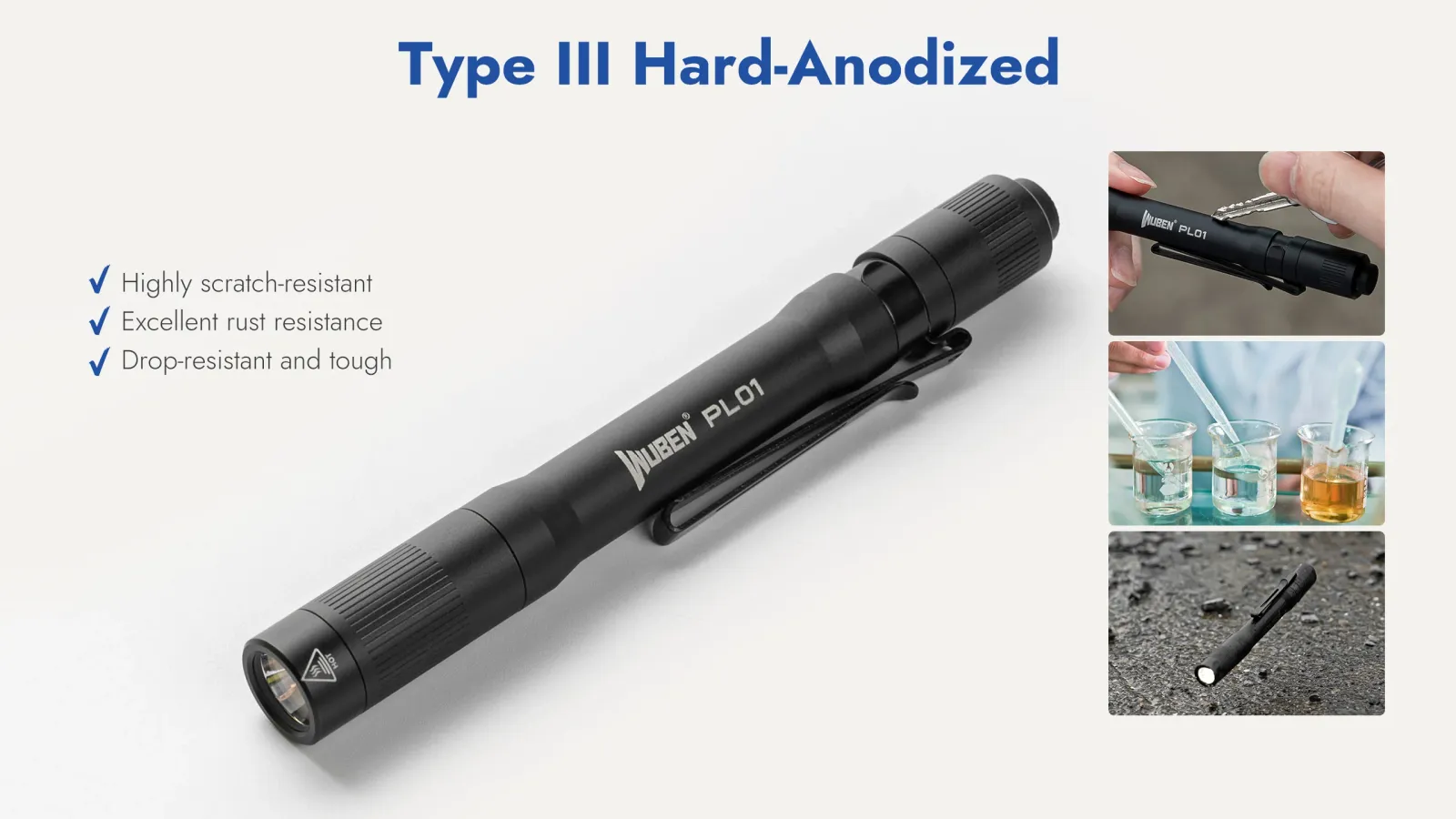

Aluminium alloy |
| Warranty (Torch) |
5 years |
| Warranty (Battery) |
1 year |
| Warranty (Accessories) |
1 year |
ANSI/PLATO FL1 Specifications
| Feature |
Measurement |
| Maximum Light Output |
650 lumens |
| Maximum Runtime |
125 hours |
| Maximum Beam Distance |
110 metres |
| Peak Beam Intensity |
3000 candela |
| Impact Resistance |
2 metres |
| Ingress Protection Rating |
IP68 |
Dimensions
| Feature |
Measurement |
| Length |
135 mm |
| Head Diameter |
15 mm |
| Body Diameter |
15 mm |
| Weight |
49 g |
Additional Data
Manufacturer's Data
| ANSI FL1 Standard |
High |
Med |
Low |
Moon |
| Max Output |
650~150 lm |
150 lm |
50 lm |
1 lm |
| Max Runtime |
1min + 1h |
2.5h |
7h |
125h |
Performance and Runtime Disclaimer
How to read the data: The outputs provided above are maximum outputs for each mode, and the runtimes provided are the time it takes to drop to 10% of the initial output. This is in line with the International Flashlight Testing Standard ANSI FL1.
Any visual representations (graphs) of the data are approximate only.
Read more
The actual output of the torch/headlamp is controlled by an in-built temperature regulation system. As the torch/headlamp heats up, the brightness will drop to prevent overheating. The Turbo modes of torches/headlamps usually drop down significantly after anything from 15 seconds to 2 minutes. High modes often also experience a drop down over time. Medium and Low modes, however, can be constant for very close to the length of time specified. As the torch/headlamp cools down, either from being turned off or from being used on a lower output level, you will be able to access higher brightness levels again.
Example: An output of 2000 lumens and runtime of 5 hours does not mean 2000 lumens for 5 hours โ it means it starts at 2000 lumens and drops below 200 lumens after 5 hours of continuous use.
Turbo and high modes may be unavailable or limited as the battery gets low on charge.
Exact specifications can vary between torches, batteries, age and environments.
